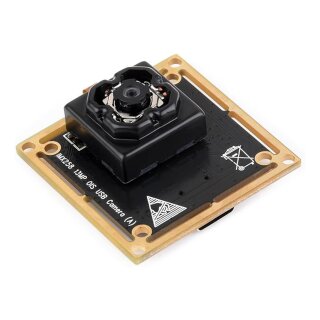

Waveshare 18586 IMX258 13MP OIS USB Camera (A)
Beschreibung
13MP OIS camera module
IMX258 sensor, Optical Image Stabilization, USB port, auto focusing
Specifications
| Pixels | 13MP | |
|---|---|---|
| Sensor | IMX258 | |
| Stabilization | Micro Gimbal Stabilizer (MGS) | |
| Interface | USB2.0 (UVC 1.0 compliant) | |
| Camera | Sensor size | 1/3.06 inch |
| Aperture (F) | 2.4 | |
| Focal length (EFL) | 2.35 mm | |
| Field of view (FOV) | 127°(D) 99.5°(H) 70°(V) | |
| Focusing | auto focusing | |
| Image | Format support | MJPG |
| Static image resolution | 4224 × 3192 | |
| Video recording | 10 FPS 4192 × 3104 (Full Frame) 20 FPS 3840 × 2160 (4K) 25 FPS 1920 × 1080 (1080P) | |
| Operating voltage | 5V ± 5% | |
| Camera size | 19.00 × 19.00 × 9.90 mm | |
| Module size | 38.00 × 35.80 mm | |
| Supported OS | Windows, Linux, mac OS | |
Optical Image Stabilization feature
OIS camera (left) VS non-OIS camera (right)
Connecting with USB cable
Outline dimensions
Selection Guide
| Part Number | Pixels | Sensor | Best Resolution | Dimension | Field of View | Feature |
|---|---|---|---|---|---|---|
| OV2710 2MP USB Camera (A) | 2MP | OV2710 | 1920x1080 | 38mmx38mm | 145° | Low-light sensitivity |
| OV5640 5MP USB Camera (A) | 5MP | OV5640 | 2592x1944 | 18×36mm | 135° | Auto focusing |
| OV5648 5MP USB Camera (A) | 5MP | OV5648 | 2592x1944 | 9mmx62mm | 70° | Small in size |
| IMX335 5MP USB Camera (A) | 5MP | IMX335 | 2592x1944 | 38×38mm | 106° | Manually focusing |
| IMX179 8MP USB Camera (A) | 8MP | IMX179 | 3288x2512 | 38mmx38mm | 145° | HD, Embedded digital mic |
| IMX258 13MP OIS USB Camera (A) | 13MP | IMX258 | 4224×3192 | 38×35.8mm | 127° | HD, OIS |
Package Contents
- IMX258 13MP OIS USB Camera (A) x1
| Versandgewicht: | 0,06 Kg |
