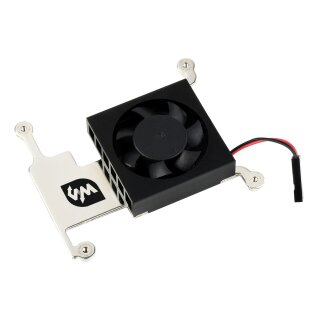

Waveshare 18709 PI-FAN-3007
Beschreibung

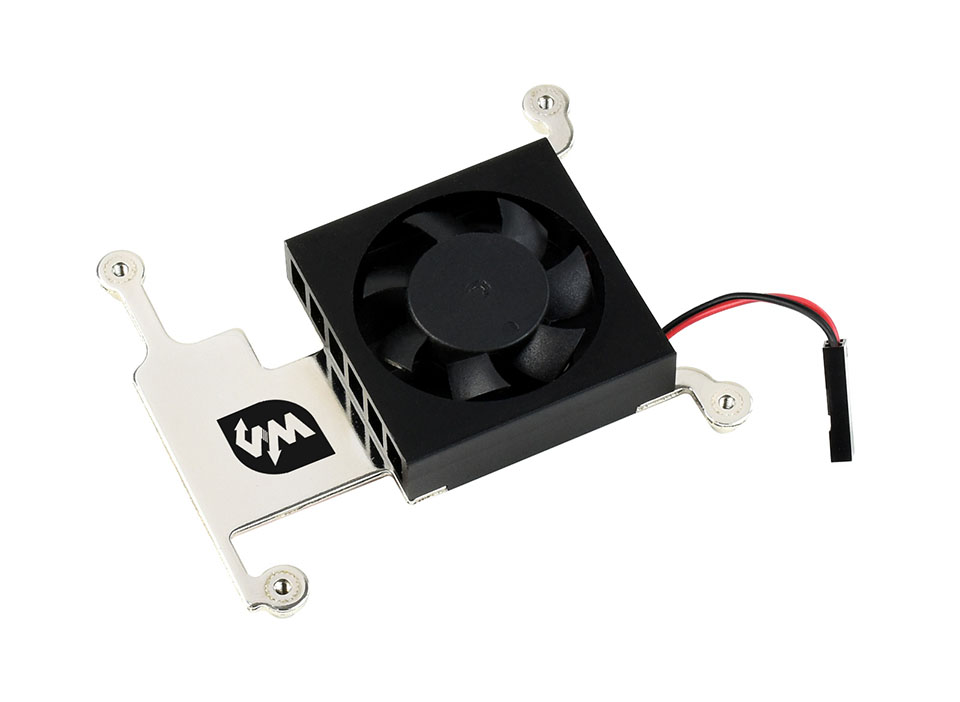

CPU Cooling Fan for Raspberry Pi
Low noise, better cooling
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accessories/PI-FAN-3007-B/PI-FAN-3007-B-details-1.jpg)
Specifications
Supported Pi | Raspberry Pi 4B/3B+/3B |
---|---|
Power supply | DC 5V input (can be powered from Raspberry Pi) |
structure | Low-profile, aluminum alloy heat-sinking bracket, optional GPIO adapter |
rated power | 0.1W@5V, 0.02A |
Fan | 3007 fan, 8000±10%RPM |
Setup example

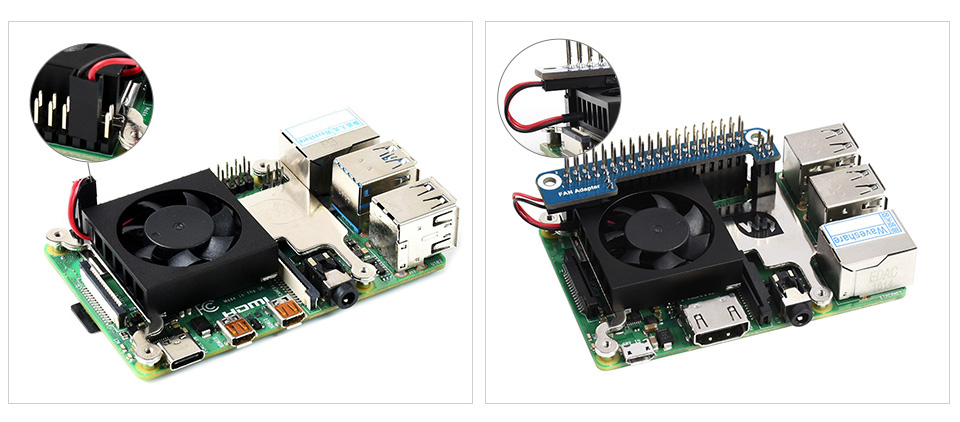

cooling the Raspberry Pi 4B (left) and Raspberry Pi 3B+/3B with GPIO adapter (right)
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accessories/PI-FAN-3007-B/PI-FAN-3007-B-details-3.jpg)

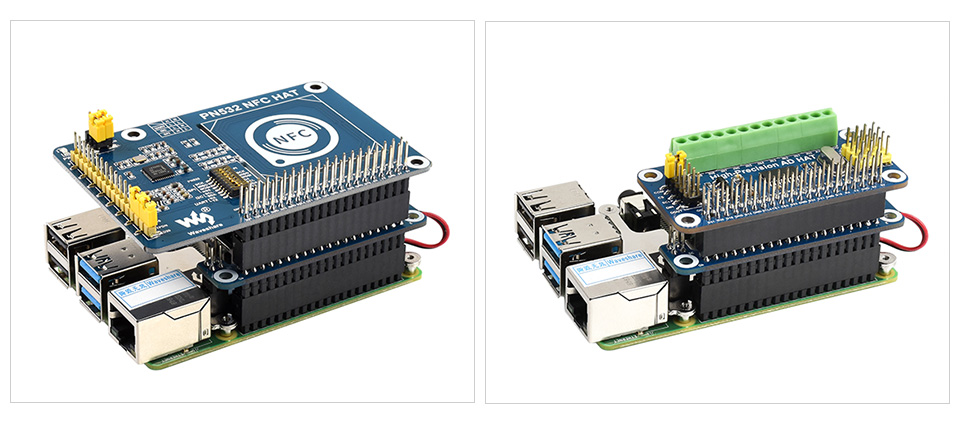

attaching other Raspberry Pi HATs via the GPIO adapter
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accessories/PI-FAN-3007-B/PI-FAN-3007-B-details-5.jpg)
The GPIO adapter is optional.Raspberry Pi and other HATs are NOT included.

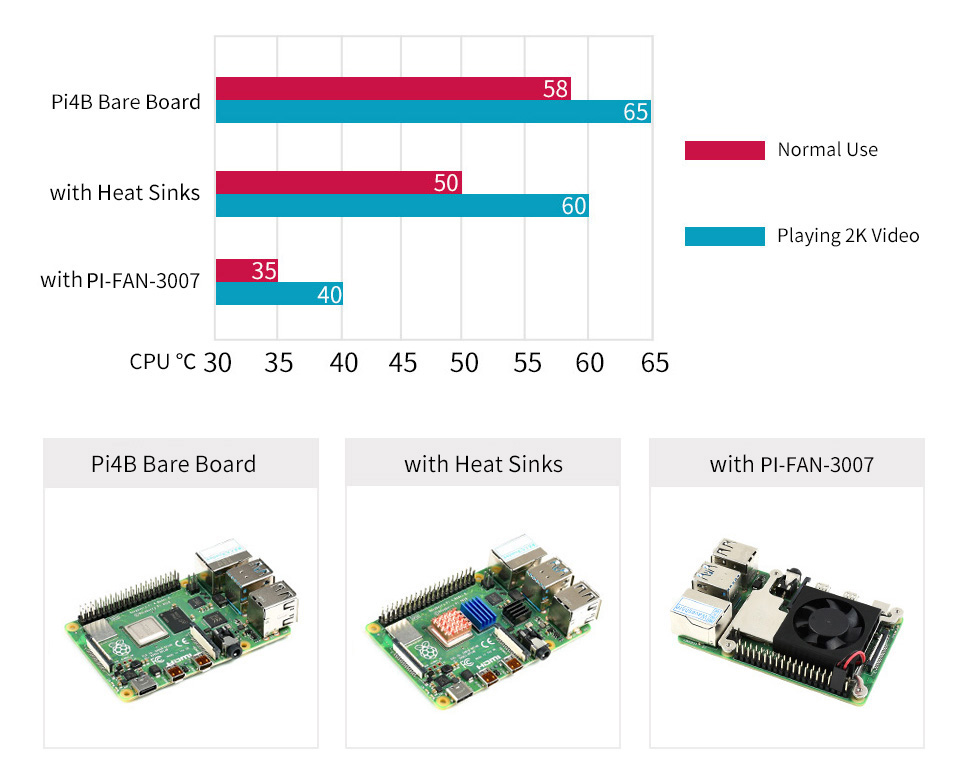

Raspberry Pi 4B Cooling Solution Comparing
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accessories/PI-FAN-3007/PI-FAN-3007-details-7.jpg)

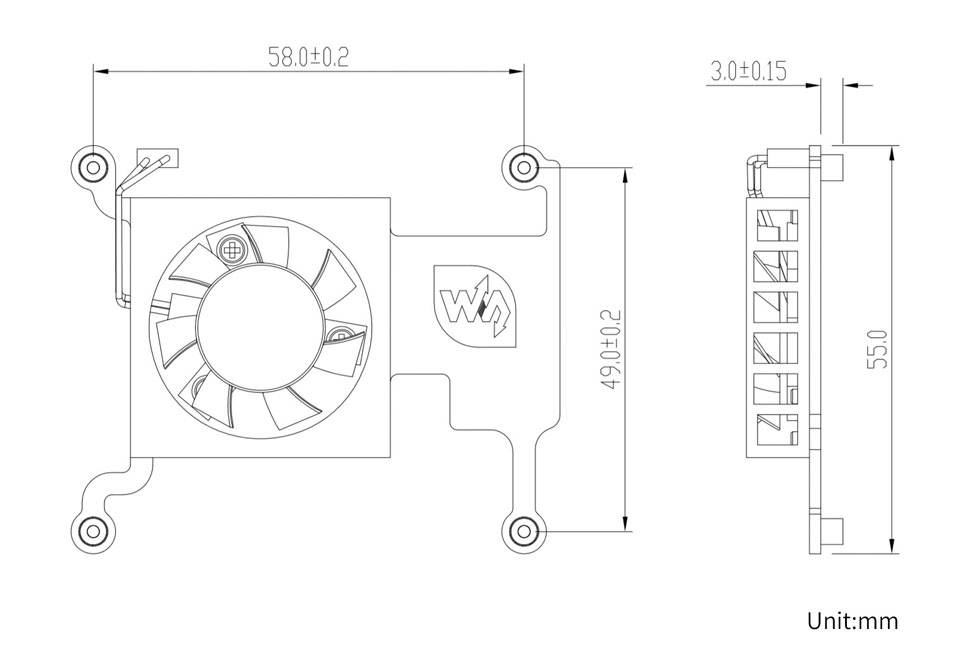

Outline Dimensions
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accessories/PI-FAN-3007/PI-FAN-3007-details-size.jpg)

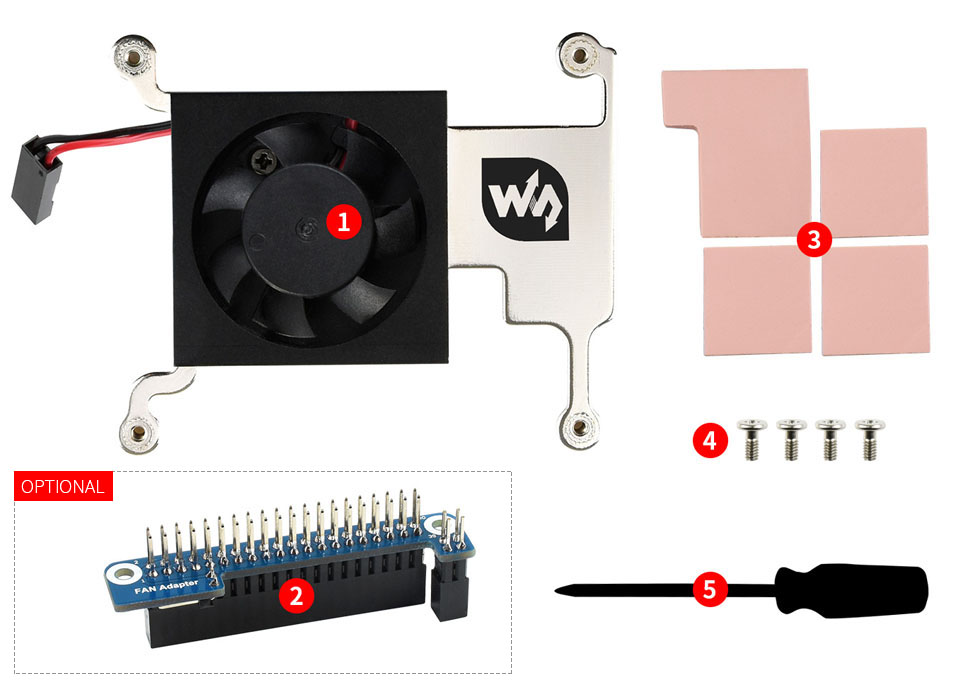

Package Contents
- PI-FAN-3007-B x1
- OPTIONS GPIO FAN Adapter x1
- Silicone thermal tape x4
- Screw x4
- Screwdriver x1
![PI-FAN-3007-B](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accessories/PI-FAN-3007-B/PI-FAN-3007-B-details-pack.jpg)
Versandgewicht: | 0,05 Kg |
