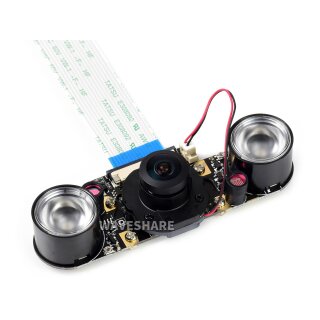

Waveshare 18946 IMX219-160 IR-CUT Camera

Artno.: WS2-018946

Waveshare 18946 IMX219-160 IR-CUT Camera

IMX219-160 8MP IR-CUT Camera, IR-CUT Infrared Night Vision, 162° FOV, Applicable For Jetson Nano / Compute Module

29.90 € incl. 19% VAT

25.13 € excl. VAT

10+ On stock

Shipping time: 1 - 3 business days

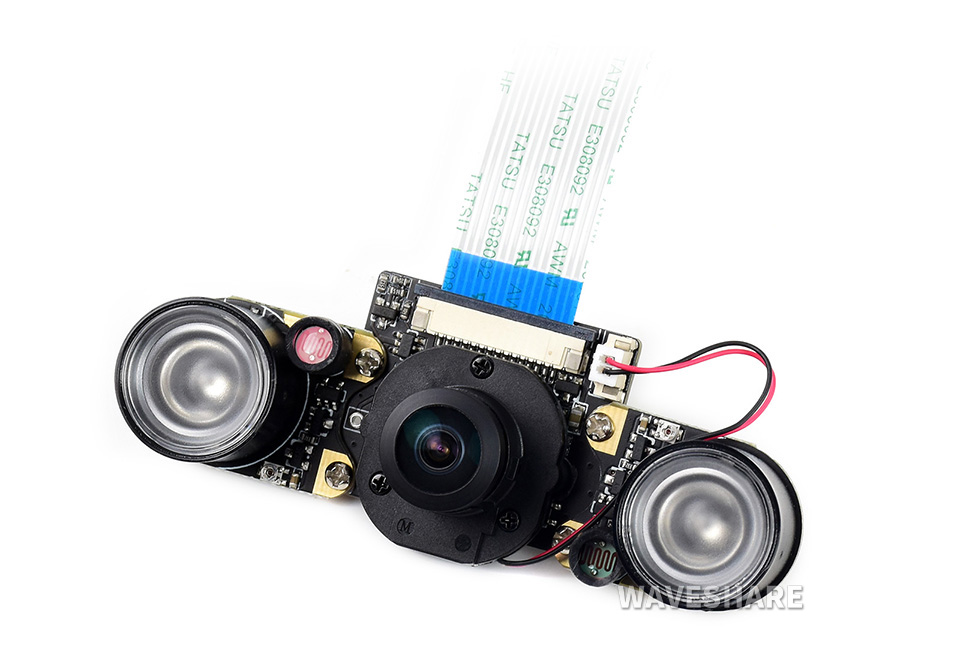

8MP IR-CUT camera module

IMX219 sensor, 8MP, comes with infrared LEDsembedded IR-CUT, eliminating the reddish issue of normal IR cameras on daylight

Pixels	8MP
Sensor	IMX219
Camera	Sensor size	1/4 inch
	Aperture (F)	2.7
	Resolution	3280 × 2464
	Focal length (BFL)	3.62
	Field of view (FOV)	162.4°(D) 124°(H) 91°(V)
	Distortion	<-22.7%

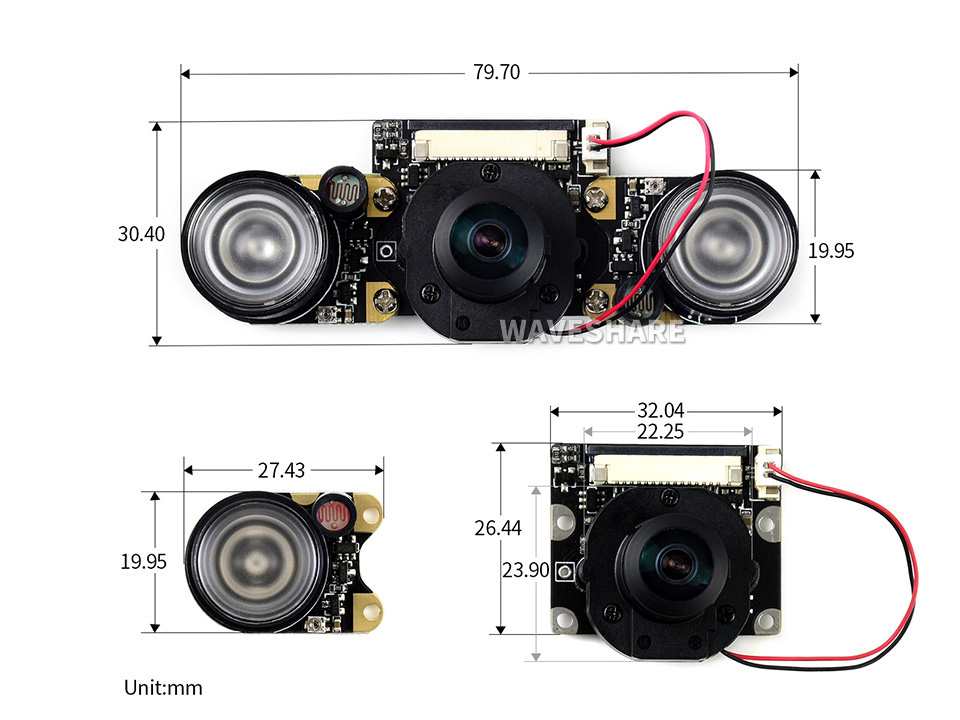

4x Mounting holes	used for attachment provides 3.3V power output supports connecting infrared LED and/or fill flash LED
Operating voltage	3.3V
Applications	suitable for AI applications like: facial recognition, road mark recognition, license plate number recognition, and so on.

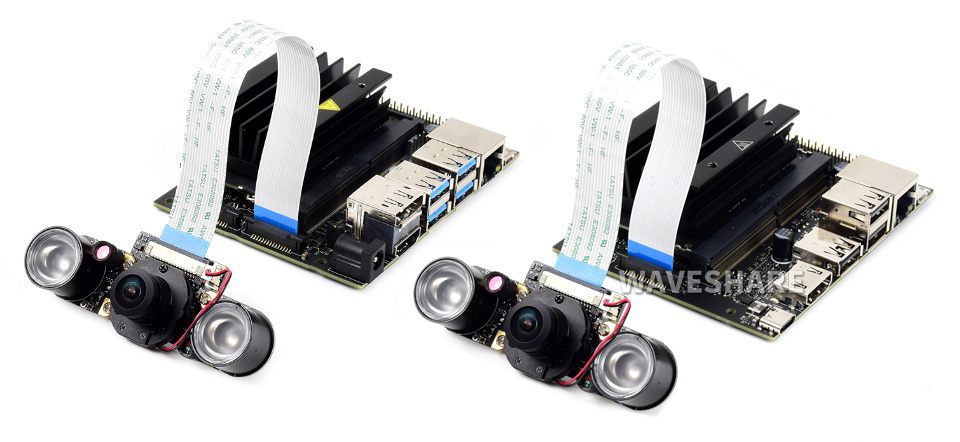

Jetson Nano Developer Kit B01 (left) and Jetson Nano 2GB Developer Kit (right)

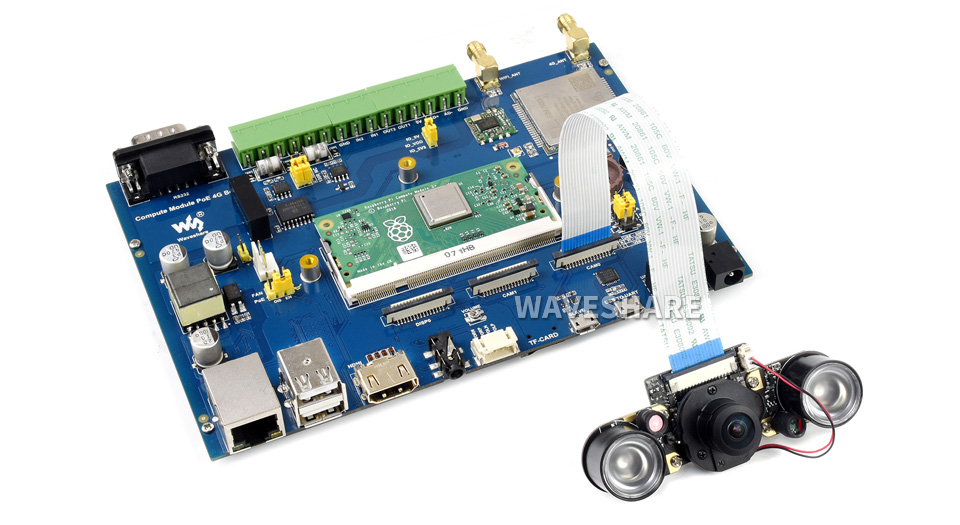

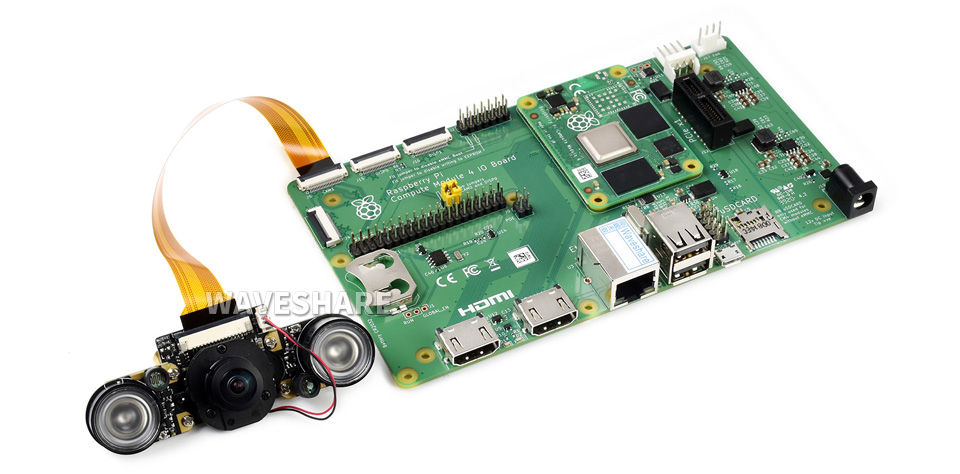

Compatible with Raspberry Pi Compute Module CM3 / CM3+ / CM4

Wiki: IMX219-160_IR-CUT_Camera

Product	Pixels	Sensor	Infrared	Camera	Angle of View (diagonal) (degree)	Aperture (F)	Focal Length (mm)	PCBA	Suit for
RPi Camera V2	8 Mega	IMX219	×	1	62.2	2.0	3.04	√	Raspberry Pi, CM3/3+/4, Jetson Nano
RPi NoIR Camera V2			√	1	62.2	2.0	3.04	√	Raspberry Pi, CM3/3+/4, Jetson Nano
IMX219-77 Camera			×	1	77	2.0	2.96	√	CM3/3+/4, Jetson Nano
IMX219-77IR Camera			√	1	77	2.0	2.96	√	CM3/3+/4, Jetson Nano
IMX219-120 Camera			×	1	120	2.2	1.88	√	CM3/3+/4, Jetson Nano
IMX219-160 Camera			×	1	160	2.35	3.15	√	CM3/3+/4, Jetson Nano
IMX219-160IR Camera			√	1	160	2.35	3.15	√	CM3/3+/4, Jetson Nano
IMX219-160 IR-CUT Camera			√	1	162	2.7	3.62	√	CM3/3+/4, Jetson Nano
IMX219-170 Camera			×	1	170	2.0	2.2	√	CM3/3+/4, Jetson Nano
IMX219-200 Camera			×	1	200	2.0	0.87	√	CM3/3+/4, Jetson Nano
IMX219-D160			×	1	160	2.35	3.15	×	Raspberry Pi, CM3/3+/4, Jetson Nano
IMX219-83-Stereo-Camera			×	2	83	-	2.6	√	CM3/3+/4, Jetson Nano (B01)
