Waveshare 19075 3-CH Relay for Jetson Nano
Description

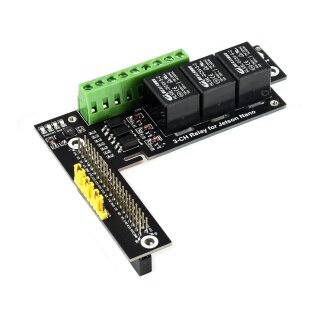

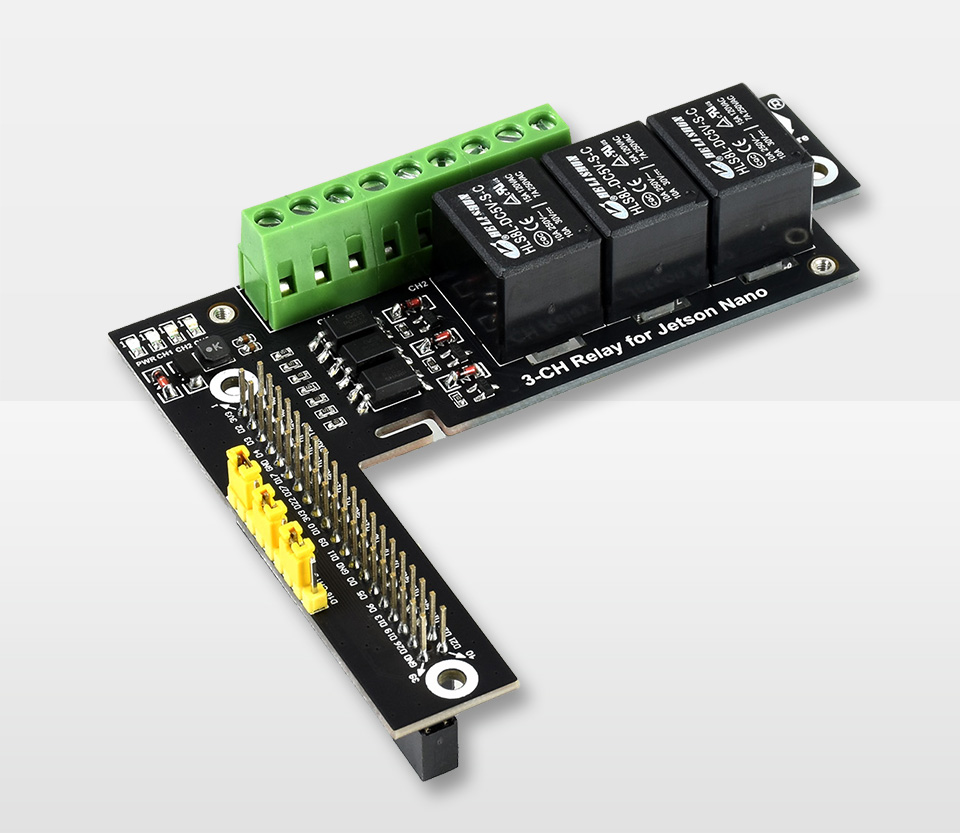

3-CH Relay for Jetson Nano
3 channels relay controlconfigurable control pin, up to 2x stackable
Features at a glance
- Standard 40PIN GPIO header, directly pluggable onto the Jetson Nano
- Incorporate quality relay component, max load: =5A 250V AC or =5A 30V DC
- Optocoupler isolation, prevent interference from the high voltage circuitry
- Indicators for monitoring the relay operating status
- Control pins of relays are configurable via jumpers
- Acrylic bottom panel, isolating the Jetson Nano from the relay expansion board
- Comes with development resources and user manual (python and python-bottle examples)
What can it do?

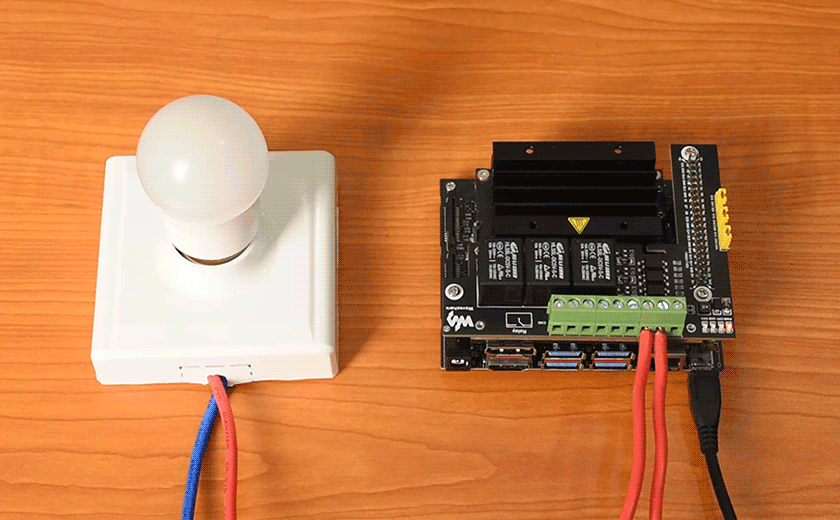

it will give your Jetson Nano the ability to control high voltage home appliances, and more...
Tailored for Jetson Nano

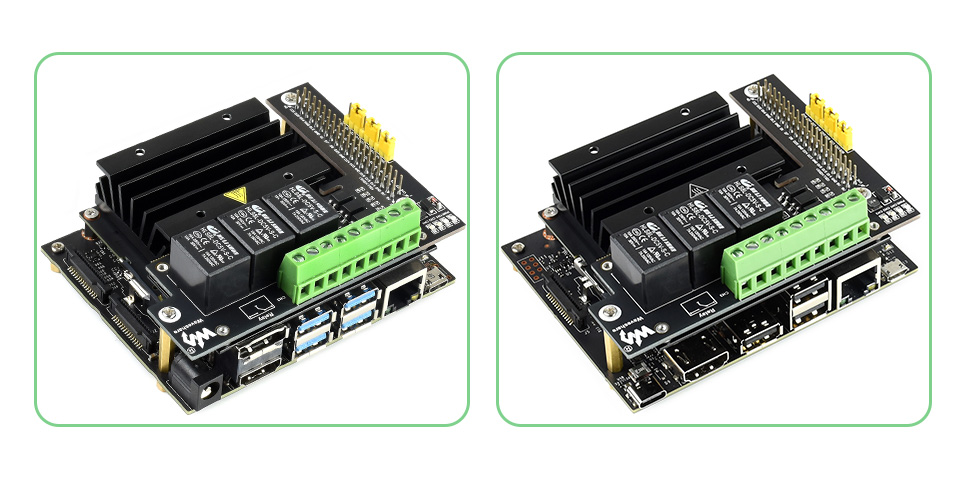

Jetson Nano Developer Kit B01 (left) and Jetson Nano 2GB Developer Kit (right)
3-ch relay control

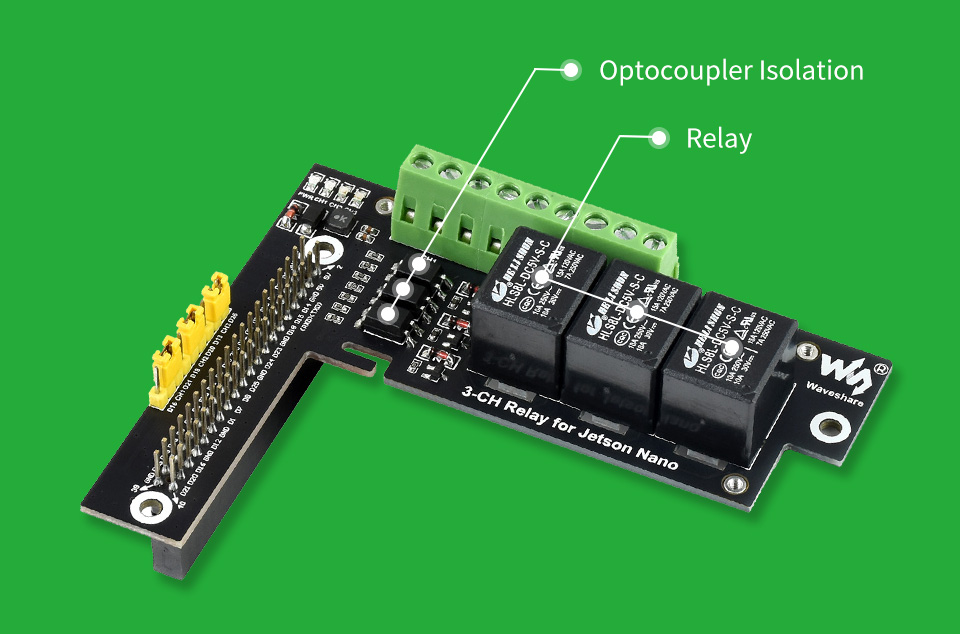

quality relay component with optocoupler isolation

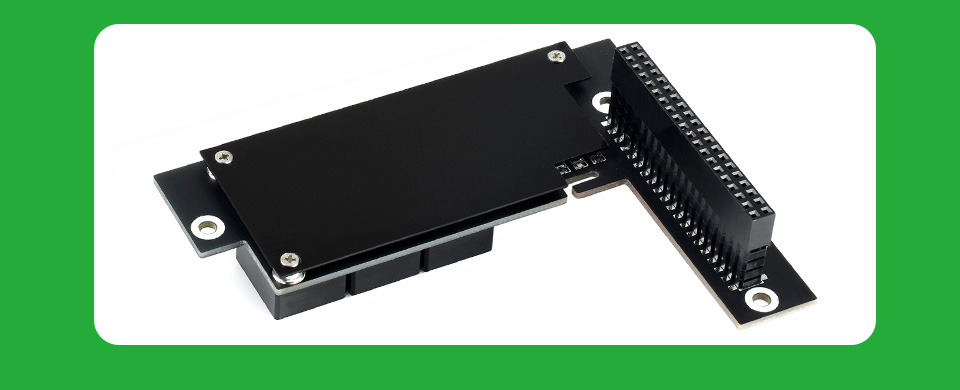

isolation bottom panel, prevent interference from the high voltage circuitry

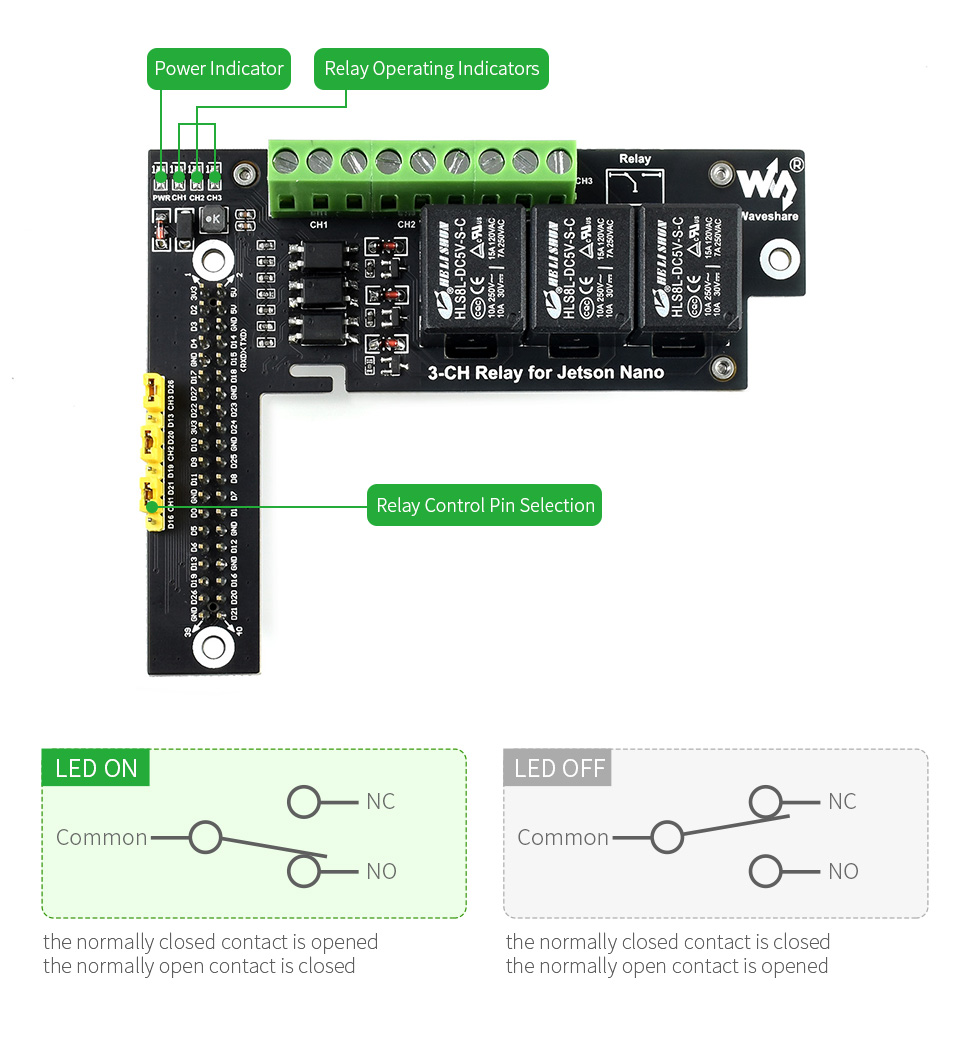

Indicators and selection jumpers
easy to monitor the relay operating status, Control pins of relays are configurable

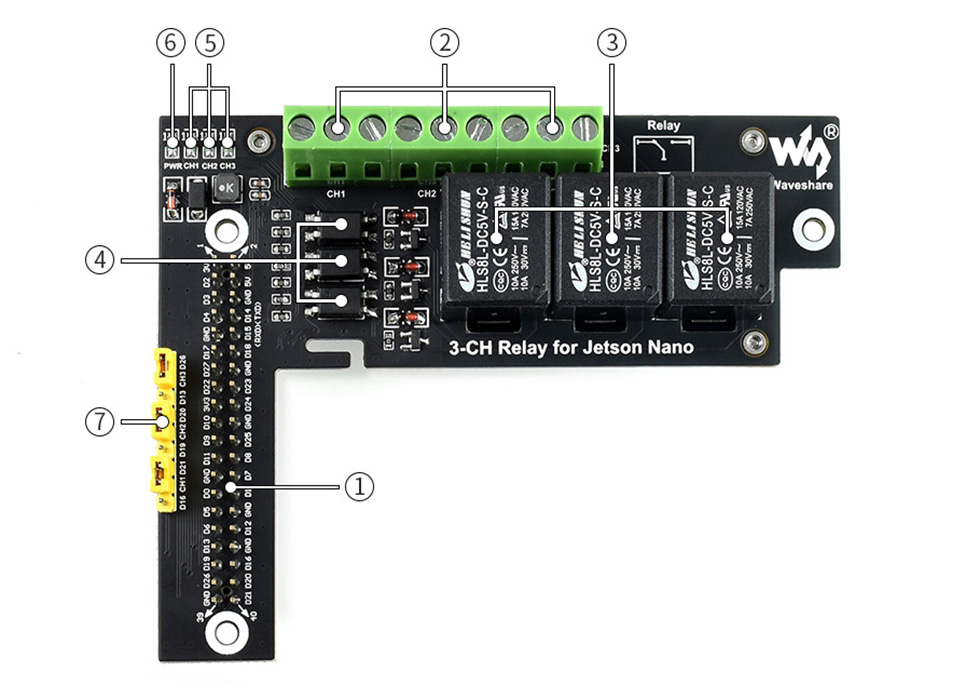

What's on board
- 40PIN GPIO header
- Relay screw terminals
- Relay components
- Optocouplers
- Relay operating indicators
- Power indicator
- Relay control pin selection jumpers
Pinout definition

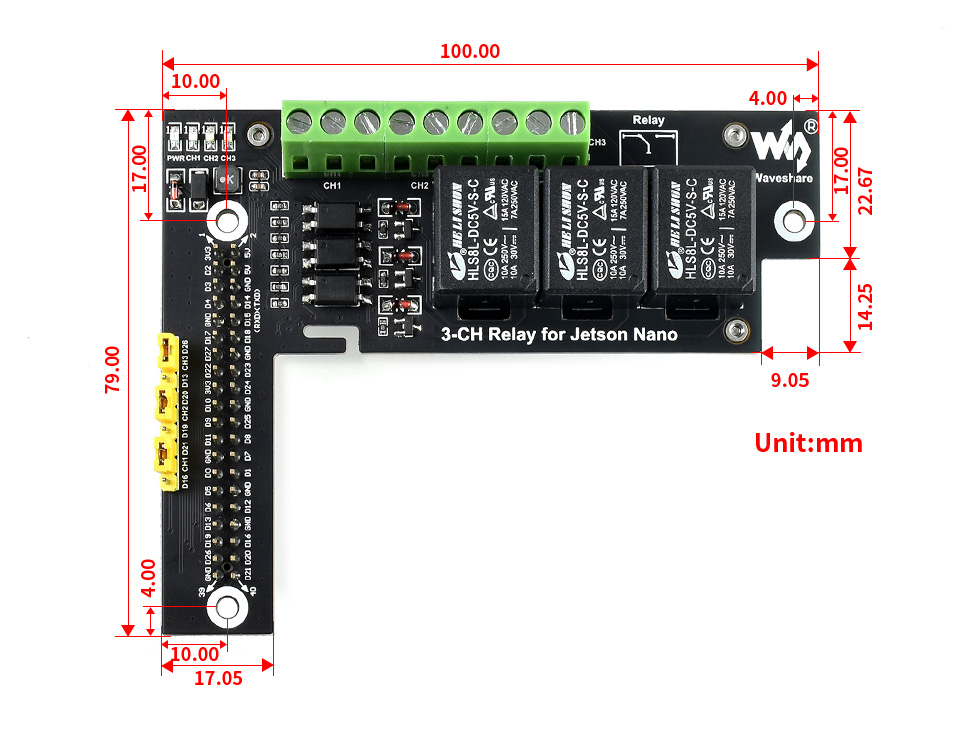

Outline dimensions

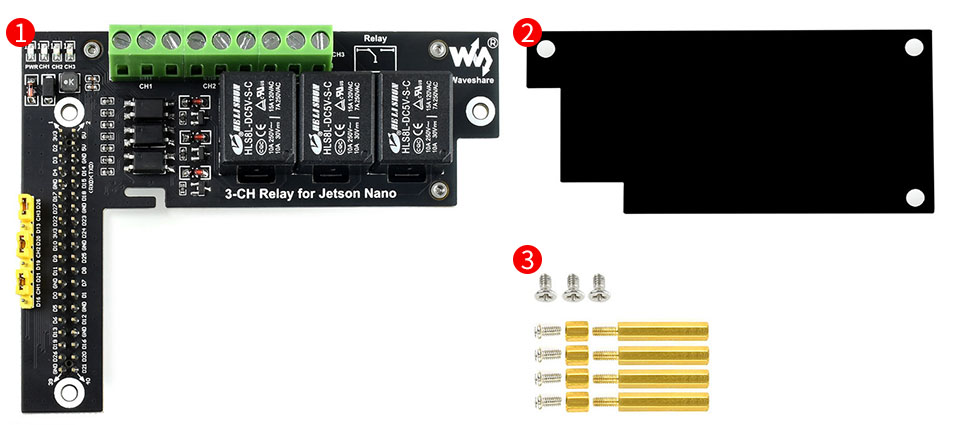

Package Contents
- 3-CH Relay for Jetson Nano x1
- Acrylic panel x1
- Screws pack x1
| Shipping weight: | 0.12 Kg |
