Waveshare 19186 ESP32 One Kit
Beschreibung
ESP32 One WiFi / Bluetooth
image recognition, voice processing, and more...
Compatible with sorts of Raspberry Pi HATs
Features at a glance
- OV2640 camera (optional) and digital microphone, supports applications like image recognition, voice processing...
- Standard 40PIN GPIO header, compatible with Raspberry Pi HATs for sorts of IoT applications
- Integrated Li-ion battery boost charging manager, supports battery charging/discharging, can also be powered from USB connection
- Compatible with Arduino and ESP-IDF software SDK, seamlessly connecting with ESP-WHO applications
- Onboard 8MB PSRAM, 4MB FLASH storage, supports SD extension as well
- CP2102 USB to UART converter, for serial debugging/programming
- 4x LED indicators, make it easy to check the operating status
- Comes with development resources and manual
Specifications
| WiFi | 802.11b/g/n | ||
|---|---|---|---|
| Bluetooth | Bluetooth 4.2, including traditional BR/EDR, and BLE low-energy | ||
| Processor | Xtensa LX6 dual-core processor @240MHz | ||
| camera | OV2640 (UXGA 1622×1200) (optional) | ||
| SRAM | 520KB+8MB | Flash | 448KB+4MB |
| Input voltage | 3.3V~5V | Operating voltage | 3.3V |
| Charge current | 1A@5V | Overall consumption | 7.7mA@5V (ESP32 under deep sleep) |
| Dimensions | 65mm × 30.5mm | Operating temperature | -40? ~ 85? |
WiFi / Bluetooth dual-mode communication
WiFi or Bluetooth EDR image transmission
for reference only, e-Paper display is NOT included.
image recognition & voice processing
incorporates OV2640 2MP camera (optional) and digital microphone
Compatible with ESP-WHO framework, it is fast and easy to build applications like facial recognition, speech wakeup, and the like...
battery-powered or USB-powered
the battery can also be charged via USB connection, needs no additional charger
for reference only, battery is NOT included.
Raspberry Pi HATs compatibility
free expansion thanks to the standard 40PIN GPIO header
Compatible on hardware connection, however, software porting may be required for certain HATs.
application examples

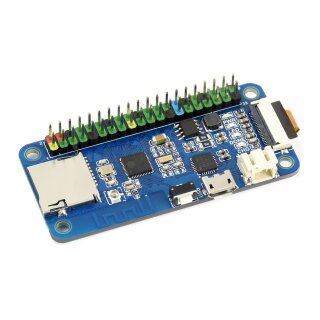

What's On Board
- ESP32-D0WDQ6-V3 processor
- 40MHz passive crystal oscillator
- Reset button
- CP2102 USB to UART converter
- Indicators PWR: power indicator LED: PWM control indicator DONE: Li-ion battery fully charged CHG: Li-ion battery charging
- CS8501 Li-ion battery charge manager
- 32.768KHz passive crystal oscillator
- OV2640 camera (optional) 2MP (UXGA 1622×1200)
- MSM261S4030H0R digital microphone sensitivity -26dBFS @1kHz 1Pa
- RT9166A-28PXL power chip
- RT9193-33 power chip
- RT9166A-12PXL power chip
- ESP-PSRAM64H RAM
- W25Q32JVSSIQ FLASH
- Raspberry Pi GPIO header compatible with Raspberry Pi HATs
- Micro SD card slot
- IPEX antenna connector
- USB TO UART port
- 4.2V Li-ion battery connector PH2.0 single cell
- DVP camera interface
pinout definition
Outline dimensions
Resources & Services
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Package Contents
- OPTIONS ESP32 One main unit x1
- USB-A to micro-B cable x1
- Screws pack x1
