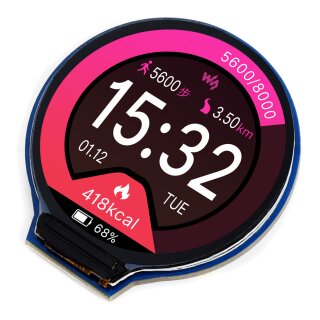

Waveshare 19192 1.28inch LCD Module

Artnr.: WS3-019192
Hersteller: Waveshare

Rundes 1,28-Zoll-LCD-Anzeigemodul, 65K RGB-Farben, 240×240 Auflösung, SPI-Schnittstelle

15,90 €

inkl. 19% MwSt.

(13,36 € exkl. MwSt.)

zzgl.

ab Lager lieferbar

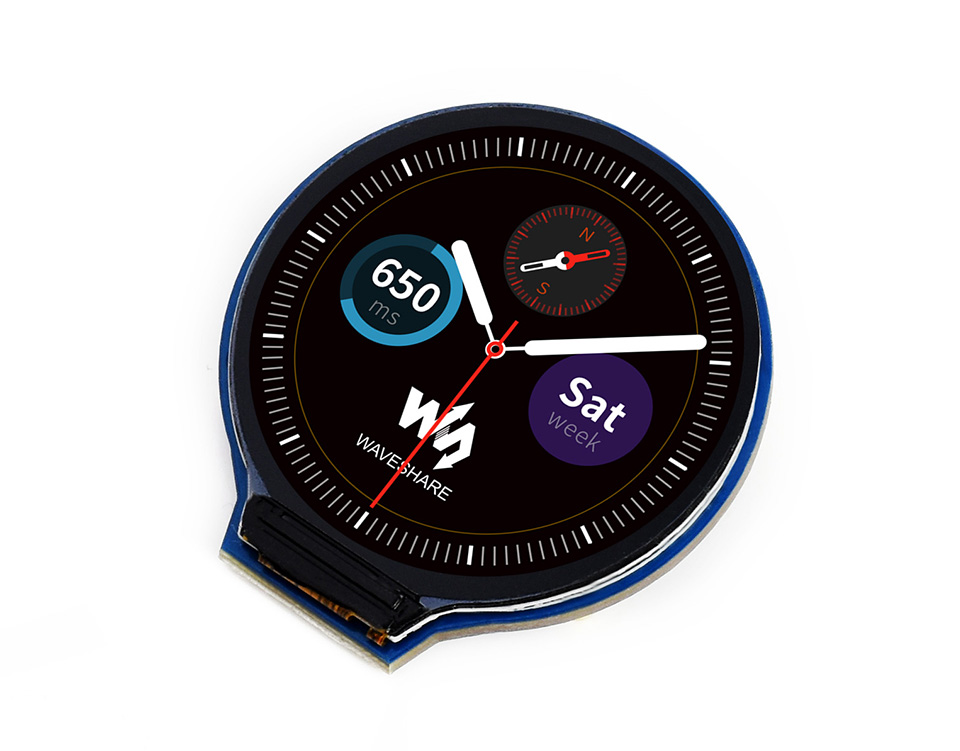

1.28" Round LCD Display Module

embedded GC9A01 driver, using SPI bus

Comes with examples for Raspberry Pi, Arduino, STM32, etc.

Size1.28"
Resolution240×240
Display Color65K RGB
InterfaceSPI
DriverGC9A01

Features at a glance

240×240 resolution, 65K RGB colors, clear and colorful displaying effect
SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32
Comes with development resources (examples for Raspberry Pi/Arduino/STM32)

Specifications

Operating voltage	3.3V / 5V	Resolution	240 × 240 pixels
Communication Interface	4-wire SPI	Display size	F32.4mm
Display Panel	IPS	Pixel size	0.135 × 0.135mm
Driver	GC9A01	Dimensions	40.4 × 37.5mm F37.5mm

Controlled via SPI Bus

supports controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32

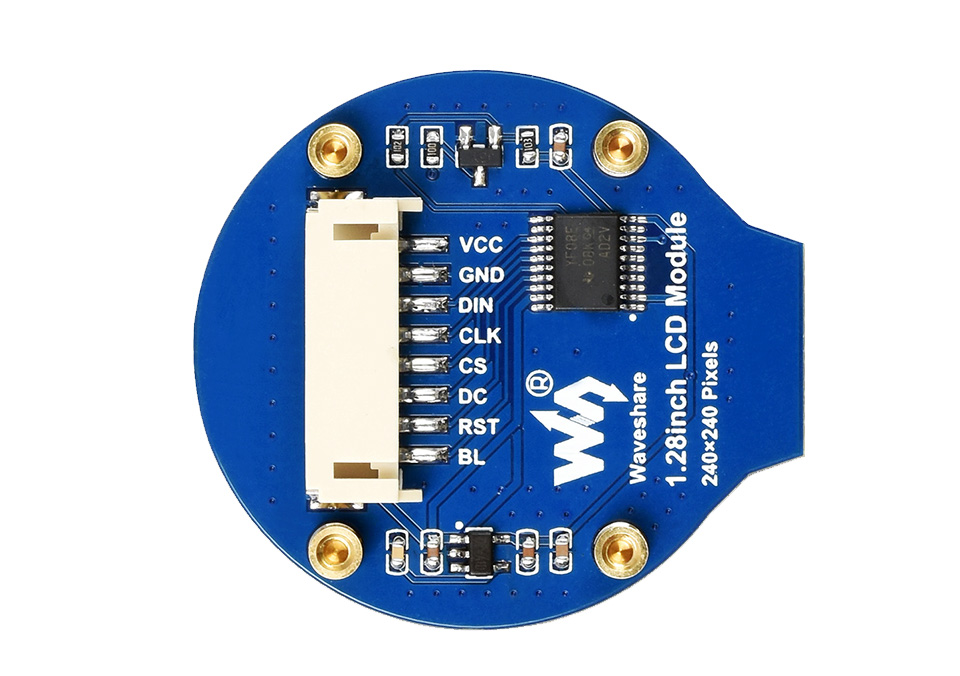

VCC	Power (3.3V / 5V input)
GND	Ground
DIN	SPI data input
CLK	SPI clock input
CS	Chip selection, low active
DC	Data/Command selection (high for data, low for command)
RST	Reset, low active
BL	Backlight

Hardware connection

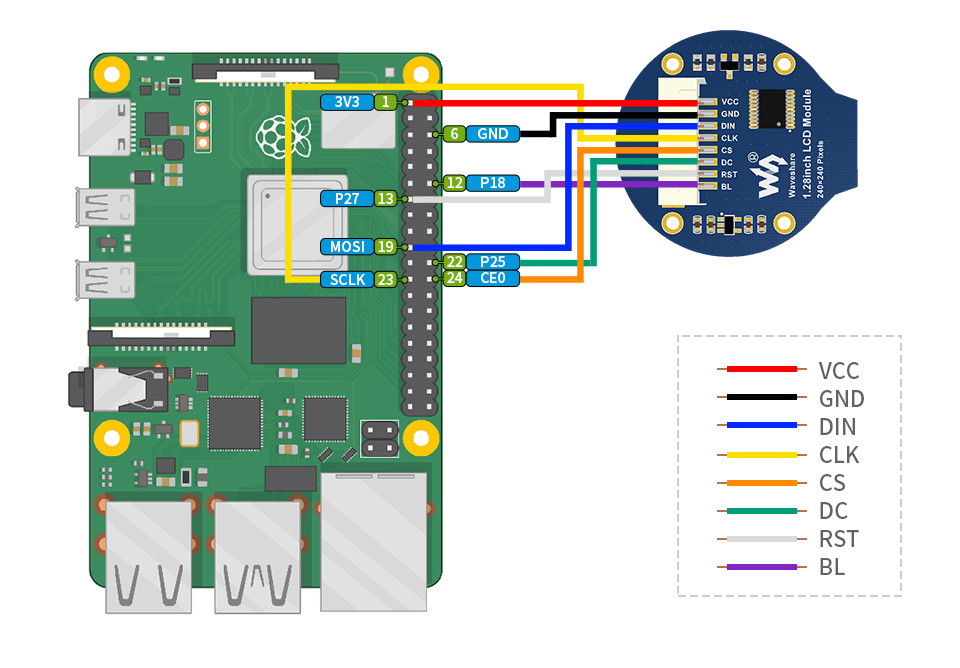

connecting with Raspberry Pi

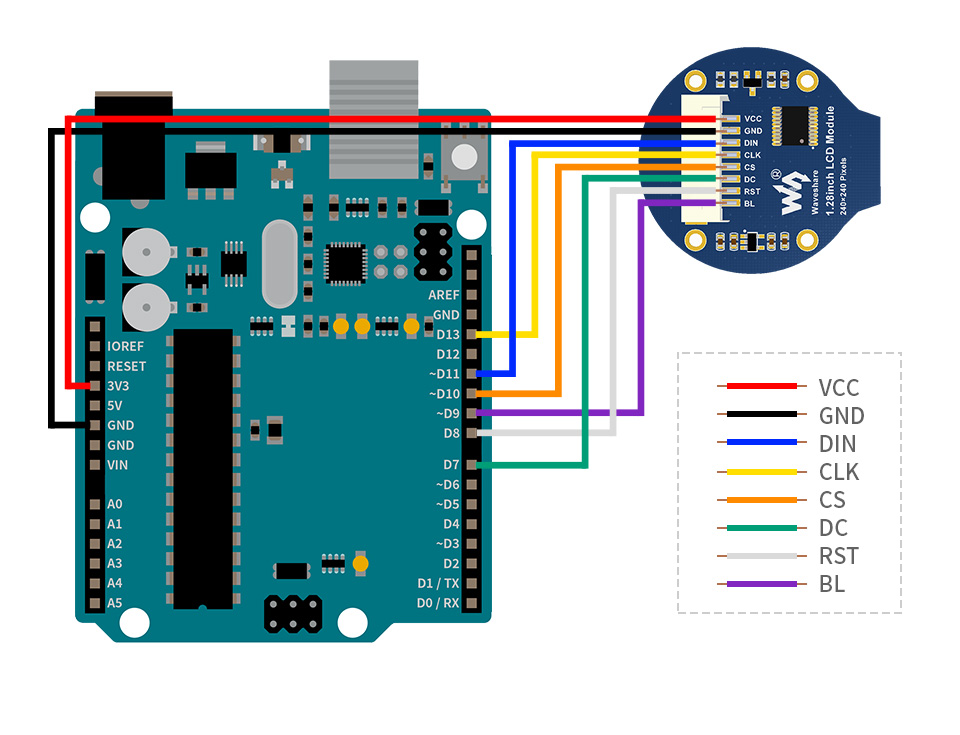

connecting with Arduino board

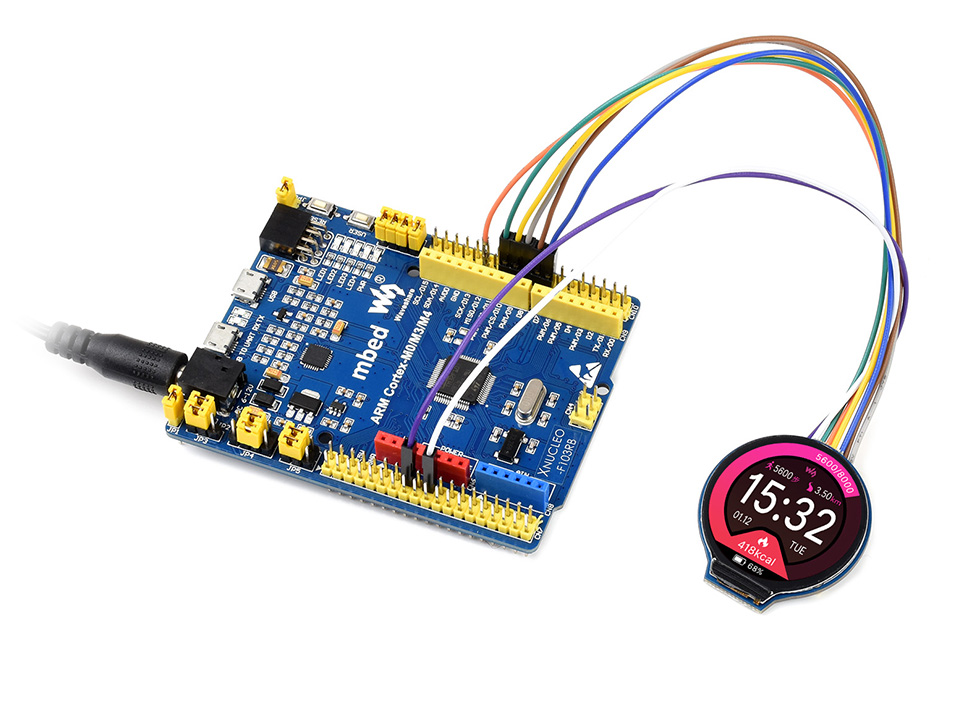

Living example

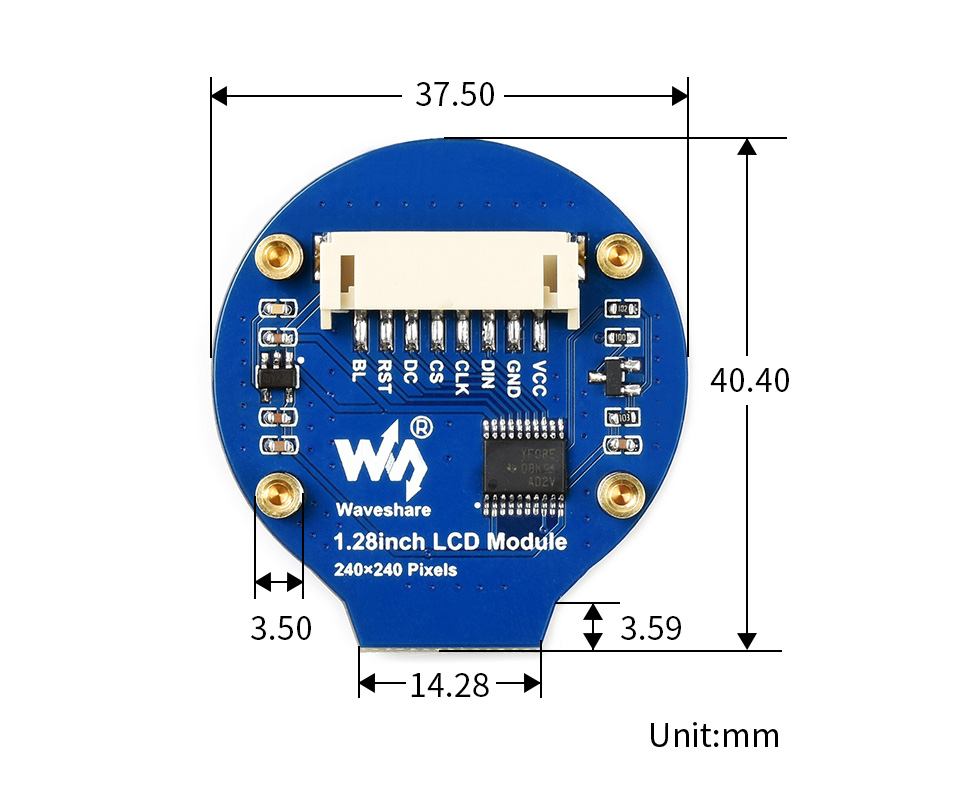

Outline dimensions

Resources & Services

Wiki: 1.28inch_LCD_Module

Selection Guide

Part Number	Type	Color	Resolution	Display Size (mm×mm)	Interfaces	Driver	Dimension (mm×mm)	Pinheader
0.91inch OLED Module	OLED	White	128×32	22.38×5.58	I2C	SSD1306	36.0×12.5	PH2.0 connector
0.95inch RGB OLED (A)	OLED	65K colorful	96×64	20.14×13.42	SPI(4-wire SPI)	SSD1331	31.7×37.0	angled/horizontal
0.95inch RGB OLED (B)	OLED	65K colorful	96×64	20.14×13.42	SPI(4-wire SPI)	SSD1331	31.7×37.0	straight/vertical
0.96inch LCD Module	IPS	65K colorful	160×80	21.70×10.80	4-wire SPI	ST7735S	32.5×26.0	PH2.0 connector
0.96inch OLED (A)	OLED	1/4 yellow section, 3/4 blue section	128×64	21.7×11.2	3-wire SPI, 4-wire SPI, I2C	SSD1306	33.0×33.5	angled/horizontal
0.96inch OLED (B)	OLED	1/4 yellow section, 3/4 blue section	128×64	21.7×11.2	3-wire SPI, 4-wire SPI, I2C	SSD1306	33.0×33.5	straight/vertical
1.14inch LCD Module	IPS	65K colorful	240×135	24.91×14.86	4-wire SPI	ST7789	35.0×32.0	PH2.0 connector
1.28inch LCD Module	IPS	65K colorful	240×240	Φ32.4mm	4-wire SPI	GC9A01	40.4×37.5 Φ37.5	PH2.0 connector
1.3inch LCD Module	IPS	65K colorful	240×240	23.40×23.40	4-wire SPI	ST7789	45.0×31.0	PH2.0 connector
1.3inch OLED (A)	OLED	Blue	128×64	29.42×14.7	3-wire SPI, 4-wire SPI, I2C	SH1106	40.5×37.5	angled/horizontal
1.3inch OLED (B)	OLED	Blue	128×64	29.42×14.7	3-wire SPI, 4-wire SPI, I2C	SH1106	40.5×37.5	straight/vertical
1.3inch OLED Module (C)	OLED	White	64×128	14.70×29.42	4-wire SPI, I2C	SH1107	30.0×39.5	PH2.0 connector
1.5inch OLED Module	OLED	White (16 gray scale)	128×128	26.86×26.86	4-wire SPI, I2C	SSD1327	44.5×37.0	PH2.0 connector
1.5inch RGB OLED Module	OLED	65K colorful	128×128	26.86×26.86	3-wire SPI, 4-wire SPI	SSD1351	44.5×37.0	PH2.0 connector
1.54inch LCD Module	IPS	65K colorful	240×240	27.72×27.72	4-wire SPI	ST7789	50.0×35.0	PH2.0 connector
1.8inch LCD Module	TFT	65K colorful	128×160	34.50×28.30	4-wire SPI	ST7735S	56.5×34.0	PH2.0 connector
2inch LCD Module	IPS	262K colorful	240×320	30.60×40.80	4-wire SPI	ST7789	58.0×35.0	PH2.0 connector
2.4inch LCD Module	TFT	65K colorful	240×320	36.72×48.96	4-wire SPI	ILI9341	70.5×43.3	PH2.0 connector

Note: the 0.96inch OLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.

Package Contents

1.28inch LCD Module x1
PH2.0 8PIN 20cm cable x1
