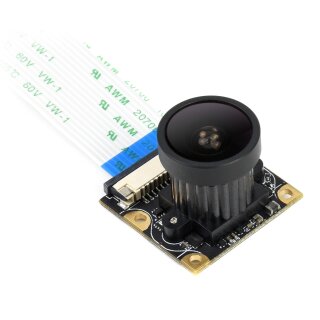

Waveshare 19211 IMX477-160 12.3MP Camera
Beschreibung
12.3MP camera module
IMX477 sensor, 12.3MP, Applicable for Jetson Nano / Compute Module
Specifications
| Sensor | Model | Sony IMX477 |
|---|---|---|
| Resolution | 12.3MP, 4056 × 3040 | |
| CMOS diagonal length | 7.9mm | |
| pixel size | 1.55µm (H) × 1.55µm (V) | |
| Camera | Aperture (F) | 2.2 |
| Focal length (BFL) | 5.52 | |
| Field of view (FOV) | 160°(D) 118°(H) 87°(V) | |
| Distortion | <16% | |
| Operating voltage | 3.3V | |
| Applications | suitable for AI applications like: facial recognition, road mark recognition, license plate number recognition, and so on. | |
Working with Jetson Nano

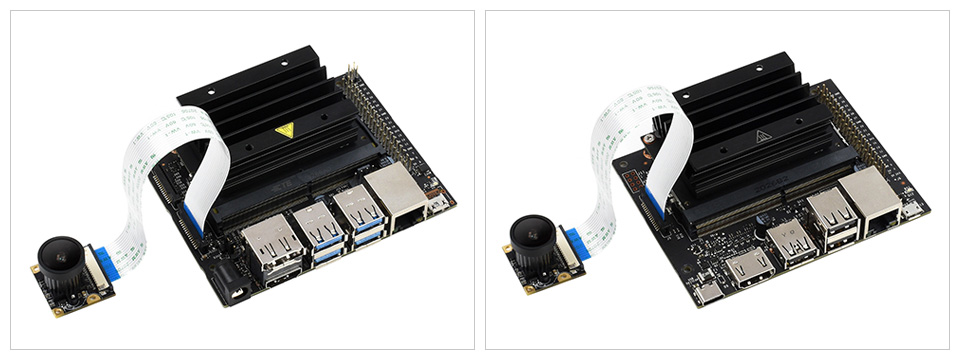

Jetson Nano Developer Kit B01 (left) and Jetson Nano 2GB Developer Kit (right)
*Jetson Nano is NOT included, and specific driver is required for the Jetson Nano to use the IMX477 camera module.
Working with Raspberry Pi Compute Module

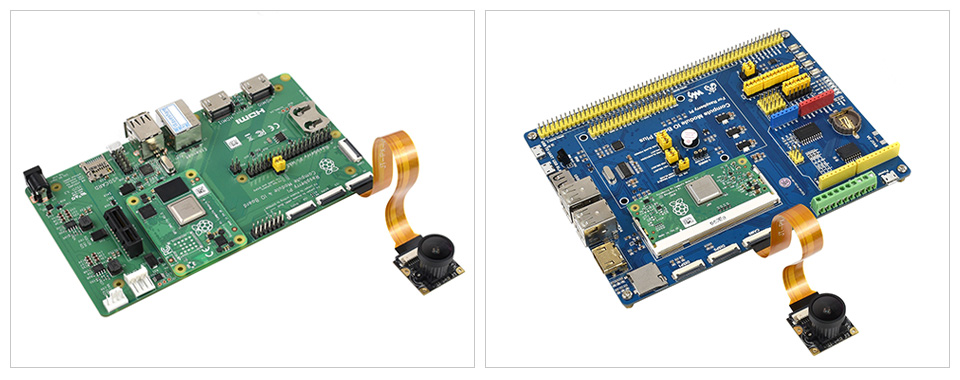

Compute Module 4 + IO Board (left) and Compute Module 3 + IO Board (right)
*CM4, CM3, IO Board, and the yellow FFC are NOT included.

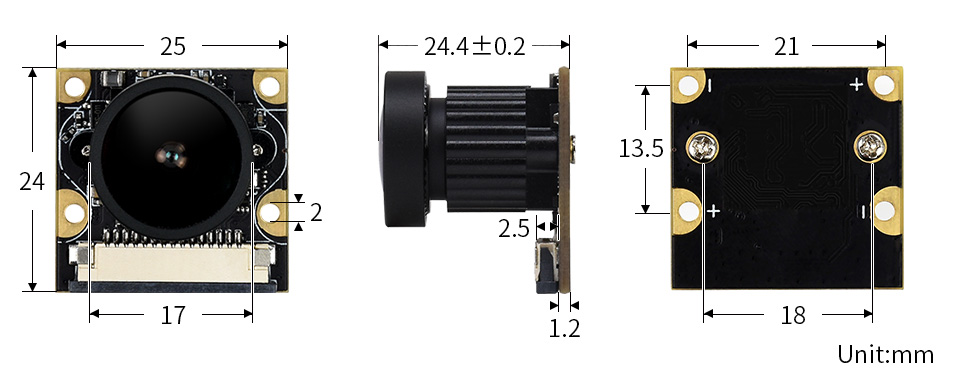

Outline dimensions
Package Contents
- IMX477-160 12.3MP Camera (with FFC) x1
