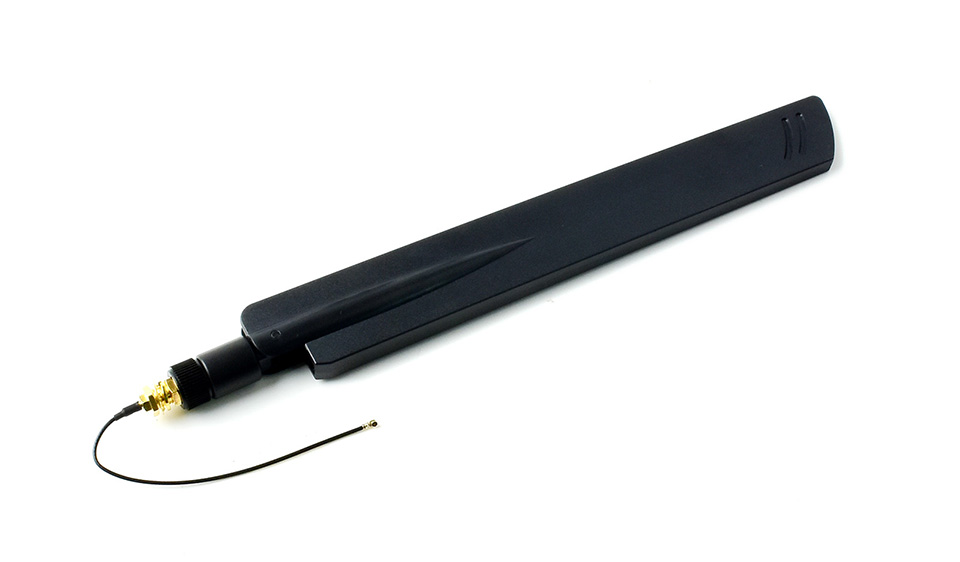

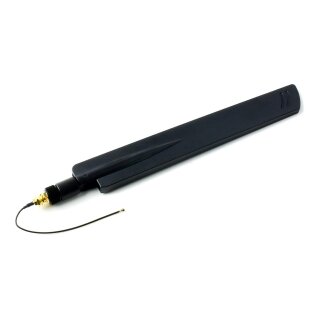

Waveshare 19297 5G/4G/3G/GNSS External Antenna
Description
5G high gain omni antenna
5G/4G/3G/GNSS compatible, SMA to IPEX-4 connector
Specifications
| Network support | 5G/4G/3G/GNSS | Output resistance (O) | 50 |
|---|---|---|---|
| Frequency band (MHz) | 600~6000MHz | Connector | SMA needle inside |
| gain (dBi) | 18dBi | Connection wire | SMA to IPEX-4 |
| SWR | < 3.0 | Dimensions (mm) | 220 × 24 |
| Polarization | Linear | connector inner diameter (mm) | 6 |
| Emitting direction | Omni-directional | Material | ABS |
| Operating temperature (°C) | -20°C?+ 85°C |
Connection example

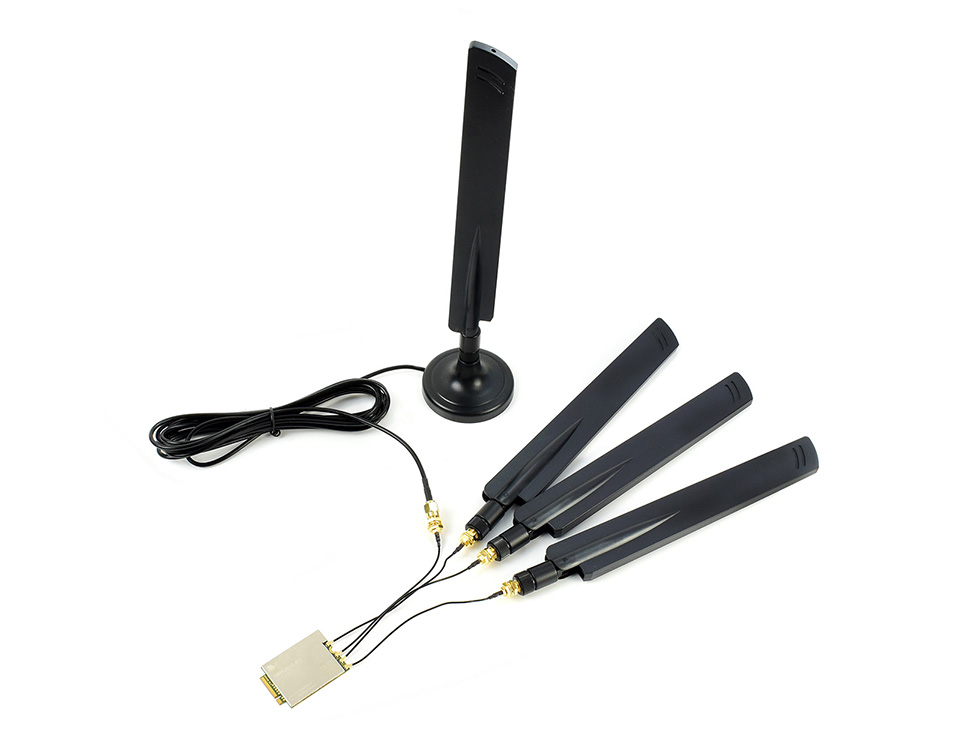

Connecting with 5G module SIM8202G-M2

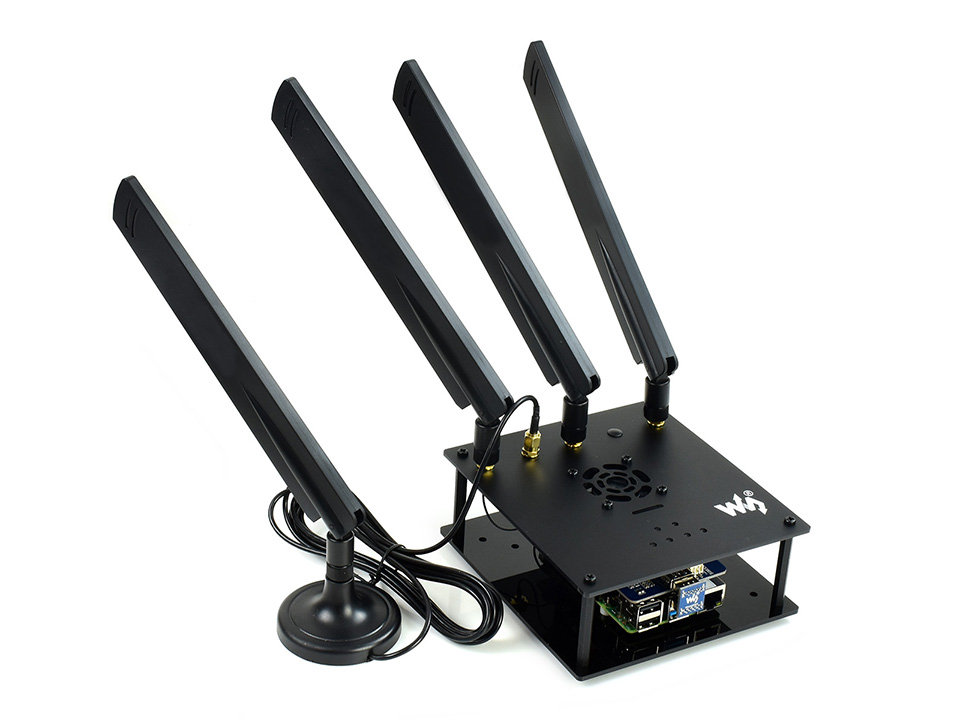

Connecting with Raspberry Pi 5G HAT SIM8202G-M2 5G HAT
* image for reference only, Raspberry Pi, 5G HAT/Module, and antenna sucker base are NOT included.

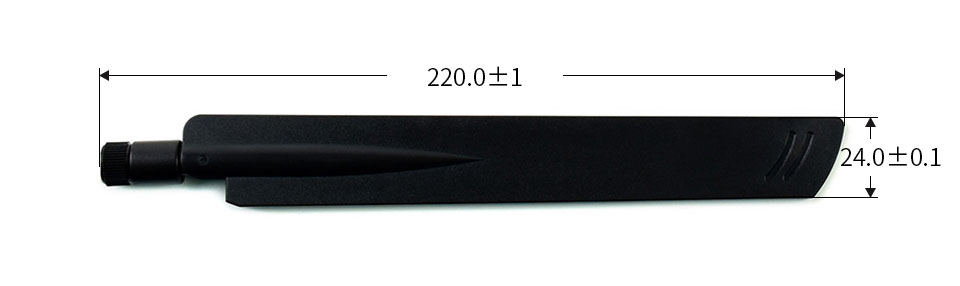

Outline Dimensions

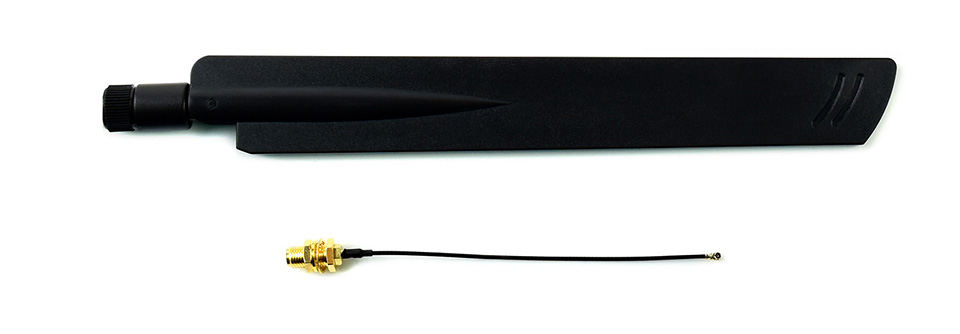

Package Contents
- 5G/4G/3G/GNSS External Antenna x1
| Shipping weight: | 0.04 Kg |
