Waveshare 19340 Pico-LCD-1.14
Description

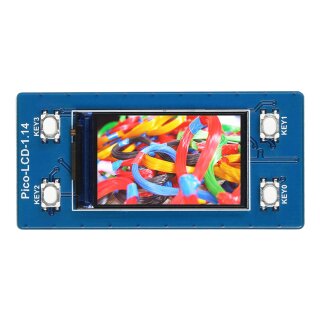

1.14" LCD Display Module for Pico
embedded ST7789 driver, using SPI bus
Comes with Raspberry Pi Pico C/C++ and MicroPython Demo
-
Size
1.14"
-
Resolution
240×135
-
Display Color
65K RGB
-
Interface
SPI
-
Display Panel
IPS
-
Driver
ST7789
Features at a glance
- 240×135 resolution, IPS screen, 65K RGB colors, clear and colorful displaying effect
- SPI interface, requires minimal IO pins
- 1x joystick and 2x user buttons for easy interacting
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
| Operating voltage | 2.6 ~ 5.5V | Resolution | 240×135 pixels |
|---|---|---|---|
| Communication Interface | 4-wire SPI | Display size | 24.91 × 14.86mm |
| Display Panel | IPS | Pixel size | 0.1101 × 0.1035mm |
| Driver | ST7789 | Dimensions | 52.00 × 25.00mm |
Raspberry Pi Pico header compatibility

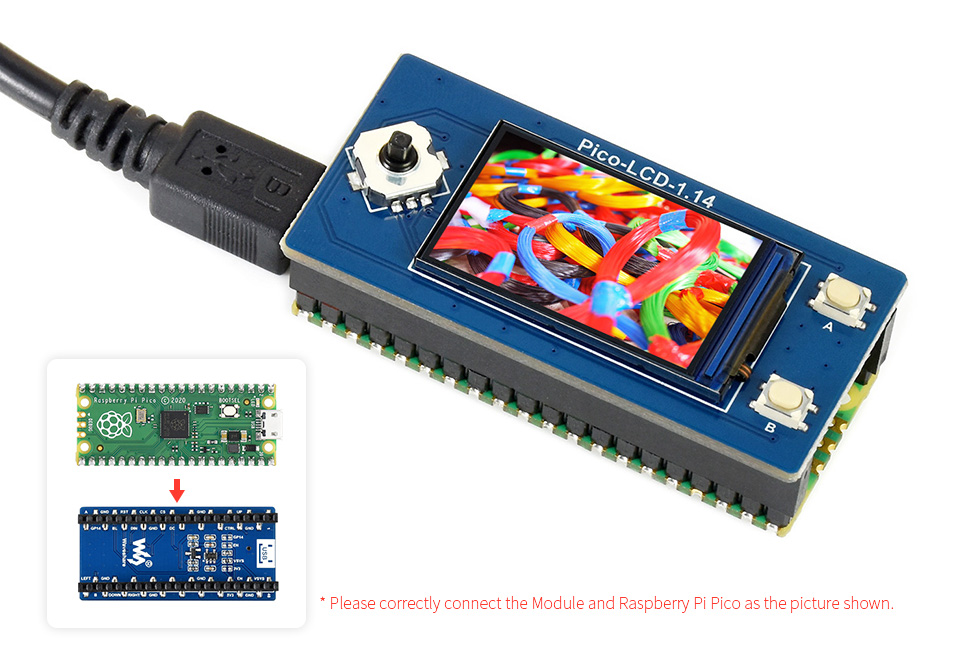

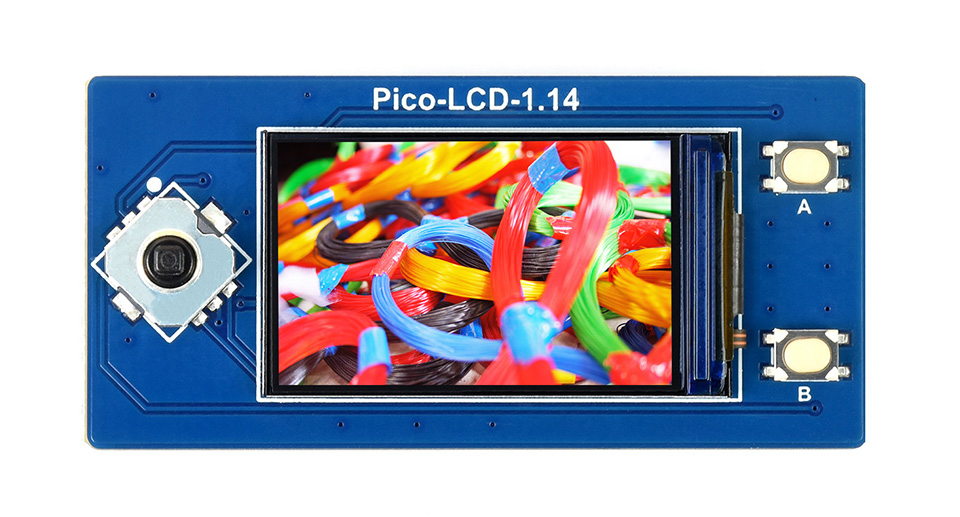

onboard female pin header for direct attaching to Raspberry Pi Pico1x joystick and 2x user buttons for easy interacting
Raspberry Pi Pico is NOT included.

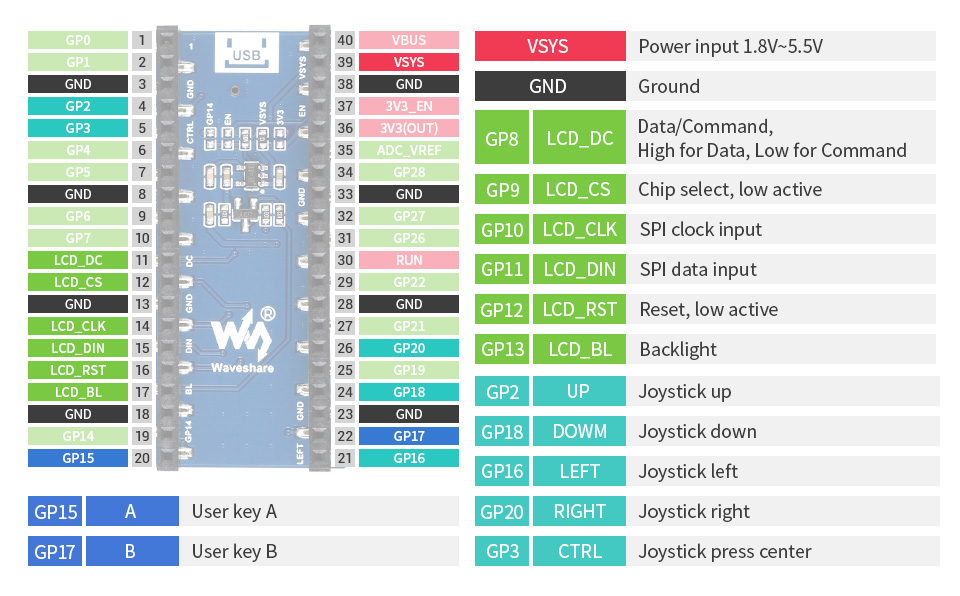

Pinout definition

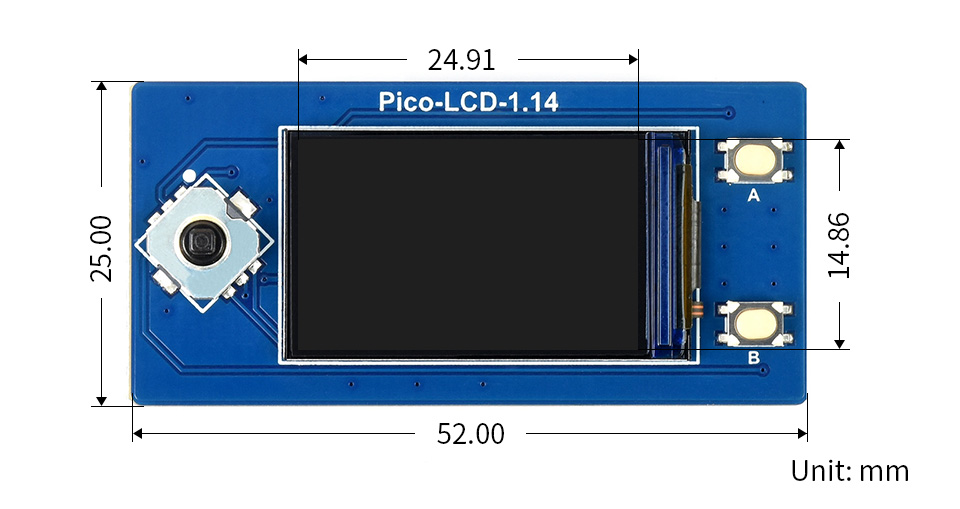

Outline dimensions
Resources & Services
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Selection guide
| Part Number | Type | Display color | Pixels | Display size (mm) | Bus | Driver | Dimensions (mm) | Touch |
|---|---|---|---|---|---|---|---|---|
| Pico-LCD-0.96 | IPS | 65K | 160×80 | 21.70×10.80 | SPI | ST7735S | 52.00×25.00 | |
| Pico-LCD-1.14 | IPS | 65K | 240×135 | 24.91×14.86 | SPI | ST7789 | 52.00×25.00 | |
| Pico-LCD-1.3 | IPS | 65K | 240×240 | 23.40×23.40 | SPI | ST7789 | 52.00×26.50 | |
| Pico-LCD-1.44 | TFT | 65K | 128×128 | 25.50×26.50 | SPI | ST7735S | 52.00×26.50 | |
| Pico-LCD-1.8 | TFT | 65K | 160×128 | 35.04×28.03 | SPI | ST7735S | 52.00×34.50 | |
| Pico-LCD-2 | IPS | 65K | 320×240 | 40.80×30.60 | SPI | ST7789VW | 52.00×35.00 | |
| Pico-ResTouch-LCD-2.8 | IPS | 262K | 320×240 | 57.60×43.20 | SPI | ST7789 | 70.20×50.20 | √ |
| Pico-ResTouch-LCD-3.5 | IPS | 65K | 480×320 | 73.44×48.96 | SPI | ILI9488 | 86.00×57.20 | √ |
Package Contents
- Pico-LCD-1.14 x1
1
| Shipping weight: | 0.02 Kg |
