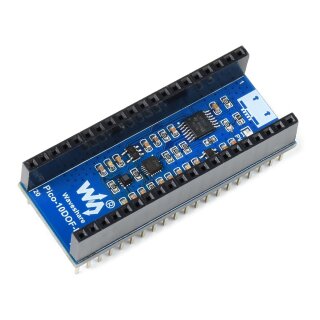

Waveshare 19358 Pico-10DOF-IMU

10-DOF IMU Sensor Modul für Raspberry Pi Pico, mit MPU9250 und LPS22HB Chip

24,90 € inkl. 19% MwSt.

20,92 € exkl. MwSt.

zzgl. Versand

10+ ab Lager lieferbar

Lieferzeit: 1 - 3 Arbeitstage

Beschreibung

10-DOF IMU Sensor Module for Pico

incorporates 9-axis motion sensor ICM20948 and baroceptor LPS22HB

Features at a glance

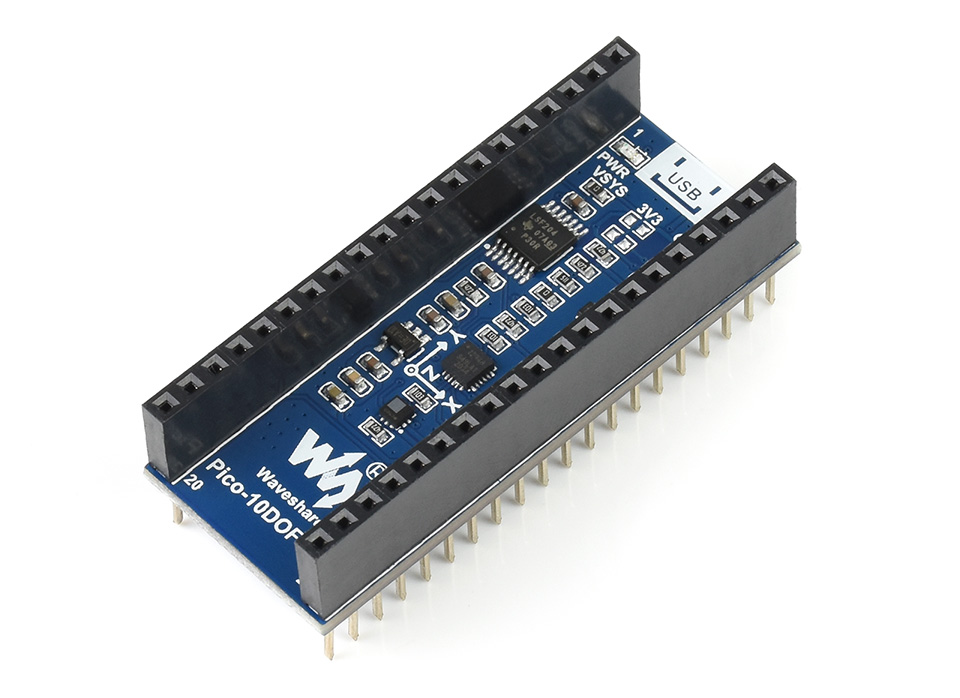

The Pico-10DOF-IMU is an IMU sensor expansion module specialized for Raspberry Pi Pico. It incorporates sensors including gyroscope, accelerometer, magnetometer, baroceptor, and uses I2C bus for communication.

Combined with the Raspberry Pi Pico, it can be used to collect environment sensing data like temperature and barometric pressure, or to easily DIY a robot that detects motion gesture and orientation.

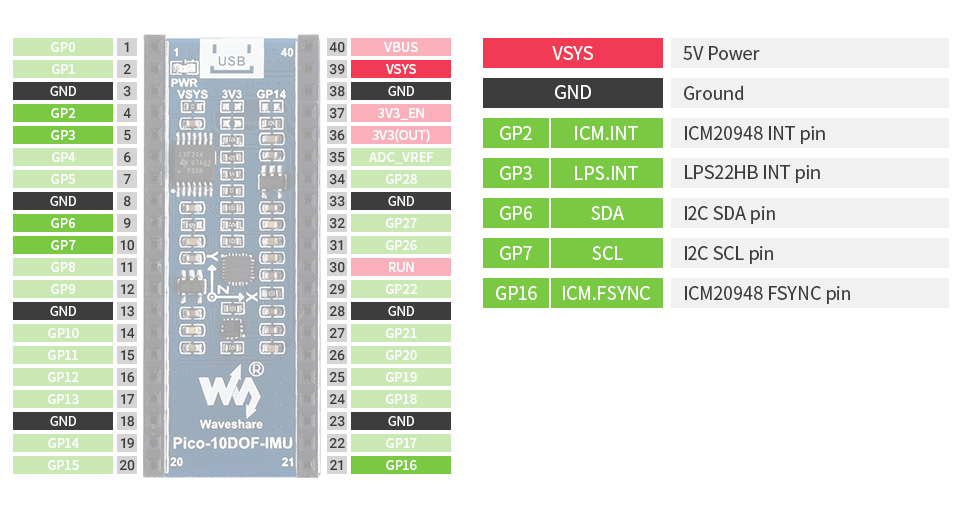

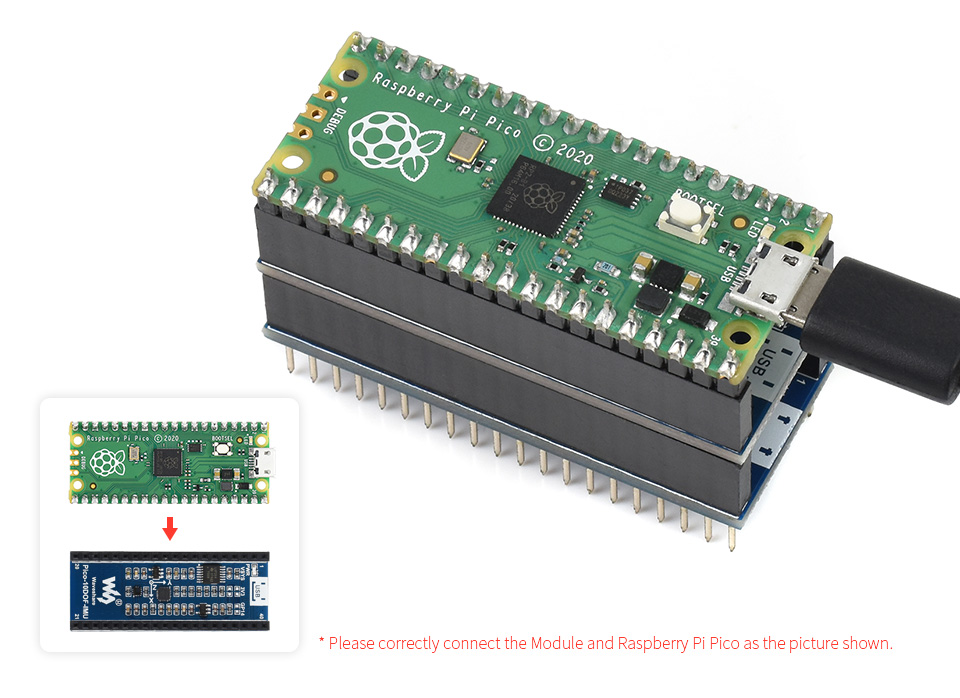

Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series

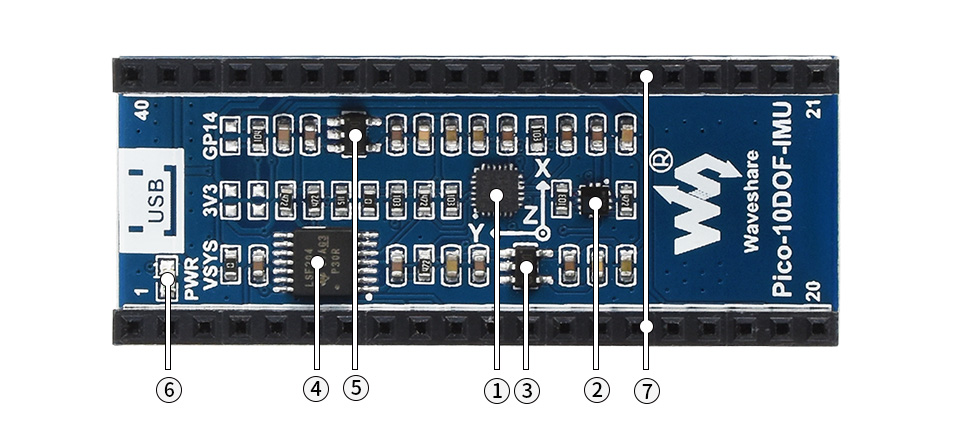

Onboard ICM20948 (3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer) for detecting motion gesture, orientation, and magnetic field
Onboard LPS22HB barometric pressure sensor, for sensing the atmospheric pressure of the environment
Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

Operating voltage	5V
accelerometer	resolution: 16-bit measuring range (configurable): ±2, ±4, ±8, ±16g operating current: 68.9uA
gyroscope	resolution: 16-bit measuring range (configurable): ±250, ±500, ±1000, ±2000°/sec operating current: 1.23mA
magnetometer	resolution: 16-bit measuring range: ±4900µT operating current: 90uA
baroceptor	measuring range: 260 ~ 1260hPa measuring accuracy (ordinary temperature): ±0.025hPa measuring speed: 1Hz - 75Hz
