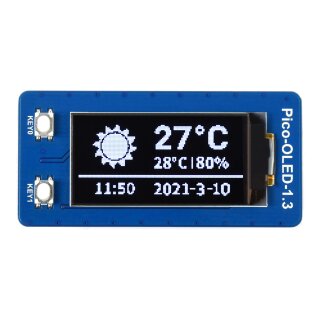

Waveshare 19376 Pico-OLED-1.3
Beschreibung
1.3" OLED Display Module for Pico
embedded SH1107 driver, using SPI/I2C bus
Comes with Raspberry Pi Pico C/C++ and MicroPython Demo
-
Size
1.3"
-
Resolution
64×128
-
Display Color
Black / White
-
Interface
SPI/I2C
-
Display Panel
OLED
-
Driver
SH1107
Features at a glance
- Adopts both 4-wire SPI and I2C interface, better compatibility, fast data rate
- 2x user buttons for easy interacting
- Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
| Operating voltage | 3.3V | Resolution | 64×128 pixels |
|---|---|---|---|
| Communication Interface | 4-wire SPI, I2C | Display size | 14.70 × 29.42mm |
| Display Panel | OLED | Pixel size | 0.15 × 0.15mm |
| Driver | SH1107 | Dimensions | 52.00 × 25.00mm |

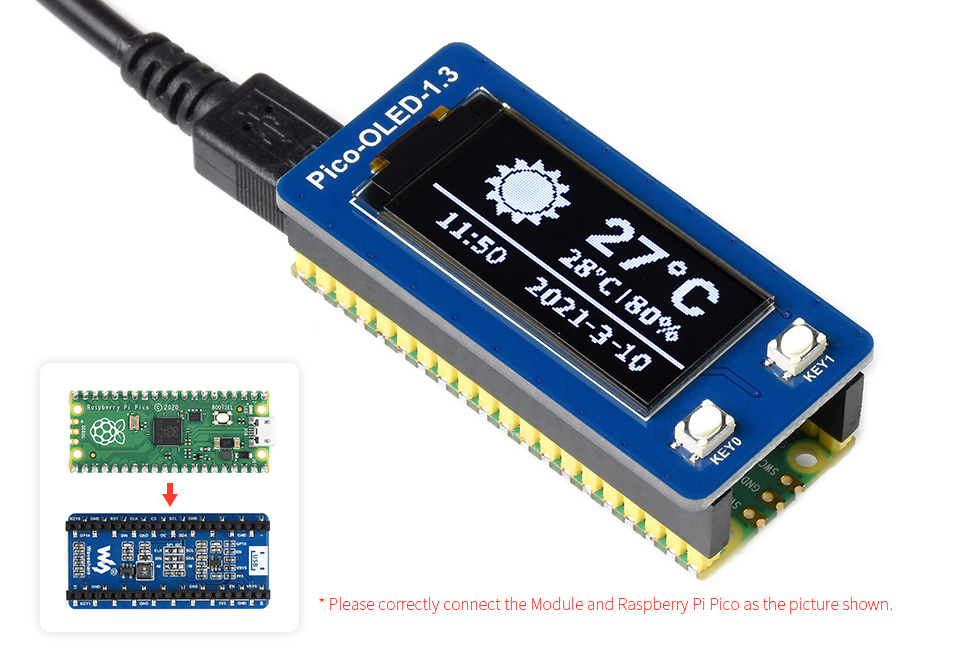

Raspberry Pi Pico header compatibility
onboard female pin header for direct attaching to Raspberry Pi Pico 2x user buttons for easy interacting
Raspberry Pi Pico is NOT included.

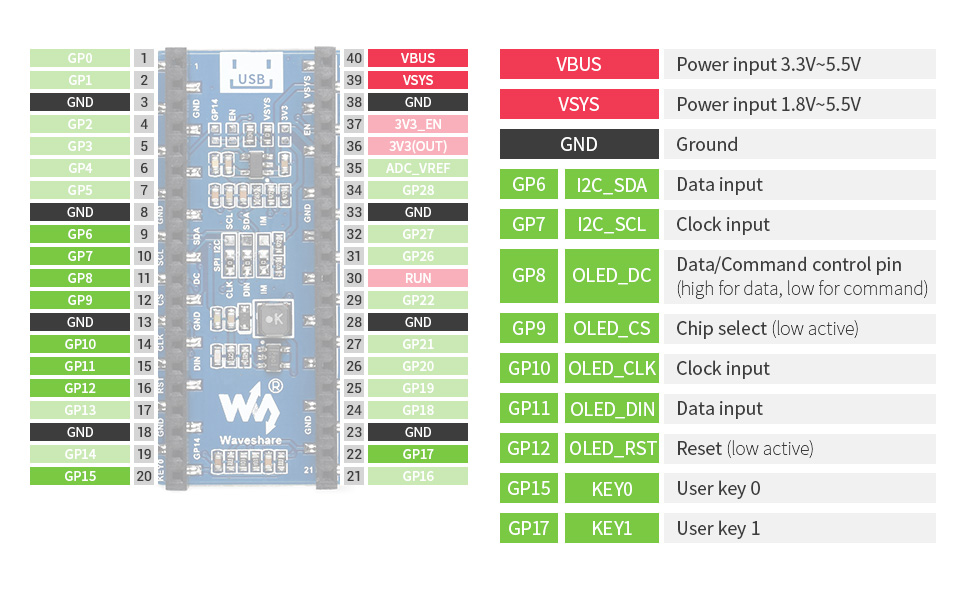

Pinout definition

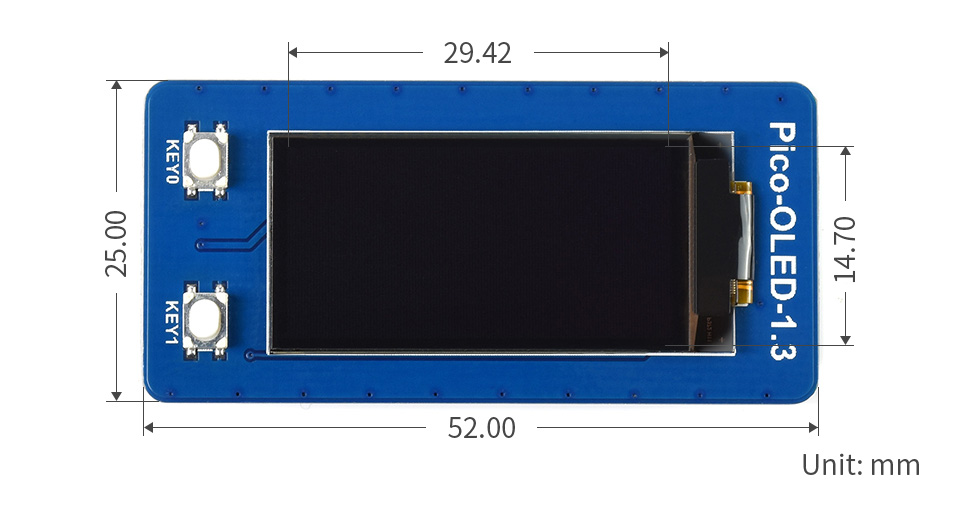

Outline dimensions
Resources & Services
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Package Contents
- Pico-OLED-1.3 x1
1
