Beschreibung

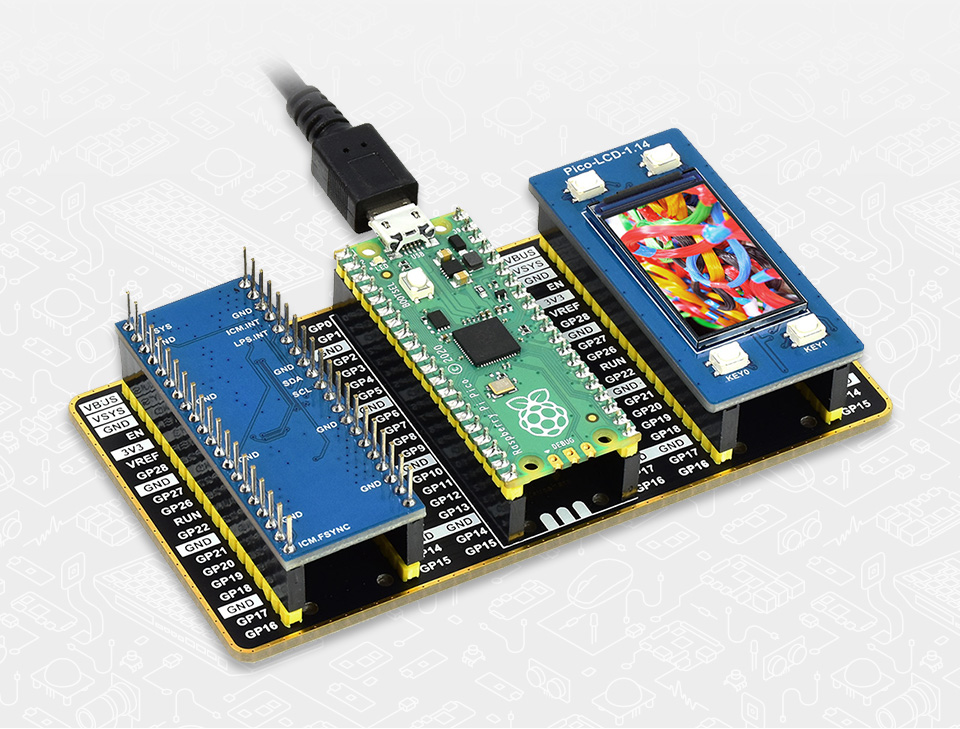

Raspberry Pi Pico Evaluation Kit Type B
Pico unit & Three basic expansion boards
Comes with demo code for GPIO, PWM, I2C, SPI...
What's in the kit
Raspberry Pi Pico with pre-soldered header
A Low-Cost, High-Performance Microcontroller Board With Flexible Digital Interfaces
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
- 264KB of SRAM, and 2MB of on-board Flash memory
- Castellated module allows soldering direct to carrier boards
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 26 × multi-function GPIO pins
- 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 8 × Programmable I/O (PIO) state machines for custom peripheral support

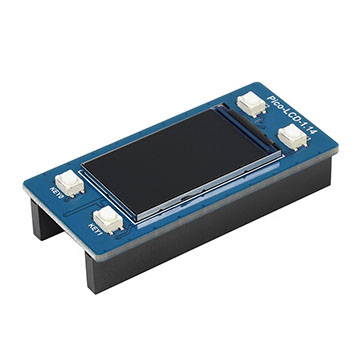

Pico-LCD-1.14
A 1.14" LCD display module specialized for Raspberry Pi Pico, embedded ST7789 driver, using SPI communication bus
- 240×135 resolution, IPS screen, 65K RGB colors, clear and colorful displaying effect
- SPI interface, requires minimal IO pins
- 4x user buttons for easy interacting

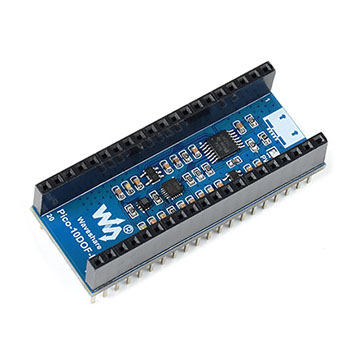

Pico-10DOF-IMU
An IMU sensor expansion module specialized for Raspberry Pi Pico, it can be used to collect environment sensing data like temperature and barometric pressure
- Onboard ICM20948 (3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer) for detecting motion gesture, orientation, and magnetic field
- Onboard LPS22HB barometric pressure sensor, for sensing the atmospheric pressure of the environment

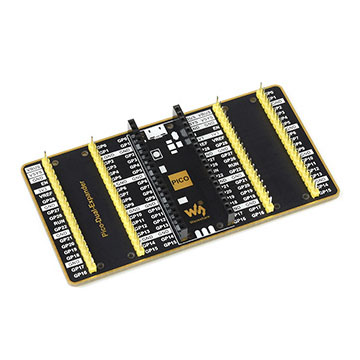

Pico-Dual-Expander
A GPIO expander specialized for Raspberry Pi Pico, providing two sets of standard Raspberry Pi Pico GPIO male headers
- Two sets of 2x20 male header, allows connecting more Raspberry Pi Pico expansion modules
- Clear pinout labels on the front side, easy to use
- Immersion gold process, beautiful & practical, stunning aesthetic looking

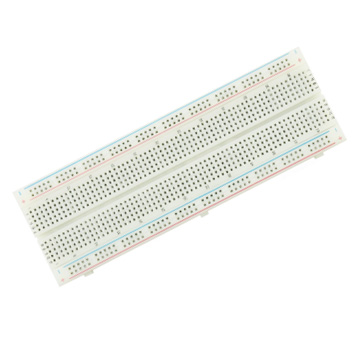

830 quality breadboard
Easy prototyping by just inserting the components without soldering, standard 830 holes, suitable for building simple circuits, electric building block, electric DIY, and so on.
- 630+200=830 holes, with red/blue wires
- Dimensions: 165 × 55 × 10mm

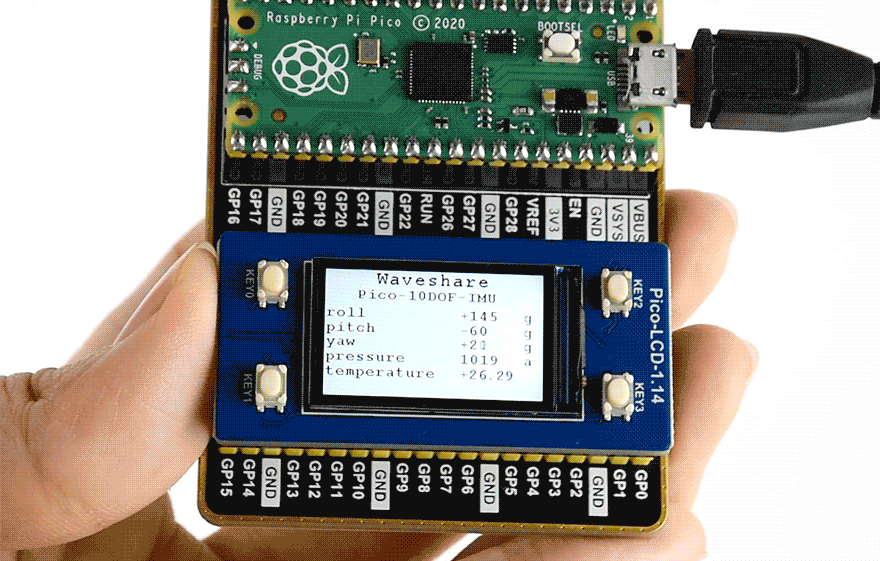

Application demo
Resources & Services
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

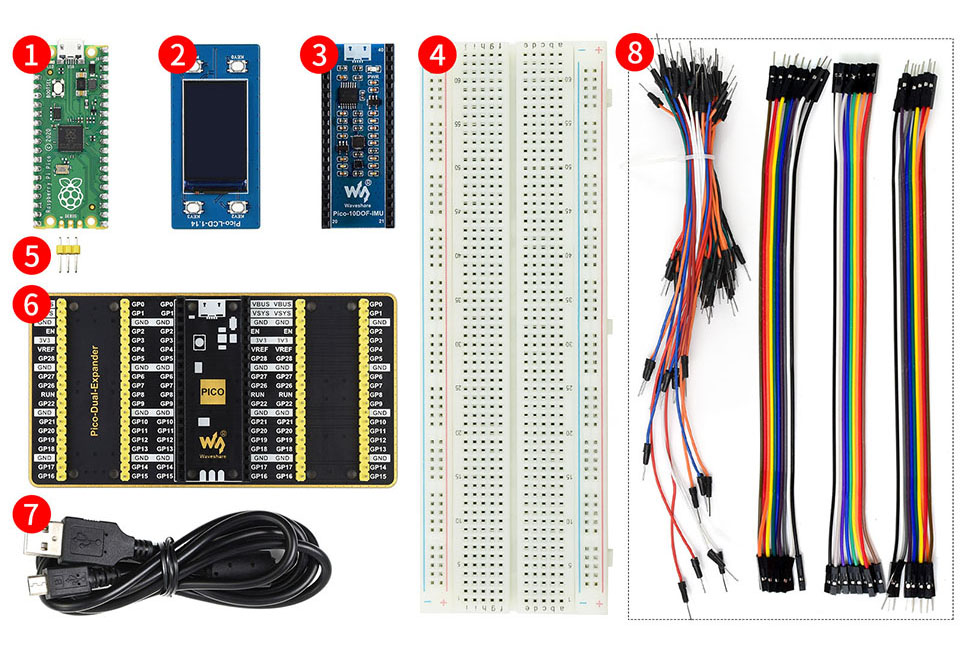

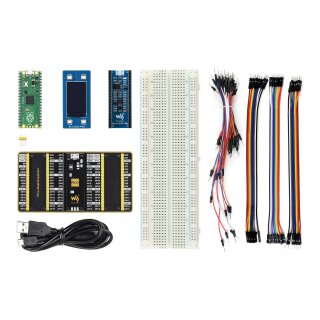

Package Contents
- Raspberry Pi Pico with pre-soldered header x1
- Pico-LCD-1.14 x1
- Pico-10DOF-IMU x1
- Breadboard x1
- 1*3PIN yellow pin header x1
- Pico-Dual-Expander x1
- USB-A to micro-B cable x1
- Jumper wires x1
| Versandgewicht: | 0,31 Kg |
