Description

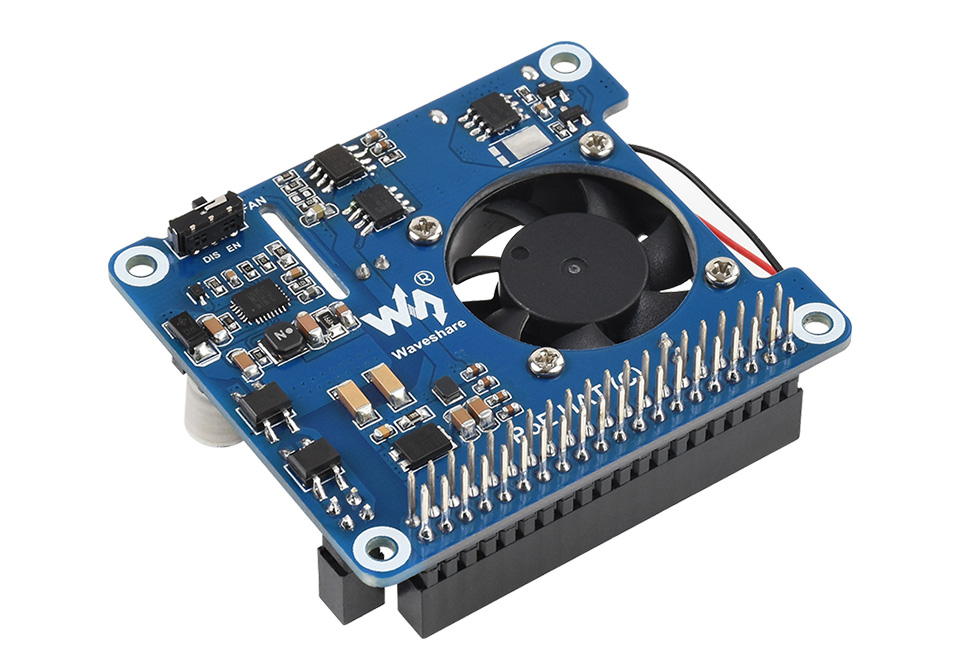

POE HAT for Raspberry Pi
Power Over Ethernet HAT for Raspberry Pi 3B+/4B, 802.3af/at-compliant(any backward-compatible future versions will be supported as well)
12V and 5V power outputs to support more peripherals
Features at a glance
The PoE HAT (C) is a 802.3af/at-compliant Power Over Ethernet accessory for the Raspberry Pi 3B+/4B . By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.
- Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 3B+/4B
- PoE (Power Over Ethernet) capability,IEEE 802.3af/at-compliant
- Fully isolated switched-mode power supply (SMPS)
- While providing stable power for the Raspberry Pi, there's also a USB-A port for powering extra external device
- Onboard high speed active cooling fan, better heat dissipation
Specifications
| PoE power input | 37V ~ 57V DC in |
|---|---|
| Power output | USB-A: 5V 4A (MAX) 2P header: 12V 2A (MAX) |
| Network standard | IEEE 802.3af/at PoE |
| Dimensions | 56.5 × 65mm |
For use with Raspberry Pi 3B+/4B

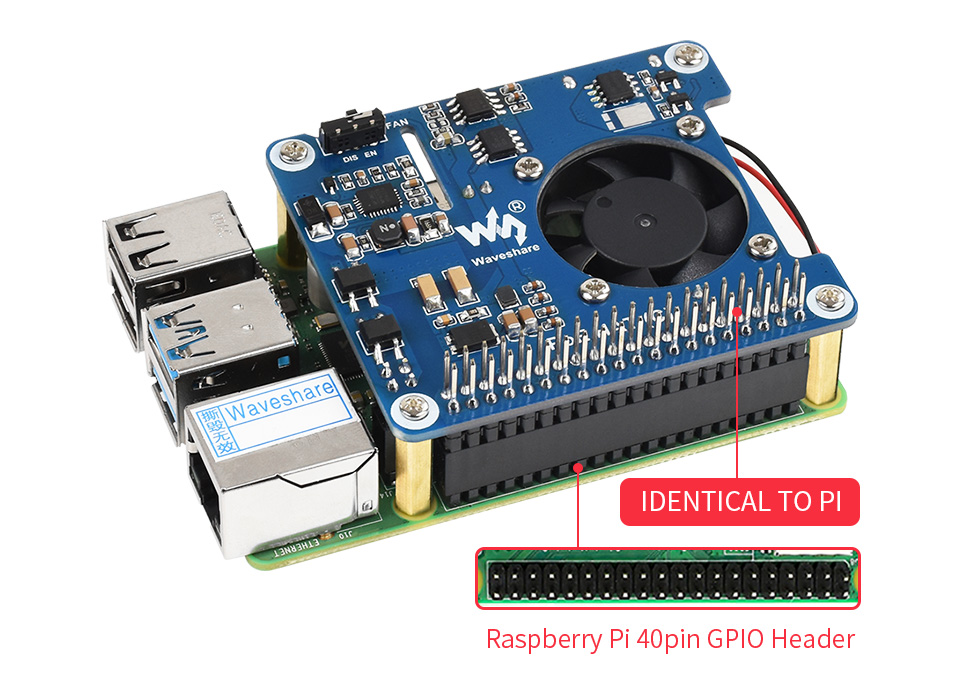

Standard Raspberry Pi 40PIN GPIO stackable header, allows connecting other HATs

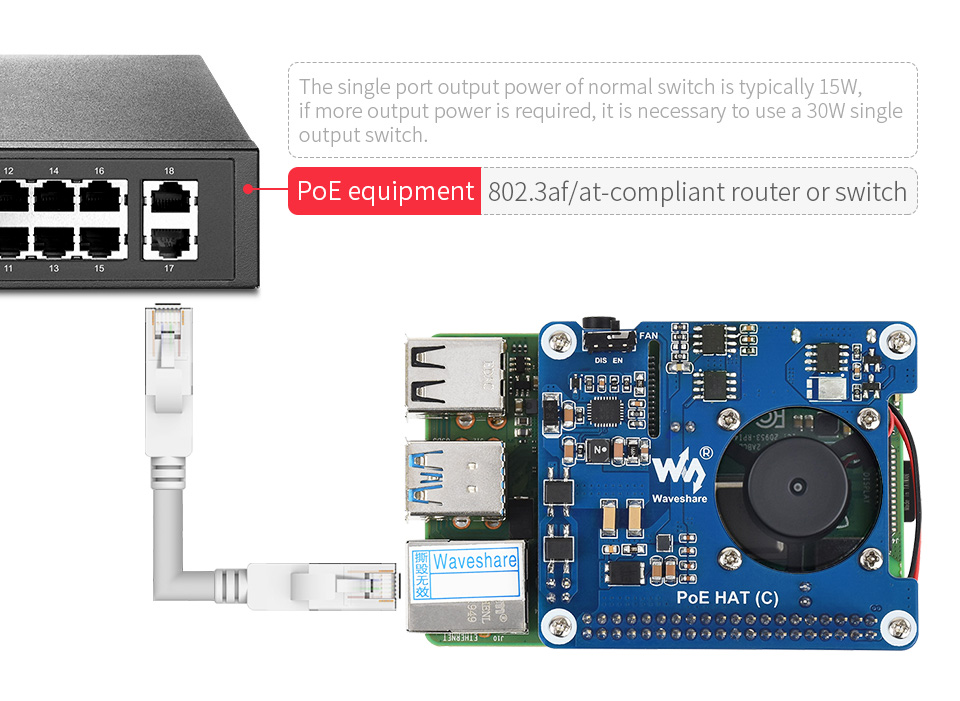

Power Over Ethernet
providing both network connection and power supply for your Raspberry Pi in one cable

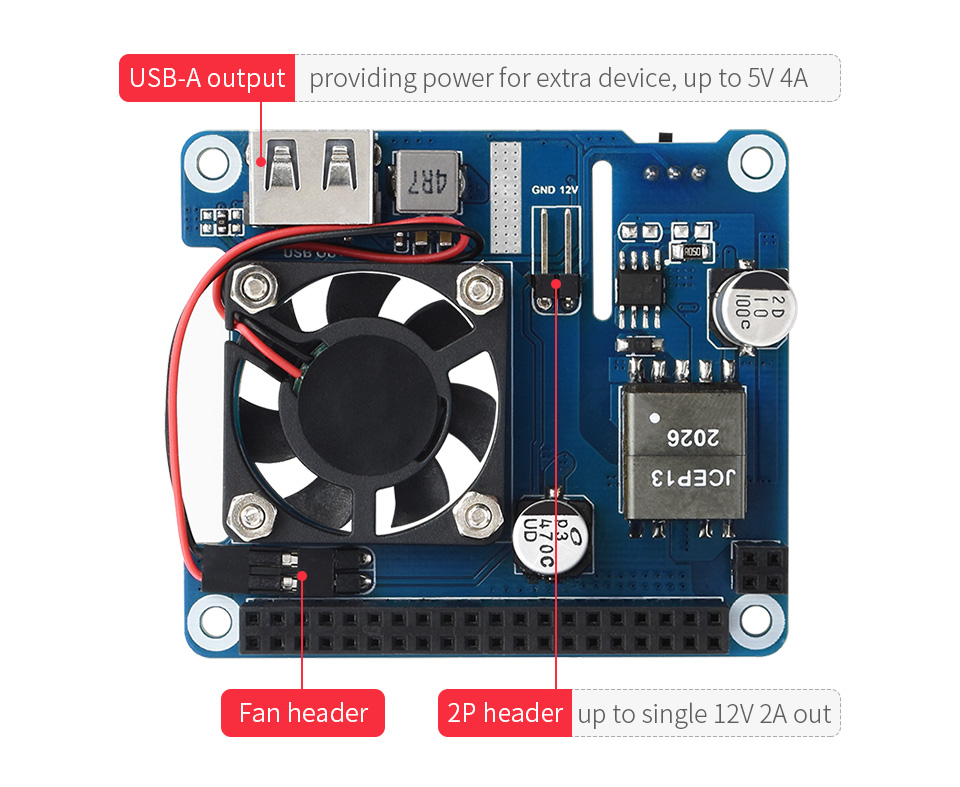

5V USB-A & 12V header outputs
5V USB-A provides up to 4A output (MAX 25W for 12V+5V total output power)be able to power extra device while providing stable power to Raspberry Pi

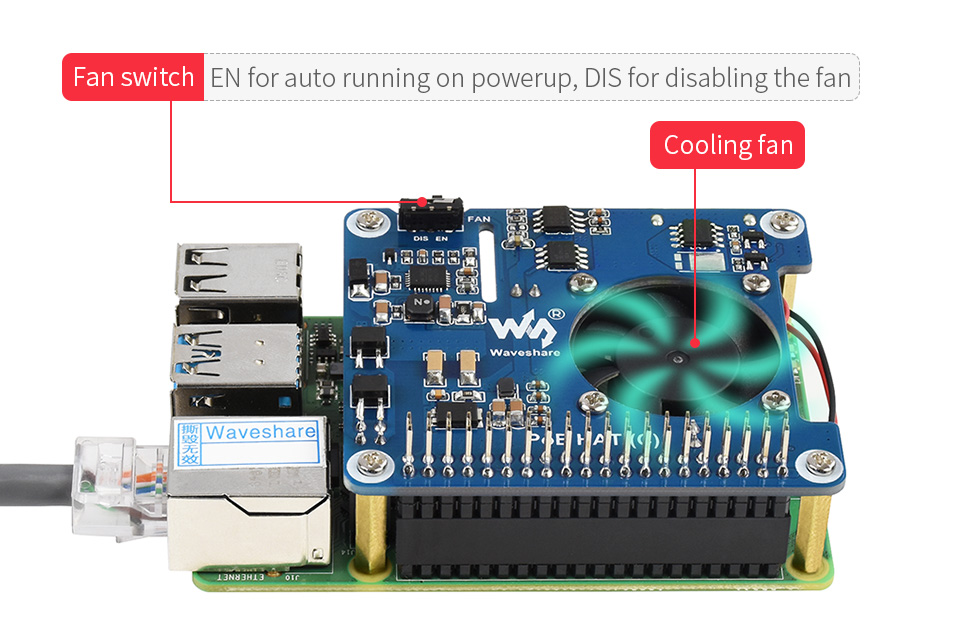

Active Cooling fan

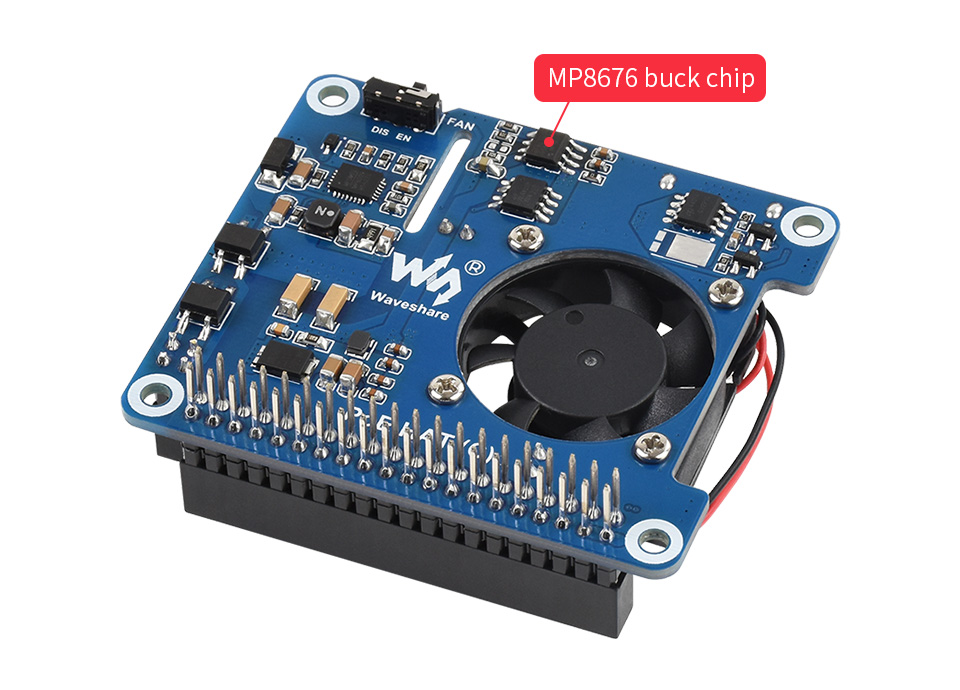

Onboard MP8676 buck chip
Incorporates original voltage buck chipproviding up to 4.5A output for Raspberry Pi and USB-A port

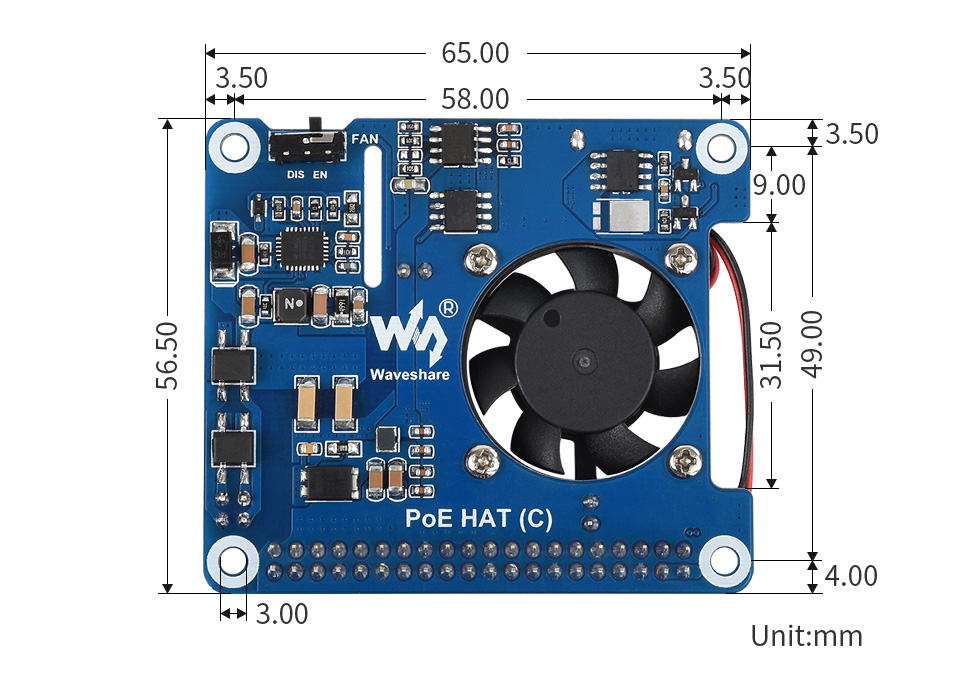

Outline dimensions
Resources & Services
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Selection guide
| Product | Supported Pi | PoE standard | PoE power output | Feature |
|---|---|---|---|---|
| Raspberry Pi PoE HAT | 3B+/4B | 802.3af | 5V 2.5A | Raspberry Pi official |
| Raspberry Pi PoE+ HAT | 802.3af/at | 5V 4A | Raspberry Pi official (second generation) | |
| PoE HAT (B) | 802.3af | 5V 2.5A | with OLED display, cost effective | |
| PoE HAT (C) | 802.3af/at | 5V 4A / 12V 2A | high power, cost effective | |
| PoE HAT (D) | 802.3af | 5V 2.5A | tailored for Raspberry Pi official case, cost effective |

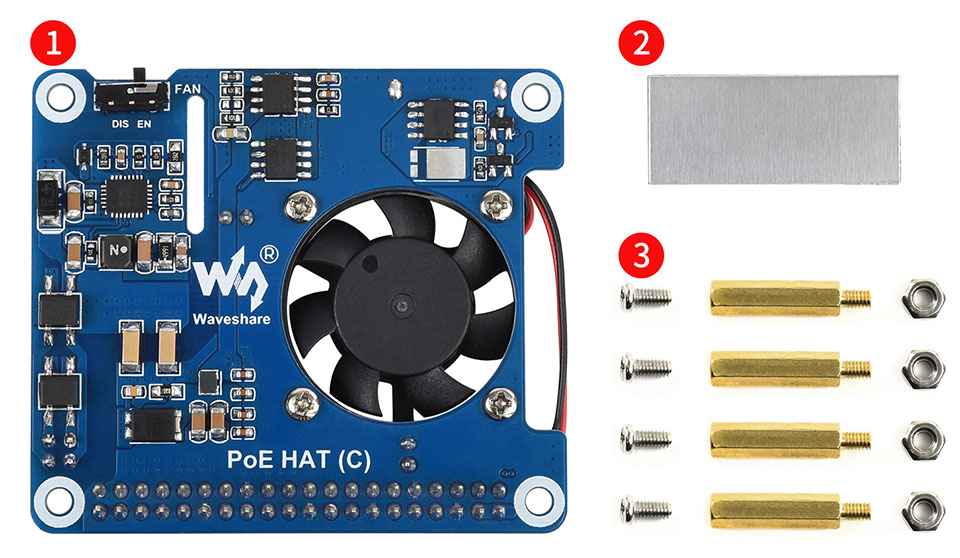

Package Contents
- PoE HAT (C) x1
- Heatsink x1
- Standoffs pack x1
| Shipping weight: | 0.07 Kg |
