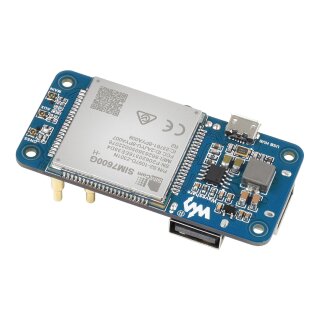

Waveshare 19485 SIM7600G-H 4G HAT (B)
Artno.: WS1-019485
SIM7600G-H 4G HAT (B) For Raspberry Pi, LTE Cat-4 4G / 3G / 2G Support, GNSS Positioning, Global Band

76.90 € incl. 19% VAT
64.62 € excl. VAT
On stock

Shipping time: 1 - 3 business days

Description

Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.

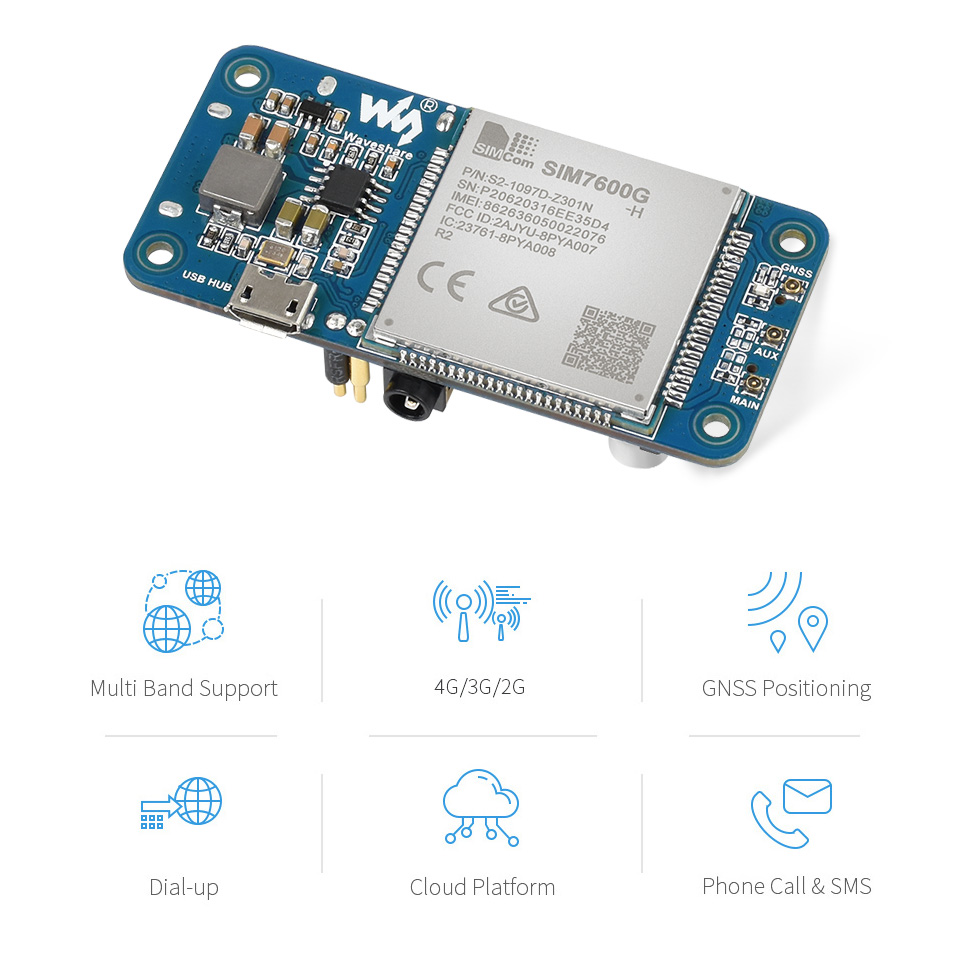

4G HAT for Raspberry Pi

enabling LTE Cat-4 4G / 3G / 2G communication & GNSS positioning

Based on SIM7600G-H, Global Band

Features at a glance

  • Connected via pogo pin or MicroUSB connector
    • Dedicated pogo pin for Raspberry Pi Zero/Zero W
    • MicroUSB connector for other Raspberry Pi boards or PC
  • Incorporates SIM7600G-H global band 4G module, compatible with 2G/3G/4G network with global support
  • USB HUB connector for other Raspberry Pi boards or PC, providing USB extension and 4G network access
  • Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
  • Supports GPS, BeiDou, Glonass, LBS base station positioning
  • SIM card slot, supports 1.8V/3V SIM card
  • Onboard audio jack and audio decoder for making telephone call
  • 2x LED indicators, easy to monitor the operating status
  • Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
  • Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
  • Comes with development resources and manual (examples for Raspberry Pi)

Specifications

Frequency band
LTE Cat-4 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66 LTE-TDD: B34/B38/B39/B40/B41
3G UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19
2G GSM/GPRS/EDGE: 850/900/1800/1900 MHz
GNSS
Satellite systems GPS/Beidou/GLONASS
Receiver type 16-channel
C/A Code
Sensitivity -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou)
Cold starts: -148 dBm
Time-To-First-Fix (open air) Cold starts: <35s
Hot starts: <1s
SMS and Audio
SMS Supported types: MT, MO, CB, Text, PDU
Audio feature Supports echo cancellation
Supports noise reduction
Other
Power supply 5V
Operating temperature -30°C ~ 80°C
Storage temperature -45°C ~ 90°C
Dimensions 65.00 × 32.00mm

Suitable for Raspberry Pi / PC

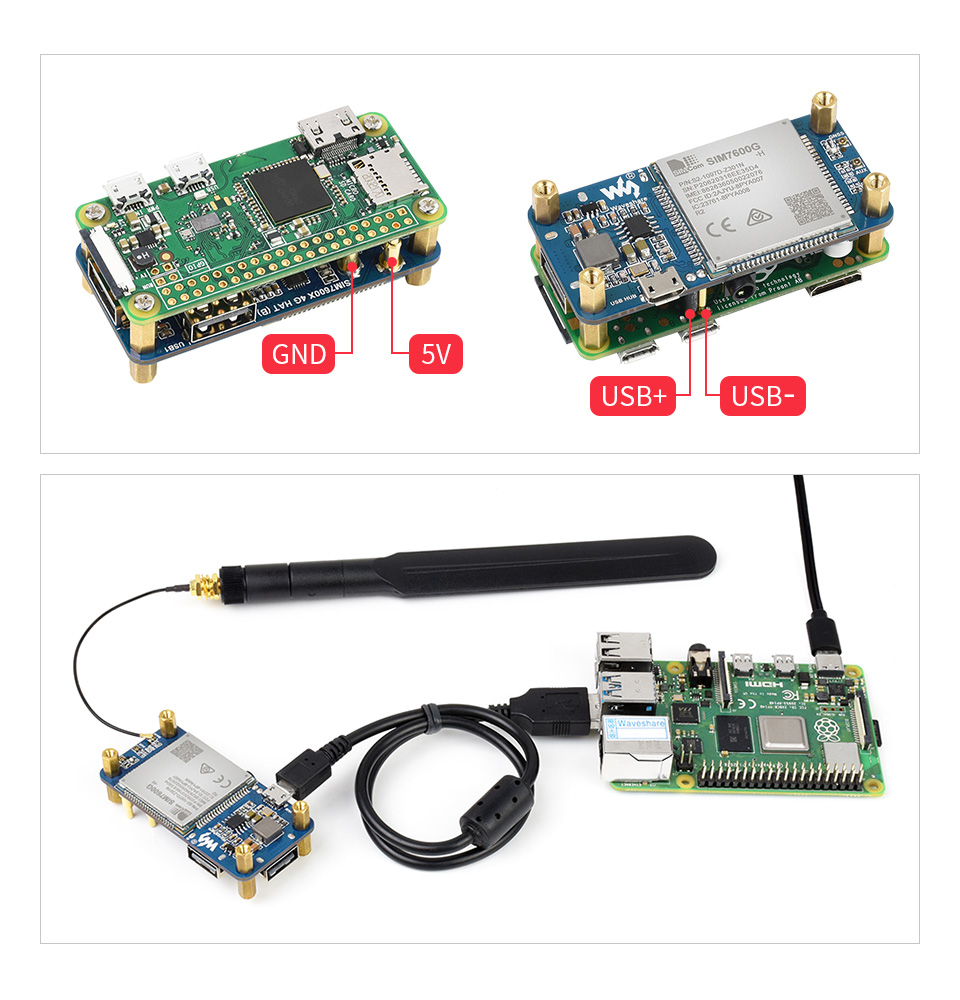

Dedicated pogo pin for connecting with Raspberry Pi Zero/Zero W without extra USB cableGeneral purpose MicroUSB connector for other Raspberry Pi boards or PC

Global band 4G / 3G / 2G support

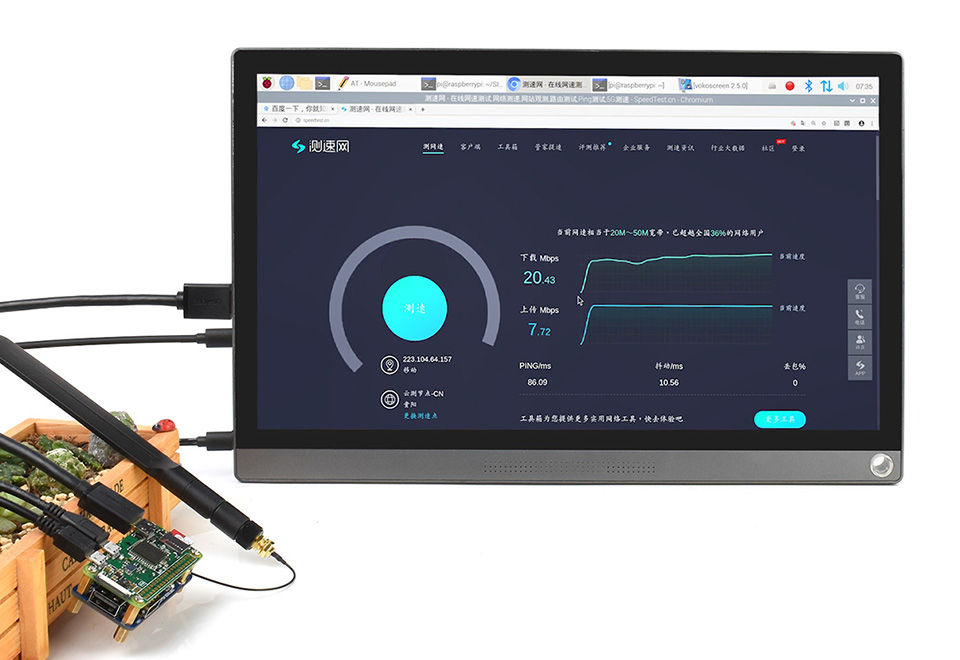

up to 50Mbps uplink and 150Mbps downlink for 4G network *

* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.

USB HUB feature

onboard USB HUB chip with USB2.0/1.1 compliant, providing 2x USB-A connector and 1x USB solder pad

GNSS positioning

Supports GPS, BeiDou, Glonass, LBS base station positioning

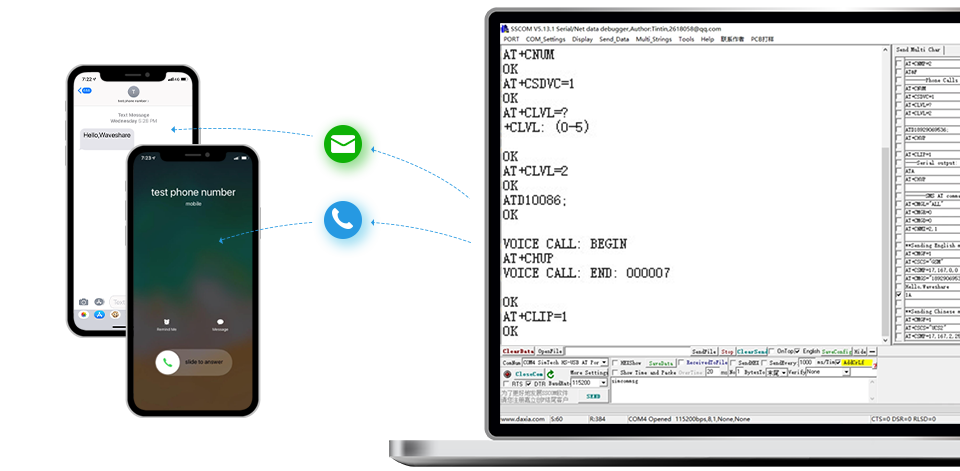

Telephoto call & SMS Support

Making telephoto call or sending SMS by AT commands, with onboard audio jack

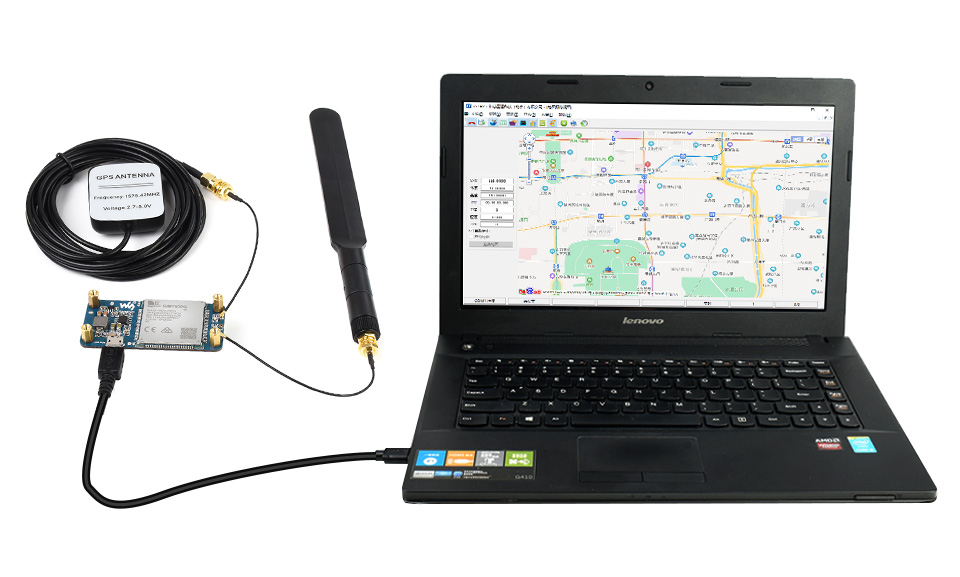

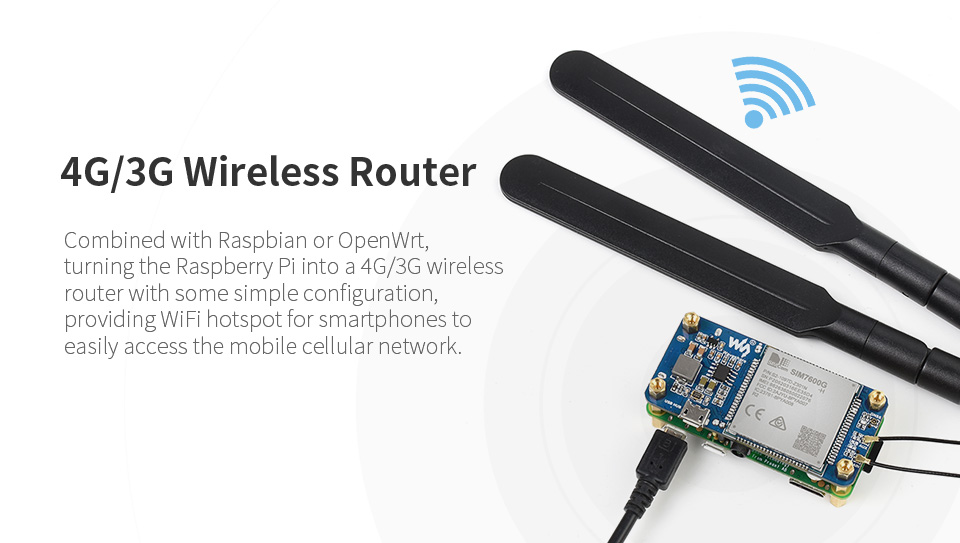

Application example

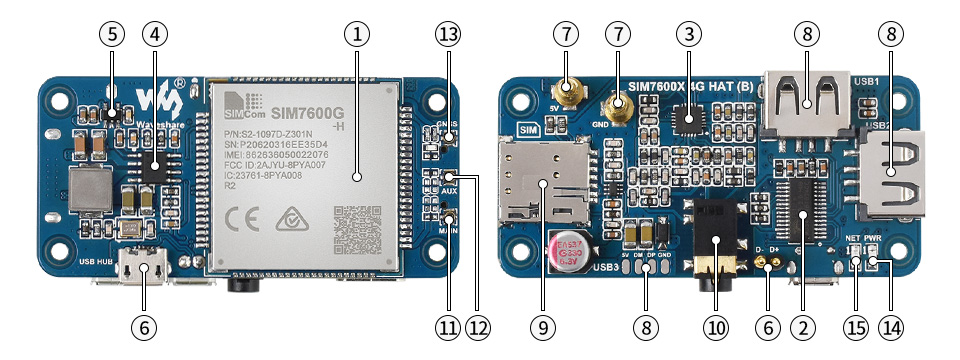

What's on board

  1. SIM7600G-H
  2. FE1.1S USB HUB chip
  3. NAU8810 audio decoder
  4. MP1482 power chip
  5. RT9193-33 voltage translator
  6. USB HUB input D+/D- pogo pin: for Raspberry Pi Zero/Zero WMicroUSB connector: for other Raspberry Pi boards or PC
  7. Pogo pin power supply 5V: connects to 5V pin of Zero/Zero W, up to 2A currentGND: connects to GND pin of Zero/Zero W

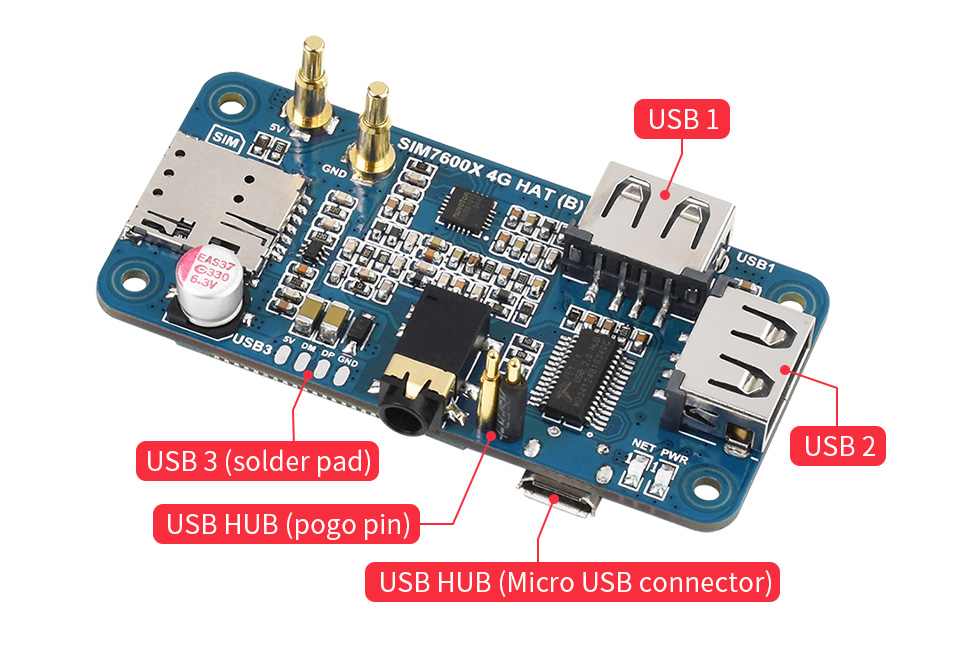

  1. USB extended ports USB1~USB2: USB-A connectorsUSB3: solder pad
  2. SIM card slot supports 1.8V/3V SIM card
  3. 3.5mm earphone/mic jack
  4. MAIN antenna connector
  5. AUX auxiliary antenna connector
  6. GNSS antenna connector
  7. Power indicator
  8. Network status indicator

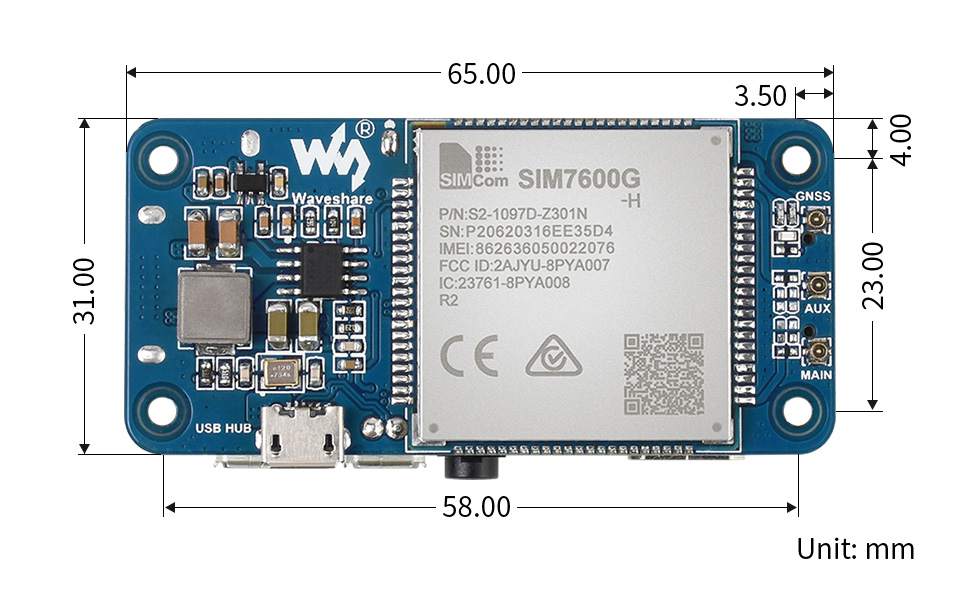

Outline Dimensions

Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Package Contents

  1. SIM7600G-H 4G HAT (B) x1

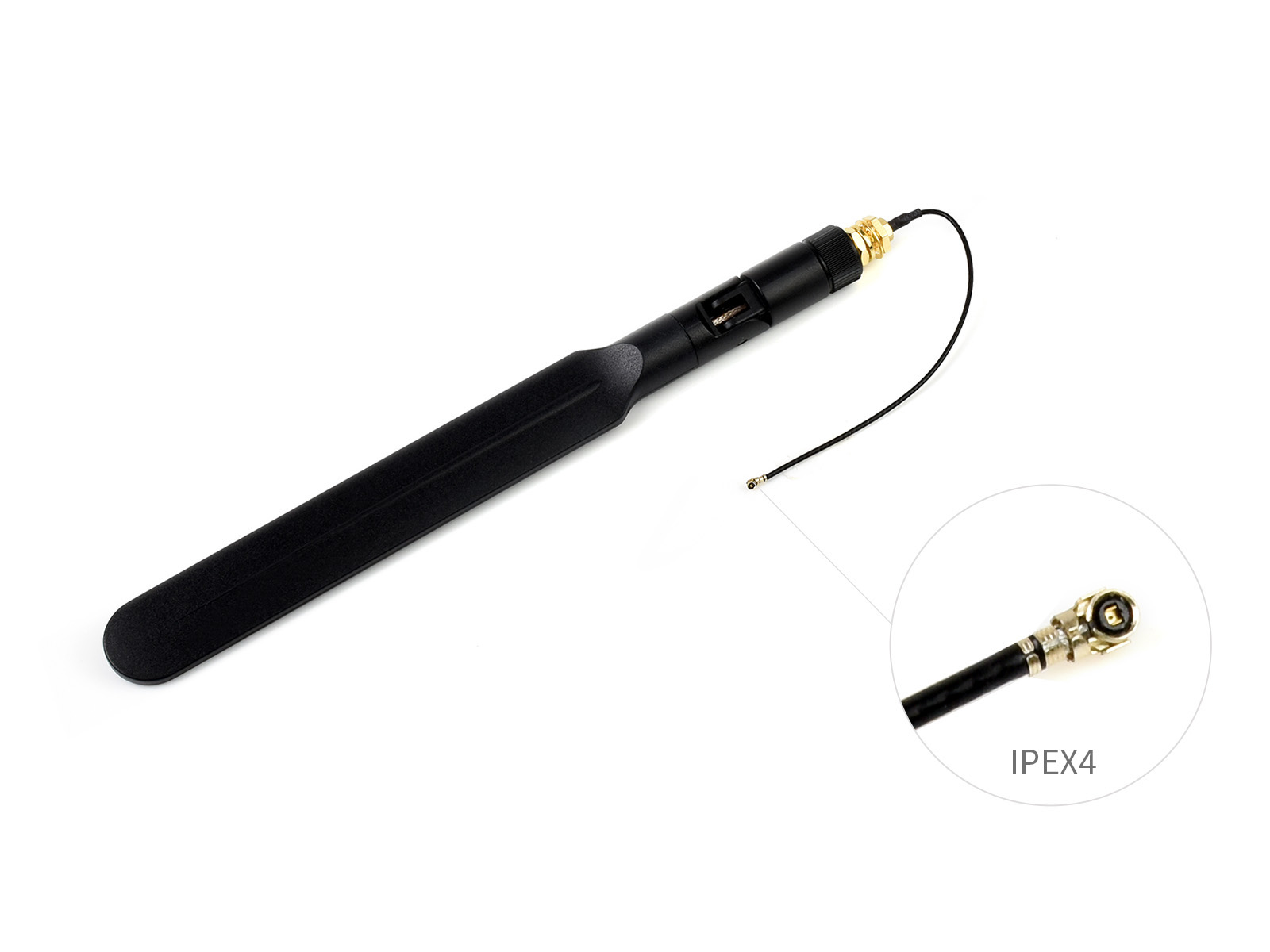

  2. LTE Antenna x1

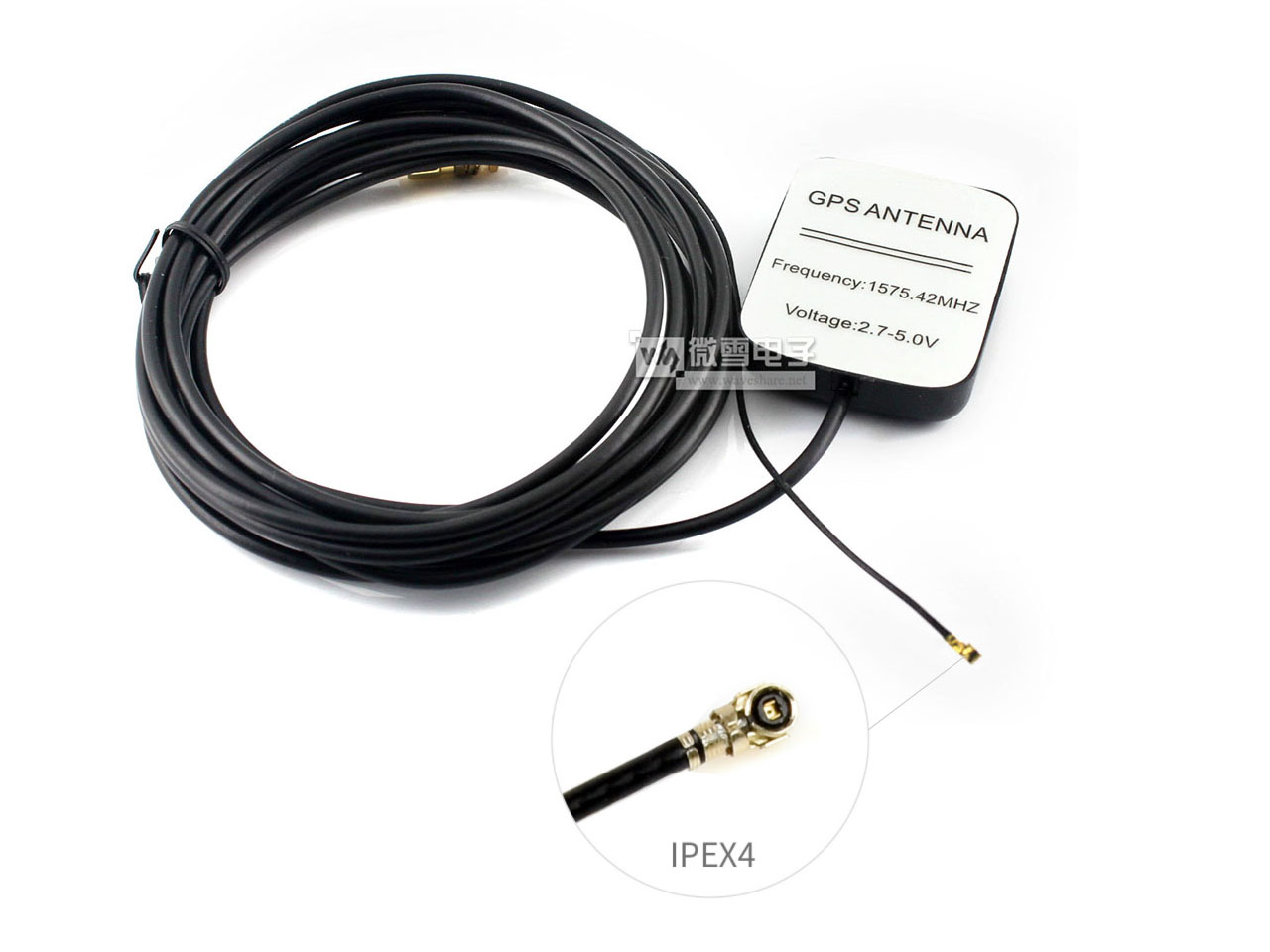

  3. GPS Antenna x1
  4. USB-A to micro-B cable x1

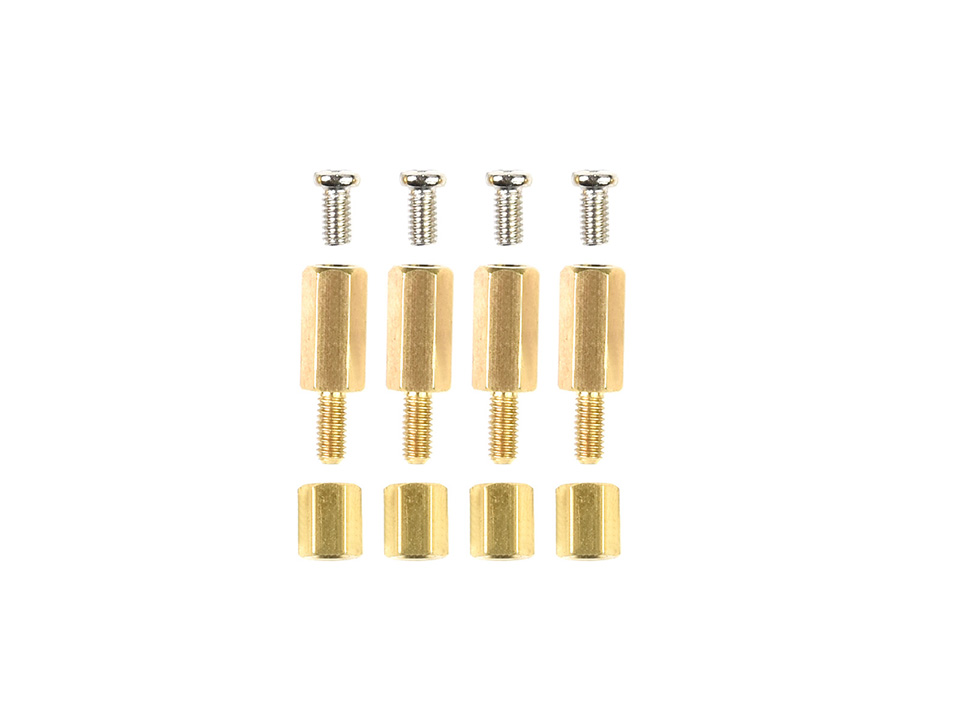

  5. Screws pack x1
