Waveshare 19486 Environment Sensor for Jetson Nano
Description

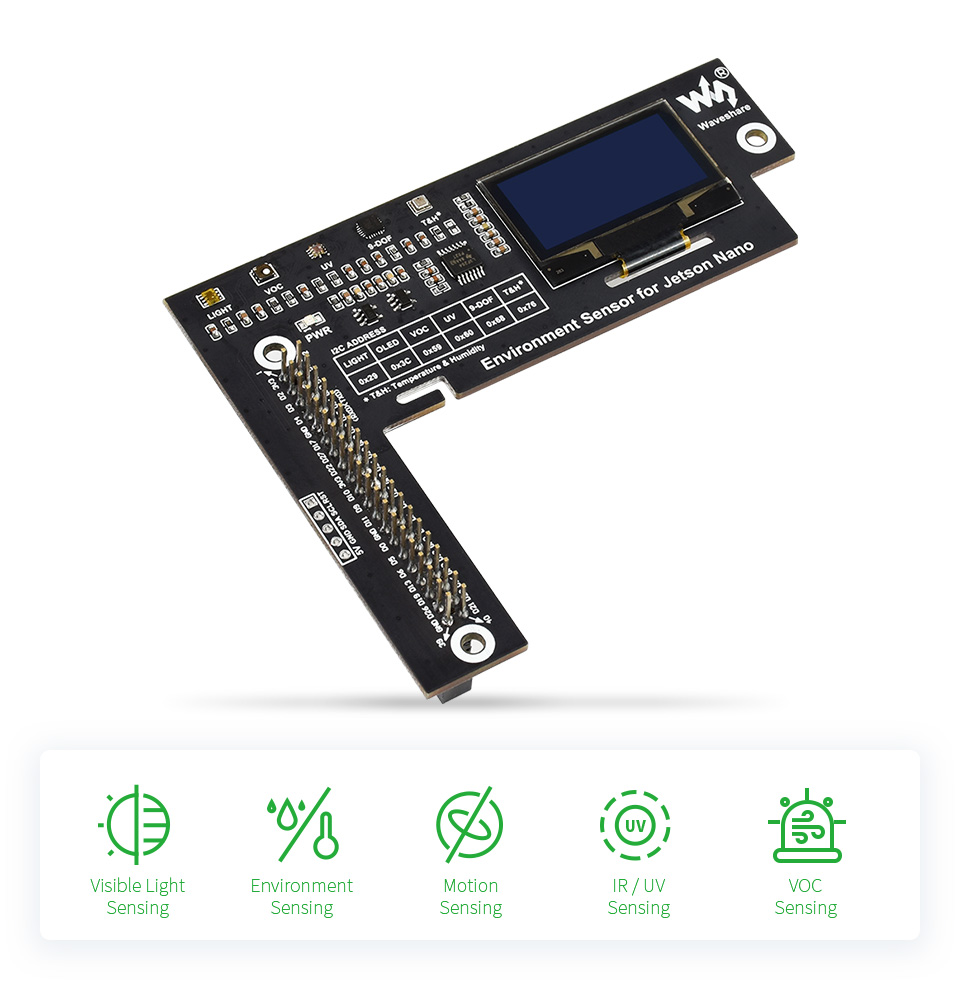

environment sensors module
This environment sensors module gives Jetson Nano Developer Kit the ability to collect environment data like temperature & humidity, air pressure, ambient light intensity, VOC, IR ray, UV ray, etc. It can also be used to build a robot that can detect motion and orientation.
Features at a glance
- Onboard TSL25911FN digital ambient light sensor, for measuring IR and visible light
- Onboard BME280 sensor, for measuring temperature, humidity, and air pressure
- Onboard ICM20948 motion sensor, accelerometer, gyroscope, and magnetometer
- Onboard Si1145 sensor, for measuring IR/UV rays
- Onboard SGP40 sensor, for detecting ambient VOC
- Onboard 1.3inch OLED display, for displaying environment data in real time
- I2C bus, allows reading and displaying data by just using two wires
- Comes with development resources and user manual (python examples)
Specifications
| TSL25911FN digital ambient light sensor | |
|---|---|
| I2C address | 0x29 |
| Effective range | 0~88000Lux |
| BME280 temperature, humidity, and air pressure sensor | |
| I2C address | 0x76 |
| Temperature detection | -40 ~ 85? (0.01? resolution, ±1? accuracy) |
| Humidity detection | 0~100%RH (0.008%RH resolution, ±3%RH accuracy, 1s response time, =2%RH delay) |
| Air pressure detection | 300~1100hPa (0.18Pa resolution, ±1hPa accuracy) |
| ICM20948 motion sensor(9-dof: 3-axis accelerometer, 3-axis gyroscrope, 3-axis magnetometer) | |
| I2C address | 0x68 |
| Accelerometer resolution | 16-bit |
| Accelerometer range (configurable) | ±2, ±4, ±8, ±16g |
| Gyroscope resolution | 16-bit |
| Gyroscope range (configurable) | ±250, ±500, ±1000, ±2000°/sec |
| Magnetometer resolution | 16-bit |
| Magnetometer range | ±4900µT |
| Si1145 IR/UV sensor | |
| I2C address | 0x60 |
| Response wavelength | 280nm - 950nm |
| SGP40 VOC sensor | |
| I2C address | 0x59 |
| Measuring range | 0 ~ 1,000 ppm ethanol equivalent |
| Limit condition | < 0.05 ppm ethanol equivalent OR < 10 % preset concentration point (the larger one should prevail) |
| Response time | < 10 s (tau 63 %) |
| Start time | < 60 s |
| On-chip humidity compensation support | |
| OLED display | |
| I2C address | 0x3C |
| Driver IC | SH1106 |
| Resolution | 128x64 |
| Display color | blue |

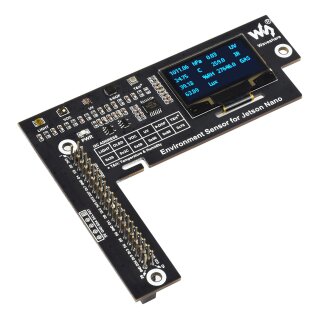

Onboard 1.3inch OLED
displaying collected environment data in real time

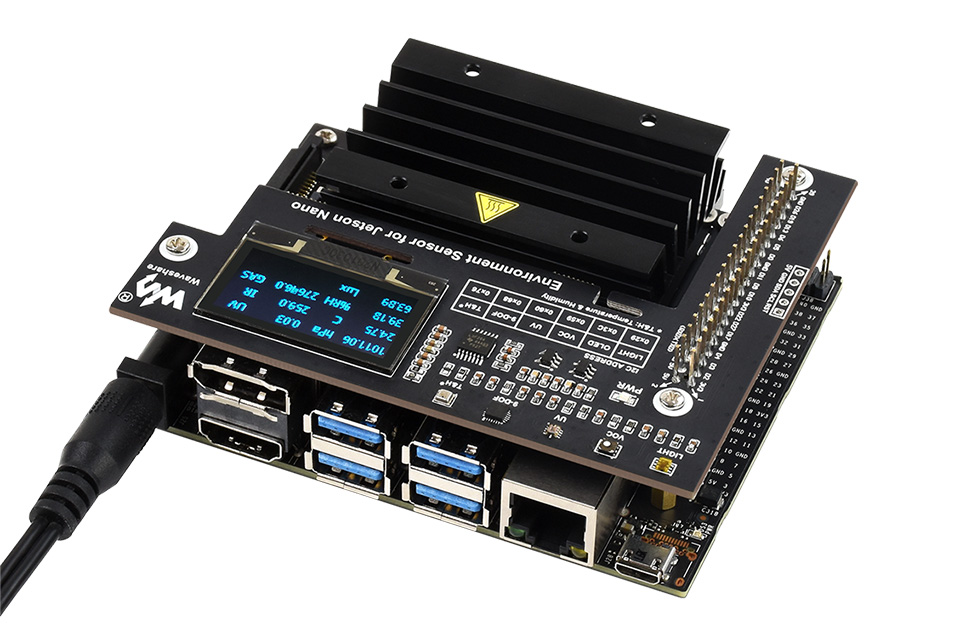

Tailored for Jetson Nano

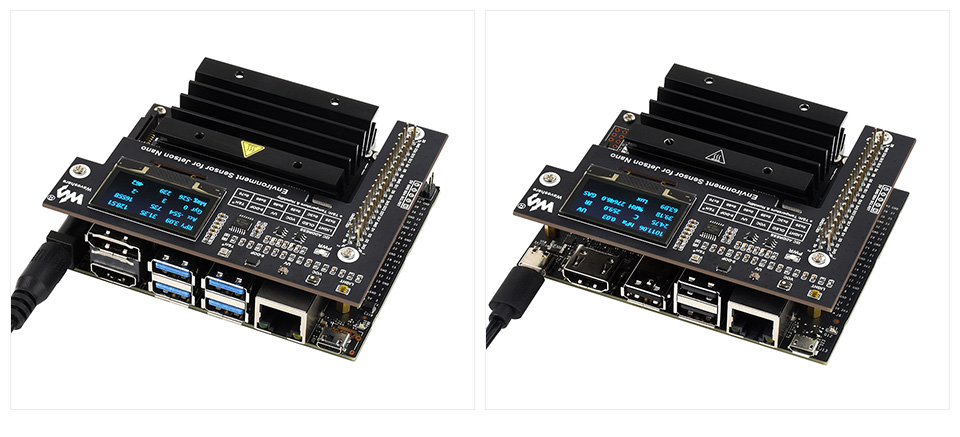

Jetson Nano Developer Kit B01 (left) and Jetson Nano 2GB Developer Kit (right)

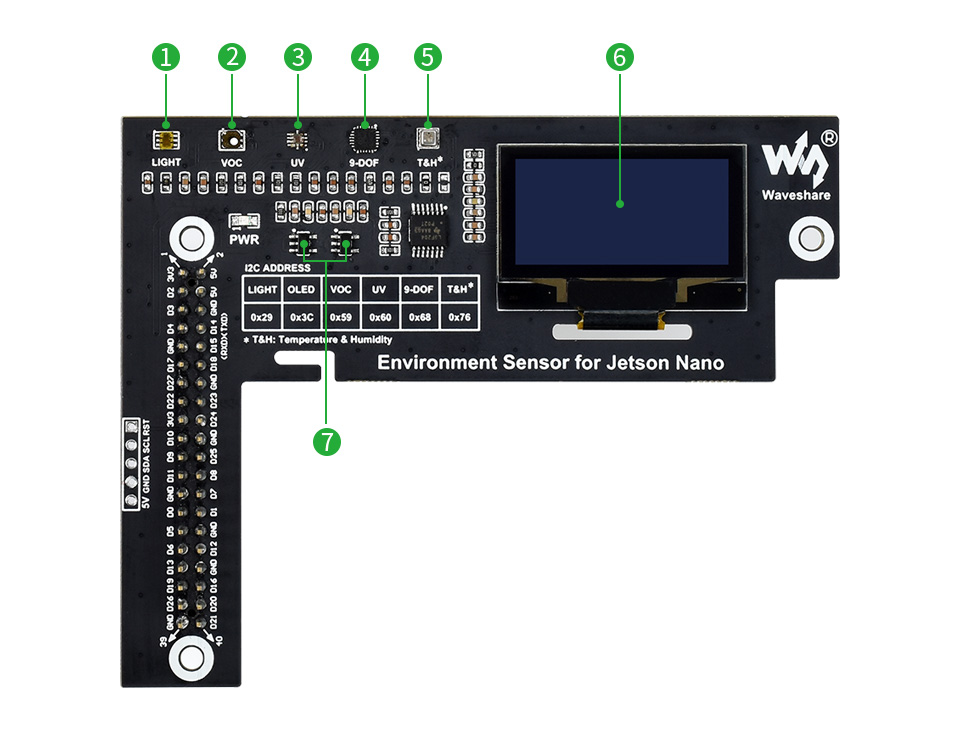

What's on board
- TSL25911FN digital ambient light sensor, for measuring IR and visible light
- SGP40 VOC sensor
- Si1145 IR/UV sensor
- ICM20948 3-axis accelerometer, 3-axis gyroscrope, 3-axis magnetometer
- BME280 measuring temperature, humidity, and air pressure sensor
- 1.3inch OLED 128x64 resolution
- Voltage level translator 5V to 3.3V/1.8V
Outline dimensions
Package Contents
- Environment Sensor for Jetson Nano x1
- Screws pack x1
1
2
| Shipping weight: | 0.06 Kg |
