Beschreibung

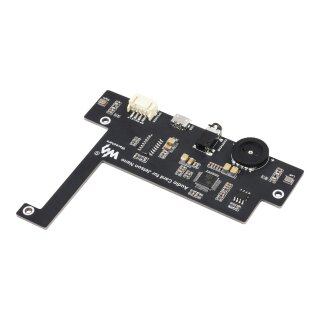

USB audio codec for Jetson Nano
Recording And Playback Support, Built-In Microphone And Speaker Headerdemo codes for speech synthesis, speech dictation, speech wake-up, and speech dialog
driver-free, plug and play
Features at a glance
- USB connector, suits Jetson Nano Developer Kit series, multi systems compatible
- Incorporates SSS1629 audio chip, using USB bus, driver-free, plug and play
- 2x quality MEMS si-microphone, dual sound track recording, better sound quality
- Standard 3.5mm audio jack for connecting earphone
- Dual channel speaker header for direct driving speakers, with volume adjustment knob

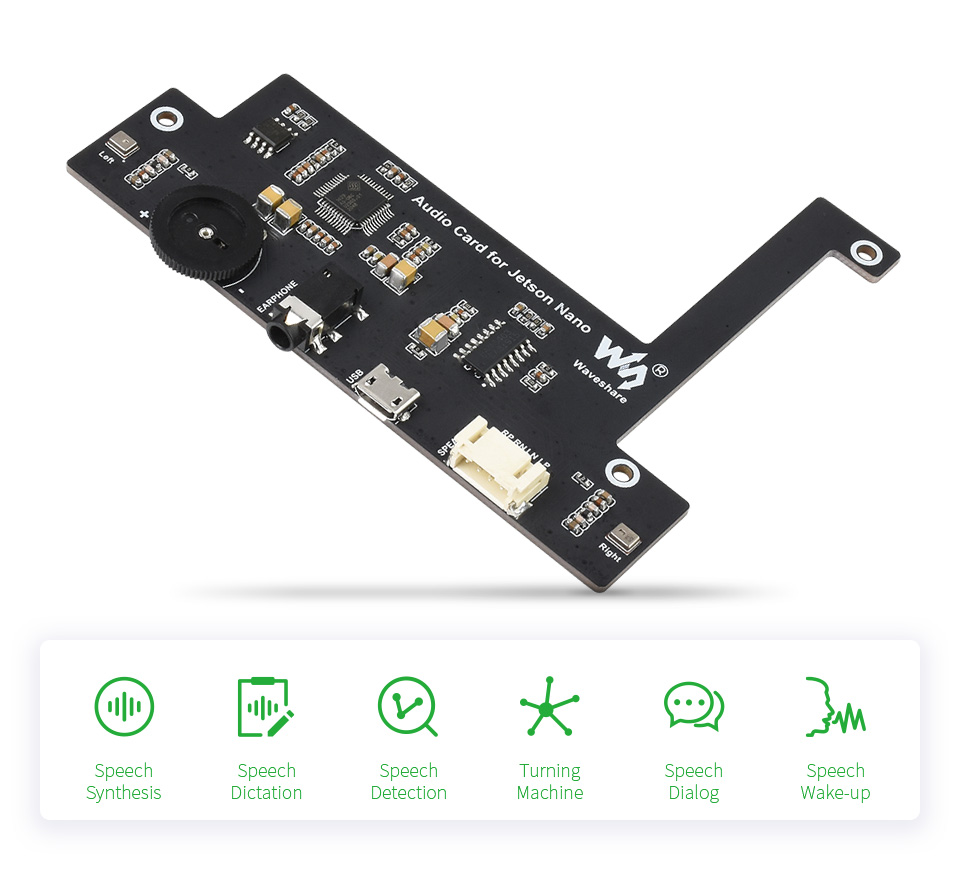

- Providing demo codes for speech synthesis, speech dictation, speech wake-up, and speech dialog
- Comes with development resources and user manual
What can it do?

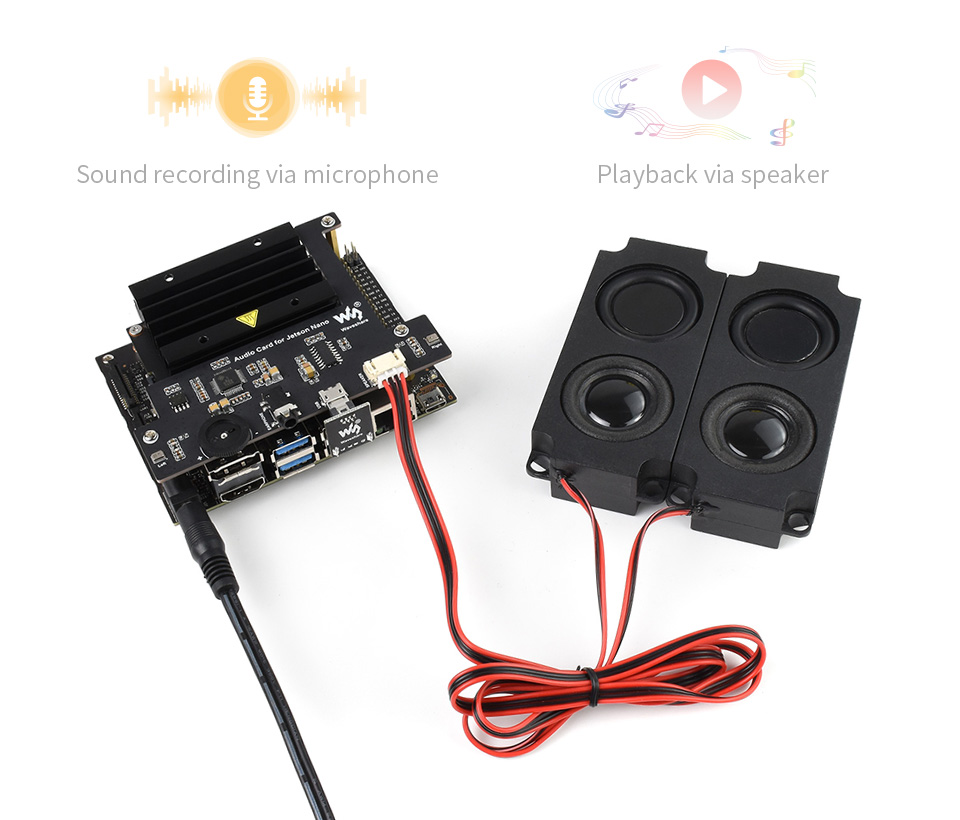

as we know, there's no audio output from the Jetson Nano Developer Kit, and this module is designed to fit the puzzle with capabilities like sound collection, music playback, speech recognition, robot dialog, and so on...
More than a sound card
Incorporate Snowboy hotword detection engine and Google Assistant Serviceproviding detailed example for speech dialog
Tailored for Jetson Nano
Standard USB2.0 connector, driver-free, plug and play, multi systems compatible

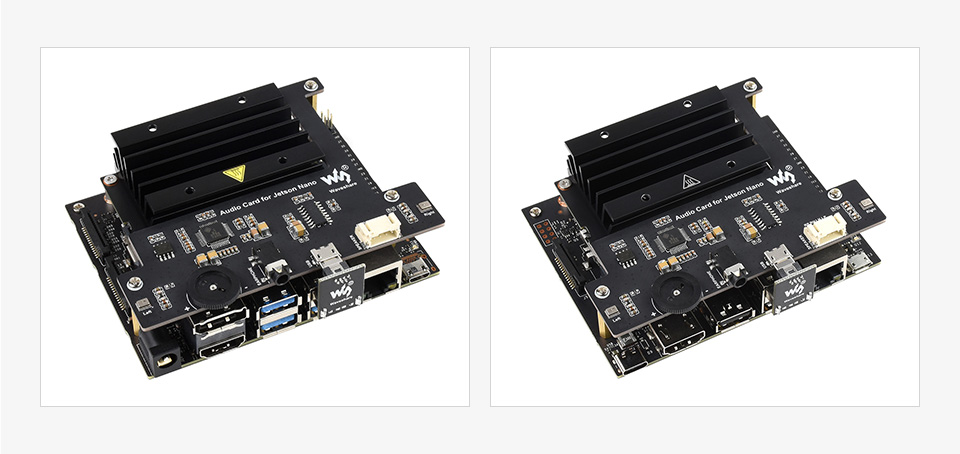

Working with Jetson Nano Developer Kit B01 (left) and Jetson Nano 2GB Developer Kit (right)

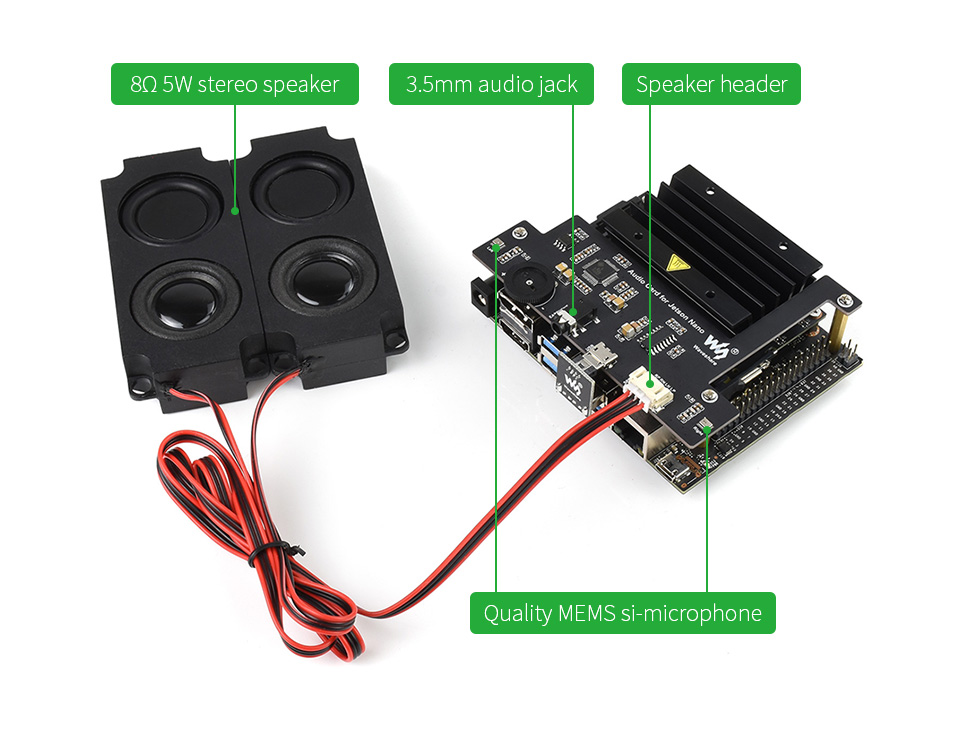

MEMS mic & earphone/speaker connector
onboard quality MEMS si-microphone, 3.5mm audio jack, and speaker header (comes with 8O 5W stereo speaker)
What's on board
- EEPROM
- SSS1629 audio chip
- PAM8403 power amplifier
- MEMS si-microphone
- Speaker volume adjustment knob
- 3.5mm audio jack
- USB connector
- Speaker header

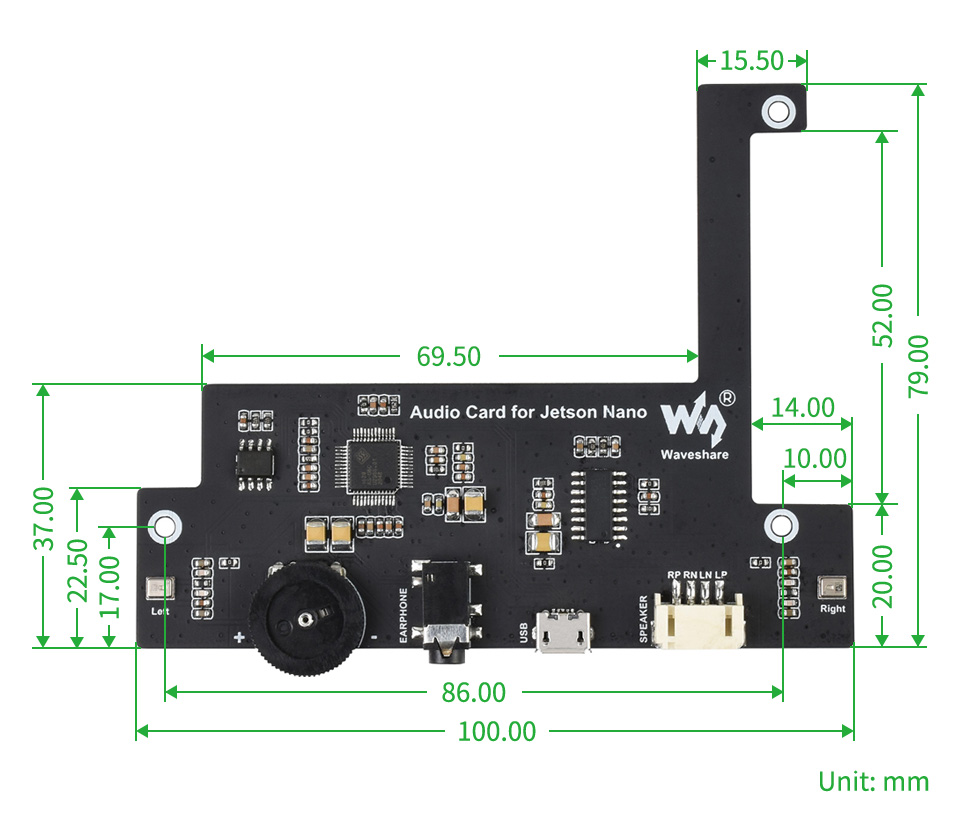

Outline dimensions
Package Contents
- Audio Card for Jetson Nano x1
- 8O 5W speaker x1
- Jetson Nano USB Adapter x1
- Screws pack x1
| Versandgewicht: | 0,23 Kg |
