Artnr.: WS1-019537
Hersteller: Waveshare

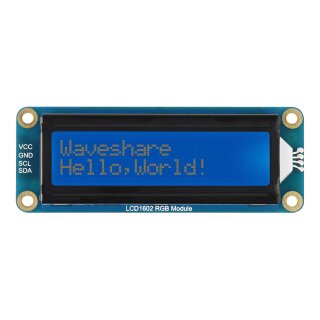

LCD1602 RGB Modul, 16x2 Zeichen LCD, RGB Hintergrundbeleuchtung, 3.3V/5V, I2C Bus

12,90 €

inkl. 19% MwSt.

(10,84 € exkl. MwSt.)

zzgl.

ab Lager lieferbar

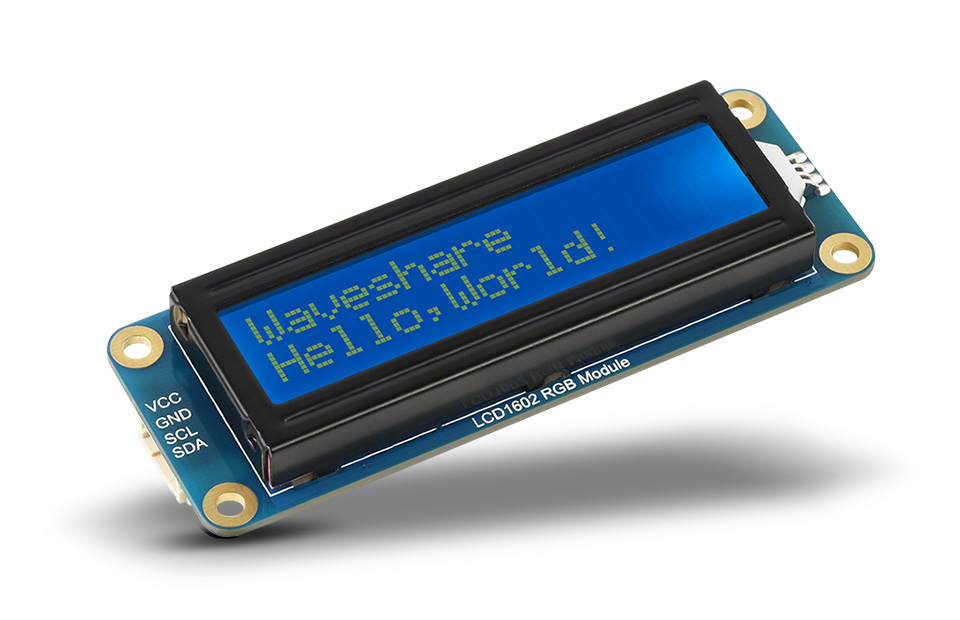

LCD1602 RGB Module

adjustable RGB Backlight color, I2C communication, 3.3V/5V compatible

Supports Raspberry Pi / Pi Pico, Jetson Nano, and Arduino...

Characters16 × 2
RGB Backlight16M Colors
InterfaceI2C
Display PanelChar LCD
LCD ControllerAiP31068
RGB DriverPCA9633

Features at a glance

Incorporates character LCD panel LCD1602
Adjustable RGB backlight color, up to 16M (256³) backlight colors in theory
I2C control interface, only two signal pins are required, saving the IO resource
Compatible with 3.3V/5V operating voltage
Comes with development resources and manual (Raspberry Pi/Jetson Nano/Arduino examples)

Specifications

Operating voltage	3.3 ~ 5V	LCD controller	AiP31068
Communication Interface	I2C	RGB driver	PCA9633
Display Panel	character LCD	Display size	64.5 × 16.0mm
Characters	16 × 2	Dimensions	87.0 × 32.0 × 13.0mm
Backlight colors	16M	Operating voltage	-20 ~ +70?

Adjustable RGB backlight color

up to 16M colors available

I2C control interface

for connecting with host boards like Raspberry Pi / Arduino...

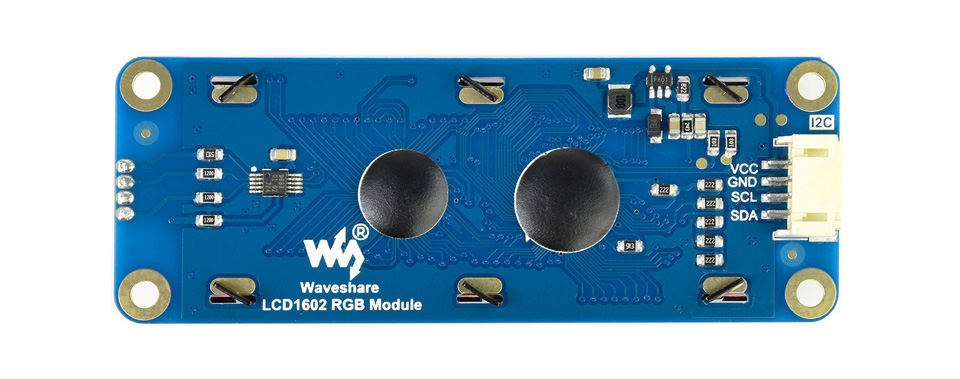

VCC	3.3V ~ 5V power input
GND	GND
SCL	I2C clock pin
SDA	I2C data pin

Hardware connection

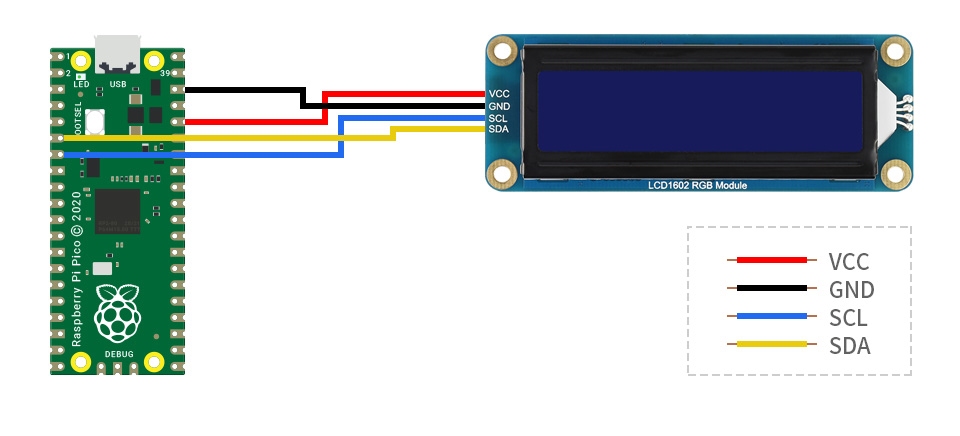

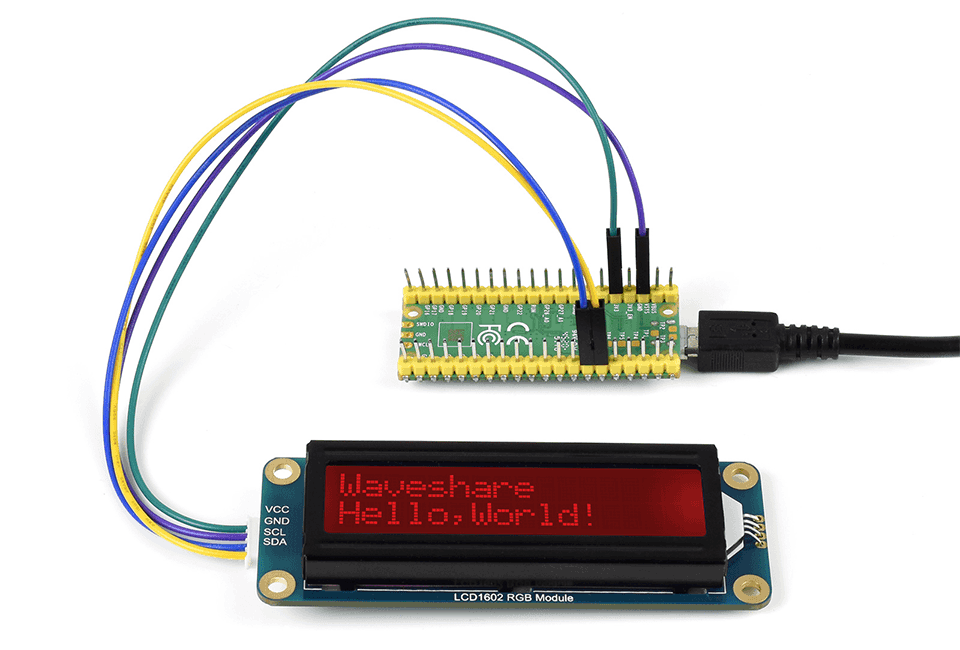

connecting with Raspberry Pi Pico

connecting with Raspberry Pi

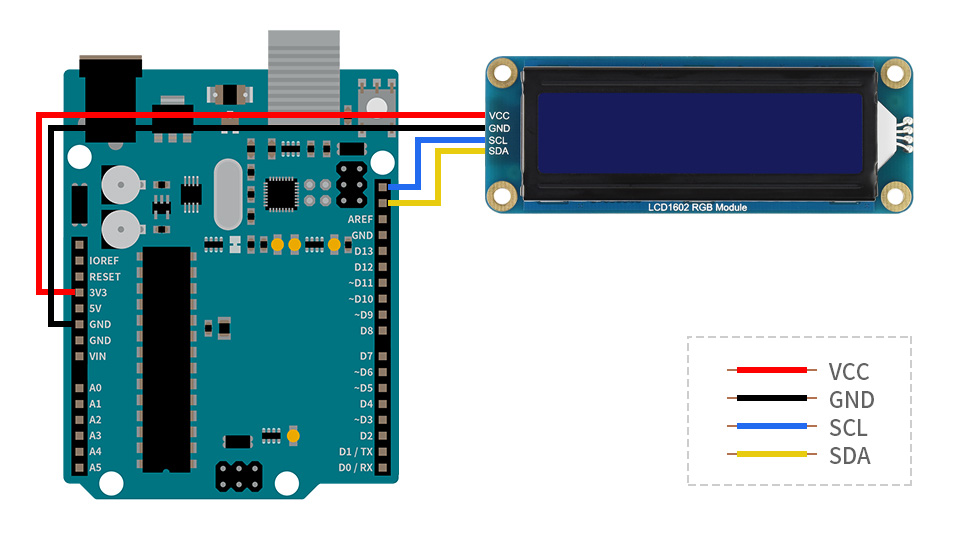

connecting with Arduino board

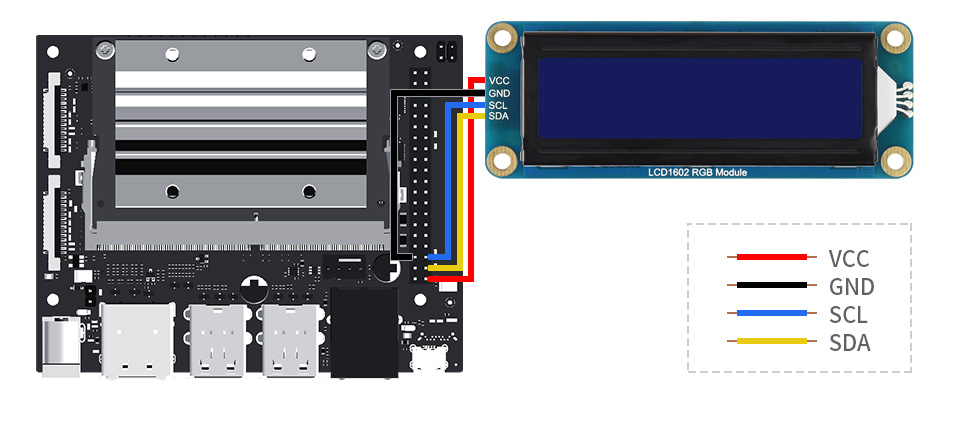

connecting with Jetson Nano Developer Kit

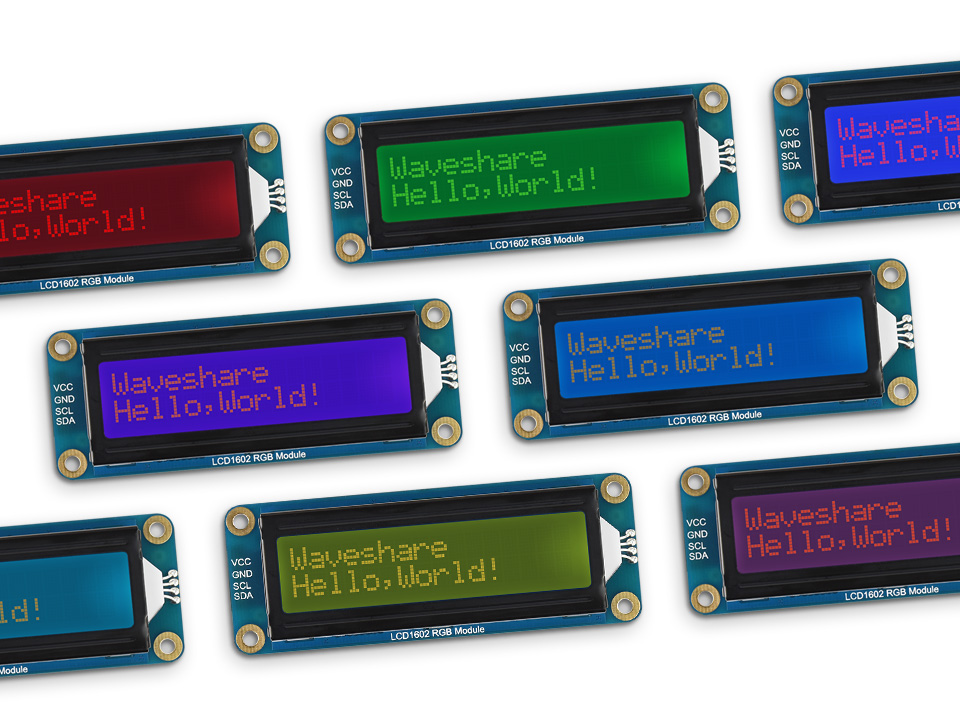

Demonstration

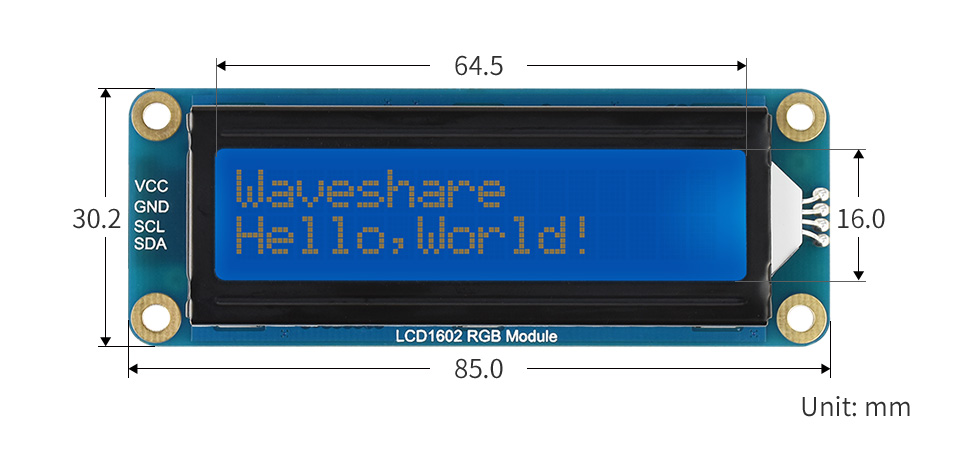

Outline dimensions

Resources & Services

Wiki: LCD1602_RGB_Module

Package Contents

LCD1602 RGB Module x1

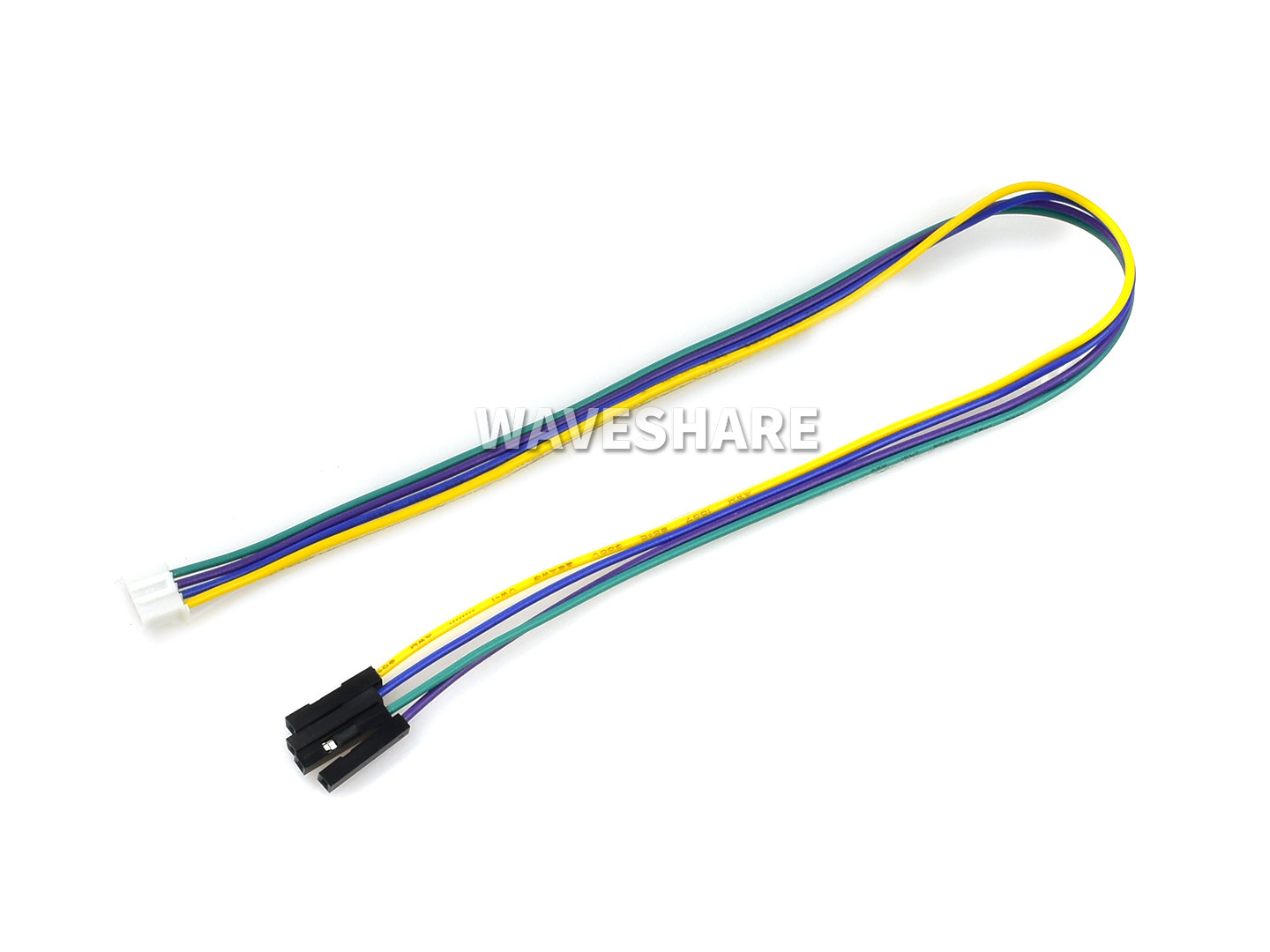

PH2.0 4PIN wire x1

1

2
