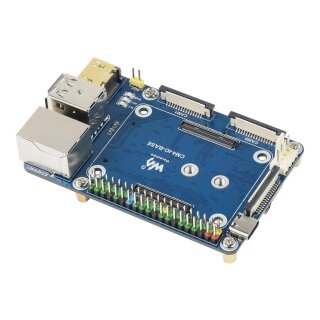

Waveshare 19602 CM4-IO-BASE-B

Mini-Basisplatine (B) für das Raspberry Pi Compute Module 4

35,90 €

inkl. 19% MwSt.

(30,17 € exkl. MwSt.)

zzgl.

Konfigurieren + Kaufen

Waveshare 20263 USB HDMI Adapter: USB-HDMI-Adapter speziell für CM4-IO-BASE, der den FFC-Anschluss an den Standardanschluss anpasst
4,90 € Artikeldetails

Menge: 1

Offizielles USB-C Netzteil schwarz (EU): Offizielles Raspberry Pi Steckernetzteil mit festem Euro-Stecker, 5,1V/3A USB-C-Ausgang
7,90 € Artikeldetails

Menge: 1

Offizielles USB-C Netzteil weiß (EU): Offizielles Raspberry Pi Steckernetzteil mit festem Euro-Stecker, 5,1V/3A USB-C-Ausgang
7,90 € Artikeldetails

Menge: 1

Stontronics USB-C Netzteil (EU/UK/US/AU): Raspberry Pi Steckernetzteil mit Wechselstecker (EU/UK/US/AU), 5,1V/3A USB-C-Ausgang
6,90 € Artikeldetails

Menge: 1

Raspberry Pi Compute Module CM4/CM5 Antenna Kit: Zertifiziert für die Verwendung mit dem Raspberry Pi Compute Module 4, Frequenzbereich 2400-2500/5100-5800 MHz, Bandbreite 100-700 MHz
5,90 € Artikeldetails

Menge: 1

Waveshare 18944 ORD-CM4-ANTENNA: Kompatible Antenne für Raspberry Pi Compute Module 4, unterstützt 2.4G/5G WiFi Frequenzband
2,90 € Artikeldetails

Menge: 1

Ihre Konfiguration

inkl. 19% MwSt.

(30,17 € exkl. MwSt.)

zzgl.

Mini Base Board for Compute Module 4

suitable for evaluating the Raspberry Pi CM4 or being integrated into end products

Powerful functions in a credit card sized body

CM4 IO Board	Waveshare mini IO Board		Waveshare PoE IO Board (B)	Waveshare PoE IO Board	Raspberry Pi IO Board
CM4 IO Board	Lite Ver.	Full Ver.	Waveshare PoE IO Board (B)	Waveshare PoE IO Board	Raspberry Pi IO Board
PoE	N/A		integrates 802.3af-compliant PoE circuit (5V/2.5A)		PoE header only
USB	USB 2.0 × 2 USB 2.0 × 2 (via FFC connector)		USB 2.0 × 4	USB 3.2 Gen1 × 4	USB 2.0 × 2 USB 2.0 × 2 (via pin header)
Header	40PIN GPIO × 1		40PIN GPIO × 1 RS485 × 1 RS232 × 1 standard PCIe Gen 2 × 1	40PIN GPIO × 1	40PIN GPIO × 1 standard PCIe Gen 2 × 1
STORAGE	M.2 Slot × 1 (3.3V/1A max.)	M.2 Slot × 1 (3.3V/3A max.)	--	--	--
HDMI	HDMI × 1 HDMI × 1 (via FFC connector) supports 4K 30fps output		HDMI × 2 supports 4K 30fps output
DSI Display	MIPI DSI display port × 1 (15pin 1.0mm FPC connector)		MIPI DSI display port × 2 (15pin 1.0mm FPC connector)	MIPI DSI display port × 2 (22pin 0.5mm FPC connector)
CSI Camera	MIPI CSI-2 camera port × 2 (15pin 1.0mm FPC connector)			MIPI CSI-2 camera port × 2 (22pin 0.5mm FPC connector)
Power Input	5V		5V	7V~36V	12V
Fan	5V		5V / 12V		12V
Fan	no fan control	allows speed adjustment and measurement
RTC	N/A	Real-time clock with battery socket and ability to wake Compute Module 4
Ethernet	Gigabit Ethernet RJ45
CM4 Socket	suitable for all variants of Compute Module 4
SD Card Slot	MicroSD card socket for Compute Module 4 Lite (without eMMC) variants

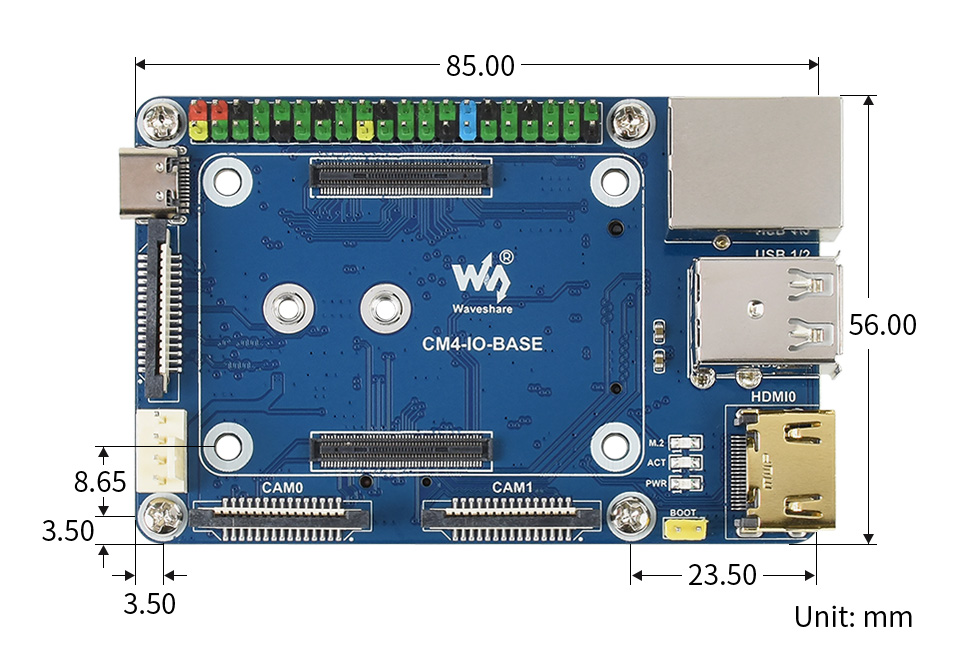

Dimensions (mm)	85.0 × 56.0		124.50 × 108.80	160 × 90

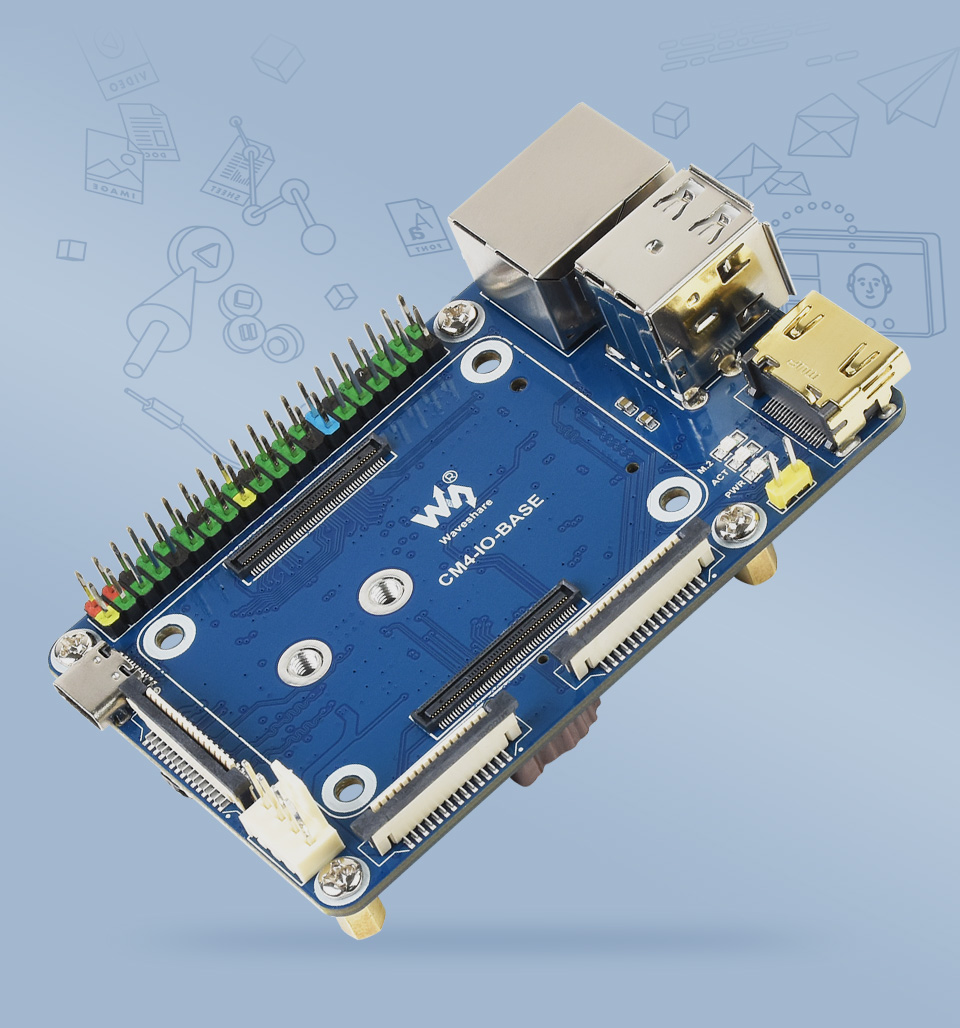

standard CM4 socket and color-coded Raspberry Pi 40PIN GPIO headersuitable for Compute Module 4 Lite/eMMC series module

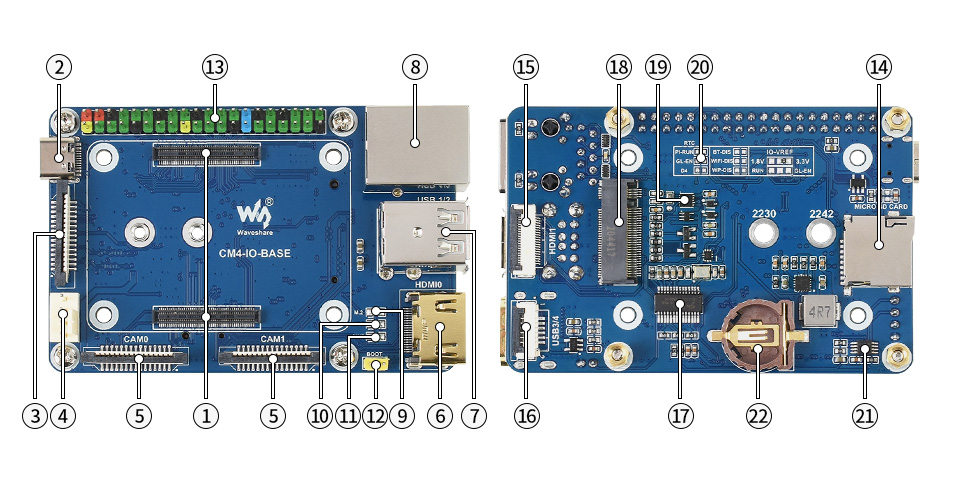

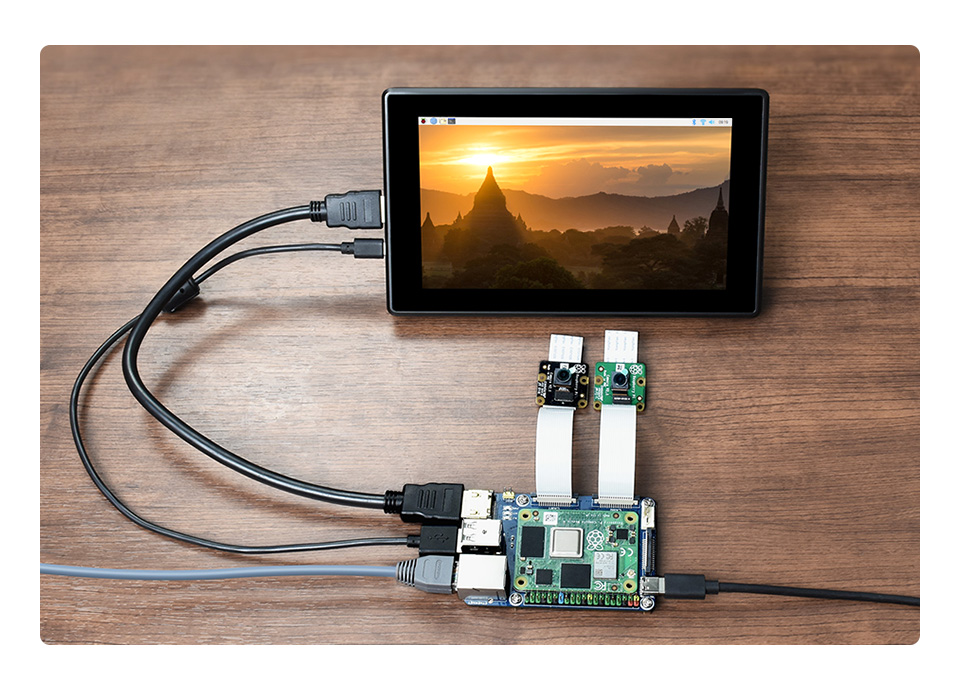

onboard multiple connectors including: CSI/DSI/RTC/FAN/HDMI/USB/RJ45 Gigabit Ethernet/Micro SD Card Slot/M.2 Slot

CM4 socket suitable for all variants of Compute Module 4
Power input/Programming 5V/2.5A power supply, or used for eMMC burning
DISP MIPI DSI display port
FAN for connecting cooling fan, allows speed adjustment and measurement
CAM 2x MIPI CSI camera ports
HDMI0 connector HDMI0 port, supports 4K 30fps output
USB 2.0 ports 2x USB 2.0 ports, for connecting sorts of USB devices
Gigabit Ethernet connector Gigabit Ethernet RJ45 connector, with 10 / 100 / 1000M network support
M.2 indicator indicating the operating status of M.2 interface
ACT indicator indicating the operating status of Raspberry Pi
PWR indicator indicating the status of Raspberry Pi power supply
BOOT selection ON: CM4 would be booted from USB-C interface OFF: CM4 would be booted from eMMC or Micro SD card

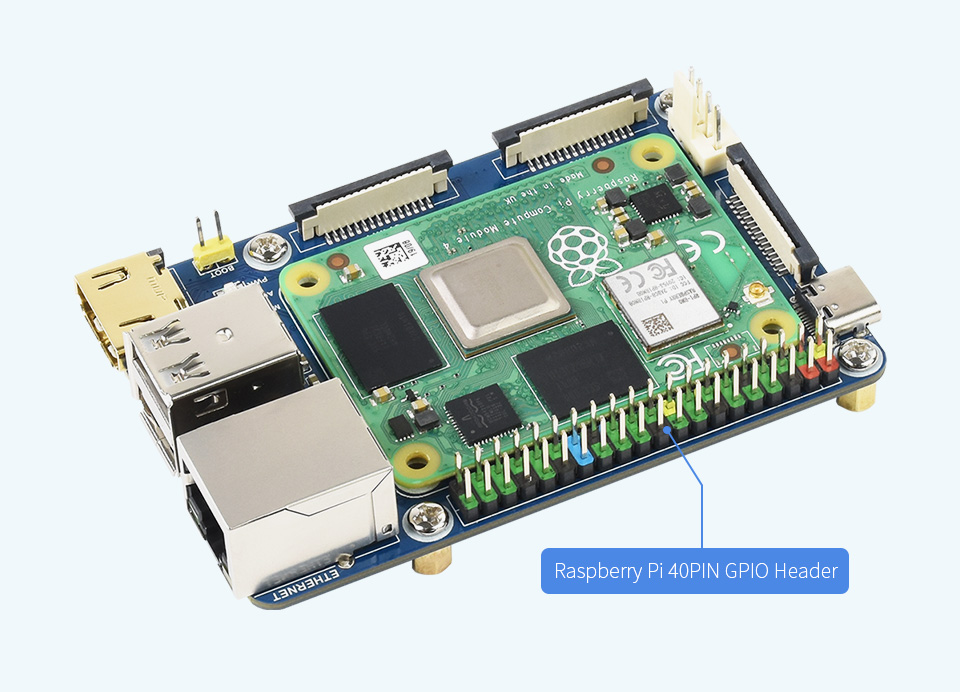

40PIN GPIO header
Micro SD card slot for connecting a Micro SD card with pre-burnt image (Lite variant ONLY)
HDMI1 FFC connector HDMI1 port, supports 4K 30fps output
USB 2.0 FFC connector can be connected through an adapter
FE1.1S USB HUB chip, expanding one USB port to 4x ports
M.2 slot supports sorts of NVME SSD, or communication modules with PCIE M.2 KEY-M interface
RTC chip allows RTC-related functions like wakeup, shutdown, reboot, and more
RTC interrupt selection PI-RUN: CM4 reboot on RTC interruption GN-EN: CM4 shutdown on RTC interruption D4: D4 pin is triggered on RTC interruption
EMC2301 fan controller, for speed adjustment / measurement
RTC battery holder supports CR1220 button cell
