Waveshare 19627 SIM8200EA-M2 5G HAT (no PA)

Artnr.: WS1-019627

Waveshare 19627 SIM8200EA-M2 5G HAT (no PA)

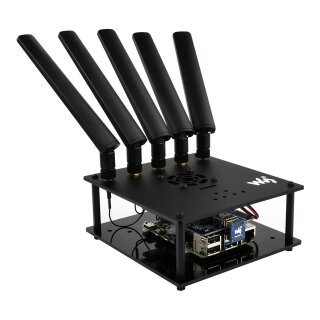

SIM8200EA-M2 5G HAT mit Antennen, 5G/4G/3G Unterstützung, Snapdragon X55 Onboard, Multi Mode Multi Band, geeignet für Regionen mit 5G Sub-6G Signalabdeckung

Variante

395 €mit EU Netzteil389 €ohne Netzteil

389,00 € inkl. 19% MwSt.

326,89 € exkl. MwSt.

kostenfreie Lieferung

ab Lager lieferbar

Lieferzeit: 1 - 3 Arbeitstage

Beschreibung

Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.

SIM8200EA-M2 5G HAT for Raspberry Pi

Comes with SIM8200EA-M2, supports 5G/4G/3G, supports 5G SA and NSA,multi mode multi band, applicable for regions with 5G Sub-6G signal coverage

This 5G/4G/3G Raspberry Pi communication HAT adopts SIMCom 5G module SIM8200EA-M2 , supports 5G NSA and SA networking, providing data rate up to 4 Gbps (DL) / 500 Mbps (UL). The base board features standard M2 connector, allows connecting with different 4G or 5G communication module with M2 package. There are also USB3.1 port, audio jack and decoder, SIM card slot, etc. Combined with our configuration script and development resources, it is easy to enable 5G high speed communication for the Raspberry Pi or computer. The 5G HAT is ideal for fast evaluating 5G modules, as well as being integrated into sorts of applications where 5G connection is required.

Features at a glance

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
Comes with SIM8200EA-M2 core module, based on Qualcomm snapdragon X55 platform, with multi mode multi band support
5G/4G/3G communication support
USB3.1 port for testing AT commands, sending messages, cloud communication, making phone call, getting GNSS positioning data, etc.
SIM card slot, supports 1.8V / 3V SIM card
2x LED indicators, easy to monitor the working status
AT command support, based on 3GPP TS 27.007, 27.005 and V.25TER command set
Onboard audio jack and audio decoder, allows audio operation like making phone call *
Multi-constellation dual-band positioning: GPS, GLONASS, Beidou, Galileo, and QZSS
Operating system support: Windows/Linux/Android
Comes with quality acrylic case and cooling fan, nice looking, better heat dissipation

* Phone call is not available for the moment, further firmware update is required to support this feature.

Specifications

	SIM8200EA-M2	SIM8202G-M2
Frequency band
Sub-6G	n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n40, n41, n66, n71, n77, n78, n79
LTE-FDD	B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B66/B71
LTE-TDD	B34/B38/B39/B40/B41/B42/B48
WCDMA	B1/B2/B3/B4/B5/B8
GNSS	GPS, GLONASS, Beidou, Galileo, and QZSS
Data rate
Sub-6G	4 Gbps (DL) / 500 Mbps (UL)
LTE	2 Gbps (DL) / 200 Mbps (UL)
HSPA	42 Mbps (DL) / 5.76 Mbps (UL)
Software functions
Operating systems	Windows/Linux/Android
Communication protocols	TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0
SMS	Supports MT, MO, CB, Text, PDU
Firmware upgrade	Supports firmware upgrade via USB port
Hardware info
SIM card	1.8V/3.0V
Power supply	5V 3A
Antenna connector	6x IPEX-4 connector	4x IPEX-4 connector
Module dimensions	52.0×30.0×2.3mm	42.0×30.0×2.3mm
Applications
Applicable regions	Regions with 5G Sub-6G signal coverage including China, US, Japan, South Korea, Europe, the Middle East, Latin America, etc.
Application examples	CPE, Smart gateway, Drone, Live streaming, Remote medical treatment, Intelligent security

5G Module comparison

compatible hardware interface, identical software function

SIM8200EA-M2 the 6x antennas version (left), SIM8202G-M2 the 4x antennas version (right)

Multi mode multi band

applicable for most of the countries and regions

Based on Qualcomm snapdragon X55 platform with multi mode multi band support.Applicable for regions with 5G Sub-6G signal coverage including China, US, Japan, South Korea, Europe, the Middle East, Latin America...Supports 5G NSA (4G+5G common networking) and SA (5G standalone networking).

* the frequency band diagram above is for reference only, please confirm the supported bands according to your local service provider.

Multi system support

supports Windows/Android/Linux

Just plug it into USB port, go through some driver installation and simple configuration, the high speed 5G network connection would be ready to use

Multi host support

enabling 5G high speed connection for Raspberry Pi and Windows computer

Sub-6G: up to 4 Gbps (downlink) / up to 500 Mbps (uplink)* LET: up to 2 Gbps (downlink) / up to 200 Mbps (uplink)* HSPA+: up to 42 Mbps (downlink) / up to 5.76 Mbps (uplink)*
