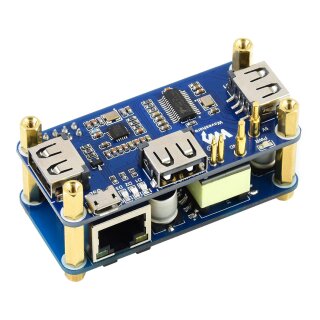

Waveshare 19635 PoE/ETH/USB HUB HAT
Description
PoE Ethernet / USB HUB HAT
suitable for Raspberry Pi Zero / Zero W / Zero WH, 802.3af-compliant
Features at a glance
The PoE/ETH/USB HUB HAT is a PoE (Power over Ethernet) USB HUB HAT designed for Raspberry Pi Zero . By using this small HAT and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable, along with 3x extended USB ports .
- Designed for Raspberry Pi Zero, compatible with Zero series boards
- Incorporates RTL8152B Ethernet chip, with 10M / 100M auto-negotiation RJ45 port
- PoE (Power over Ethernet) feature, 802.3af-compliant
- Fully isolated SMPS (Switch Mode Power Supply)
- 3x extended USB ports, compatible with USB 2.0 / 1.1
Specifications
| PoE power input | 37V ~ 57V DC in |
|---|---|
| Power output | 5V 2.5A DC out |
| Network standard | IEEE 802.3af-compliant PoE |
| Dimensions | 23.10 × 65.00 mm |

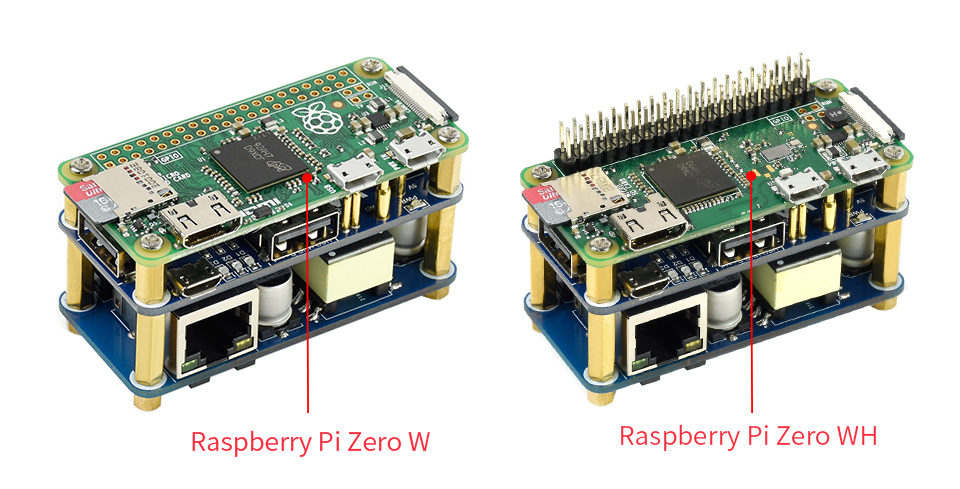

Compatible with Raspberry Pi Zero series
Designed for Raspberry Pi Zero, compatible with Zero / Zero W / Zero WH

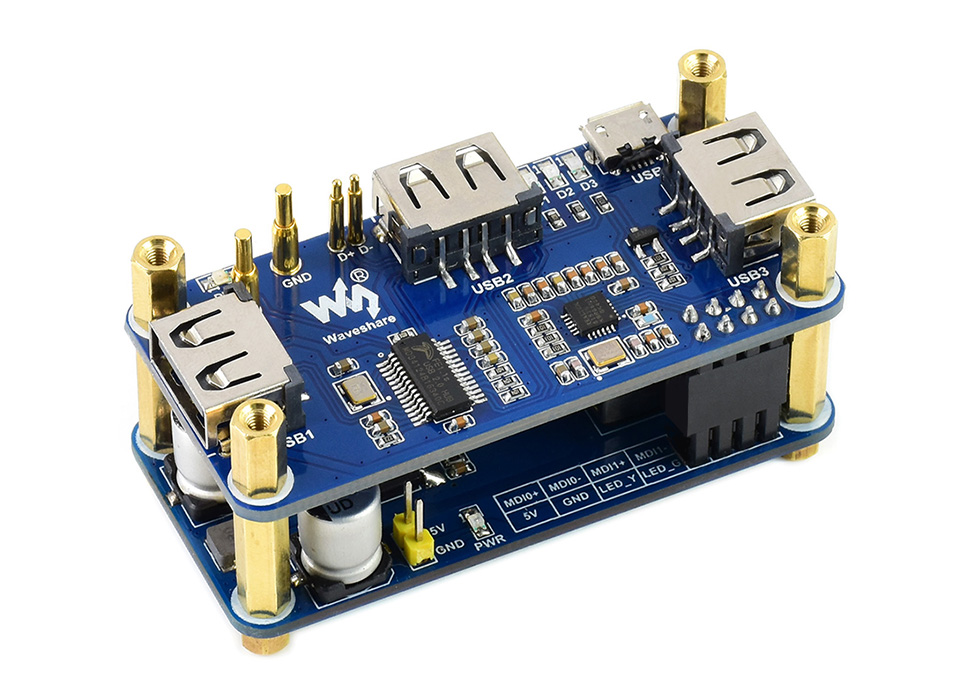

3x extended USB 2.0 ports
USB1 ~ USB3, compatible with USB 2.0 / 1.1

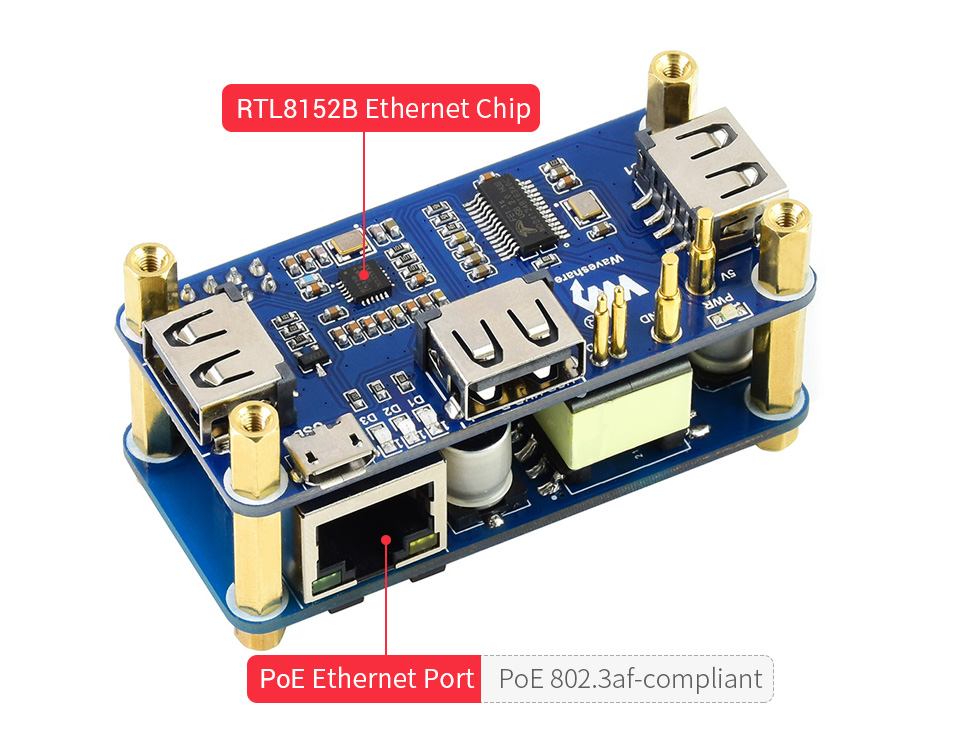

Extended Ethernet port
USB to Ethernet conversion by the RTL8152B chip, 10M / 100M auto-negotiation

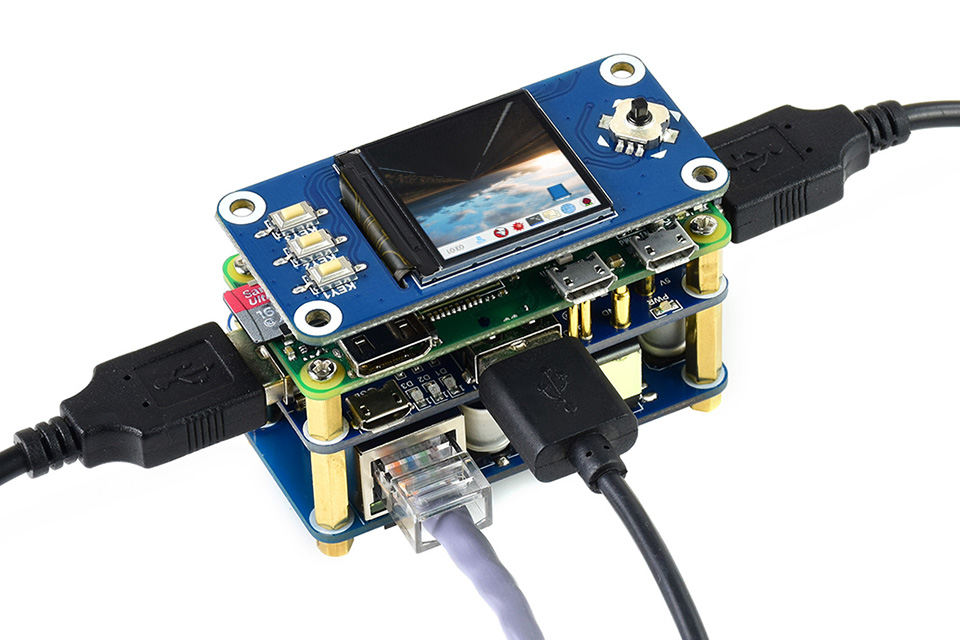

Application example
For reference ONLY, the Raspberry Pi Zero, LCD display, and MicroSD card are NOT included.

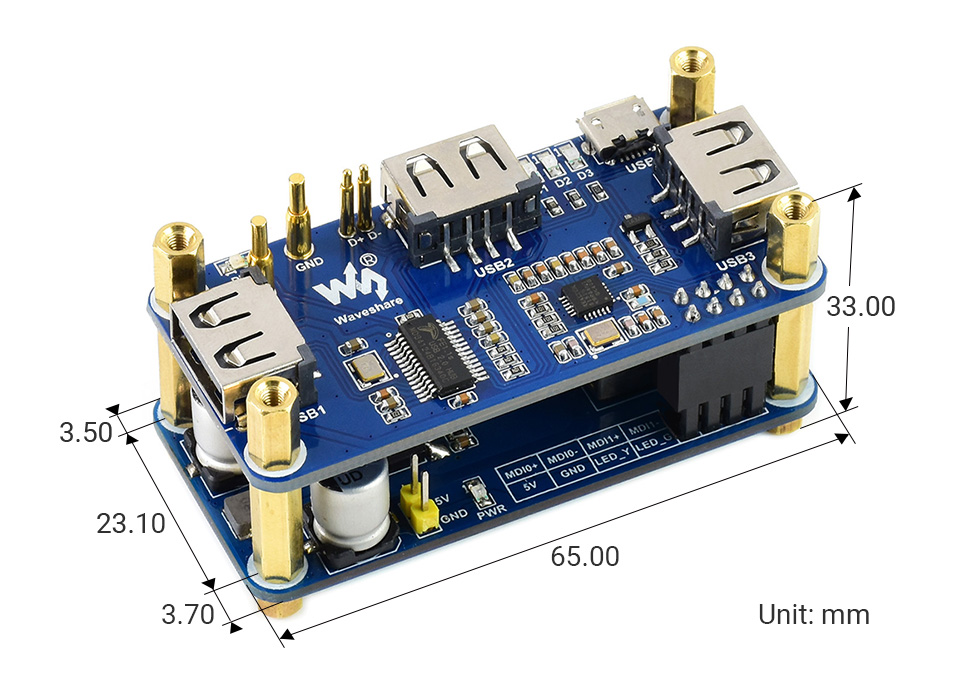

Outline dimensions

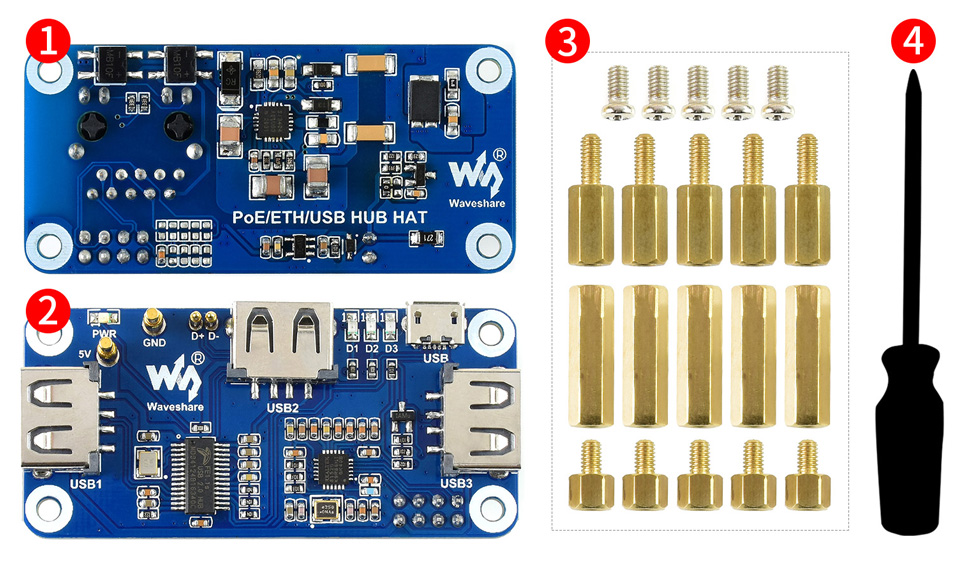

Package Contents
- PoE/ETH/USB HUB HAT x1
- USB HUB Board x1
- Screws pack x1
- Screwdriver x1
| Shipping weight: | 0.08 Kg |
