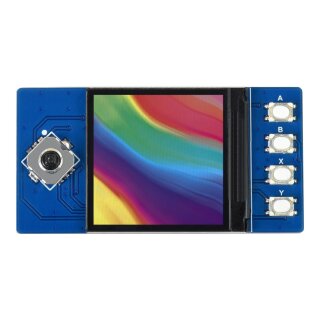

Waveshare 19650 Pico-LCD-1.3
Beschreibung
1.3" LCD Display Module for Pico
embedded ST7789 driver, using SPI bus
Comes with Raspberry Pi Pico C/C++ and MicroPython Demo
-
Size
1.3"
-
Resolution
240×240
-
Display Color
65K RGB
-
Interface
SPI
-
Display Panel
IPS
-
Driver
ST7789

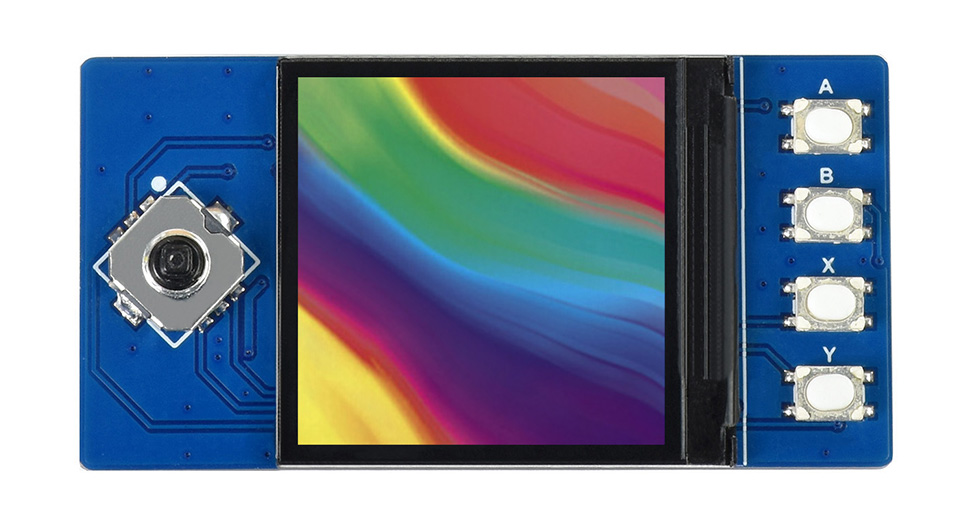

Features at a glance
- 240×240 resolution, IPS screen, 65K RGB colors, clear and colorful displaying effect
- SPI interface, requires minimal IO pins
- 1x joystick and 4x user buttons for easy interacting
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
| Operating voltage | 2.6 ~ 5.5V | Resolution | 240×240 pixels |
|---|---|---|---|
| Communication Interface | 4-wire SPI | Display size | 23.40 × 23.40mm |
| Display Panel | IPS | Pixel size | 0.0975 × 0.0975mm |
| Driver | ST7789 | Dimensions | 52.00 × 26.50mm |
Raspberry Pi Pico header compatibility

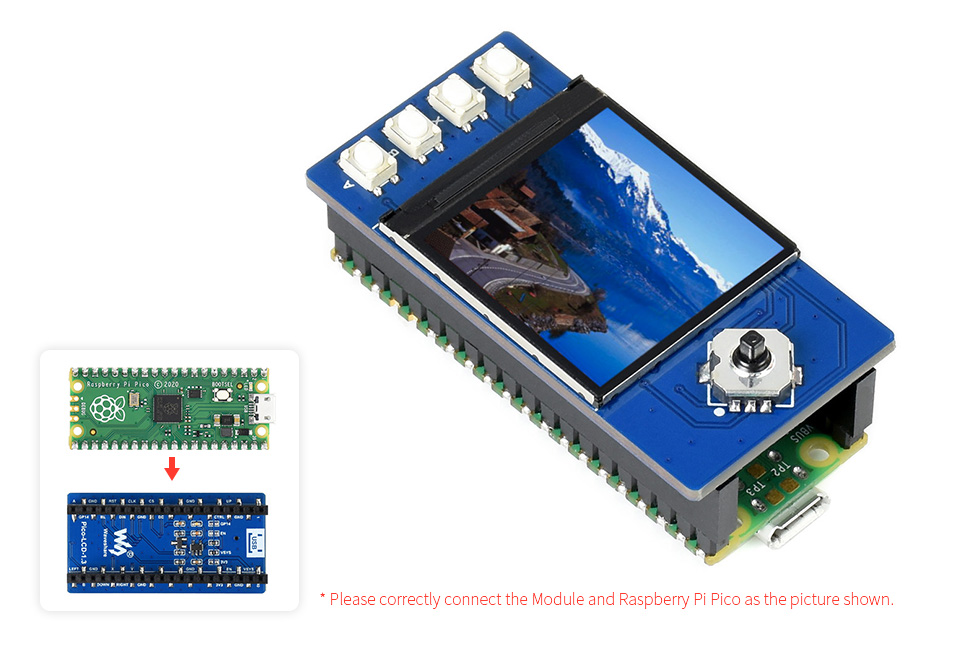

onboard female pin header for direct attaching to Raspberry Pi Pico1x joystick and 4x user buttons for easy interacting
Raspberry Pi Pico is NOT included.

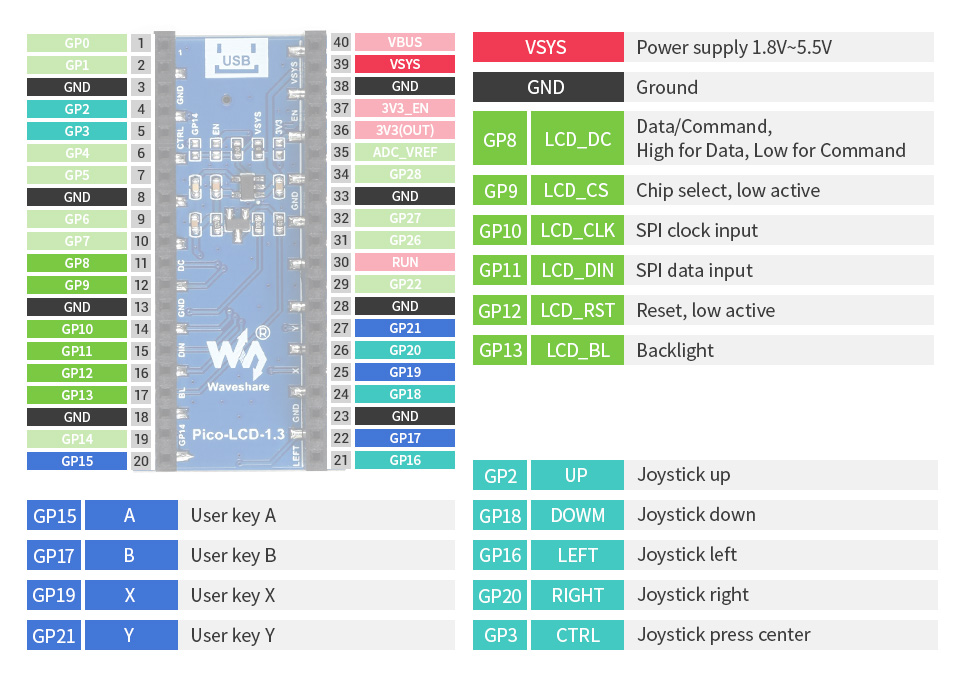

Pinout definition

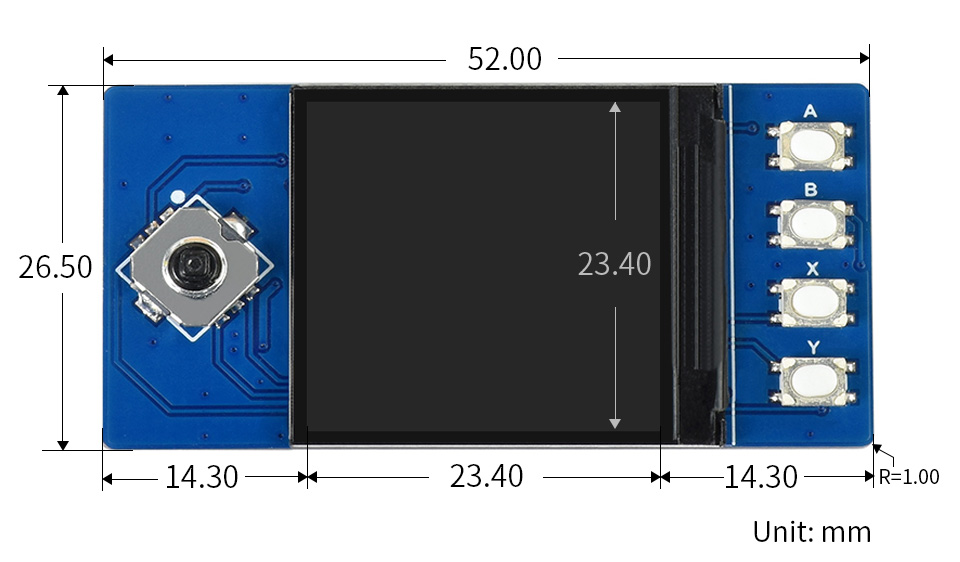

Outline dimensions
Resources & Services
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Selection guide
| Part Number | Type | Display color | Pixels | Display size (mm) | Bus | Driver | Dimensions (mm) | Touch |
|---|---|---|---|---|---|---|---|---|
| Pico-LCD-0.96 | IPS | 65K | 160×80 | 21.70×10.80 | SPI | ST7735S | 52.00×25.00 | |
| Pico-LCD-1.14 | IPS | 65K | 240×135 | 24.91×14.86 | SPI | ST7789 | 52.00×25.00 | |
| Pico-LCD-1.3 | IPS | 65K | 240×240 | 23.40×23.40 | SPI | ST7789 | 52.00×26.50 | |
| Pico-LCD-1.44 | TFT | 65K | 128×128 | 25.50×26.50 | SPI | ST7735S | 52.00×26.50 | |
| Pico-LCD-1.8 | TFT | 65K | 160×128 | 35.04×28.03 | SPI | ST7735S | 52.00×34.50 | |
| Pico-LCD-2 | IPS | 65K | 320×240 | 40.80×30.60 | SPI | ST7789VW | 52.00×35.00 | |
| Pico-ResTouch-LCD-2.8 | IPS | 262K | 320×240 | 57.60×43.20 | SPI | ST7789 | 70.20×50.20 | √ |
| Pico-ResTouch-LCD-3.5 | IPS | 65K | 480×320 | 73.44×48.96 | SPI | ILI9488 | 86.00×57.20 | √ |
Package Contents
- Pico-LCD-1.3 x1
1
| Versandgewicht: | 0,01 Kg |
