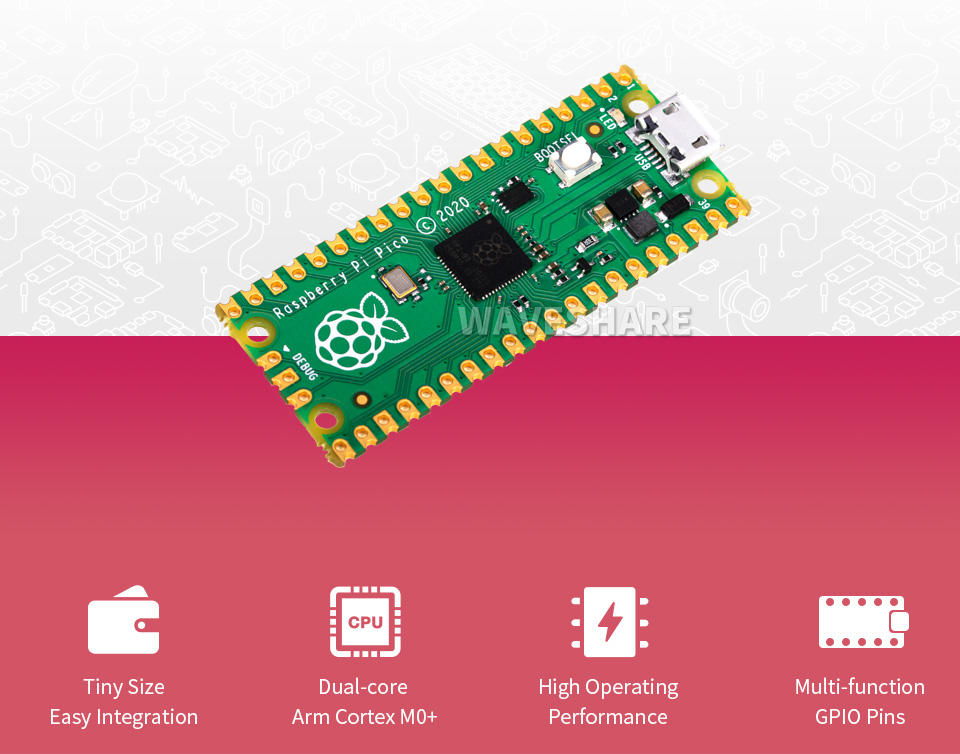

Waveshare 19677 Raspberry-Pi-Pico-CC

a tiny, fast, and versatile microcontroller board

built using RP2040 microcontroller chip designed by Raspberry Pi

Board specifications

Raspberry Pi Pico is a low-cost, high-performance microcontroller board with flexible digital interfaces. It incorporates Raspberry Pi's own RP2040 microcontroller chip , with dual-core Arm Cortex M0+ processor running up to 133 MHz, embedded 264KB of SRAM and 2MB of on-board Flash memory, as well as 26x multi-function GPIO pins.

For software development, either Raspberry Pi's C/C++ SDK, or the MicroPython is available. There're also complete development resources and tutorials to help you get started easily, and integrate it into end products quickly.

Key features include:

RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
264KB of SRAM, and 2MB of on-board Flash memory
Castellated module allows soldering direct to carrier boards
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
26 × multi-function GPIO pins
2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
Accelerated floating-point libraries on-chip
8 × Programmable I/O (PIO) state machines for custom peripheral support

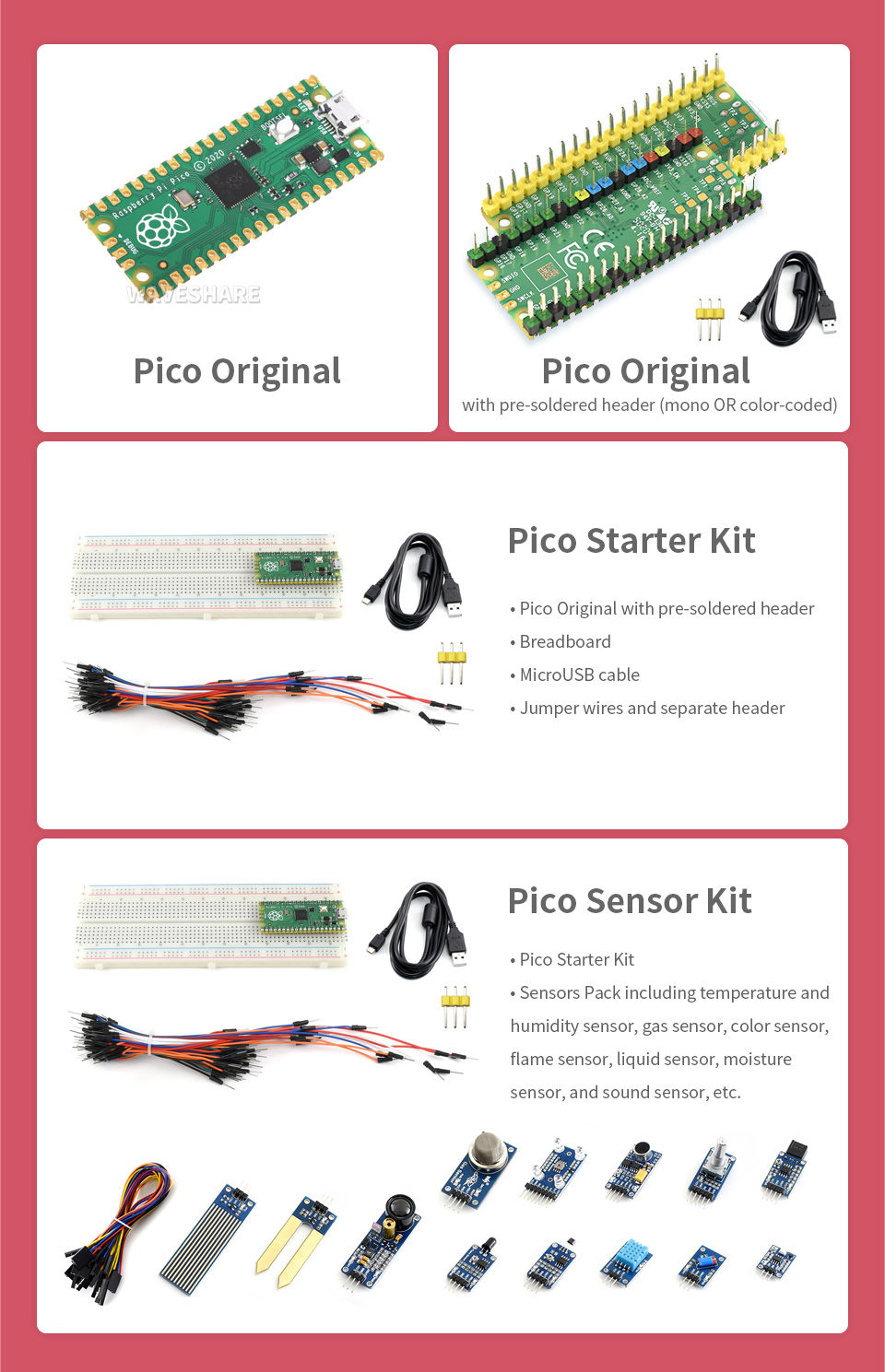

Selection guide

pre-soldered development kits are also available besides the original Pico

C/C++,MicroPython support

Comprehensive SDK, dev resources, tutorials to help you easily get started

Dual-core Arm processor

Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz

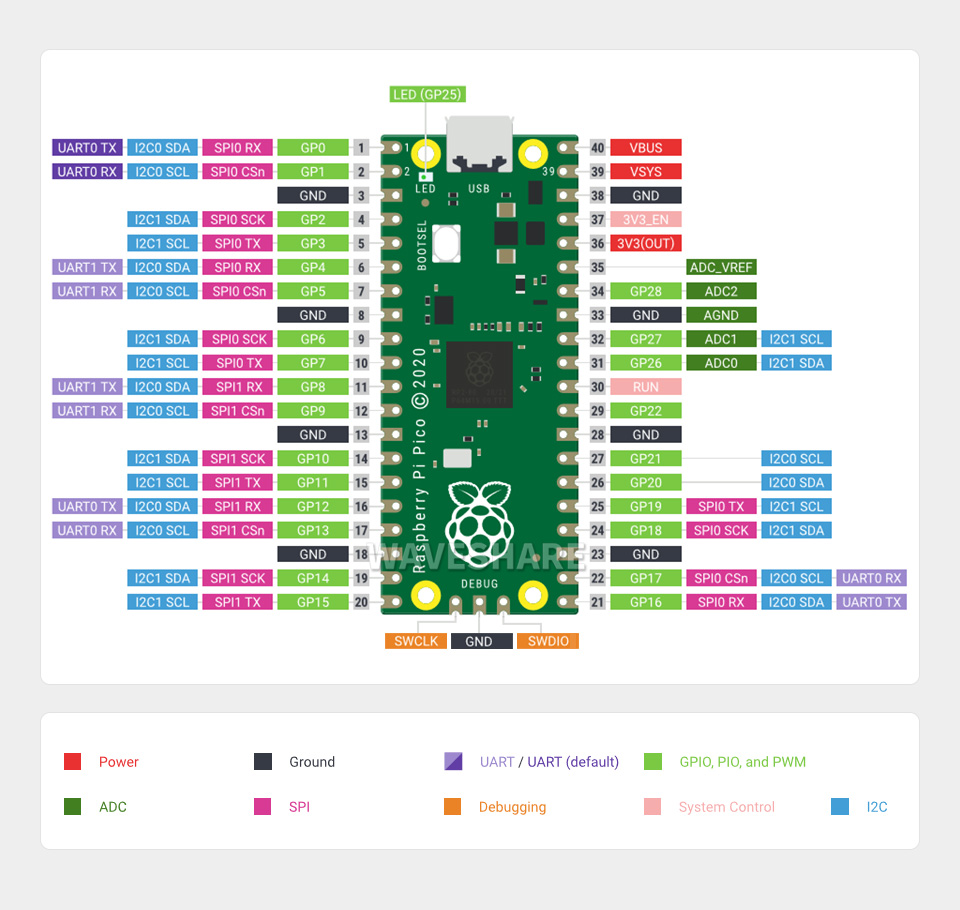

26 × multi-function GPIO pins

configurable pin function, allows flexible development and integration

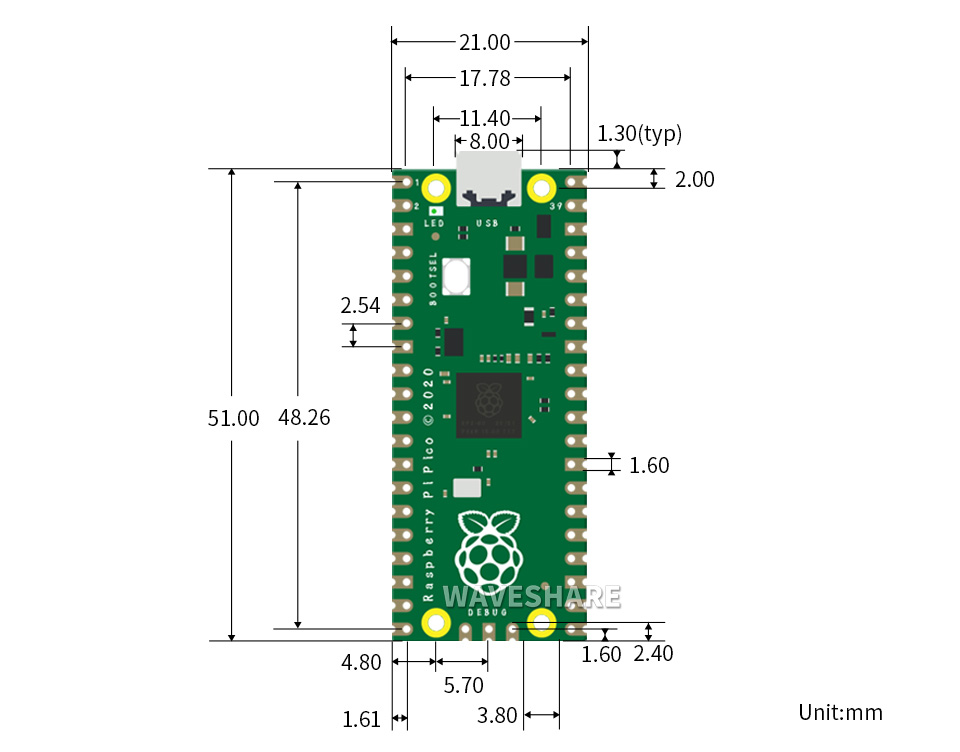

outline dimensions

Resources & Services

Wiki: Raspberry_Pi_Pico,Raspberry-Pi-Pico-Sensor-Kit

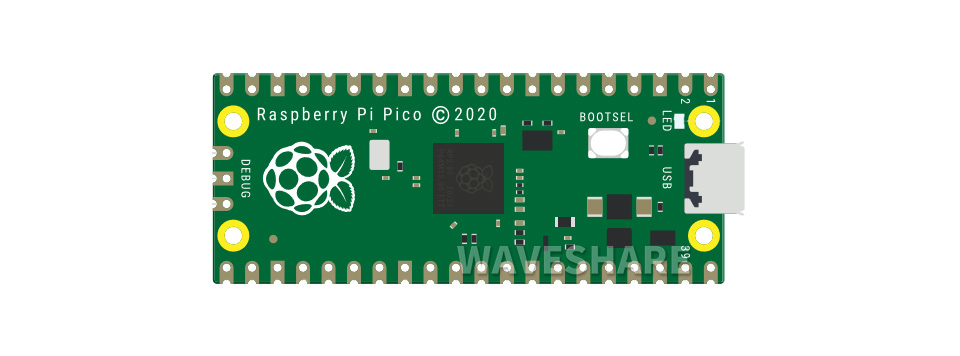

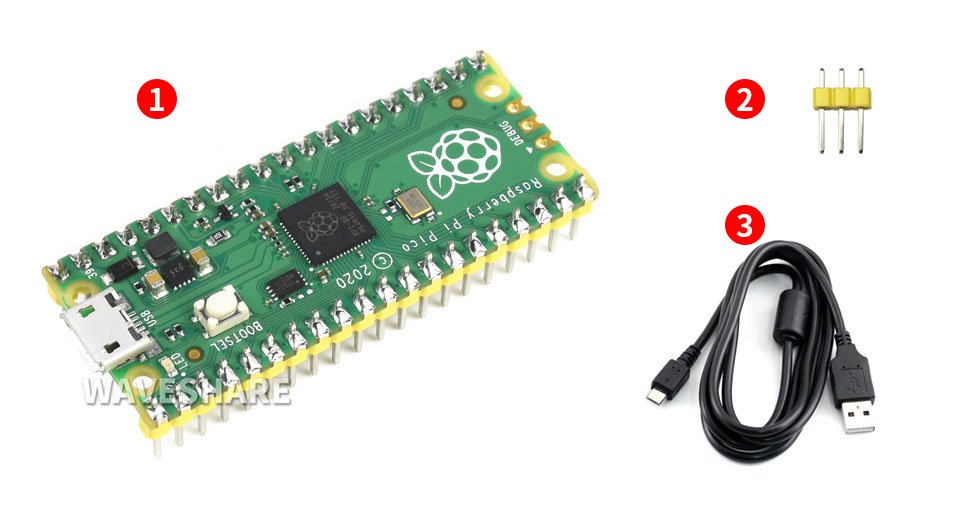

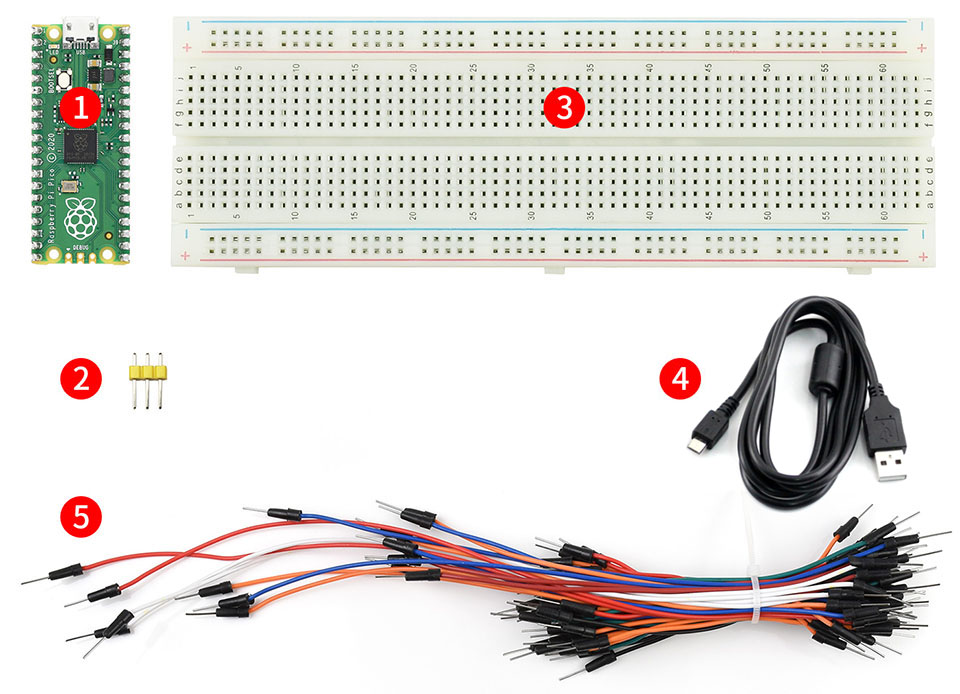

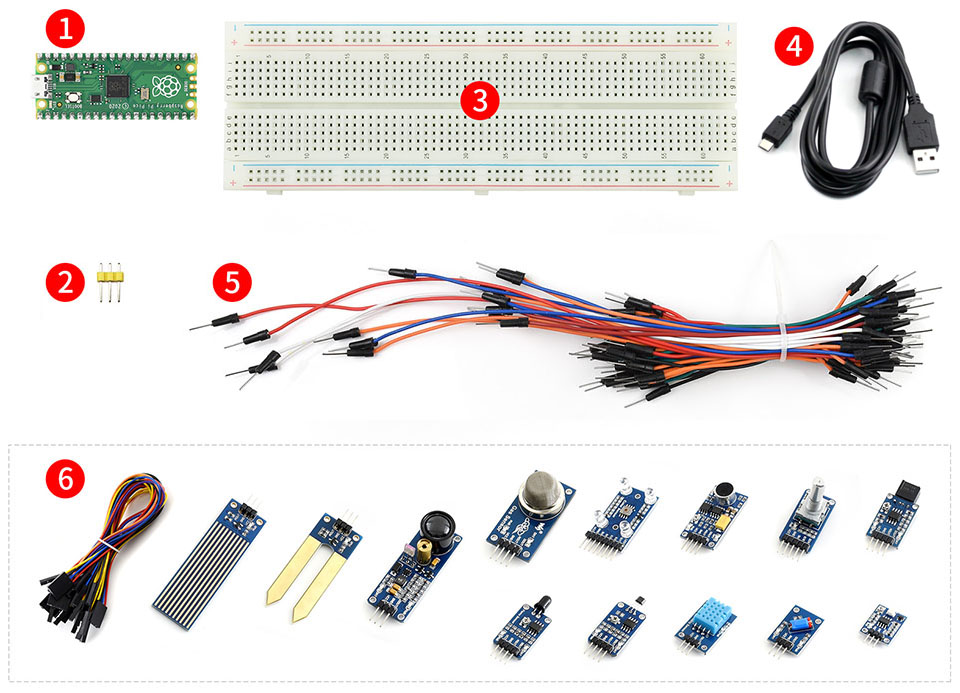

Package Contents

In additional to the original Raspberry Pi Pico, we also carry pre-soldered development kits for your convenience, please select the proper one before adding to cart.
