Waveshare 19693 Raspberry-Pi-Pico-Basic-Kit

Waveshare 19693 Raspberry-Pi-Pico-Basic-Kit

Artnr.: WS1-019693
Hersteller: Waveshare

Raspberry Pi Pico Basic Kit, MicroPython Programmier-Lernpaket

32,90 €

inkl. 19% MwSt.

(27,65 € exkl. MwSt.)

zzgl.

ab Lager lieferbar (knapper Bestand)

Raspberry Pi Pico Basic Kit

Basic entry-level kit prepared for Pico

tested and selected by professional engineer, with rich tutorials and resourcesfast getting started with Raspberry Pi Pico and MicroPython programming

What's in the kit

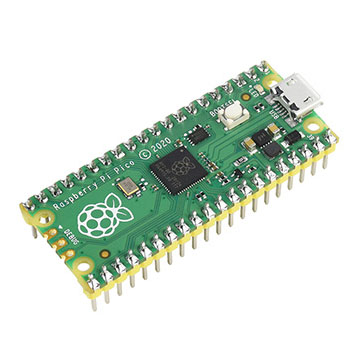

Raspberry Pi Pico with pre-soldered header

A Low-Cost, High-Performance Microcontroller Board With Flexible Digital Interfaces

more details...

RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
264KB of SRAM, and 2MB of on-board Flash memory
Castellated module allows soldering direct to carrier boards
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
26 × multi-function GPIO pins
2 × SPI, 2 × I2C, 2 × UART, 3 x12-bit ADC, 16 × controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
Accelerated floating-point libraries on-chip
8 × Programmable I/O (PIO) state machines for custom peripheral support

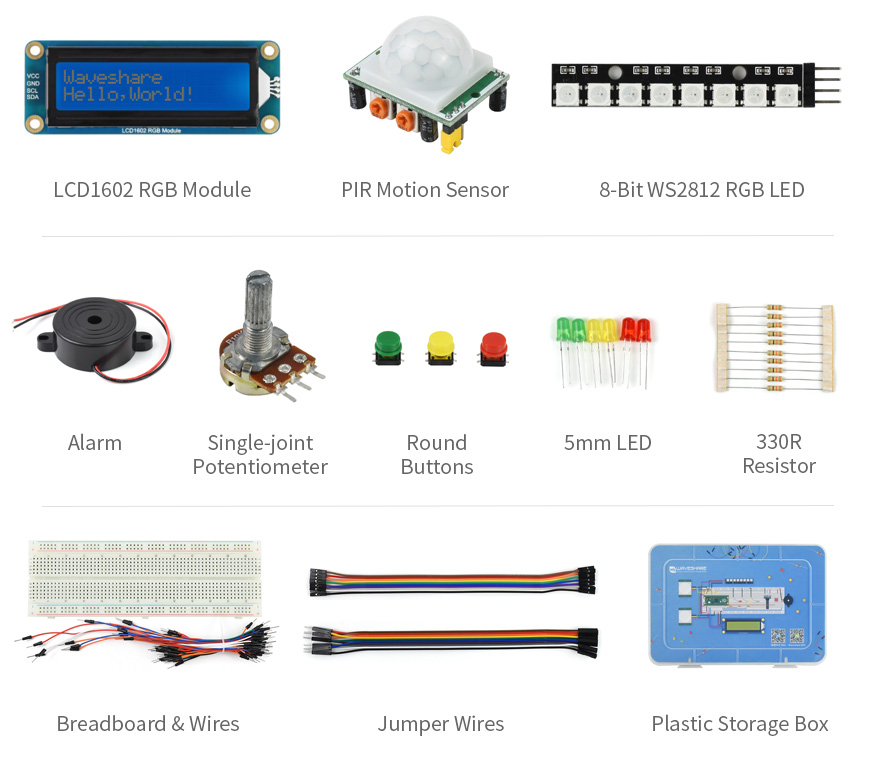

Item	Description
LCD1602 RGB Module	LCD1602 RGB backlight character LCD, using I2C bus to display text or adjust RGB backlight
PIR motion sensor	Pyroelectric IR sensor, outputs electric switch signal when IR array from human/animal body is detected
8-Bit WS2812 RGB LED	8x RGB LED, play around with cool light effects by programming
Alarm	Quality active announciator, used for alarming or playing music
Single-joint potentiometer	Adjustable potentiometer, 0~10K range, used for ADC test, volume/brightness adjustment, etc.
Round buttons	Three colors, for button/switch detection
5mm LED	Three colors, for experiments like traffic light, PWM adjusted light, etc.
330R resistors	Providing current-limit protection when connected with LED in series
Breadboard and wires Jumper wires	Quality 830 breadboard and sorts of wires, easy for connecting components
Plastic box	Customized box for storing the modules and components

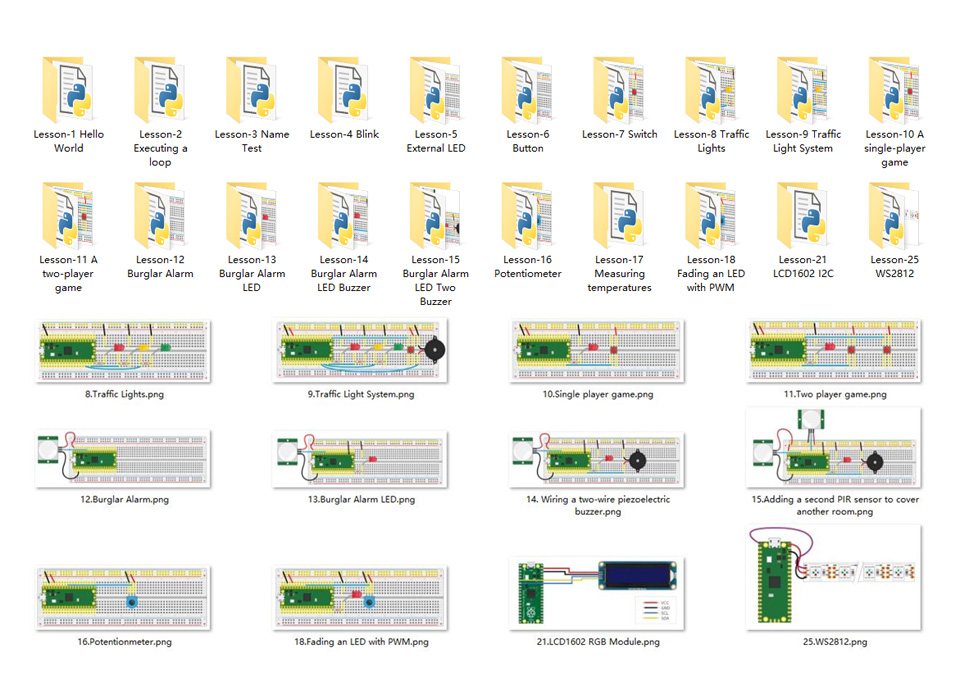

Resources & Services

Wiki: Raspberry_Pi_Pico

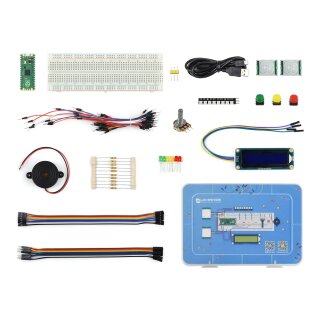

Package Contents

Raspberry Pi Pico with pre-soldered header x1
Breadboard x1
1*3PIN yellow pin header x1
USB-A to micro-B cable x1
PIR sensor x2
Breadboard wires x1
Single-joint potentiometer x1
8-Bit WS2812 RGB LED x1
Round button x3
Alarm x1
330R resistor x10
5mm LED x6
LCD1602 RGB Module x1
Jumper wire female-female 10PIN x1
Jumper wire male-female 10PIN x1
Plastic storage box x1

Versandgewicht:	0,48 kg
