Description

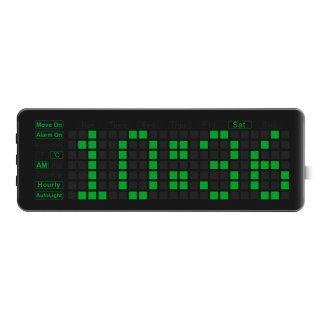

Rectangle electronic clock for Pico
accurate RTC, LED digits
open source, programable, helpful for study
Features at a glance

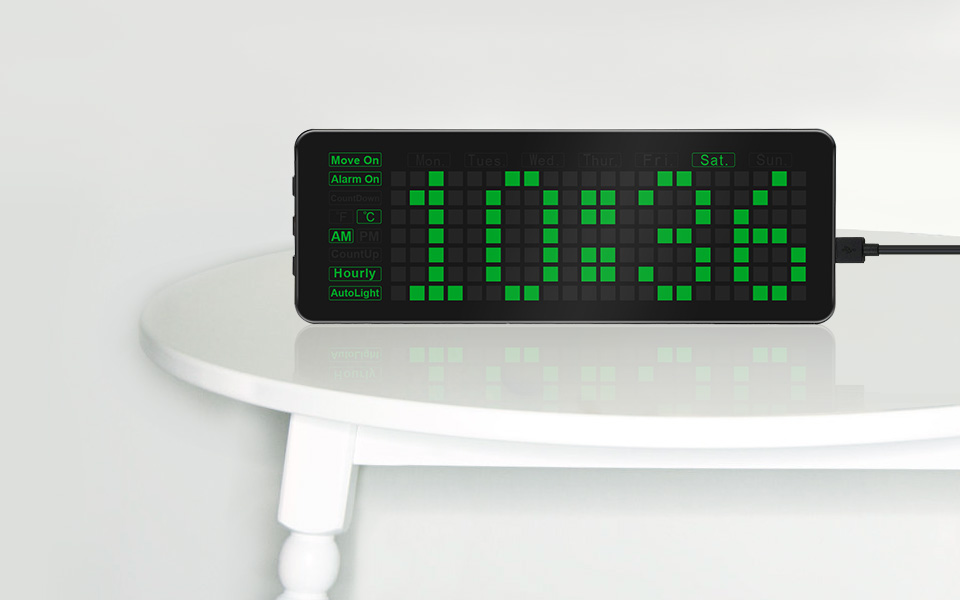

The Pico-Clock-Green is an LED digits electronic clock designed for Raspberry Pi Pico. It incorporates high precision RTC chip DS3231, photosensor, buzzer, and buttons, features multiple functions including accurate electronic clock, temperature display, auto brightness adjustment, alarm, and button config. The important part is, rich open source codes and development tutorials are also provided to help you fast get started with Raspberry Pi Pico and make your own original electronic clock.
- Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
- Onboard high precision RTC chip DS3231, with backup battery holder, maintains accurate timekeeping when main power is off
- Real-Time Clock Counts Seconds, Minutes, Hours, Date of the Month, Month, Day of the Week, and Year with Leap-Year Compensation Valid Up to 2100
- Optional format : 24-hour OR 12-hour with an AM/PM indicator
- 2x programable alarm clock
- Digital temperature sensor output: ±3°C accuracy
- Embedded photosensor for auto brightness adjustment due to the ambient light, power saving and eye care
- Embedded buzzer for alarm or hourly ring, etc.
- 3x buttons for configuration
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
| Power supply | 5V via USB connection | Program / Debug port | USB |
|---|---|---|---|
| Outline dimensions | 216 × 79 × 25 mm | Display size | 190 × 60 mm |
| LED digit | jade green | ||
| Functions | scrolling display alarm/hourly ring temperature in ? or ? format 12/24 time format day of week auto adjustment timekeeping without main power timer configuration manual/auto brightness adjustment button configuration | ||

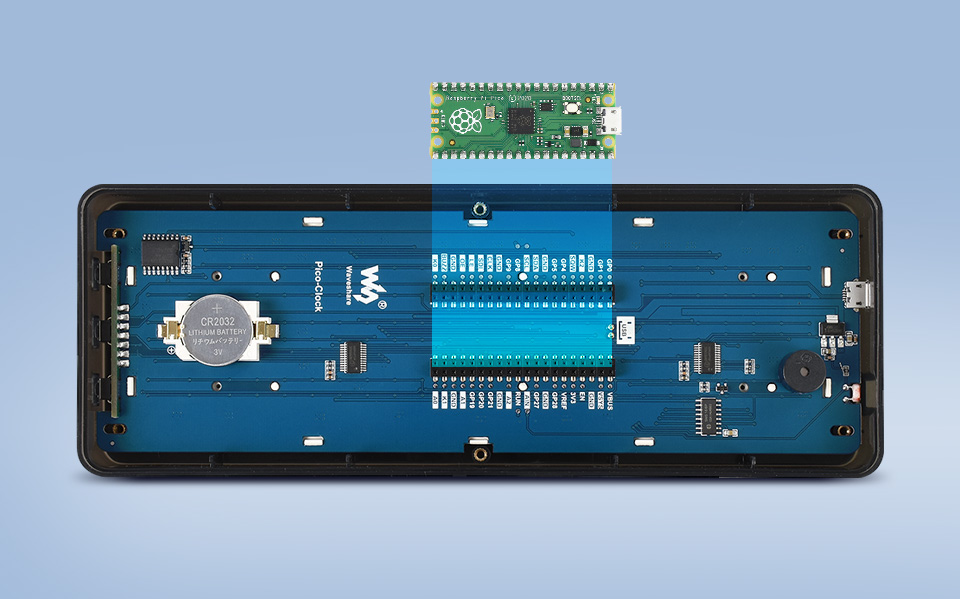

Raspberry Pi Pico header compatibility
attaching Raspberry Pi Pico directly, other DIY expansion modules are also supported

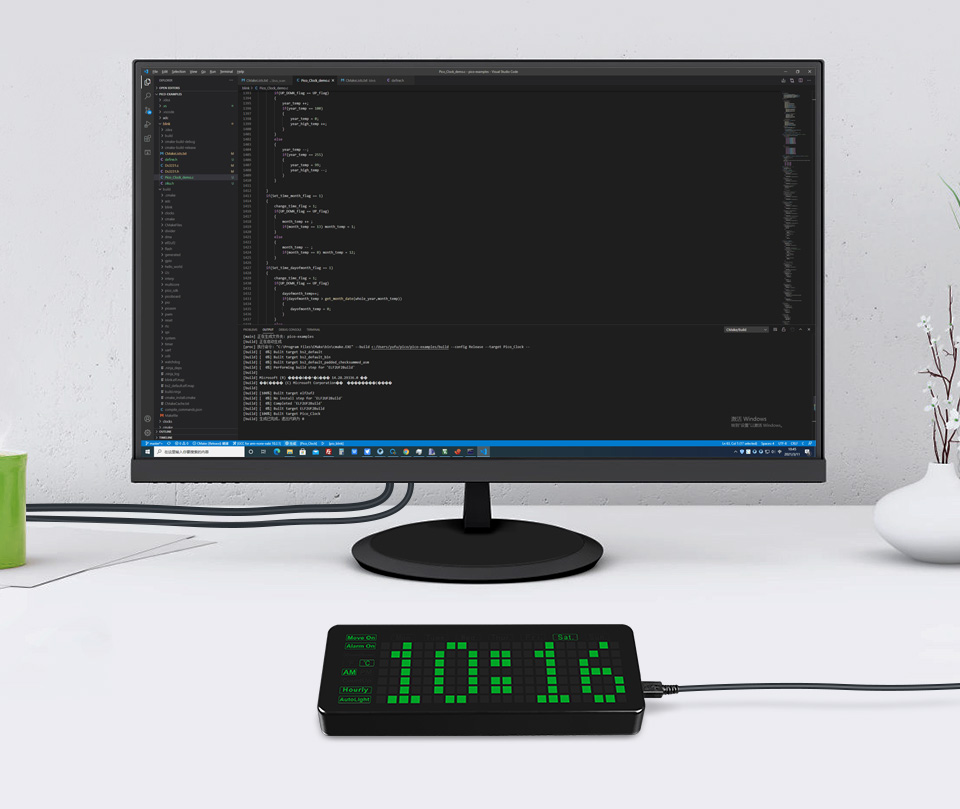

Programable & study-helpful
Not only for power supply, the USB port can also be used for debugging, helps you fast get started with Raspberry Pi Pico C/Python program support, software and hardware open source, rich study and development tutorials

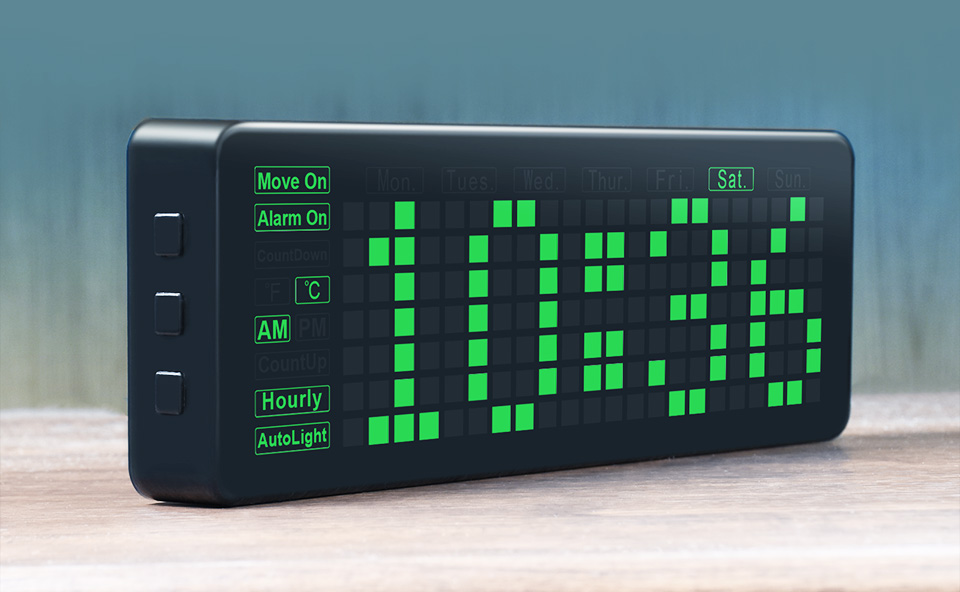

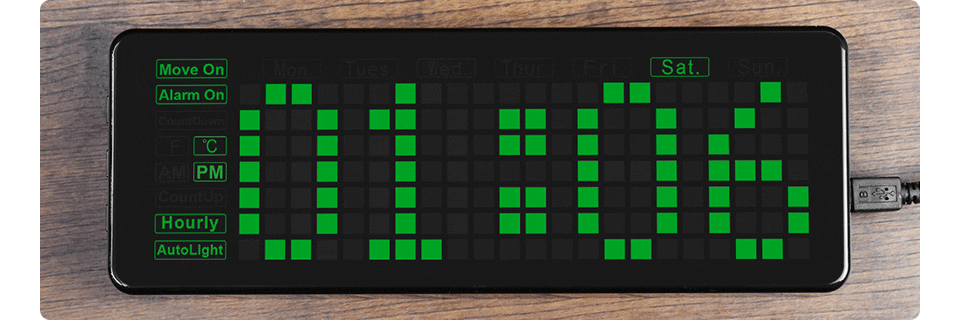

LED digits display panel
SM5166P+SM16106 driving solution, minor I/O requirement, better display effect

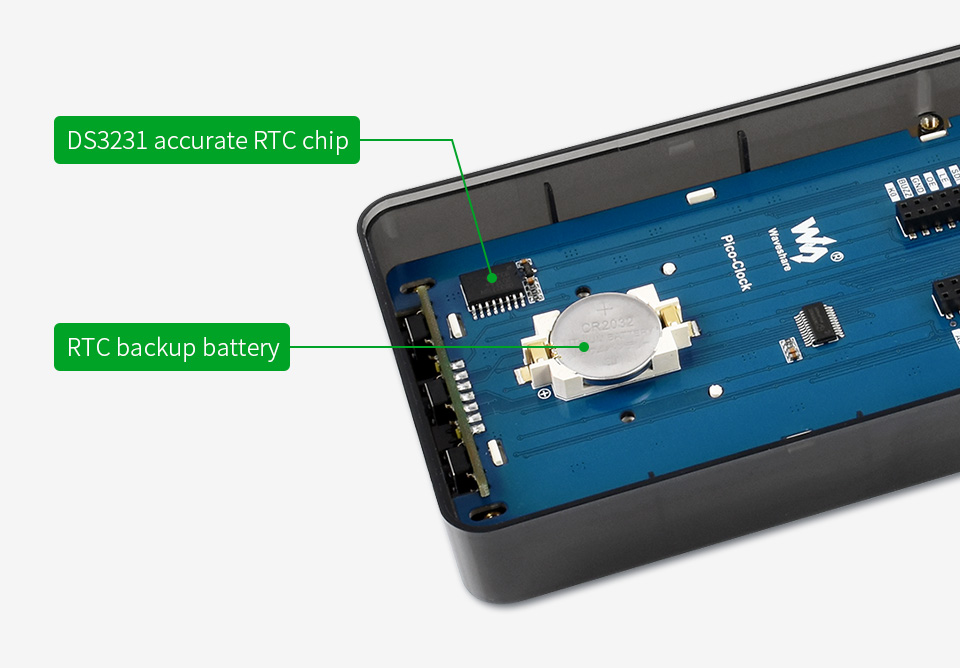

precision RTC chip DS3231
incorporates high precision RTC chip DS3231, with integrated temperature sensorbackup battery for continuous timekeeping when power-off

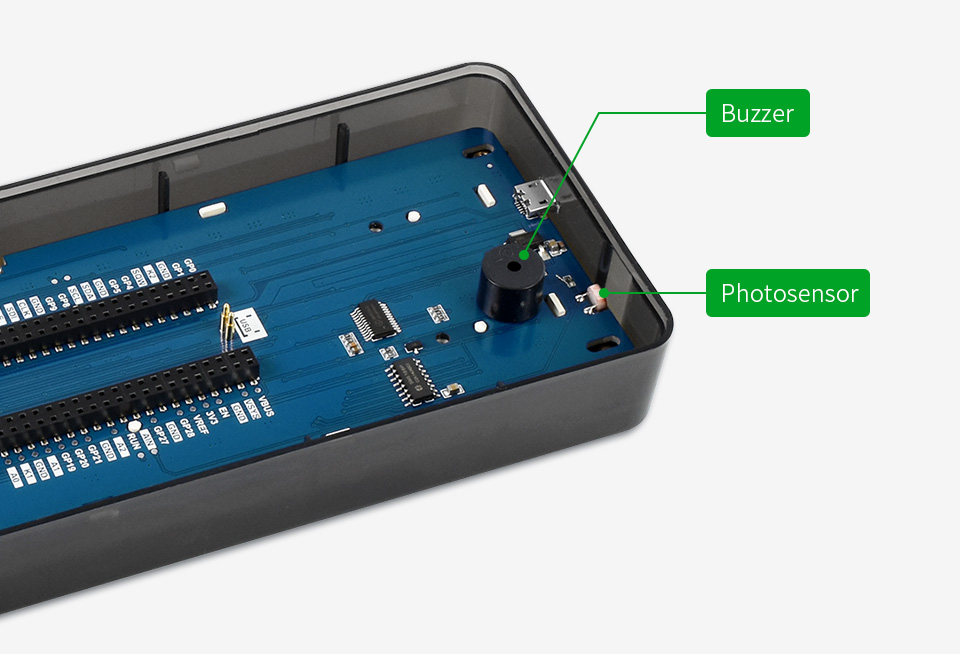

photosensor & buzzer
photosensor enables auto brightness adjustment due to ambient lightbuzzer can be used for alarm, hourly ring, or playing music
multi software functions support
normal display or scrolling display, 12 or 24 hour format, countdown or countup timerand more other functions could be created by yourself

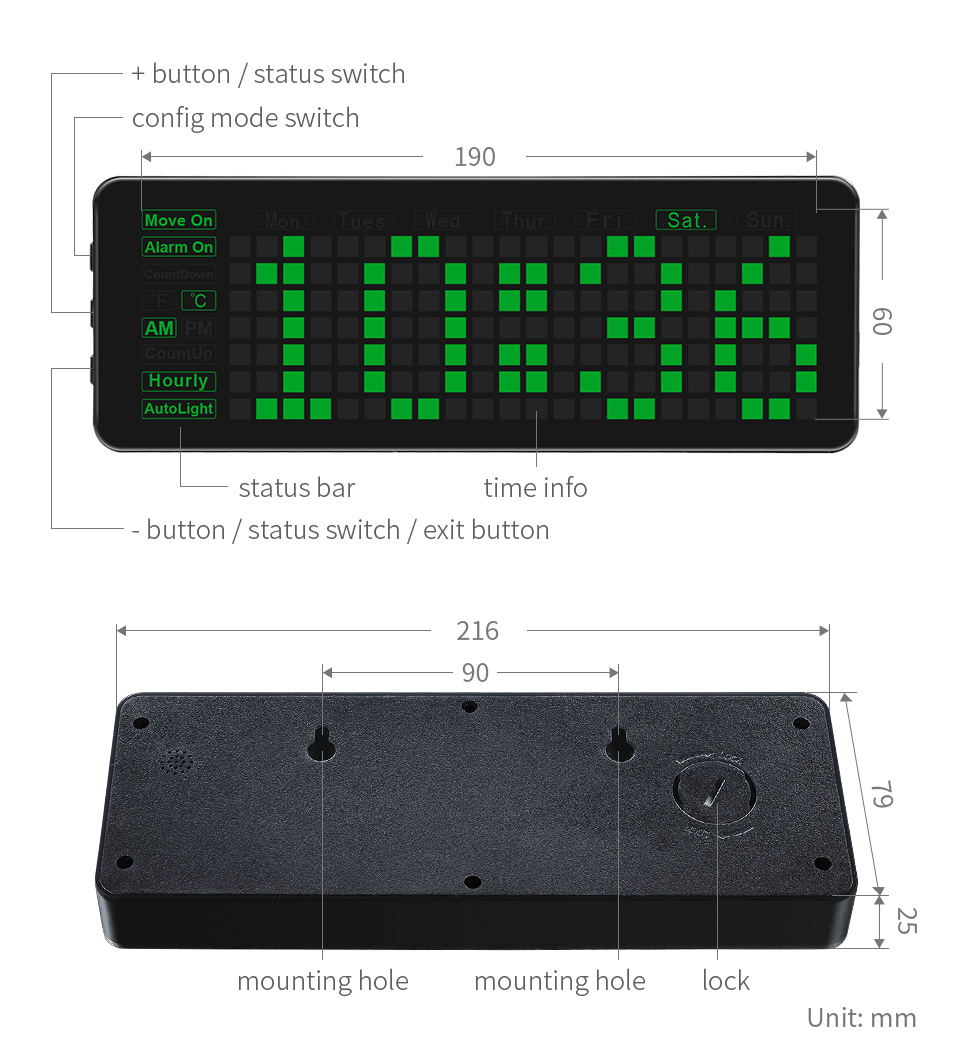

Introduction & dimensions
* The dimensions are measured manually, for reference ONLY
Resources & Services
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

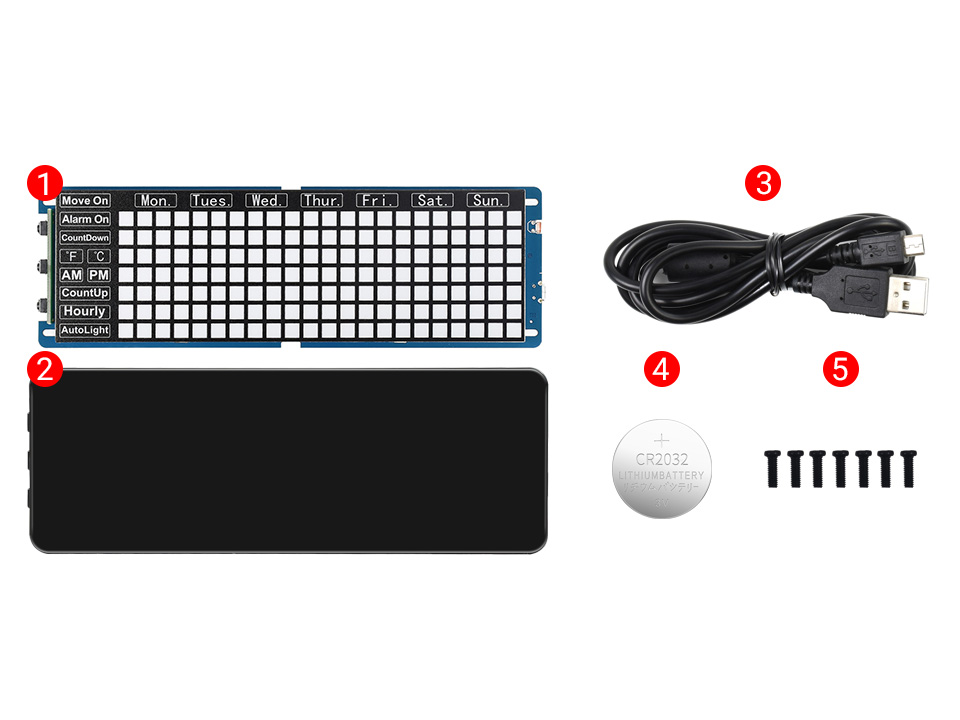

Package Contents
- Pico-Clock-Green x1
- Case x1
- USB-A to micro-B cable 1.2m x1
- Button cell CR2032 x1
- Screws pack x1
| Shipping weight: | 0.35 Kg |
