Artnr.: WS3-019750
Hersteller: Waveshare

2.23inch OLED Display Modul für Raspberry Pi Pico, 128×32 Pixel, SPI/I2C Schnittstelle

13,90 €

inkl. 19% MwSt.

(11,68 € exkl. MwSt.)

zzgl.

ab Lager lieferbar

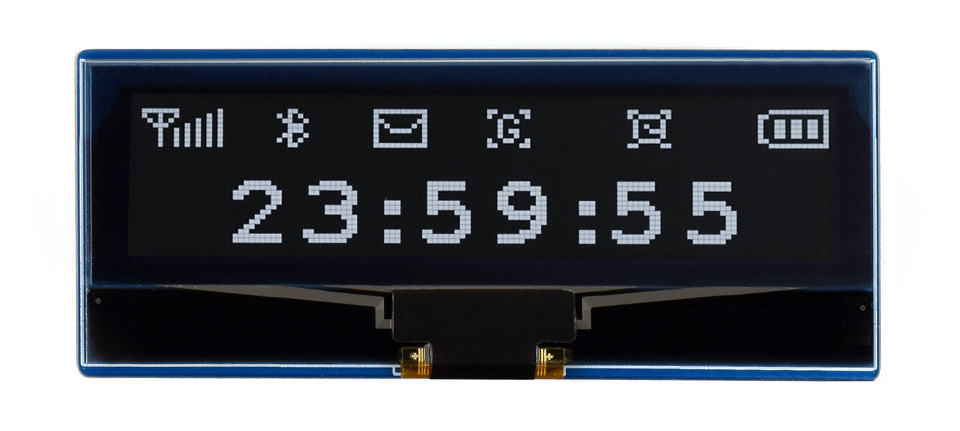

2.23" OLED Display Module for Pico

embedded SSD1305 driver, using SPI/I2C bus

Comes with Raspberry Pi Pico C/C++ and MicroPython Demo

Size2.23"
Resolution128×32
Display ColorBlack / White
InterfaceSPI/I2C
Display PanelOLED
DriverSSD1305

Features at a glance

Adopts both 4-wire SPI and I2C interface, better compatibility, fast data rate
Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

Logical voltage	3.3V	Viewing angle	>160°
Operating voltage	3.3V/5V	Resolution	128×32 pixels
Communication Interface	4-wire SPI, I2C	Display size	55.02 × 13.10mm
Display Panel	OLED	Pixel size	0.41 × 0.39mm
Driver	SSD1305	Dimensions	63.00 × 26.00mm

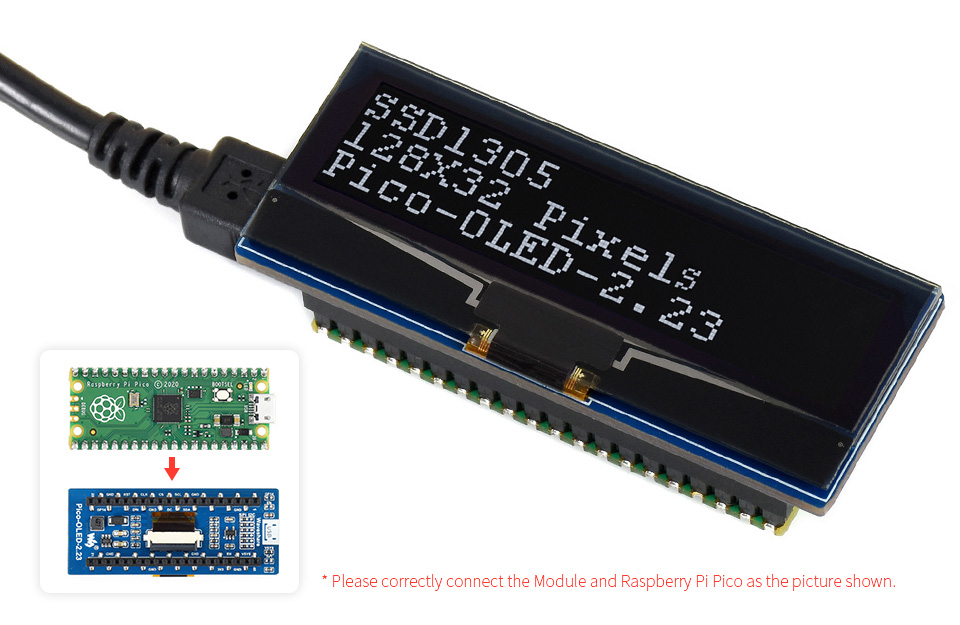

Raspberry Pi Pico header compatibility

onboard female pin header for direct attaching to Raspberry Pi Pico

Raspberry Pi Pico is NOT included.

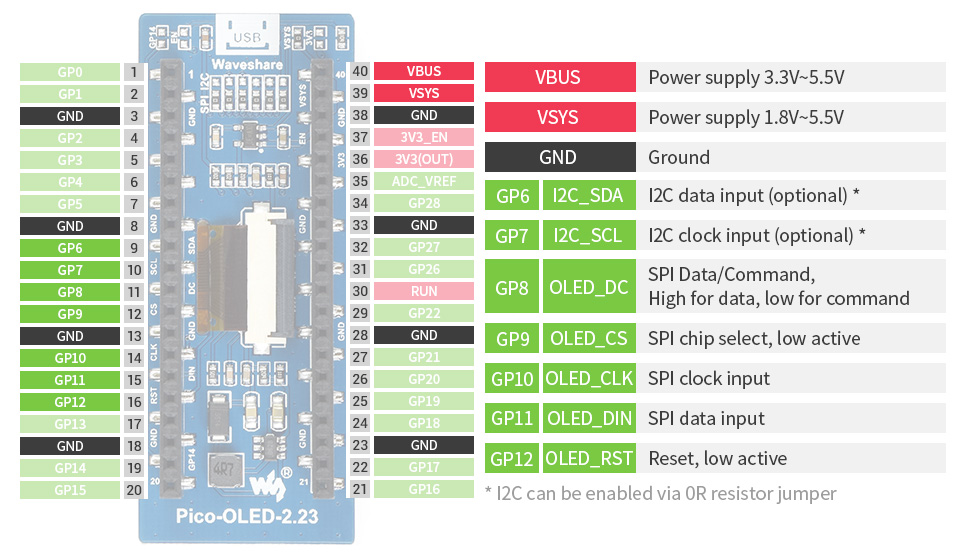

Pinout definition

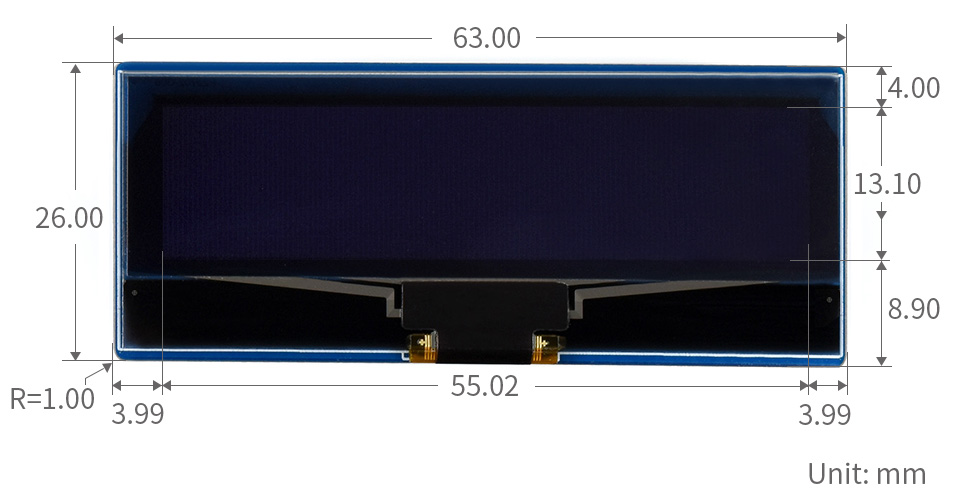

Outline dimensions

Resources & Services

WIKI: Pico-OLED-2.23

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Package Contents

Pico-OLED-2.23 x1

1

Versandgewicht:	0,03 kg
