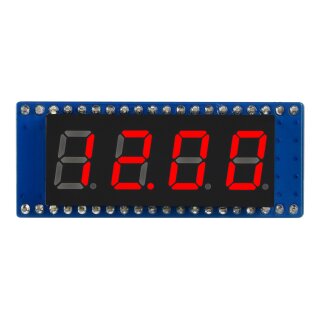

Waveshare 19806 Pico-8SEG-LED
Beschreibung

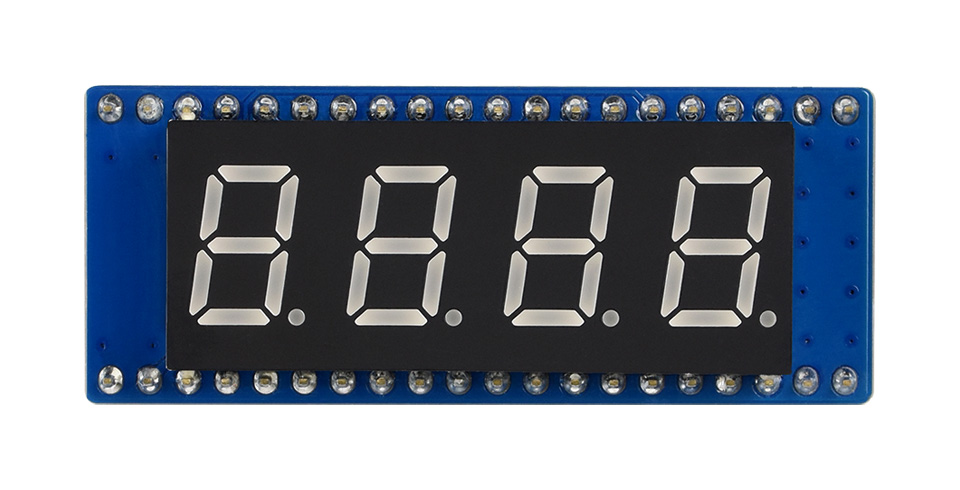

4-digit 8-segment Display Module for Pico
embedded 74HC595 driver, SPI-compatible
Comes with Raspberry Pi Pico C/C++ and MicroPython Demo
-
Display Panel
8-segment LED
-
Interface
SPI-compatible
-
Driver
74HC595
Features at a glance
- SPI-compatible, easy to drive
- Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
| Operating voltage | 5V | Digits | 4 |
|---|---|---|---|
| Display size | 0.4 inch | LED color | red |
| Driver | 74HC595 | Display Part No. | FJ4401AH |
| Dimensions | 52 × 21mm |

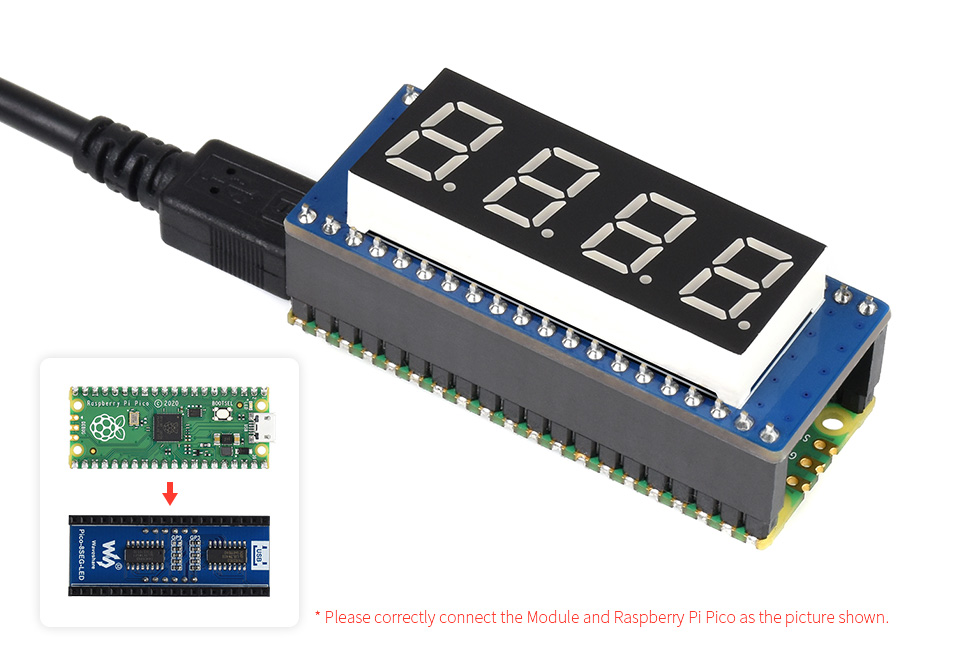

Raspberry Pi Pico header compatibility
onboard female pin header for direct attaching to Raspberry Pi Pico
Raspberry Pi Pico is NOT included.

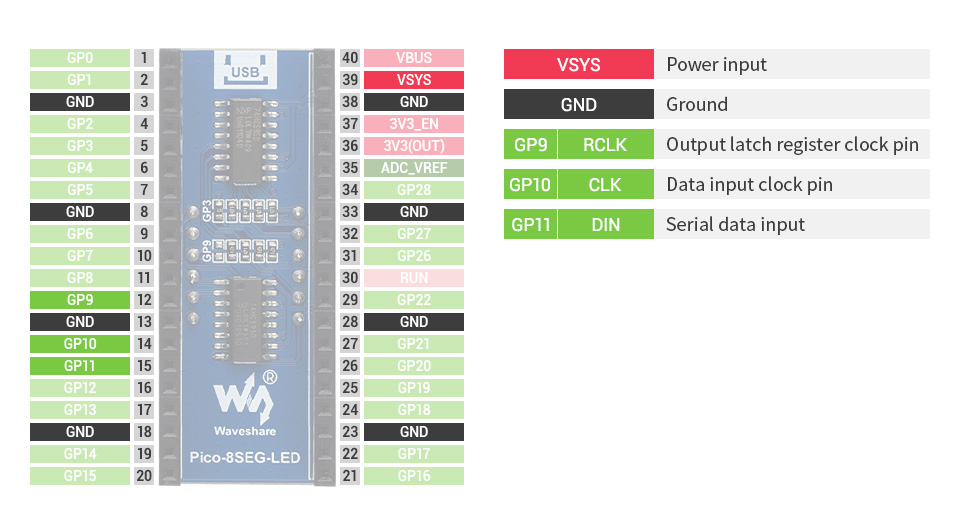

Pinout definition
Outline dimensions
Resources & Services
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Package Contents
- Pico-8SEG-LED x1
