Waveshare 19979 Pico-2CH-RS232
Beschreibung

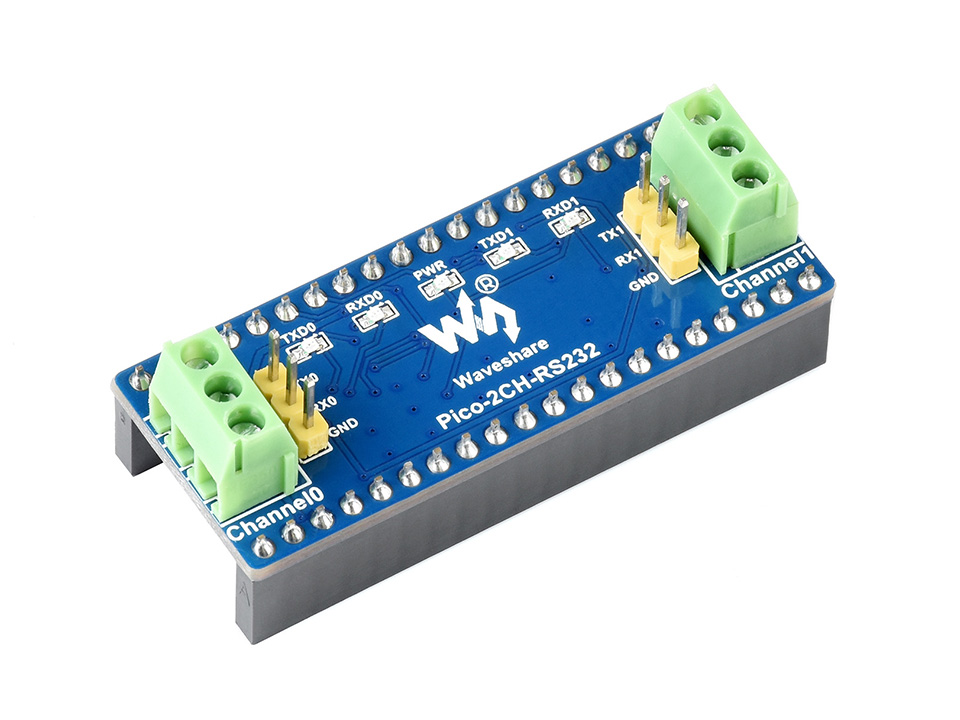

2-Channel RS232 Module for Pico
incorporates RS232 transceiver SP3232EEN, using UART bus
Features at a glance
- Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
- Using UART bus, easily converting UART to RS232, or vice versa
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
| Operating voltage | 3.3V-5V | RS232 transceiver | SP3232EEN |
|---|---|---|---|
| Communication bus | UART | Baudrate | 300~912600bps |

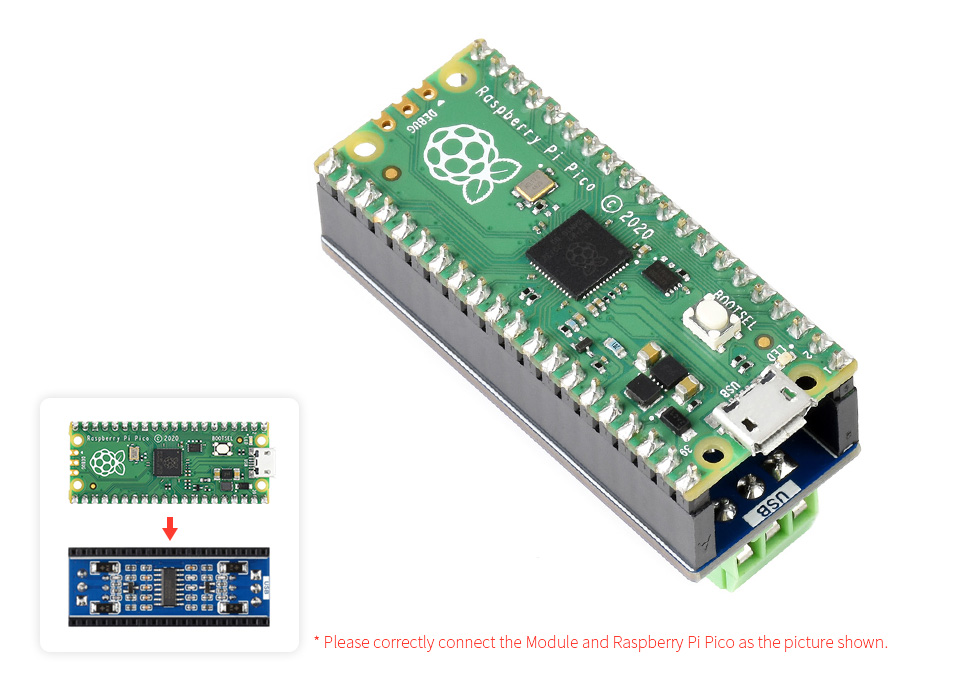

Raspberry Pi Pico header compatibility
onboard female pin header for direct attaching to Raspberry Pi Pico
Raspberry Pi Pico is NOT included.

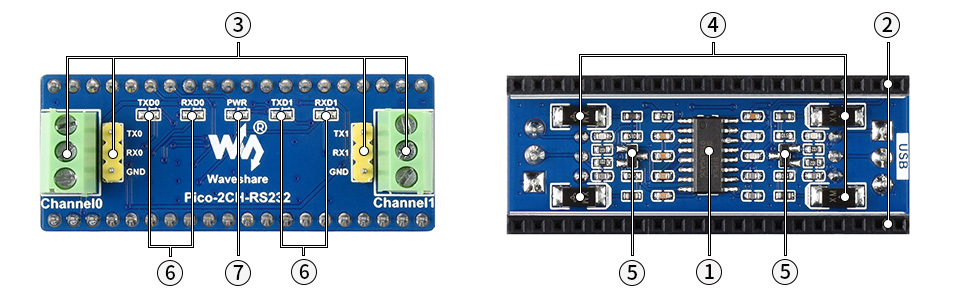

What's On Board
- SP3232 RS232 transceiver
- Raspberry Pi Pico header
- RS232 bus interface 2-channel RS232 (DB9 male connector is also available through adapter cable)
- TVS diode
- ESD diode
- UART status indicators RXD0/TXD0: Channel 0 RX/TX indicatorsRXD1/TXD1: Channel 1 RX/TX indicators

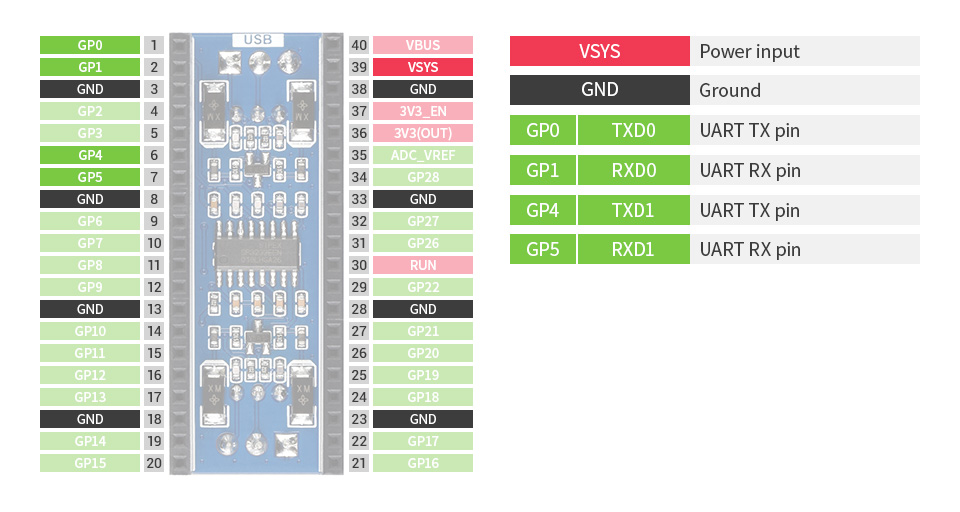

Pinout definition

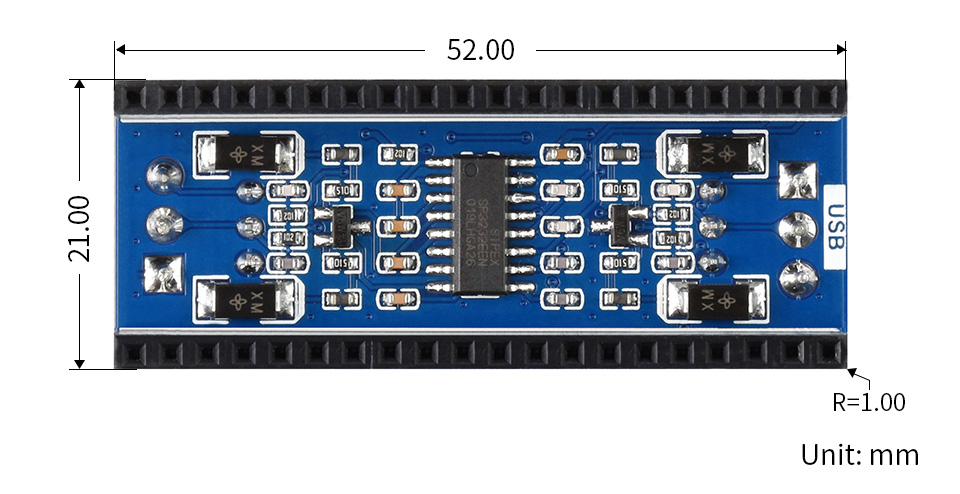

Outline dimensions
Resources & Services
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Package Contents
- Pico-2CH-RS232 x1

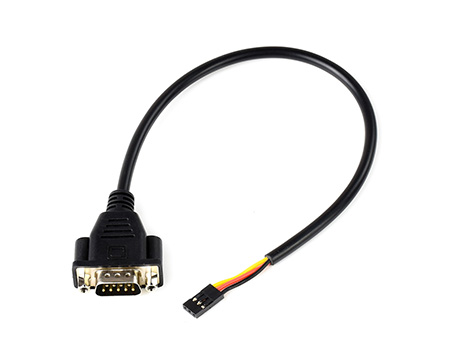

- DB9 to 3PIN adapter cable x1
1
2
| Versandgewicht: | 0,05 Kg |
