Waveshare 20052 Pico-ePaper-2.66

Artnr.: WS3-020052
Hersteller: Waveshare

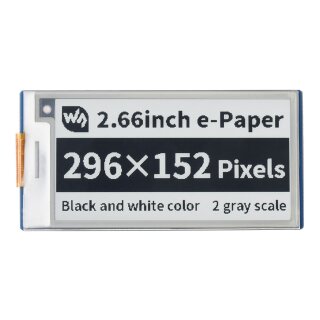

2.66inch e-Paper E-Ink Display Modul für Raspberry Pi Pico, 296×152 Pixel, Schwarz / Weiß, SPI Schnittstelle

17,50 €

inkl. 19% MwSt.

(14,71 € exkl. MwSt.)

zzgl.

ab Lager lieferbar (knapper Bestand)

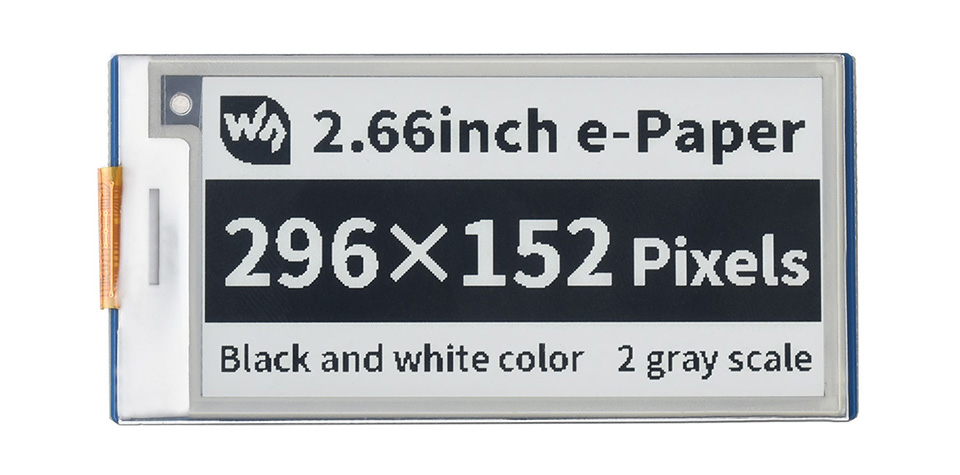

2.66" e-Paper Module for Pico

partial refresh support, low power, wide viewing angle, paper-like effect

Ideal for price tags, shelf labels, industrial instruments...

Size2.66"
Resolution296×152
Viewing Angle>170°
Display ColorBlack and White
Grey Scale2

CommunicationSPI
Display PanelE-paper
ExperiencePaper-like
Comfortably ReadingEye Care, No Bluelight
EnvironmentAmbient Light Required
Display TypePassively Reflective
Power ConsumptionUltra Low
Display DurationPersists without Power
RefreshingPartial Refresh Support

Features at a glance

No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
SPI interface, requires minimal IO pins
Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

operating voltage	3.3V	display color	black, white
interface	3-wire SPI, 4-wire SPI	grey scale	2
outline dimensions	74.00 × 37.50mm	partial refresh time	0.3s
display size	60.088 × 30.704mm	full refresh time	5s
dot pitch	0.203 × 0.202mm	refresh power	42.4mW (typ.)
resolution	296×152 pixels	standby current	<0.01uA (almost none)
		viewing angle	>170°

Advantages of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper. E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Raspberry Pi Pico header compatibility

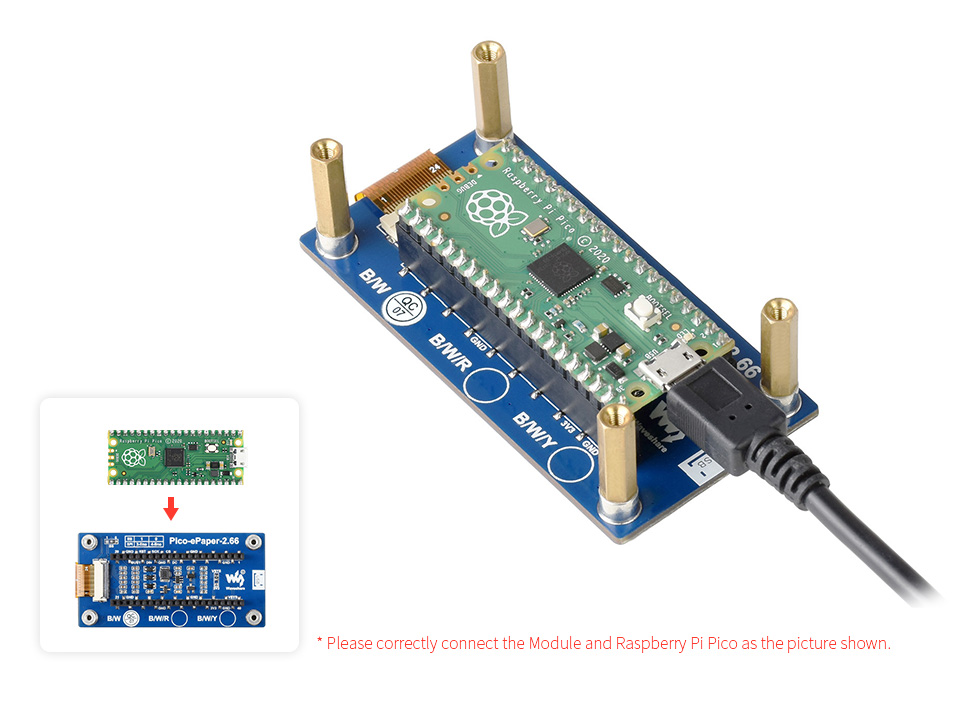

onboard female pin header for direct attaching to Raspberry Pi Pico

Raspberry Pi Pico is NOT included.

Application examples

Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...

Pinout definition

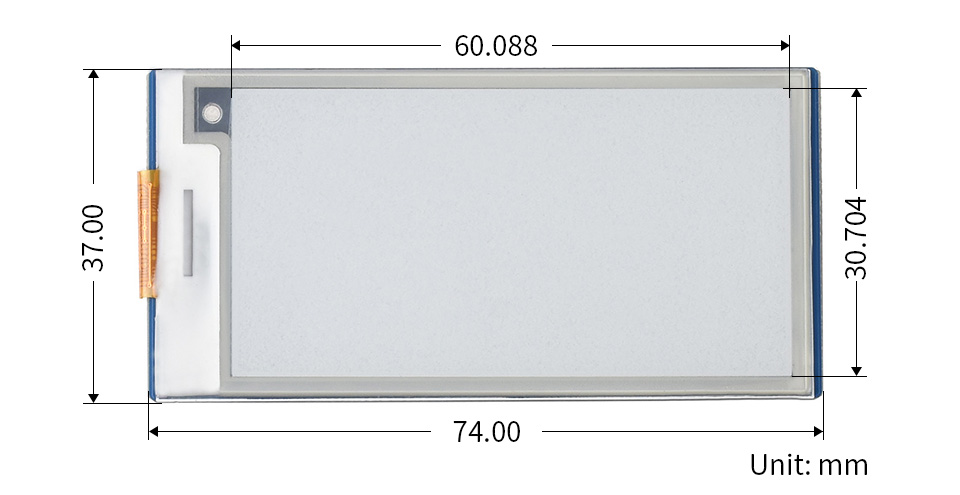

Outline dimensions

Resources & Services

WIKI: Pico-ePaper-2.66

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Selection guide

Part Number	Colors	Grey Scale	Resolution	Display size (mm)	Full Refresh Time (s)	Partial Refresh¹	Feature	Interface
Pico-ePaper-2.13	black, white	2	250 × 122	48.55 × 23.70	2	√		SPI
Pico-ePaper-2.13-B	red, black, white	2	212 × 104	48.55 × 23.71	15			SPI
Pico-ePaper-2.13-D	black, white	2	212 × 104	48.55 × 23.71	2	√	Flexible	SPI
Pico-ePaper-2.66	black, white	2	296 × 152	60.088 × 30.704	5	√		SPI
Pico-ePaper-2.66-B	red, black, white	2	296 × 152	60.088 × 30.704	15			SPI
Pico-ePaper-2.9	black, white	2	296 × 128	66.89 × 29.05	2	√		SPI
Pico-ePaper-2.9-B	red, black, white	2	296 × 128	66.90 × 29.06	15			SPI
Pico-ePaper-2.9-D	black, white	2	296 × 128	66.90 × 29.06	2	√	Flexible	SPI
Pico-CapTouch-ePaper-2.9	black, white	2	296 × 128	66.89 × 29.05	2	√	Touch	SPI
Pico-ePaper-3.7	black, white	4	480 × 280	81.12 × 47.32	3	√		SPI
Pico-ePaper-5.83	black, white	2	648 × 480	119.232 × 88.320	5			SPI
Pico-ePaper-5.83-B	red, black, white	2	648 × 480	119.232 × 88.320	20			SPI
Pico-ePaper-7.5	black, white	2	800 × 480	163.2 × 97.92	5			SPI
Pico-ePaper-7.5-B	red, black, white	2	800 × 480	163.2 × 97.92	16			SPI

It usually takes about 0.3s to partially refresh the display

Package Contents

Pico-ePaper-2.66 x1
Standoff pack x1
