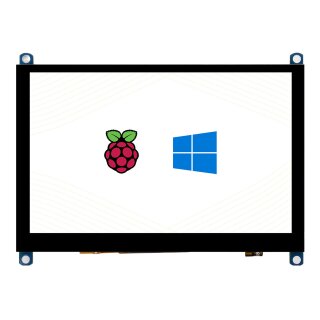

Waveshare 20109 5inch HDMI LCD (H) V4

Artnr.: WS3-020109
Hersteller: Waveshare

5 Zoll kapazitiver Touchscreen LCD (H), 800×480, HDMI, gehärtetes Glas, niedriger Stromverbrauch

57,90 €

inkl. 19% MwSt.

(48,66 € exkl. MwSt.)

zzgl.

ab Lager lieferbar

5" HDMI Touch Display V4

Size5"
Resolution800×480
Display PortHDMI
Touch TypeCapacitive
Touch Points5-Points
Touch PortUSB
Touch PanelToughened Glass
ConsumptionLow Power

Device & System Support

Raspberry Pi

Supports Raspbian, 5-points touch, driver free Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free Supports Retropie, driver free

Supports all versions of Raspberry Pi

Supports Windows 10 / 8.1 / 8 / 7, 5-points touch, driver free

Connection Examples

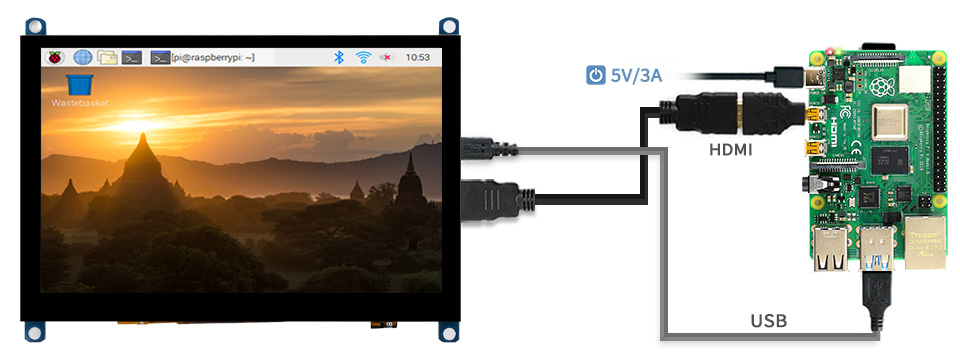

Working with Raspberry Pi 4

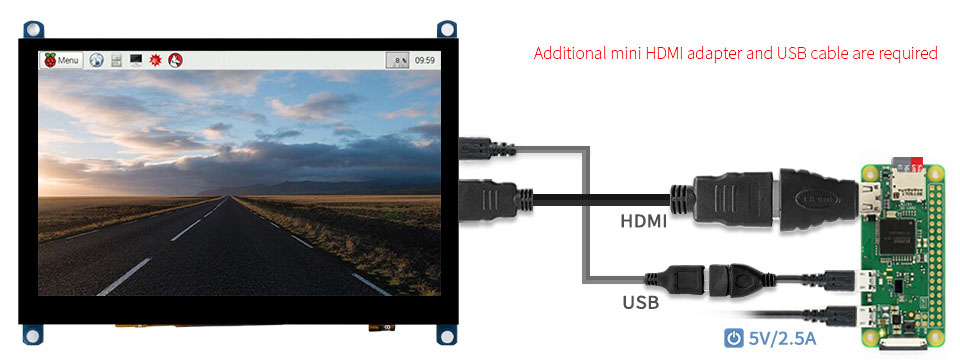

Working with Raspberry Pi Zero W

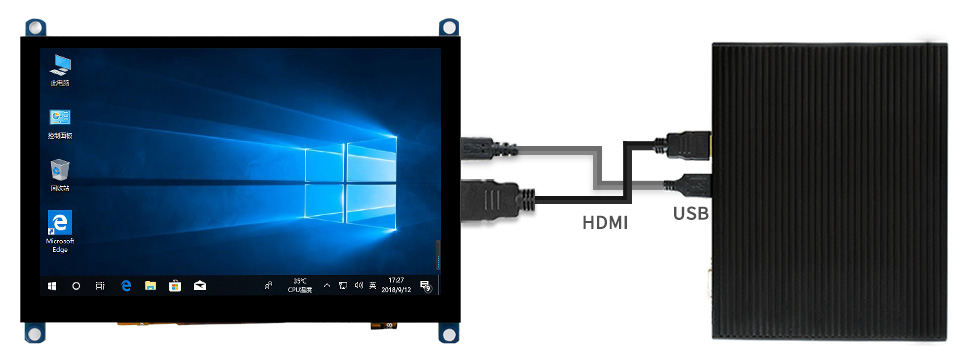

Working with mini PC

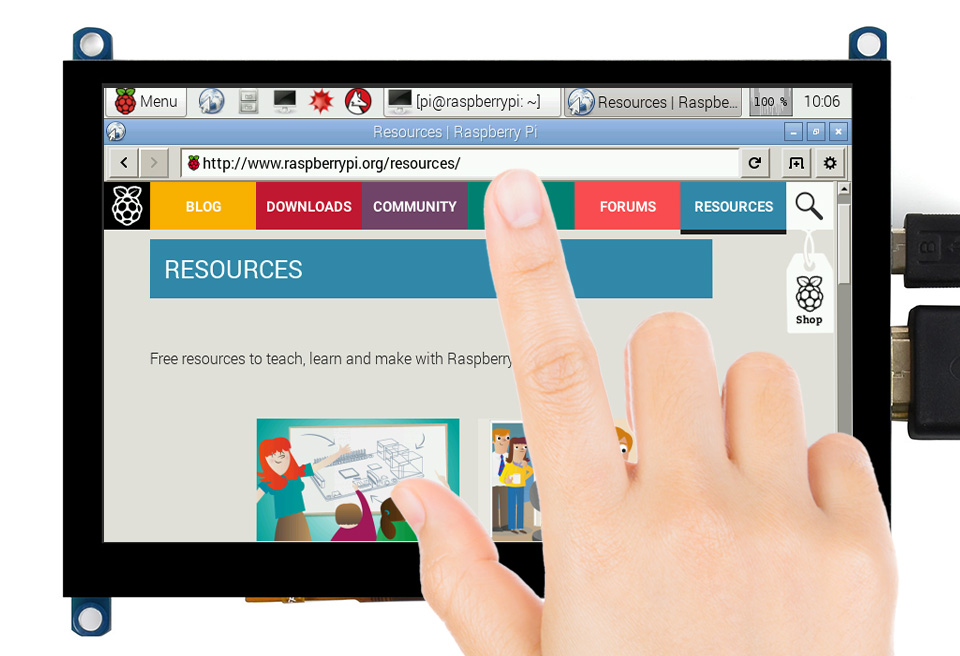

Touch Control

1) up to 5-points touch, depending on the operating system. 2) up to 6H hardness toughened glass panel.

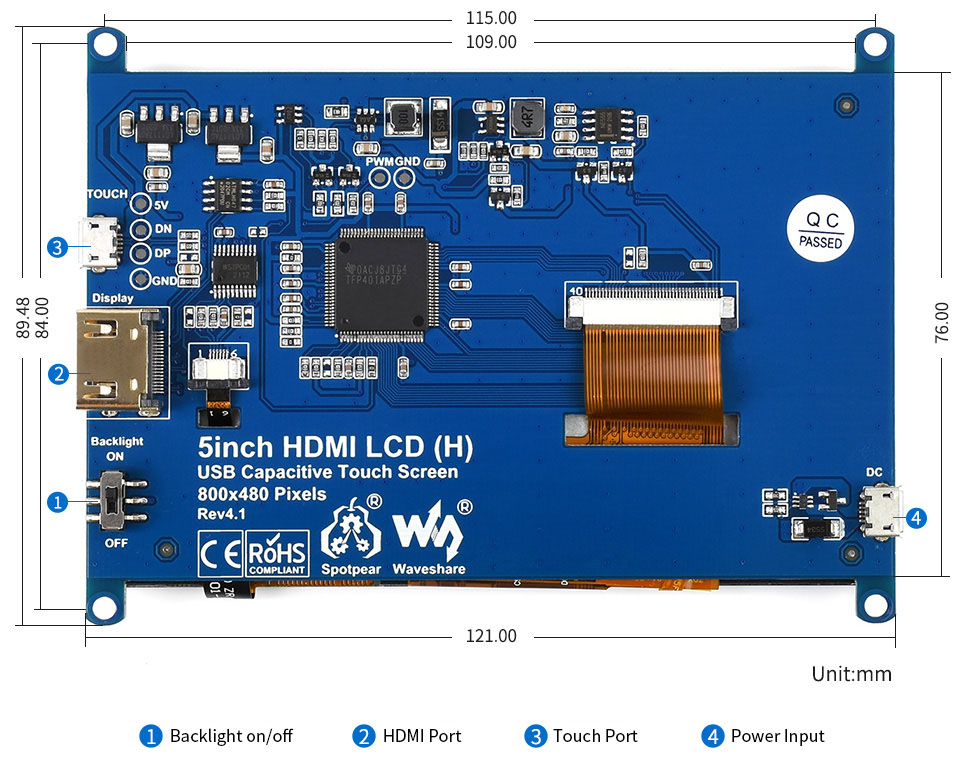

Appearance and Dimensions

Resources & Services

Wiki: 5inch_HDMI_LCD_(H)_V4

Product Certification

HDMI Certified

* We are an official authorized HDMI Adopter.

Over a decade: Waveshare grows with display

* Waveshare has been focusing on display design for over 10 years.

Selection Guide

PartNumber	Display				Touch				Audio		Device Support
PartNumber	Resolu-tion	Display Port	Display Panel	View Angle	Touch Type	Touch Port	Toughened Glass Panel	Fully Laminated	Spe-aker	Signal Output	Pi	JETSON NANO	PC
SPI DISPLAYS PROS: low price. CONS: low refresh rate & resolution, supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO (the SPI bus), poor compatibility with Raspberry Pi system.
3.2inch RPi LCD (C)	320×240	High-Speed SPI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
3.5inch RPi LCD (B)	480×320	SPI	IPS	160°	Resistive	SPI	×	×	×	×	√	×	×
3.5inch RPi LCD (C)	480×320	High-Speed SPI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
4inch RPi LCD (C)	480×320	High-Speed SPI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
DPI DISPLAYS PROS: low price, high refresh rate, multiple resolution support, better compatibility with Raspberry Pi system. CONS: supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO.
2.8inch DPI LCD	480×640	DPI	IPS	160°	Capacitive	I2C	√	√	×	×	√	×	×
3.5inch DPI LCD	640×480	DPI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
4inch DPI LCD (B)	480×800	DPI	IPS	170°	Capacitive	I2C	√	×	√	√	√	×	×
4inch DPI LCD (C)	720×720	DPI	IPS	170°	Capacitive	I2C	√	√	×	×	√	×	×
5inch DPI LCD	800×480	DPI	IPS	160°	×	×	×	×	×	×	√	×	×
7inch DPI LCD	1024×600	DPI	IPS	170°	×	×	×	×	×	×	√	×	×
DSI DISPLAYS PROS: moderate price, high refresh rate, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system. CONS: only 800×480 resolution is available currently, supports Raspberry Pi only.
4.3inch DSI LCD	800×480	DSI	IPS	160°	Capacitive	I2C	√	×	×	×	√	×	×
4.3inch DSI LCD (with case)	800×480	DSI	IPS	160°	Capacitive	I2C	√	×	×	×	√	×	×
5inch DSI LCD	800×480	DSI	TFT	-	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD	800×480	DSI	TFT	-	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD (with case A)	800×480	DSI	TFT	-	Capacitive	I2C	√	×	×	×	√	×	×
HDMI / TYPE-C DISPLAYS PROS: high refresh rate, multiple resolution support, multiple devices support, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system. CONS: somewhat costly.
3.5inch HDMI LCD	480×320	HDMI	IPS	160°	Resistive	SPI	×	×	×	√	√	×	Display ONLY
4inch HDMI LCD	480×800	HDMI	IPS	170°	Resistive	SPI	×	×	×	×	√	×	Display ONLY
4inch HDMI LCD (H)	480×800	HDMI	IPS	170°	Resistive	SPI	×	×	×	√	√	×	Display ONLY
4.3inch HDMI LCD (B)	800×480	HDMI	IPS	160°	Capacitive	USB	×	×	×	√	√	√	√
5inch HDMI LCD	800×480	HDMI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
5inch HDMI LCD (with case)	800×480	HDMI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
5inch HDMI LCD (B)	800×480	HDMI	TFT	–	Resistive	USB	×	×	×	×	√	×	√
5inch HDMI LCD (B) (with case)	800×480	HDMI	TFT	–	Resistive	USB	×	×	×	×	√	×	√
5inch HDMI LCD (G)	800×480	HDMI/VGA	TFT	–	Resistive	USB	×	×	×	√	√	×	√
5inch HDMI LCD (H)	800×480	HDMI/VGA	TFT	–	Capacitive	USB	√	×	×	√	√	√	√
5inch HDMI LCD (H) V4	800×480	HDMI	TFT	–	Capacitive	USB	√	×	×	×	√	×	√
5inch HDMI AMOLED	960×544	HDMI	AMOLED	170°	Capacitive	USB	√	×	×	√	√	√	√
5.5inch HDMI AMOLED	1080×1920	HDMI	AMOLED	170°	Capacitive	USB	√	×	×	√	√	√	√
5.5inch HDMI AMOLED (with case A)	1080×1920	HDMI	AMOLED	170°	Capacitive	USB	√	×	×	√	√	×	×
5.5inch HDMI AMOLED (with case B)	1080×1920	HDMI	AMOLED	170°	Capacitive	USB	√	×	×	√	√	√	√
7inch HDMI LCD	1024×600	HDMI	IPS	170°	Resistive	SPI	×	×	×	×	√	×	Display ONLY
7inch HDMI LCD (B)	800×480	HDMI	TFT	–	Capacitive	USB	×	×	×	×	√	×	√
7inch HDMI LCD (B) (with case)	800×480	HDMI	TFT	–	Capacitive	USB	×	×	×	×	√	×	√
7inch HDMI LCD (C)	1024×600	HDMI	IPS	170°	Capacitive	USB	×	×	×	×	√	×	√
7inch HDMI LCD (C) (with case)	1024×600	HDMI	IPS	170°	Capacitive	USB	×	×	×	×	√	×	√
7inch HDMI LCD (H)	1024×600	HDMI/VGA	IPS	170°	Capacitive	USB	×	×	×	√	√	√	√
7inch HDMI LCD (H) (with case)	1024×600	HDMI/VGA	IPS	170°	Capacitive	USB	√	×	×	√	√	√	√
7inch FHD Monitor	1080×1920	HDMI	IPS	170°	Capacitive	USB	√	√	√	√	√	√	√
7HP-CAPQLED	1024×600	HDMI	IPS (QLED)	170°	Capacitive	USB	√	×	×	√	√	√	√
9HP-CAPQLED	1280×720	HDMI	IPS (QLED)	170°	Capacitive	USB	√	×	×	√	√	√	√
10.1HP-CAPQLED	1280×720	HDMI	IPS (QLED)	170°	Capacitive	USB	√	×	×	√	√	√	√
7.9inch HDMI LCD	400×1280	HDMI	IPS	170°	Capacitive	USB	√	×	×	√	√	√	√
9inch 2560x1600 Monitor	2560×1600	HDMI	IPS	178°	Capacitive	USB	√	√	√	√	√	√	√
10.1inch HDMI LCD	1024×600	HDMI	IPS	170°	Resistive	SPI	×	×	×	×	√	×	Display ONLY
10.1inch HDMI LCD (H) (with case)	1024×600	HDMI/VGA	TFT	–	Capacitive	USB	×	×	×	×	√	√	√
10.1inch HDMI LCD (E)	1024×600	HDMI	IPS	170°	Capacitive	USB	√	√	×	√	√	√	√
10.1inch HDMI LCD (B) (with case)	1280×800	HDMI	IPS	170°	Capacitive	USB	√	×	×	×	√	×	√
11.6inch HDMI LCD (H)	1920×1080	HDMI	IPS	178°	Capacitive	USB	√	√	×	√	√	√	√
11.6inch HDMI LCD (H) (with case)	1920×1080	HDMI/VGA	IPS	178°	Capacitive	USB	√	√	√	√	√	√	√
11.9inch HDMI LCD	320×1480	HDMI	IPS	170°	Capacitive	USB	√	×	×	√	√	√	√
12.5inch FHD Monitor	1920×1080	HDMI/Type-C	IPS	178°	Capacitive	Type-C / USB	√	×	√	√	√	√	√
13.3inch HDMI LCD (H)	1920×1080	HDMI	IPS	178°	Capacitive	USB	√	×	×	√	√	√	√
13.3inch HDMI LCD (H) (with case)	1920×1080	HDMI/VGA	IPS	178°	Capacitive	USB	√	×	√	√	√	√	√
13.3inch HDMI LCD (H) (with case) V2	1920×1080	HDMI/VGA	IPS	178°	Capacitive	USB	√	×	√	√	√	√	√
15.6inch HDMI LCD	1920×1080	HDMI	IPS	178°	Capacitive	USB	√	×	×	√	√	√	√
15.6inch HDMI LCD (H) (with case)	1920×1080	HDMI/VGA	IPS	178°	Capacitive	USB	√	×	√	√	√	√	√
15.6inch FHD Monitor	1920×1080	HDMI/Type-C	IPS	178°	Capacitive	Type-C / USB	√	×	√	√	√	√	√
