Waveshare 20117 RGB-Matrix-P3-64x32
Beschreibung
64×32 RGB LED matrix panel
2048 individual RGB LEDs, 3mm pitch
supports Raspberry Pi, Pi Pico, ESP32, Arduino...
Features at a glance
Maybe be on the wall of tall buildings, maybe on corners of unknown streets, you can always see the dazzling neon light, everywhere in the noisy yet energetic city. Sometimes, looking at these shining screens, you may want to make a unique one, and give it to the beautiful night as a gift. Now, this 64×32 RGB LED matrix panel will be the start to make your wish come true.
- 2048 individual RGB LEDs, full-color display, adjustable brightness
- 64×32 pixels, 3mm pitch, allows displaying text, colorful image, or animation
- 192×96mm dimensions, moderate size, suitable for DIY desktop display or wall mount display
- Onboard two HUB75 header, one for controller data input, one for output, chain support
- Provides open source development resources and tutorials, for use with Raspberry Pi, Pico, ESP32, Arduino, and so on
Specifications
| Dimensions | 192mm × 96mm |
|---|---|
| Pixels | 64×32=2048 DOTS |
| Pitch | 3mm |
| Pixel form | 1R1G1B |
| Viewing angle | =160° |
| Control type | synchronization |
| Driving | 1/16 scan |
| Header | HUB75 |
| Power supply | 5V / 2.5A (VH4 header input) |
| Power | =12W |

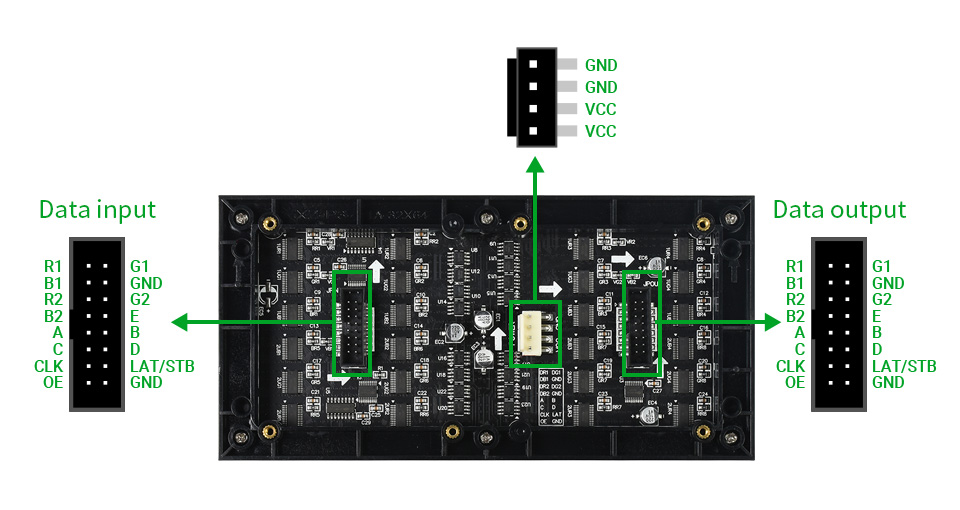

Header definition
| Pin | Description | Pin | Description |
|---|---|---|---|
| VCC | 5V power input | GND | Ground |
| R1 | R higher bit data | R2 | R lower bit data |
| G1 | G higher bit data | G2 | G lower bit data |
| B1 | B higher bit data | B2 | B lower bit data |
| A | A line selection | B | B line selection |
| C | C line selection | D | D line selection |
| E | E line selection | CLK | clock input |
| LAT/STB | latch pin | OE | output enable |
chainable design
multi LED matrix panel can be chained together to build a larger panel via HUB75 input/output header
EachRGB LED matrix panel requires a standalone 5V/2.5A or above power supply, when their're chianed to display.
Usage scenarios
DIY maker desktop or wall mount display, signboard, environment monitor...

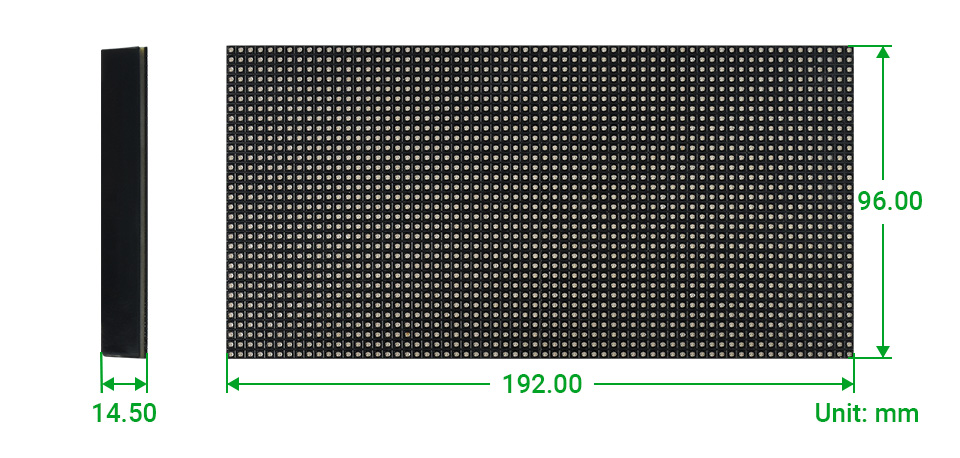

Dimensions
Resources & Services
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

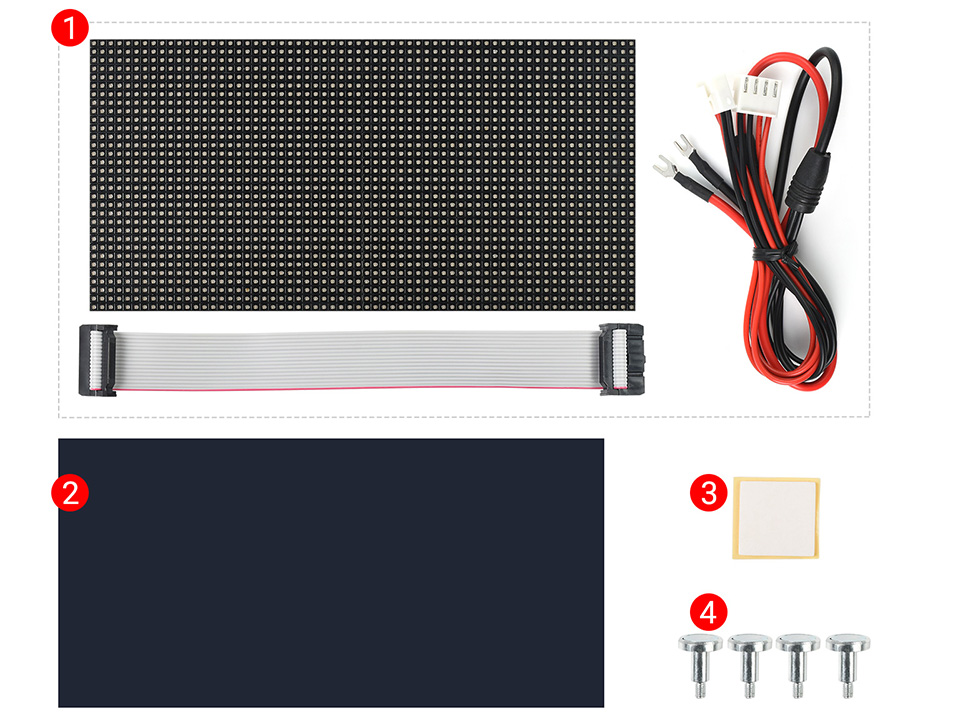

Package Contents
- RGB-Matrix-P3-64x32 LED matrix and accessories x1
- Dark brown acrylic front panel x1
- Double-sided tape x1
- Magnetic bolt 4pcs x1
| Versandgewicht: | 0,34 Kg |
