Waveshare 20167 Pico-Audio
Beschreibung
Audio expansion Module for Pico
wide range audio sampling rate, headphone and speaker signal output at the same time
Features at a glance
The Pico-Audio is an audio expansion module designed for Raspberry Pi Pico, which incorporates PCM5101A low power stereo decoder, and uses I2S bus for transmitting audio signal. It supports wide range audio sampling rate, allows headphone and speaker signal output at the same time.
- Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
- Standard 3.5mm audio jack, for connecting external headphone
- Dual channels speaker headers, for direct driving speakers
- 8~384000Hz audio sampling rate
- Stereo sound effect output
- Using 3-wire I2S, effectively reducing EMI
- Comes with development resources and manual (Raspberry Pi Pico audio play code, sound card code)
Specifications
| Operating voltage | 5V | Logic level | 3.3V |
|---|---|---|---|
| Audio decoder | PCM5101A | Audio bus | I2S |
| DAC SNR | 106 dB | Speaker driving | 2.6W/channel (4O BTL) |
Raspberry Pi Pico header compatibility

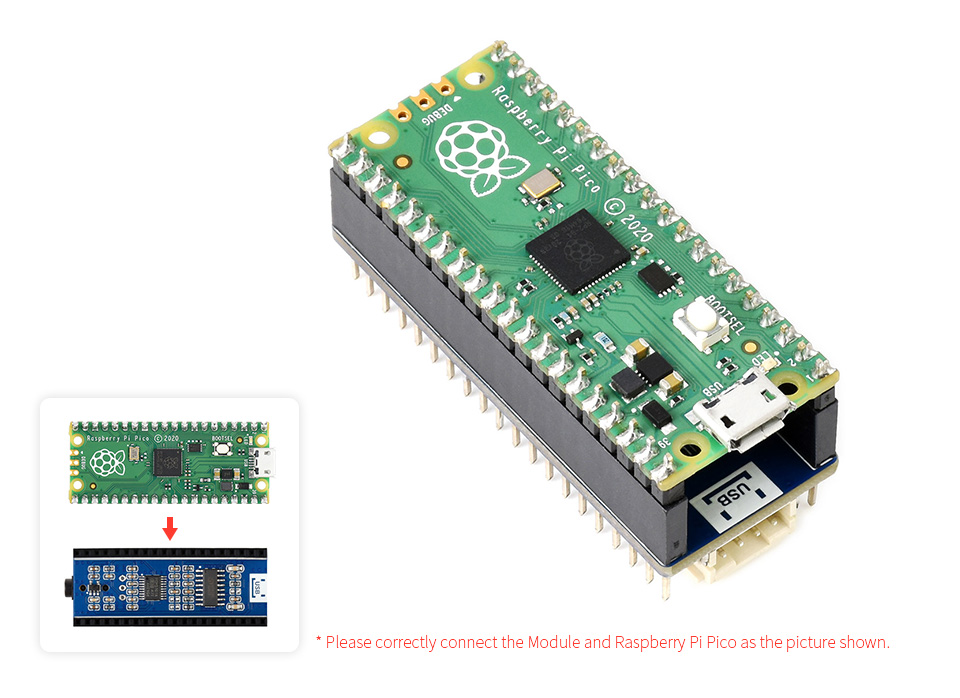

onboard female pin header for direct attaching to Raspberry Pi Pico,male pin header for stacking other modules
Raspberry Pi Pico is NOT included.

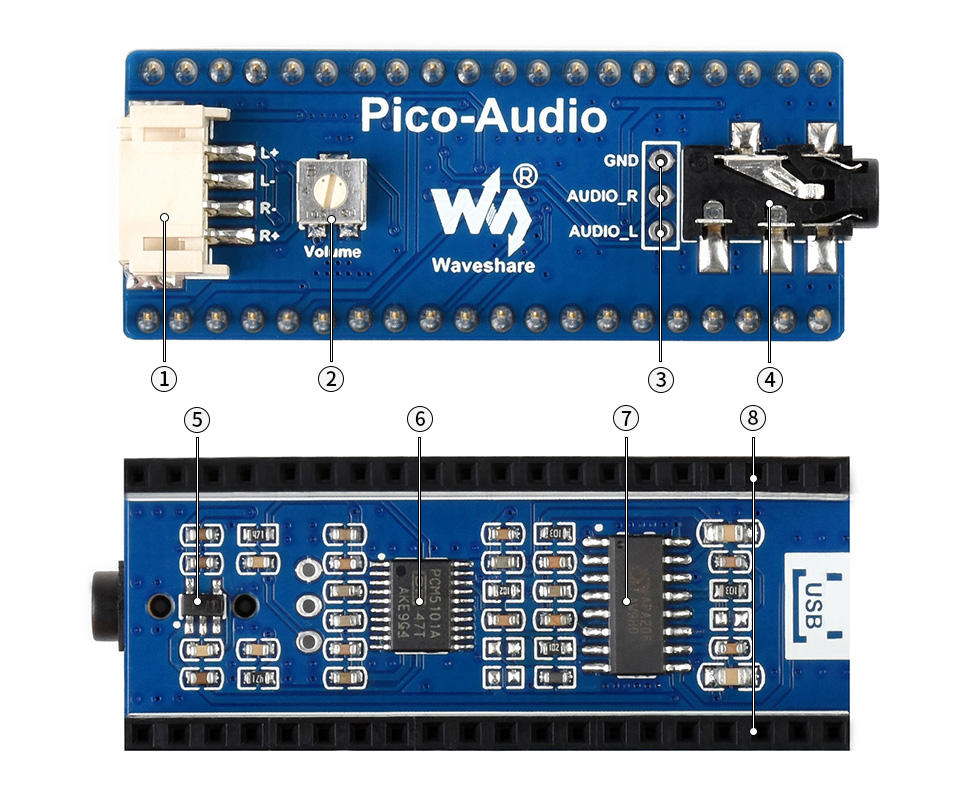

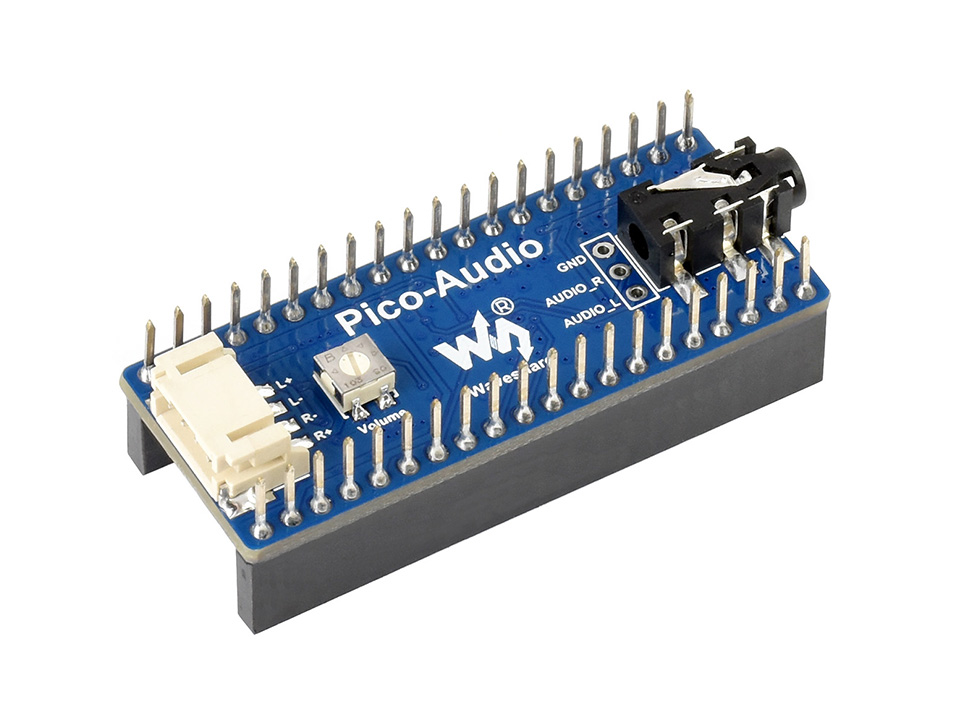

What's On Board
- Dual channels 4-wire speaker header
- SMD adjustable resistor speaker output volume adjustment
- Audio decoder output observing points
- 3.5mm standard headphone jack
- RT9193-33 3.3V linear regulator
- PCM5101A audio decoder, 3-wire I2S bus
- APA2068 audio power amplifier
- Raspberry Pi Pico header for connecting Raspberry Pi Pico, stackable design

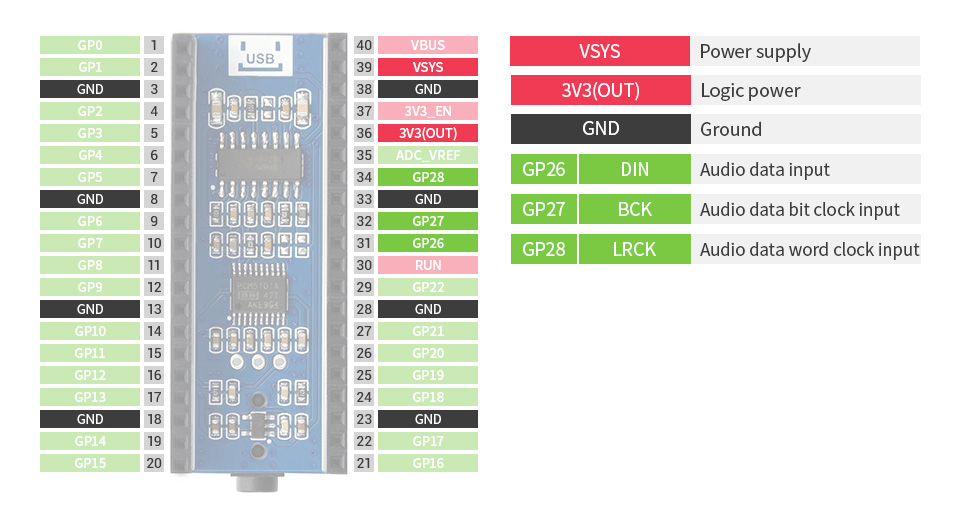

Pinout definition

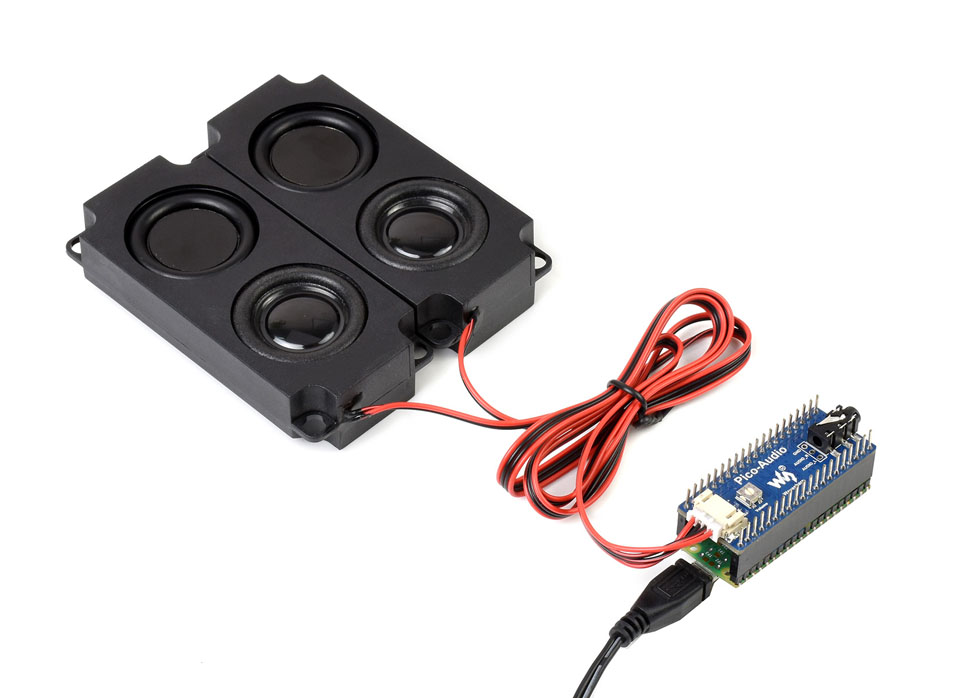

Demonstration

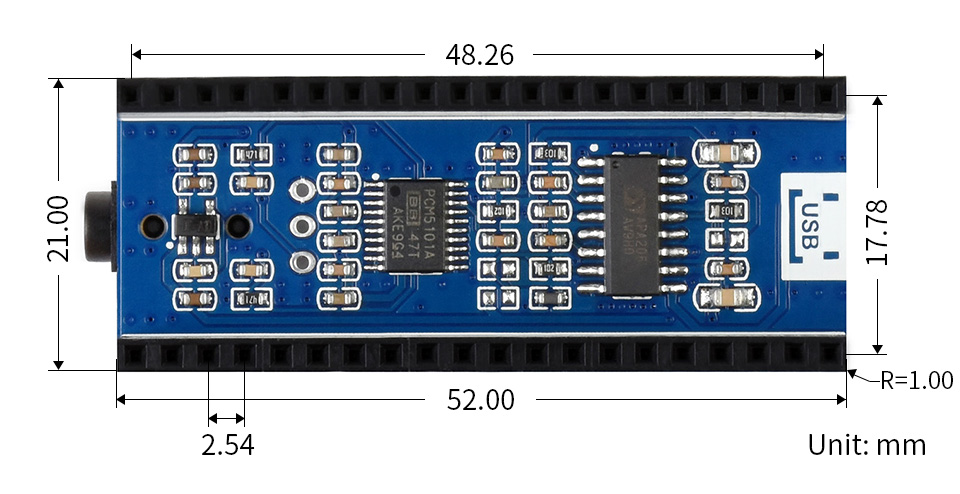

Outline dimensions
Resources & Services
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

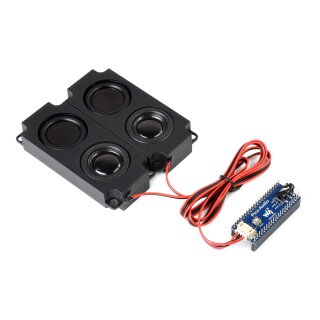

Package Contents
- Pico-Audio x1
- 8O 5W speaker x1
