Waveshare 20170 Pico-RGB-LED
Description

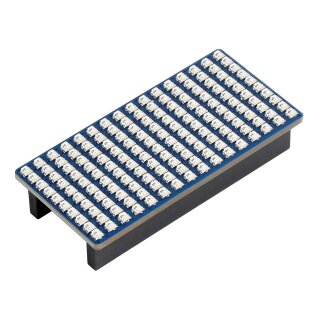

RGB LED matrix panel for Pico
16×10 RGB full-color
Features at a glance

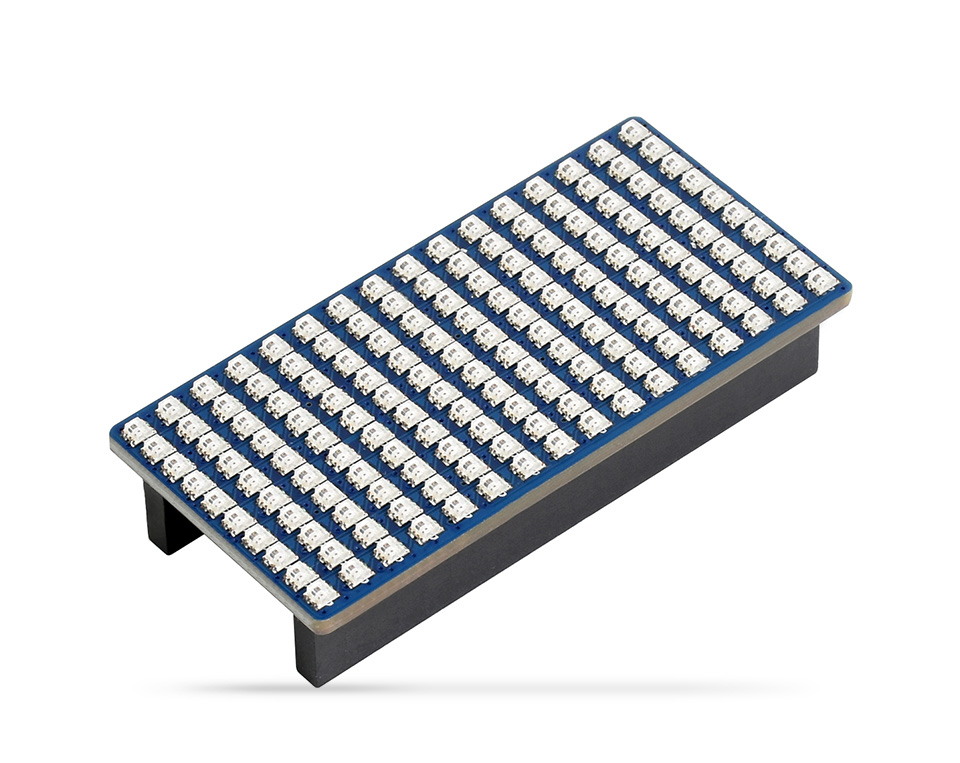

The Pico-RGB-LED is an LED matrix module designed for Raspberry Pi Pico, which has 160 (16×10) RGB full-color external-controlled constant current integrated LEDs, with embedded quality controller IC and LED chip. It is small in size, uses very few peripheral components, and presents a clean-looking front panel. Controlled by a Raspberry Pi Pico, this LED panel is programable for high level, colorful matrix display.
- Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
- 160 RGB LEDs arranged in 16×10 grid, multiple IO selection
- Right-angled 2.54mm pitch male pinheader on the bottom, for easy extension
- 0807 colorful LEDs, integrating quality single wire cascading constant current driver IC and quality RGB LED chip, aka external-controlled constant current integrated LEDs
- Embedded controller IC, with features like high reliability, high anti-interference performance, high constant current accuracy, and low power consumption
- Integrated quality LED chip, with high consistent brightness and pure white light effect, lower light degradation
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
| Operating voltage | 5V |
|---|---|
| Communication | single wire return to zero code |
| Color depth | 24-bit (each 8-bit of RGB) |
| Data rate | 800 Kbps |
| Brightness | adjustable 256 level |
| Pixels | 16 × 10 Pixels |
| Dimensions | 54.00 × 26.00mm |
Raspberry Pi Pico header compatibility

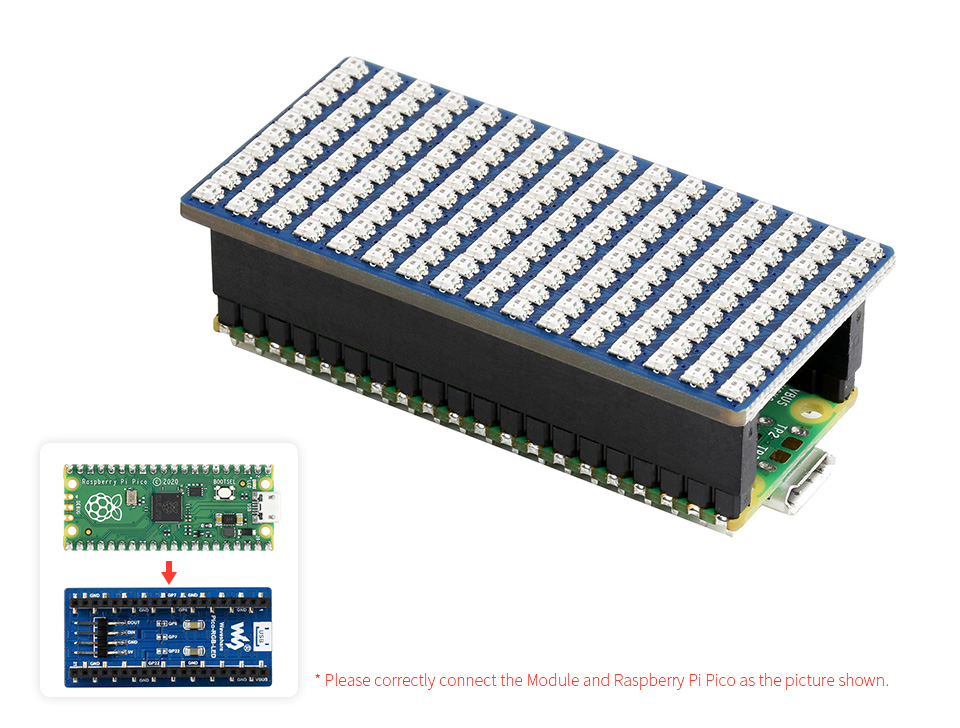

onboard female pin header for direct attaching to Raspberry Pi Pico
Raspberry Pi Pico is NOT included.

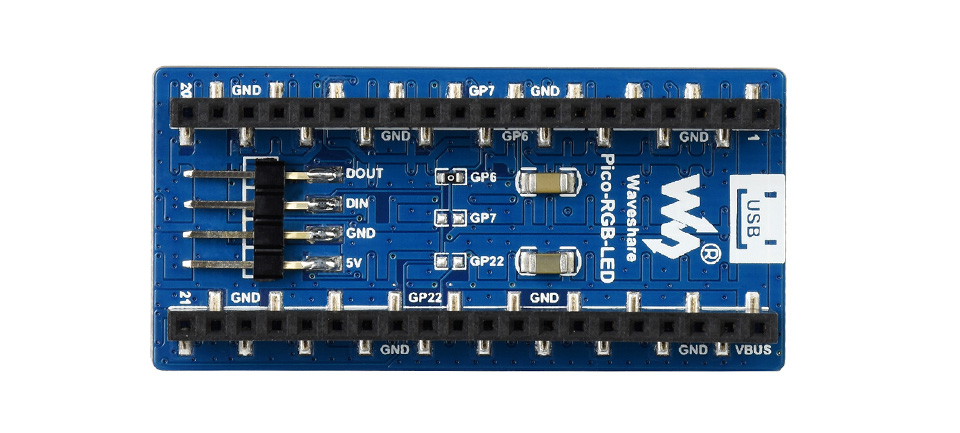

Onboard right-angled male pinheader
for connecting external driver, or cascading

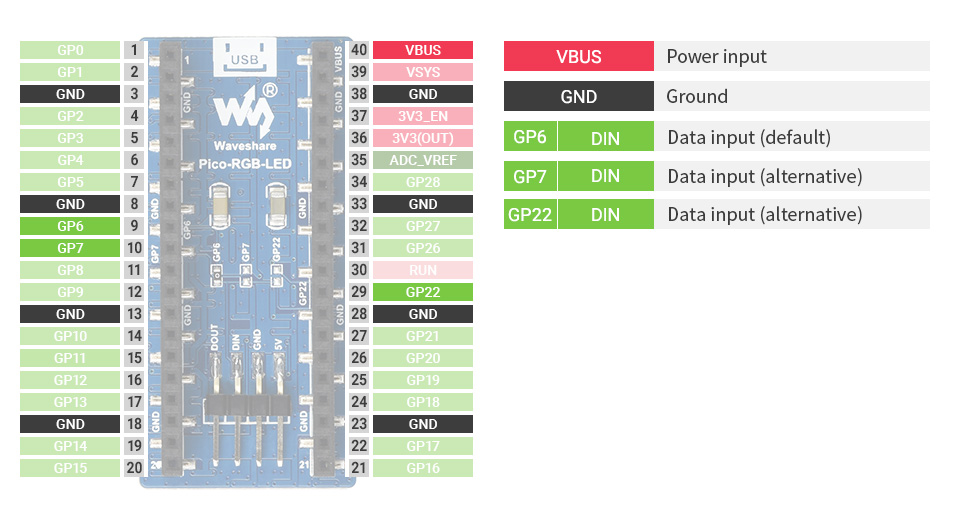

Pinout definition

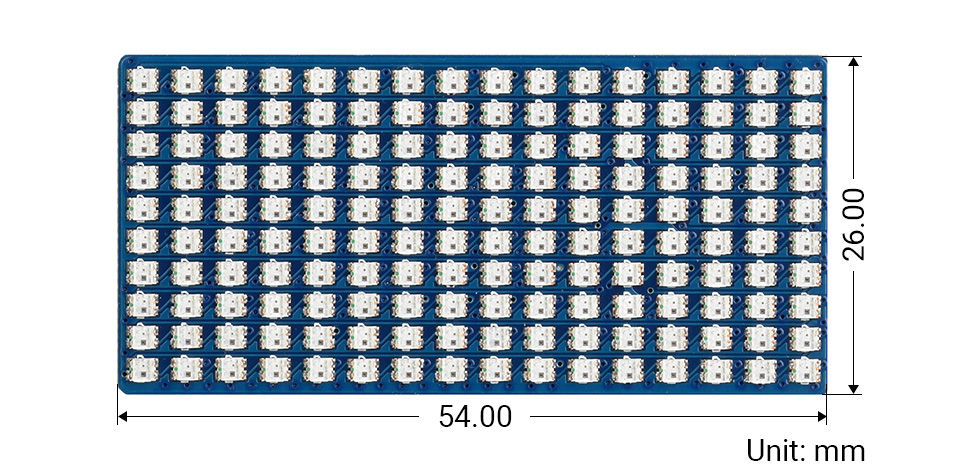

Outline dimensions
Resources & Services
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Package Contents
- Pico-RGB-LED x1
1
| Shipping weight: | 0.02 Kg |
