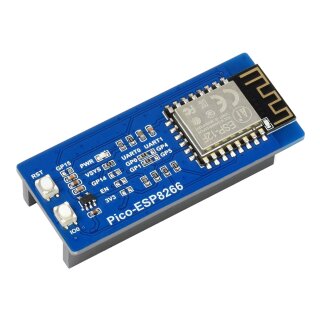

Waveshare 20182 Pico-ESP8266
Description
ESP8266 WiFi Module for Pico
WiFi expansion module based on ESP8266, supports TCP/UDP protocol
Features at a glance
The Pico-ESP8266 is a WiFi expansion module designed for Raspberry Pi Pico, which can be controlled via UART AT command, and supports TCP/UDP communication protocol. It is an easy solution to enable WiFi feature for Raspberry Pi Pico, suitable for sorts of IoT communication projects.
- Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
- UART communication, controlled via AT command, helps you get started quickly
- Supports STA, AP, and STA+AP three WiFi operating modes, embedded LWIP protocol stack, supports TCP/UDP communication
- Based on ESP8266 module, four-layers process, enhanced impedance matching, stronger signal, more stable connection
- 2x functional buttons, convenient for user to update AT firmware through Raspberry Pi Pico
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
Communication interface | UART |
---|---|
UART baudrate | 115200 bps |
WiFi standard | IEEE 802.11b/g/n |
Frequency range | 2400 ~ 2483.5 MHz |
WiFi operating mode | WiFi STA, WiFi AP, WiFi STA+AP |
Antenna | PCB antenna |
Operating voltage | 3.3 V |
Operating temperature | -40? ~ 85? |
Dimensions | 58 × 25 mm |
Raspberry Pi Pico header compatibility

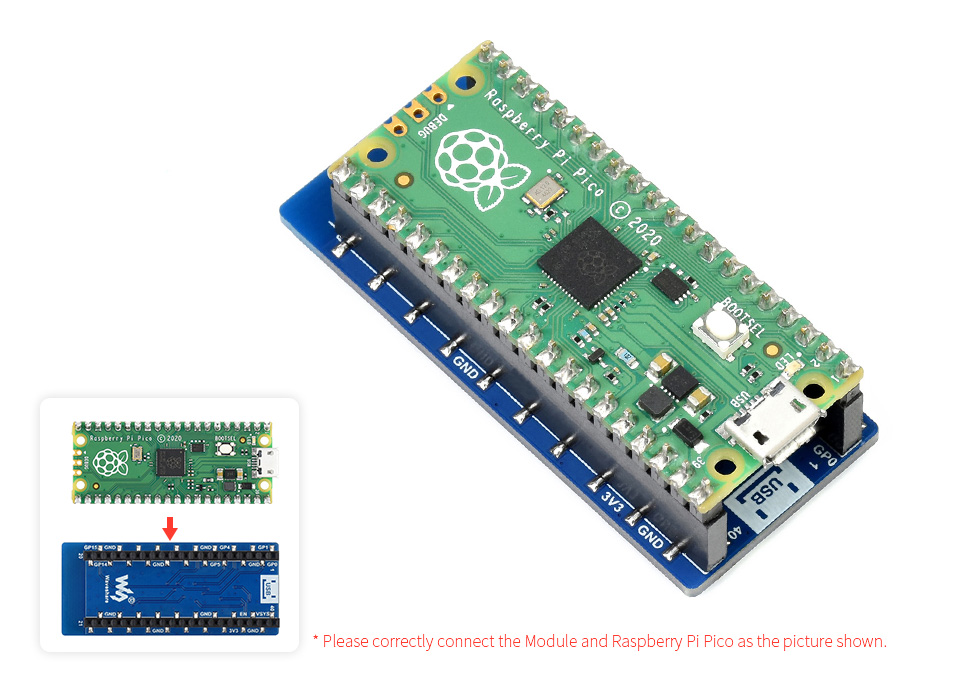

onboard female pin header for direct attaching to Raspberry Pi Pico
Raspberry Pi Pico is NOT included.

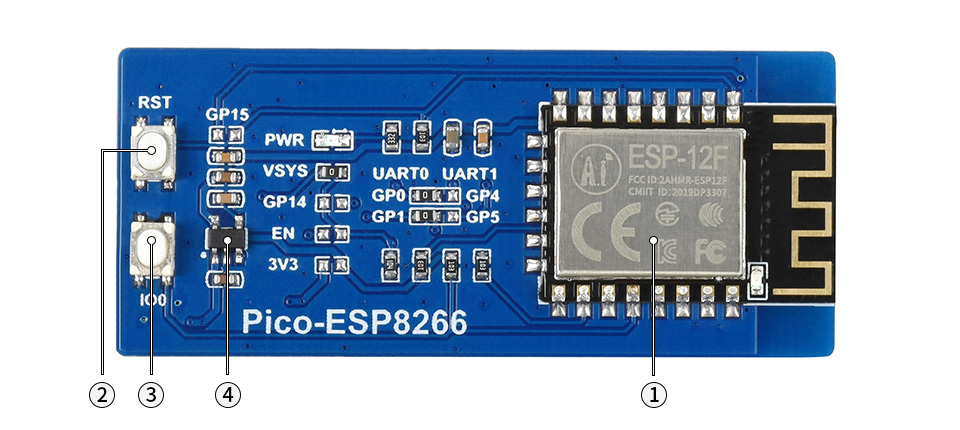

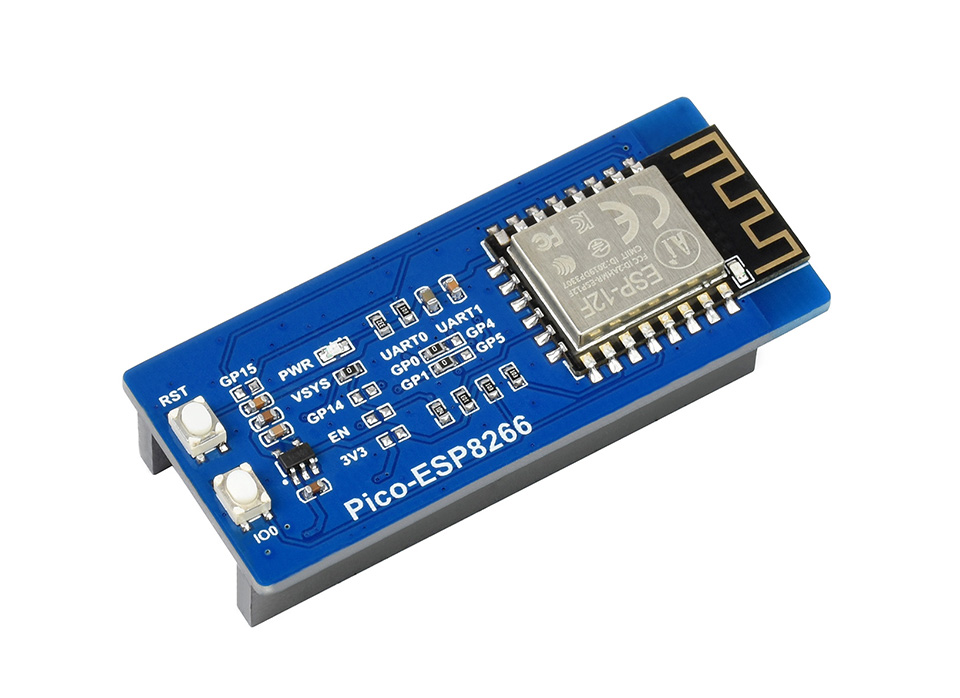

What's On Board
- ESP8266 module
- ESP8266 reset button connects to ESP8266 reset pin
- ESP8266 BOOT button connects to ESP8266 GPIO 0, press to enter awaiting download mode while reseting
- SPX3819M5 3.3V linear regulator

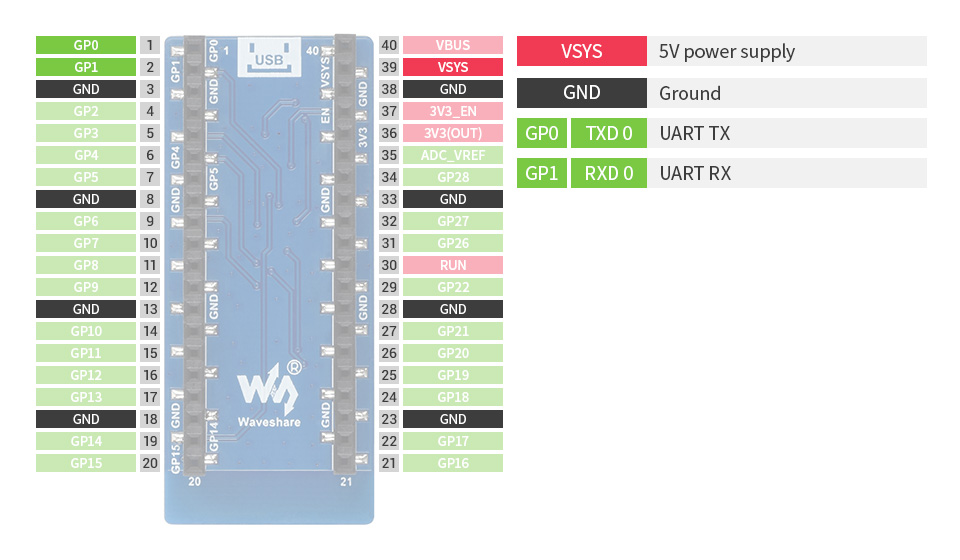

Pinout definition

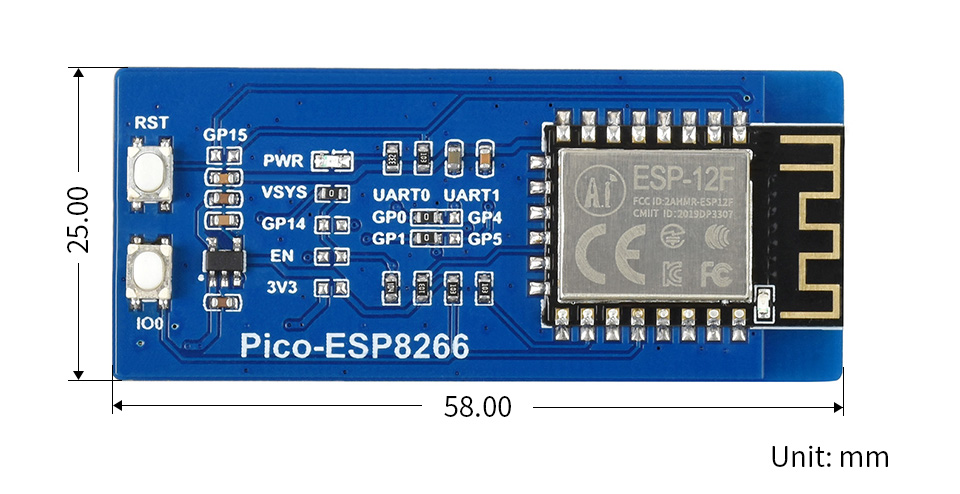

Outline dimensions
Resources & Services
WIKI: Pico-ESP8266
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Package Contents
- Pico-ESP8266 x1
1
Shipping weight: | 0.02 Kg |
