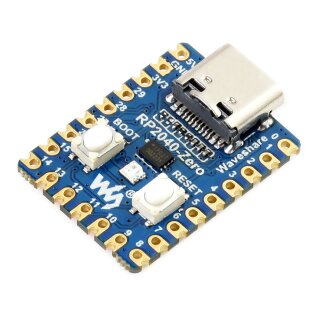

Waveshare 20187 RP2040-Zero

Waveshare 20187 RP2040-Zero

Waveshare 20187 RP2040-Zero

Waveshare 20187 RP2040-Zero

Waveshare 20187 RP2040-Zero

Waveshare 20187 RP2040-Zero

Artnr.: WS1-020187
Hersteller: Waveshare

RP2040-Zero, ein kostengünstiges, leistungsfähiges Pico-ähnliches MCU-Board auf Basis des Raspberry Pi Mikrocontrollers RP2040

4,90 €

inkl. 19% MwSt.

(4,12 € exkl. MwSt.)

zzgl.

ab Lager lieferbar

RP2040 MCU Board Zero

a Pico-like MCU board based on Raspberry Pi RP2040

Castellated module, suitable for SMD applications

Board specifications

RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
264KB of SRAM, and 2MB of on-board Flash memory
USB-C connector, keeps it up to date, easier to use
Castellated module allows soldering direct to carrier boards
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
29 × multi-function GPIO pins (20× via edge pinout, others via solder points)
2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
Accelerated floating-point libraries on-chip
8 × Programmable I/O (PIO) state machines for custom peripheral support

Pinheader options

C/C++,MicroPython support

Comprehensive SDK, dev resources, tutorials to help you easily get started

Dual-core Arm processor

Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz

29 × multi-function GPIO pins

configurable pin function, allows flexible development and integration

What's On Board

USB Type-C connector
W25Q16JVUXIQ 2MB NOR-Flash
BOOT button press it when resetting to enter download mode
RESET button
WS2812 cool RGB LED

ME621 low dropout LDO, max current 800MA
RP2040 dual-core processor, up to 133MHz operating frequency
RP2040 pins 10x solder points, 9 of which are for GPIO

outline dimensions

Resources & Services

Wiki: RP2040-Zero

Selection guide

Brand	Raspberry Pi	Waveshare
Product	Original	Mini ver.	LCD ver.	Plus ver.
Processor	Raspberry Pi official RP2040 microcontroller
Regulator	RT6150 (DC-DC, 800mA)	ME6217 (LDO, 800mA)	TPS63000 (DC-DC, 1800mA)
USB	Micro USB	Type-C
Flash	2MB			4MB
Battery header	N/A		Yes(concurrent recharging and powering)
Integrated LCD	N/A		0.96inch IPS LCD	N/A

Package Contents

RP2040-Zero

RP2040-Zero x1

RP2040-Zero-M

RP2040-Zero with pre-soldered header x1
