Waveshare 20218 Pico-Relay-B
Beschreibung
Industrial 8-Channel Relay Module for Pico
embedded protections: power supply isolation & photocoupler isolation
Features at a glance
- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
- Onboard photocoupler isolation, prevent interference from external high-voltage circuit connected to the relay
- High quality relay, contact rating: 10A 250V AC or =10A 30V DC
- ABS protection enclosure with rail-mount support, easy to install, safe to use
- Breakout USB port and BOOT pin, make it easy to debug without disassembling the enclosure
- PWR indicator, RGB LED, and passive buzzer outside the enclosure
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
| Operating voltage | 5V | Relay channel | 8 ch |
|---|---|---|---|
| Communication protocol | USB | Contact form | 1NO 1NC |
| Communication interface | Micro USB |

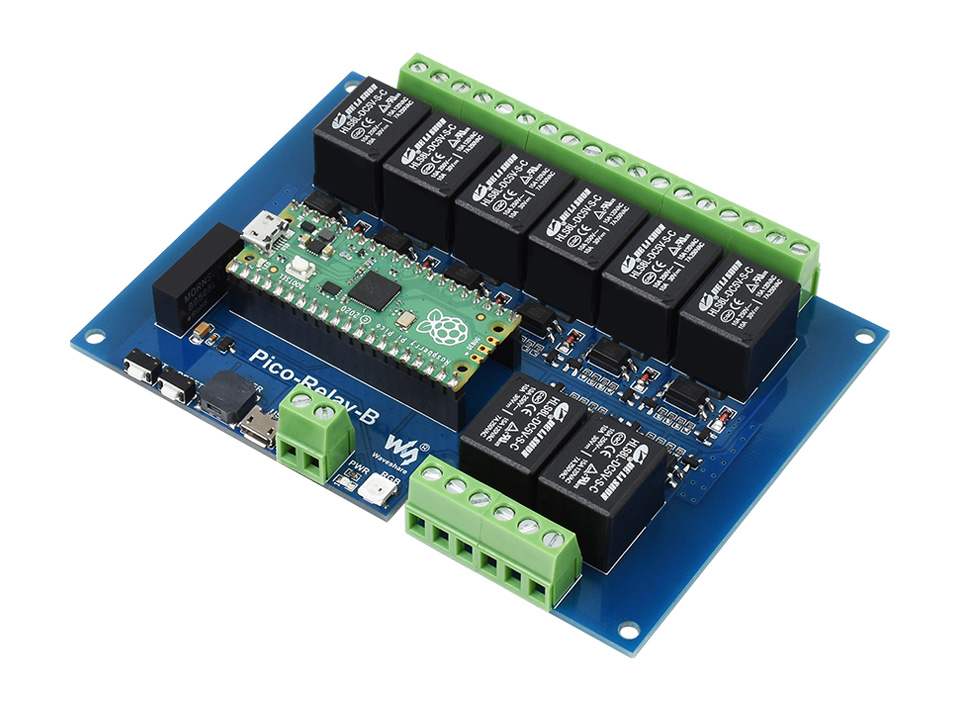

Raspberry Pi Pico header compatibility
onboard female pin header for direct attaching to Raspberry Pi Pico
Raspberry Pi Pico is NOT included.

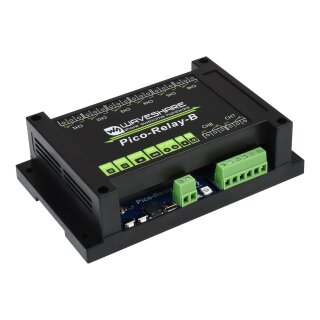

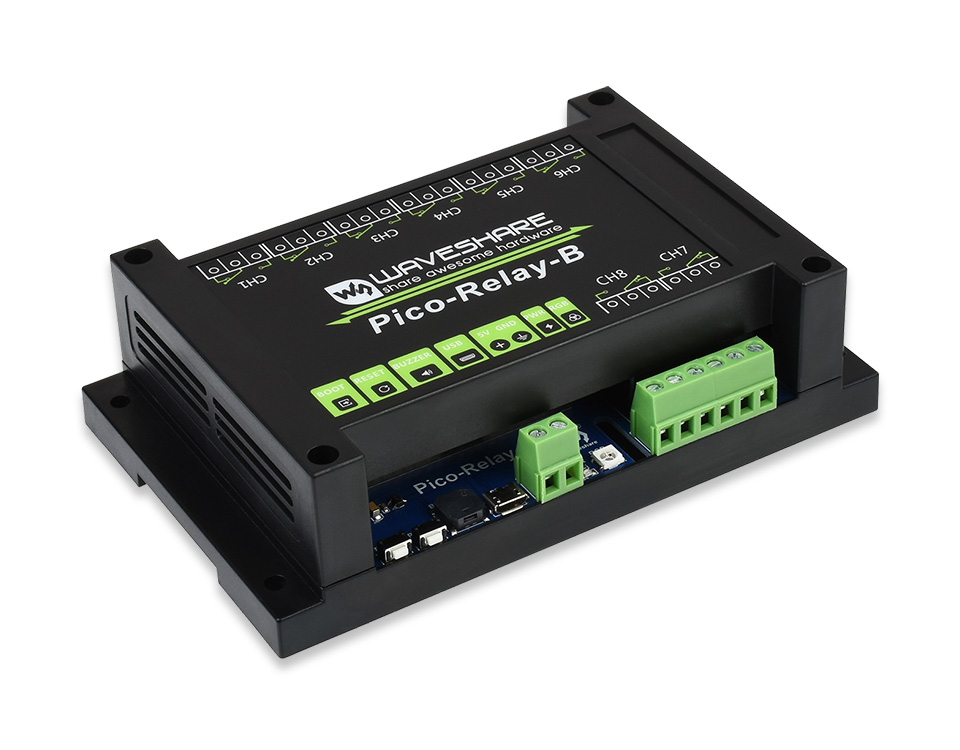

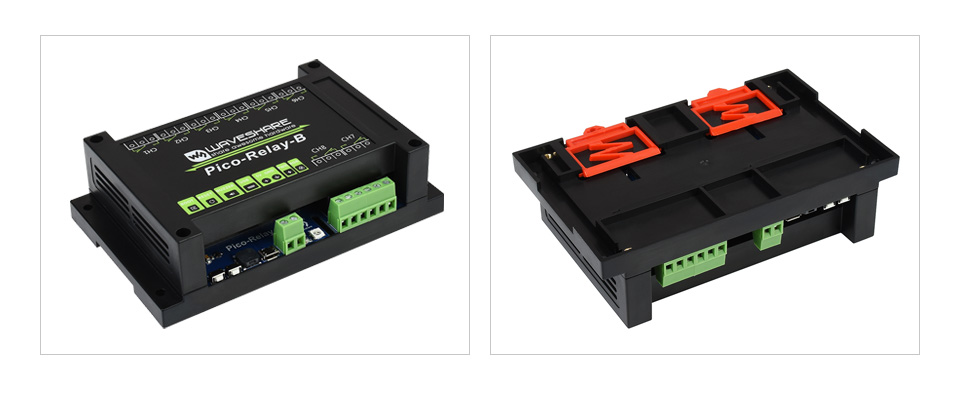

Enclosure design
ABS protection enclosure with rail-mount support, easy to install, safe to use

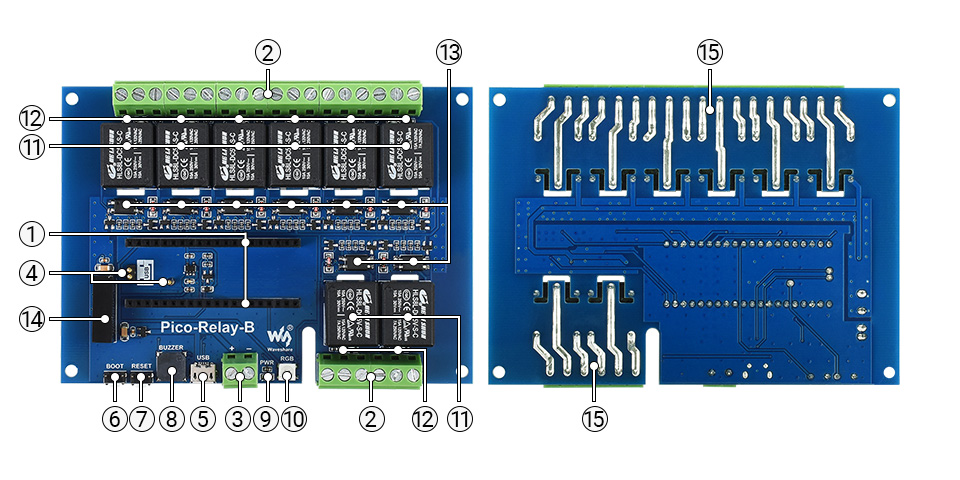

What's On Board
- Raspberry Pi Pico header
- Relay screw terminal for connecting external devices
- Power supply screw terminal the multi relays are connected in parallel
- Pogo pins
- USB communication port connected via pogo pins
- BOOT key connected via pogo pins
- Reset key Pico reset
- Passive buzzer controllable sound frequency
- Power indicator
- WS2812 RGB LED, cool!
- 8-channel quality relays contact rating per channel: =10A 250V AC or =10A 30V DC
- Relay operating indicator
- Photocoupler isolation prevent interference from external high-voltage circuit connected to the relay
- Power supply isolation provides stable isolated voltage, needs no extra power supply for the isolated terminal
- Thickened tracks allows large current devices

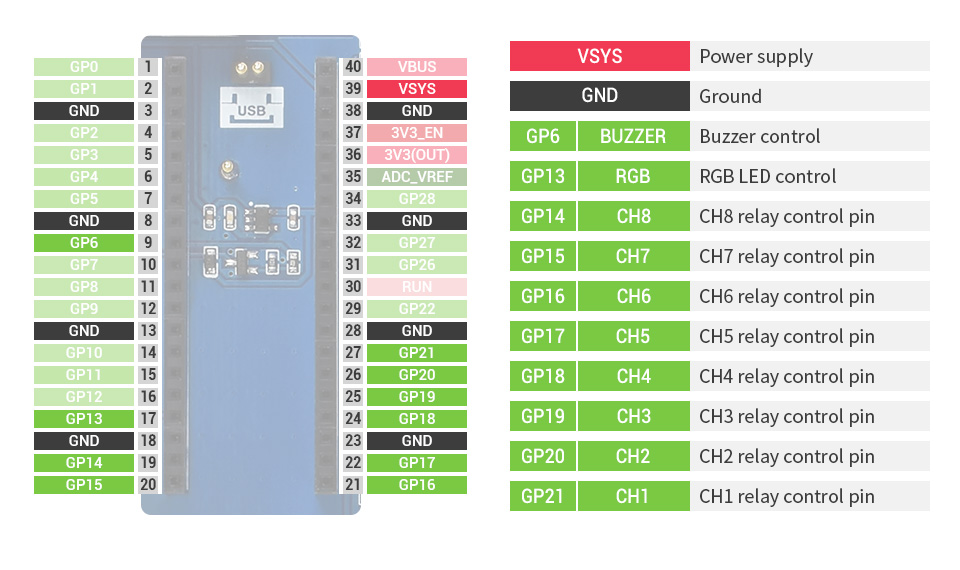

Pinout definition

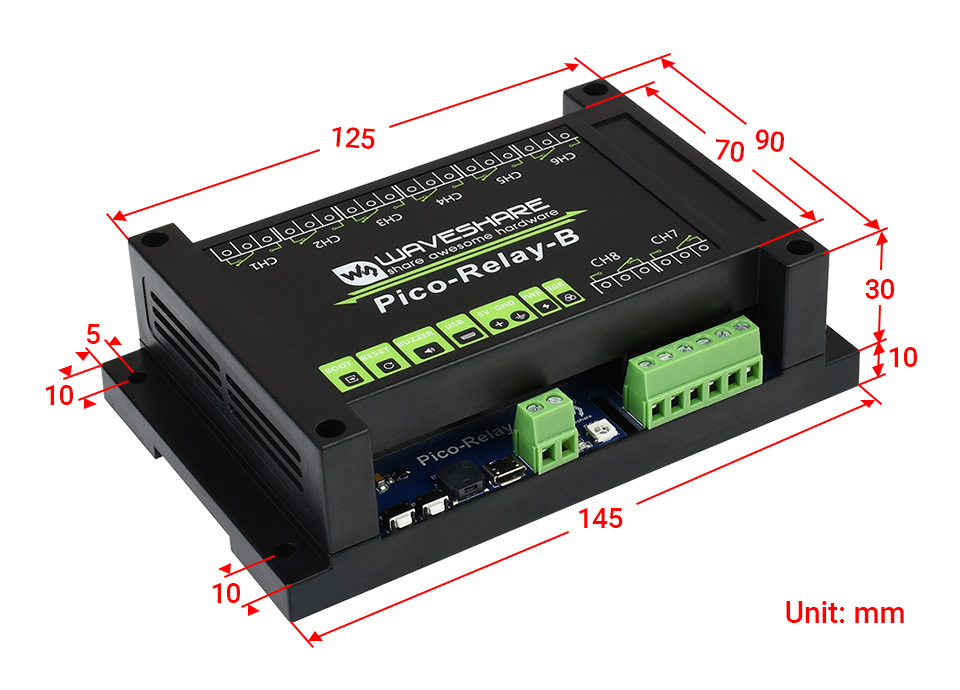

Outline dimensions
Resources & Services
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

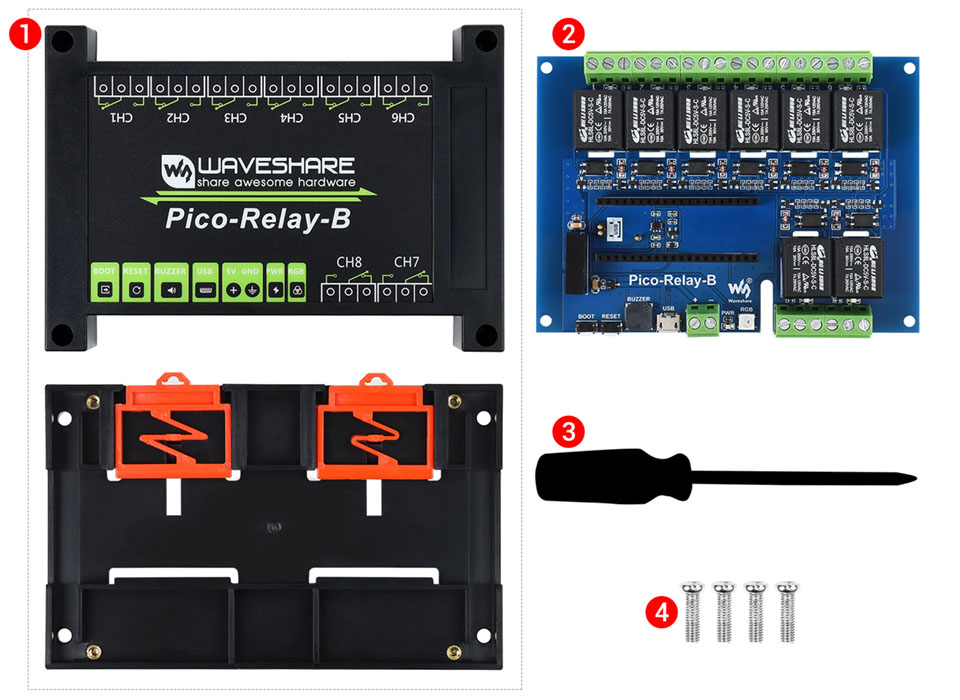

Package Contents
- ABS protection enclosure (top and bottom) x1
- Pico-Relay-B x1
- Screwdriver x1
- Screws pack x1
| Versandgewicht: | 0,31 Kg |
