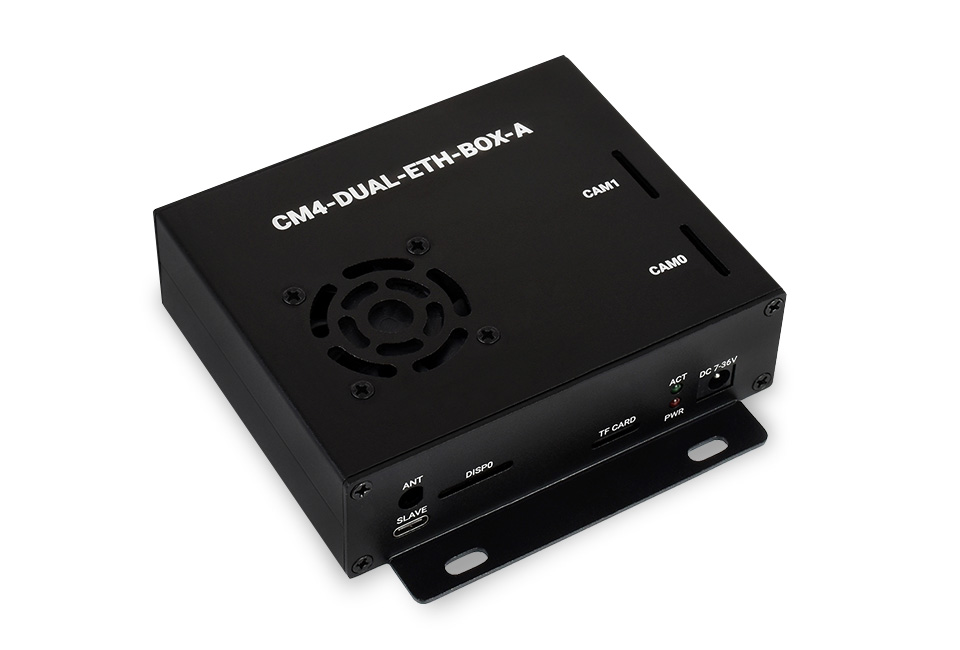

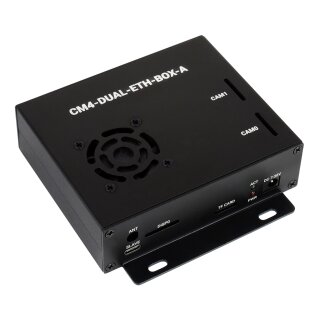

Waveshare 20225 CM4-DUAL-ETH-BOX-A (EU)
Beschreibung
Dual Gigabit ETH computer based on CM4
Designed for Raspberry Pi Compute Module 4
Waveshare CM4-DUAL-ETH-BASE inside, fast and easy to build a mini-computer

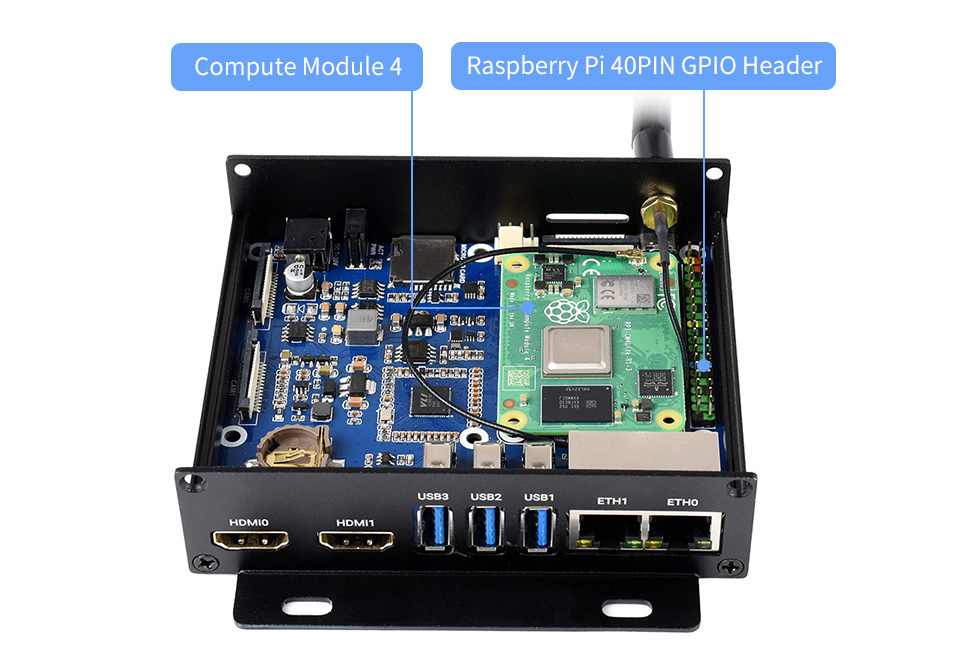

Waveshare CM4 Dual Gigabit Ethernet Base inside
make it easy to build your own Raspberry Pi CM4 mini PC
for reference only, CM4 and antenna are NOT included.
Comparing the expansion boards
| CM4 IO Board |
 mini Base |
 Dual Gigabit ETH |
 PoE Base (B) |
 PoE Base |
 Raspberry Pi official |
|
|---|---|---|---|---|---|---|
| Lite Ver. | Full Ver. | |||||
| PoE | N/A | integrates 802.3af-compliant PoE circuit (5V/2.5A) | PoE header only | |||
| USB | USB 2.0 × 2 USB 2.0 × 2 (via FFC connector) | USB 3.2 Gen1 × 3 | USB 2.0 × 4 | USB 3.2 Gen1 × 4 | USB 2.0 × 4 (2x via pin header) | |
| GPIO | Raspberry Pi 40PIN GPIO × 1 | |||||
| Header | M.2 slot × 1 | N/A | RS485 × 1 RS232 × 1 PCIe Gen 2 × 1 | N/A | PCIe Gen 2 × 1 | |
| HDMI | HDMI × 2 (1x via FFC connector) supports 4K 30fps output | HDMI × 2 supports 4K 30fps output | ||||
| DSI Display | MIPI DSI × 1 (15pin 1.0mm FPC) | MIPI DSI × 2(15pin 1.0mm FPC) | MIPI DSI × 2 (22pin 0.5mm FPC) | |||
| CSI Camera | MIPI CSI-2 × 2 (15pin 1.0mm FPC) | MIPI CSI-2 × 2 (22pin 0.5mm FPC) | ||||
| Power Input | 5V | 7V~36V | 5V | 7V~36V | 12V | |
| Fan | 5V | 5V / 12V | 12V | |||
| no fan control | allows speed adjustment and measurement | |||||
| RTC | N/A | Real-time clock with battery socket and ability to wake Compute Module 4 | ||||
| RJ45 Ethernet | Gigabit Ethernet | Dual Gigabit Ethernet | Gigabit Ethernet | |||
| CM4 Socket | suitable for all variants of Compute Module 4 | |||||
| SD Card Slot | MicroSD card socket for Compute Module 4 Lite (without eMMC) variants | |||||
| Dimensions (mm) | 85.0 × 56.0 | 109.0 × 91.5 | 124.50 × 108.80 | 160 × 90 | ||

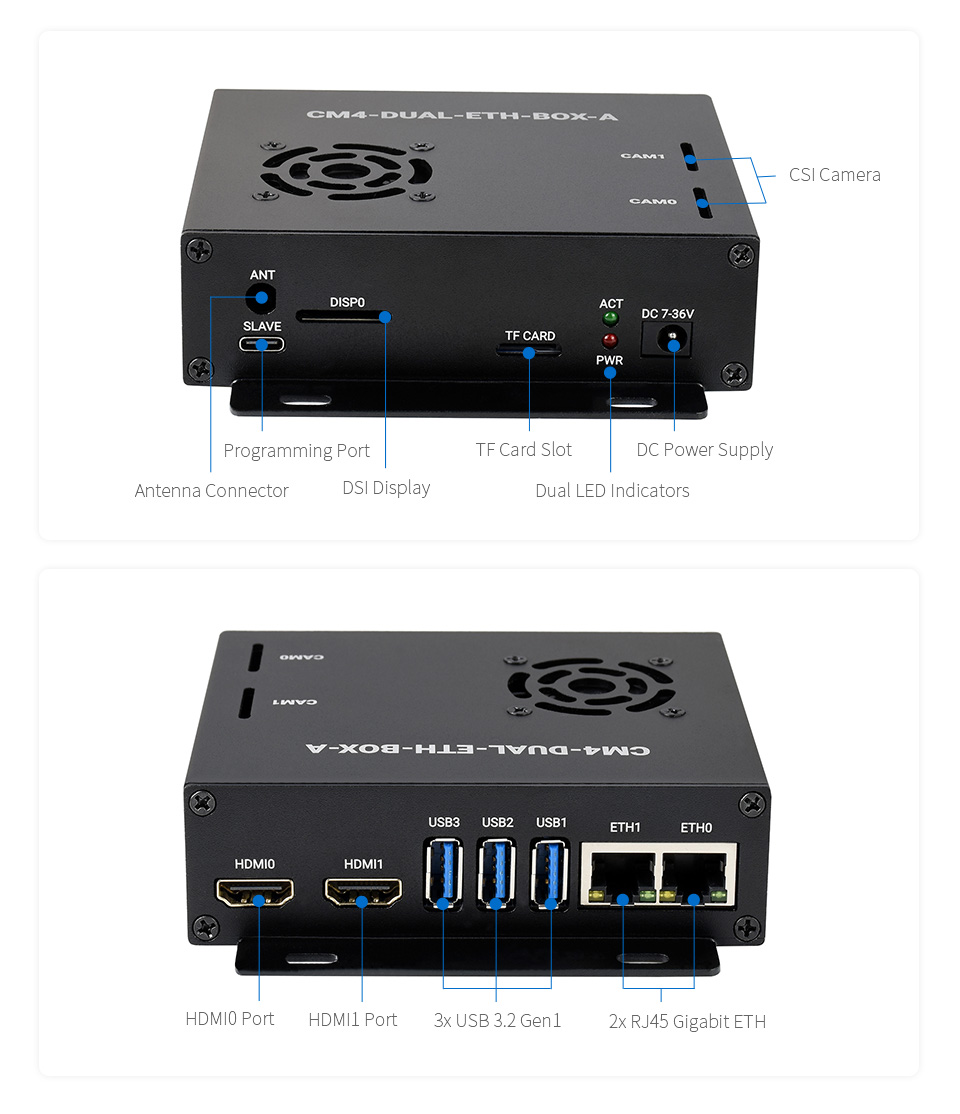

Rich interfaces
providing interfaces including: ETH/CSI/DSI/RTC/HDMI/Micro SD/USB
Precise cut-out with clear label
each cut-out is completely aligned with the connector

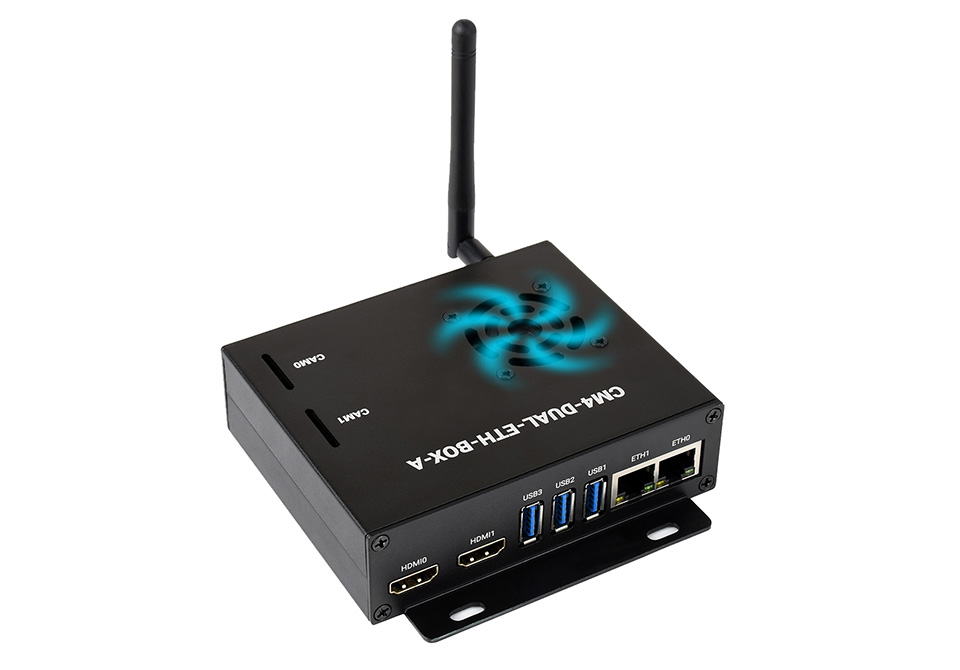

Cooling fan included
comes with cooling fan, combined with the airflow vent, better heat dissipation

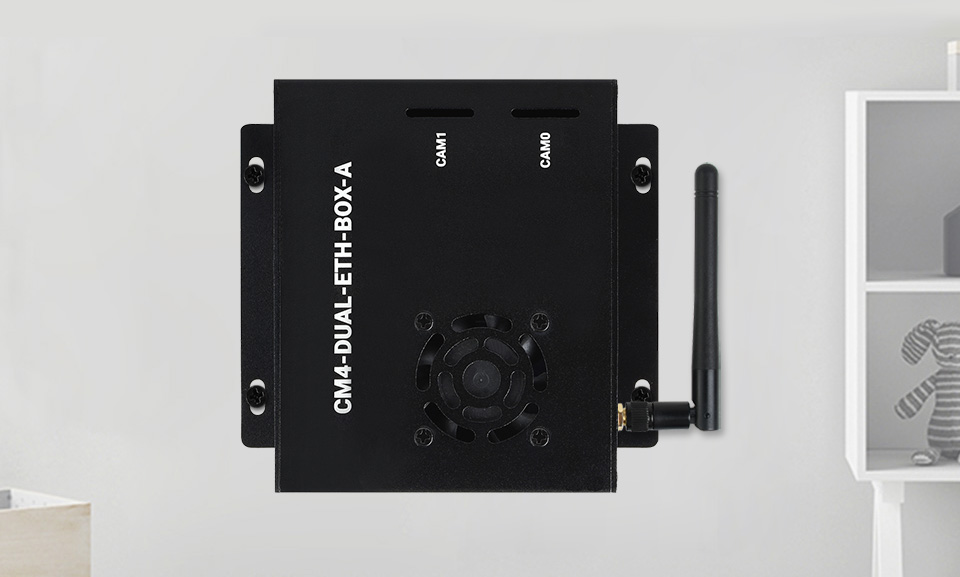

Wall mount support
wall mount holes on two sides, handy for mounting

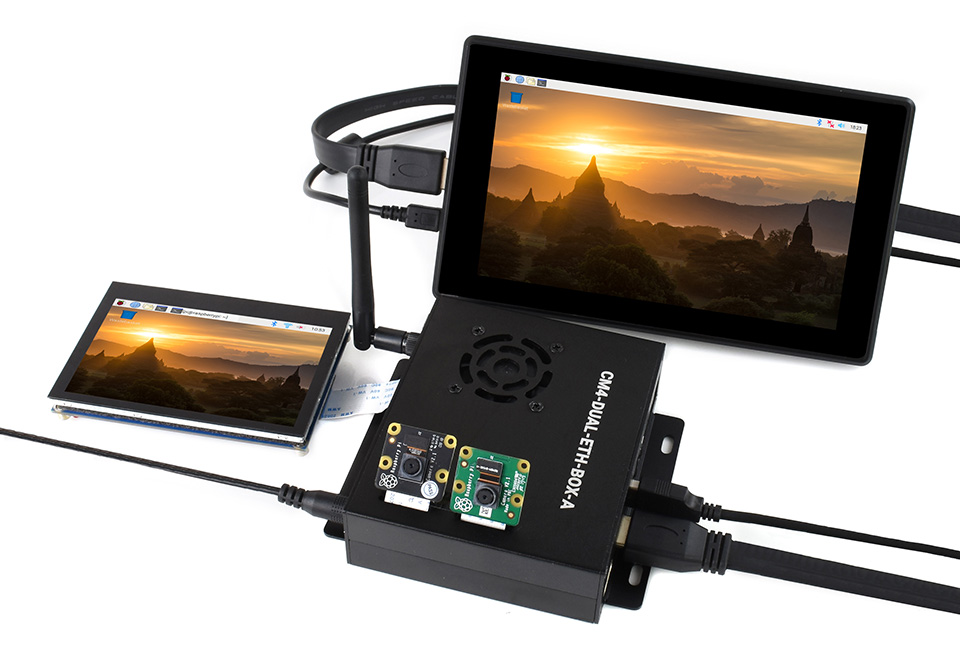

Application examples
Binocular Vision Raspberry Pi Projects, Or Other Industrial Context
for reference only, display, cameras, and antenna are NOT included.

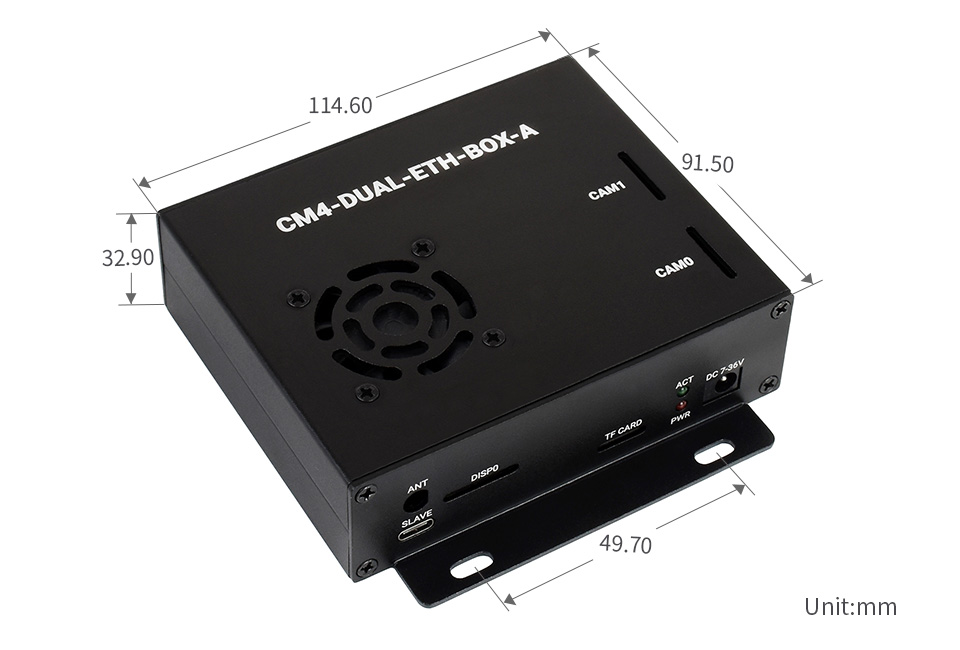

Outline dimensions
Resources & Services
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Package Contents
- CM4-DUAL-ETH-BASE x1
- Metal case (top and bottom) x1
- Fan-4010-PWM-12V x1
- Screwdriver x1
- Screws pack x1
- OPTIONS 12V 2A power adapter x1
