Waveshare 20240 Pico-CAN-A

Artno.: WS1-020240
CAN Bus Module For Raspberry Pi Pico, Enabling Long Range Communication Through UART
22.90 € incl. 19% VAT
19.24 € excl. VAT

plus shipping

Out of stock

Description

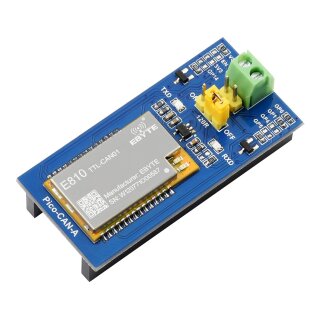

CAN bus Module for Pico

enabling reliable long range communication for Raspberry Pi Pico

Features at a glance

  • Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
  • Incorporates E810-TTL-CAN01 module, UART to CAN bus conversion
  • Three conversion methods: transparent conversion, transparent conversion with identification, and protocol mode conversion
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

Operating voltage 3.3V CAN transceiver E810-TTL-CAN01
Communication bus UART Baudrate 300~921600bps

Raspberry Pi Pico header compatibility

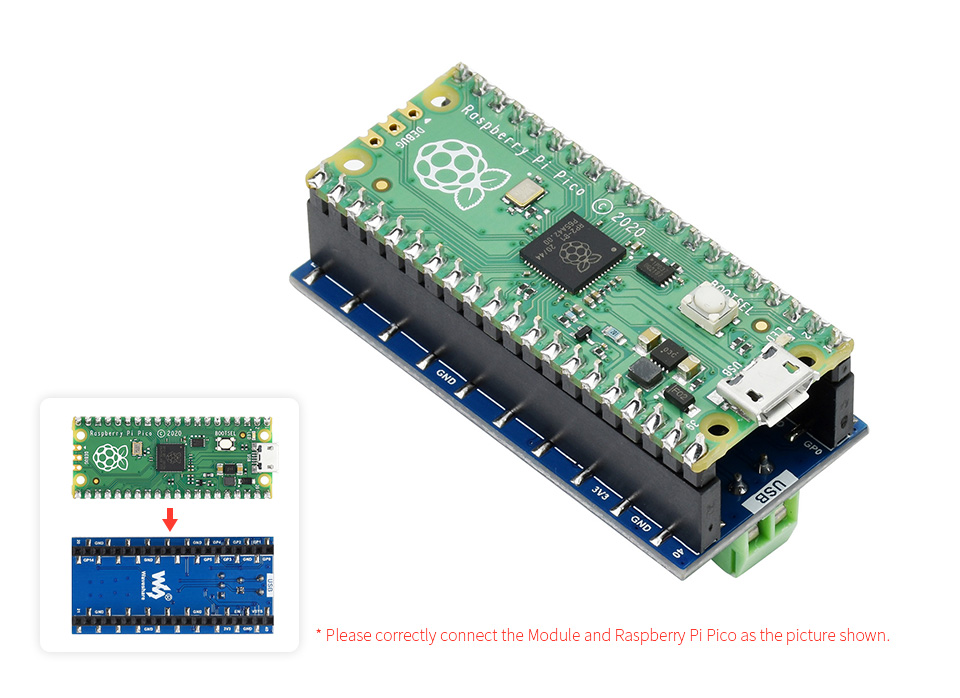

onboard female pin header for direct attaching to Raspberry Pi Pico

Raspberry Pi Pico is NOT included.

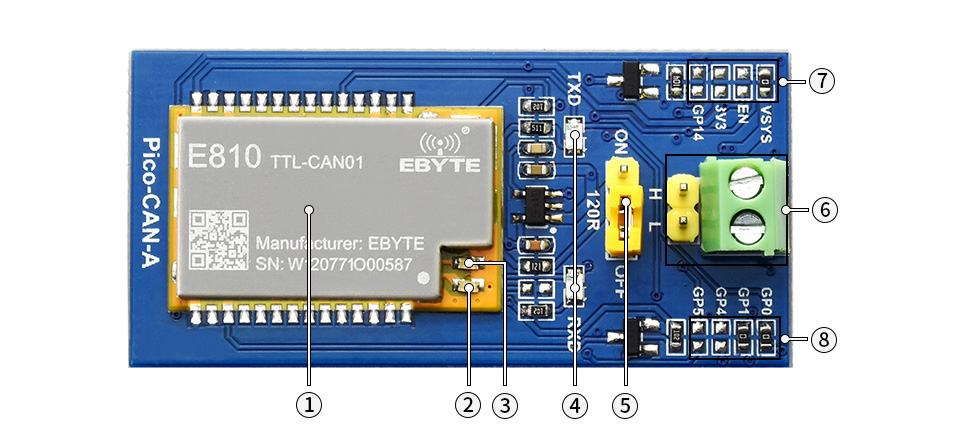

What's On Board

  1. E810-TTL-CAN01 module
  2. Module operating indicator
  3. Module status indicator operating mode: blinking at 1Hz frequency command configuration mode: blinking at 5Hz frequency
  4. TX/RX indicators
  1. Resistor config ON: connected to 120R matching resistor OFF: disconnected from 120R matching resistor (default)
  2. CAN bus terminal
  3. Power supply selection
  4. UART selection

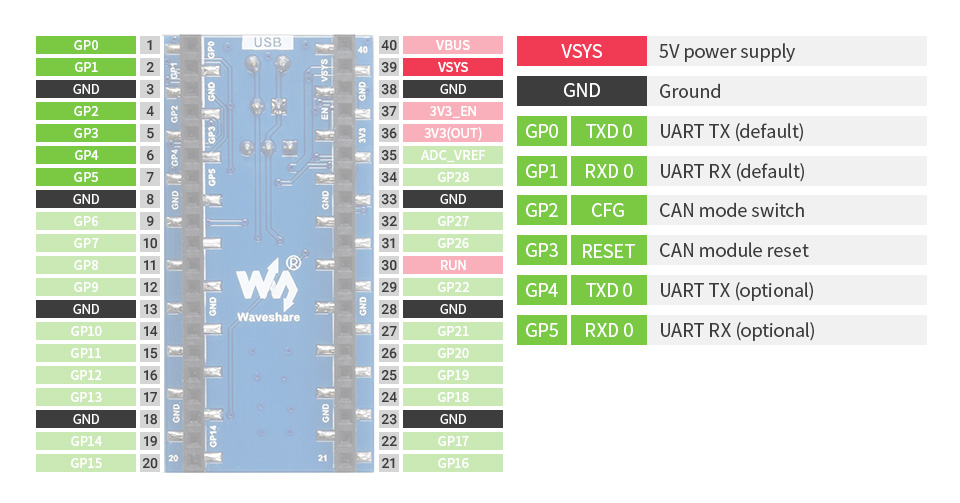

Pinout definition

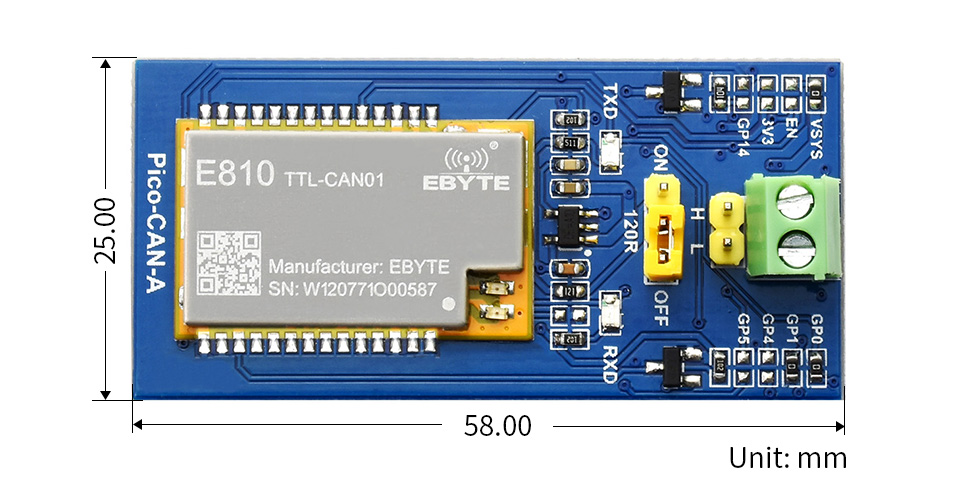

Outline dimensions

Resources & Services

WIKI: Pico-CAN-A

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
