USB & GigE HUB HAT
USB HUB with Gigabit Ethernet Designed for Raspberry Pi
3x USB 3.2 Gen1, 1x GigE, Driver Free, Plug & Play
This is a driver-free 3 ports USB 3.2 Gen1 hub HAT for Raspberry Pi, also with a Gigabit Ethernet port, provides more USB/network capability to your Pi, make it easy to connect more USB devices and network devices.
The HAT features standard Raspberry Pi 40PIN GPIO extension header, when working with Raspberry Pi 4, the USB 3.2 Gen1 ports is able to provide up to 5 Gbps data rate, which means 10 times faster than USB 2.0.
Features at a glance
- 3x USB 3.2 Gen1 ports, compatible with USB 3.0 / 2.0 /1.1
- 1x Gigabit Ethernet port, 1000M/100M/10M compatible
- Onboard external USB-C 5V DC power port, ensures more stable power supply
- 1x power indicator and 3x USB port indicators, easy to check the operating status
- Driver-free, plug and play, compatible with OS including Windows, mac OS, Linux and Android
- Purpose-made for Raspberry Pi 4, compatible with other Raspberry Pi version as well
- Comes with development resources and manual
USB 3.2 Gen 1 OR USB 3.0
they're totally equivalent in fact, indicating the transition of technical naming specificationthe word USB 3.0 on this page exactly means USB 3.2 Gen 1
| Data rate | used name | current name |
|---|---|---|
| 5 Gbps | USB 3.0 / USB 3.1 Gen 1 | USB 3.2 Gen 1 |

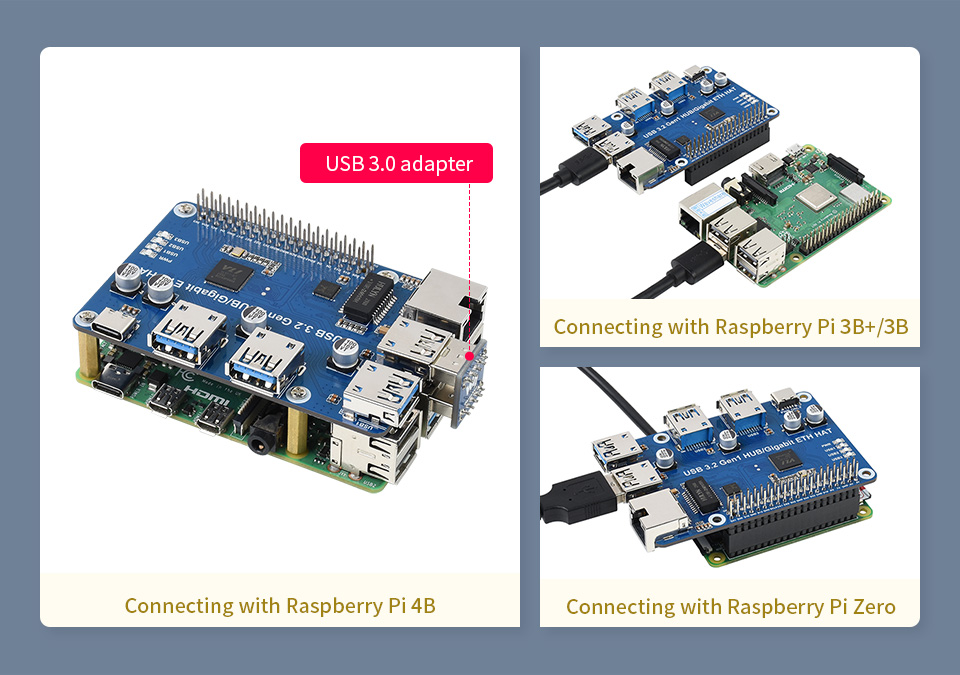

Designed for Raspberry Pi series
Standard Raspberry Pi 40PIN GPIO header, customized for Raspberry Pi series boards

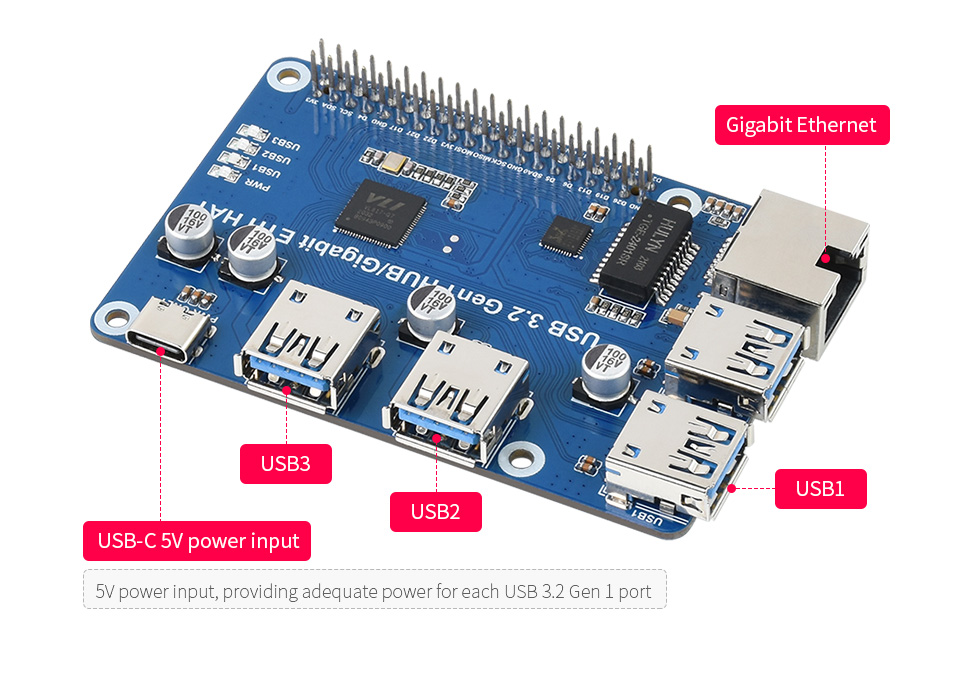

External power supply support
Onboard external USB-C 5V DC power port
Combined with the Raspberry Pi USB power source, it is capable of connecting more USB loads, even the high-power disk device

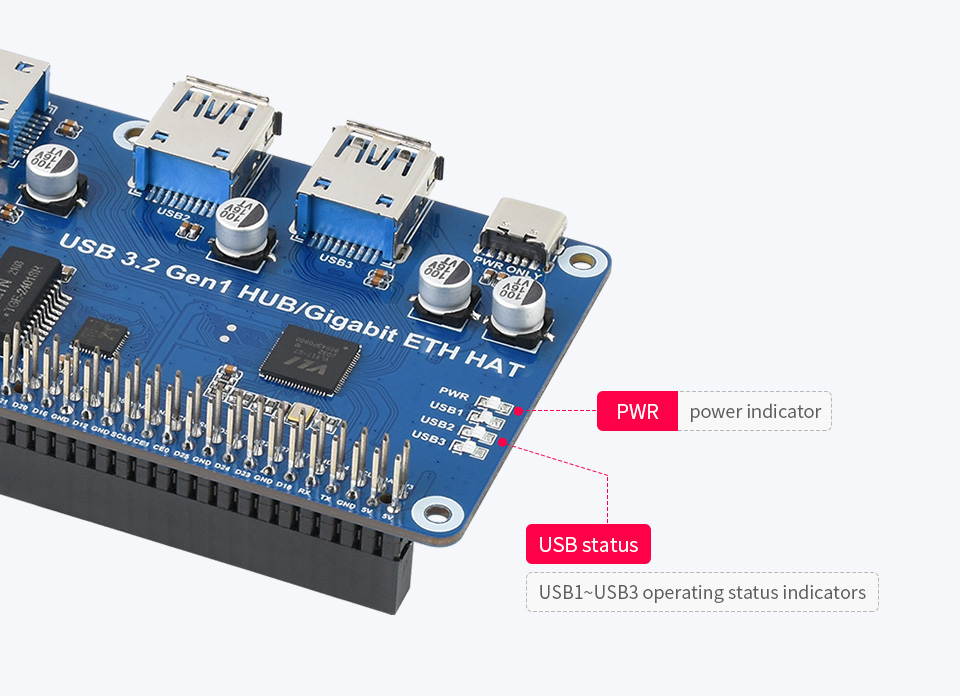

Multiple indicators
easy to check the operating status of power and USB ports

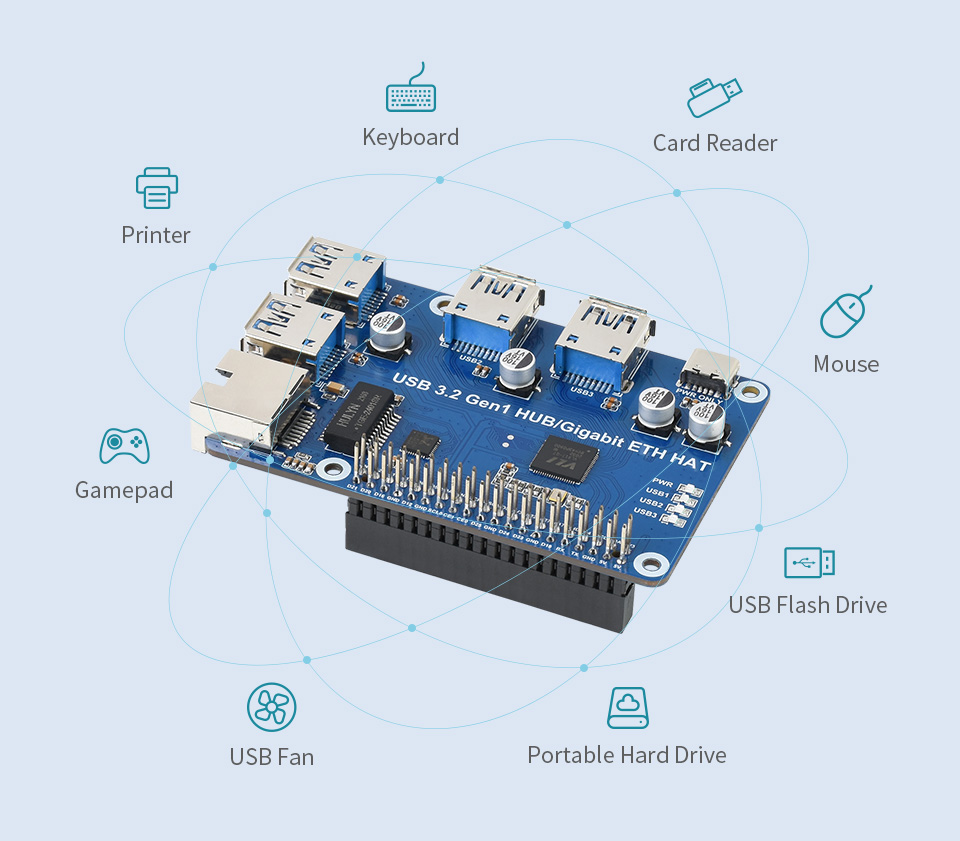

Various USB devices support
Driver free, plug & play
compatible with OS including Windows, mac OS, Linux and Android
What's on board
- Raspberry Pi GPIO header for connecting Raspberry Pi
- USB 3.2 Gen1 HUB input connects to Raspberry Pi USB port
- USB 3.2 Gen1 extended ports USB1~USB3
- Gigabit Ethernet port up to 1000Mbps data rate
- PWR ONLY port for external USB-C 5V DC power input
- VL817-Q7 USB HUB chip
- RTL8153B USB 3.0 to Gigabit Ethernet converter
- TGE-2401SR Gigabit Ethernet transformer
- PWR power indicator
- USB1~USB3 indicator for each USB port
- MX25L512EOI-10G FLASH chip

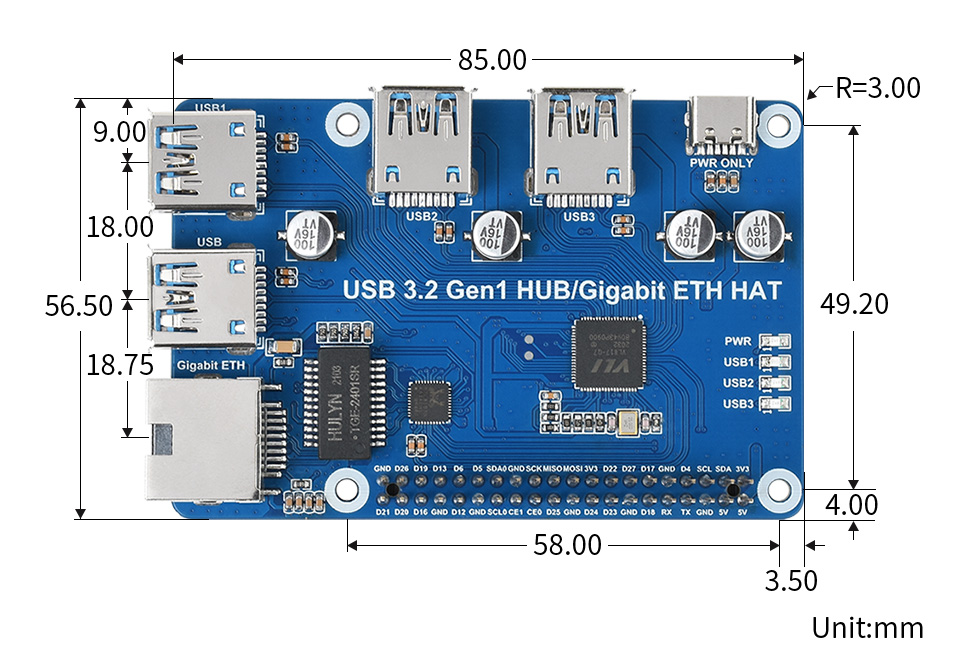

Outline dimensions
Resources & Services
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Package Contents
- USB 3.2 Gen1 HUB Gigabit ETH HAT x1
- USB 3.0 Adapter x1
- USB 3.0 dual plug cable ~60cm x1
- RPi screws pack (2PCS) x1
