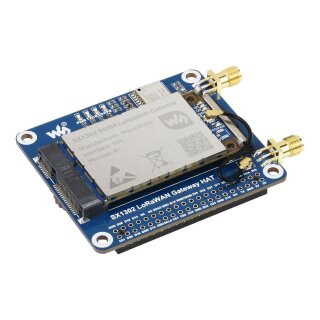

Waveshare 20522 SX1302 LoRaWAN Gateway HAT
Artnr.: WS1-020522
SX1302 LoRaWAN Gateway HAT For Raspberry Pi, SX1302 868M EU868, GNSS Module

119,00 € inkl. 19% MwSt.
100,00 € exkl. MwSt.
nicht lieferbar

Beschreibung

LoRaWAN Gateway HAT for Pi

SX1302 core module, standard Mini-PCIe socket

Features at a glance

This is a communication HAT for Raspberry Pi with LoRaWAN protocol support, which incorporates core LoRa gateway module SX1302 868M LoRaWAN Gateway . It has lots of advantages including long range transmission, concurrent communication, large capacity node, and high receiving sensitivity. There are L76B GNSS module and Mini-PCIe socket on the base board for easy integration, along with our rich development resources, you can attach it to Raspberry Pi and build the LoRa network fast.

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
  • Incorporate L76B module with GPS/BD support, Gateway module for providing accurate clock and location info
  • Comes with development resources and manual (example in C)

SX1302 868M LoRaWAN Gateway core module features:

  • Integrates Semtech SX1302 normal band and SX1250 radio RF frond-end chip, EU868 band
  • Onboard PA and LNA, features 26dBm emit power and -141dBm high sensitivity receiving gain
  • 10x signal channel, supports multiple nodes concurrent communication and FEC (Forward Error Correction) algorithm
  • Supports SF5~SF12 spreading factor, 19Kbps MAX (SF5/BW125KHz) data rate
  • Utilizing SPI communication protocol and standard Mini-PCIe socket, for easy integration into sorts of embedded systems

Specifications

LoRa Gateway GNSS Module
Power supply 5V
Frequency range EU868 (863-870MHz) GPS L1 (1575.42MHz) BD2 B1 (1561.098MHz)
Positioning accuracy - < 2.5m CEP
Modulation LoRa/(G)FSK -
Emit power > 26dBm@5V -
Receiving sensitivity -141dBm@125KHz/SF12 -121dBm@125KHz/SF5 acquisition: -148dBm tracking: -163dBm re-acquisition: -160dBm
Overall power consumption emitting: 710mA@5V GPS on receiving: 99mA@5V GPS on sleep: 41mA@5V GPS off
Communication bus SPI, I2C UART
External connector Mini-PCIe -
Operating temperature -40~85?
Dimensions 50.95 x 30mm -

Performance-upgraded SX1302 chip

lower power consumption, fast data rate, longer distance

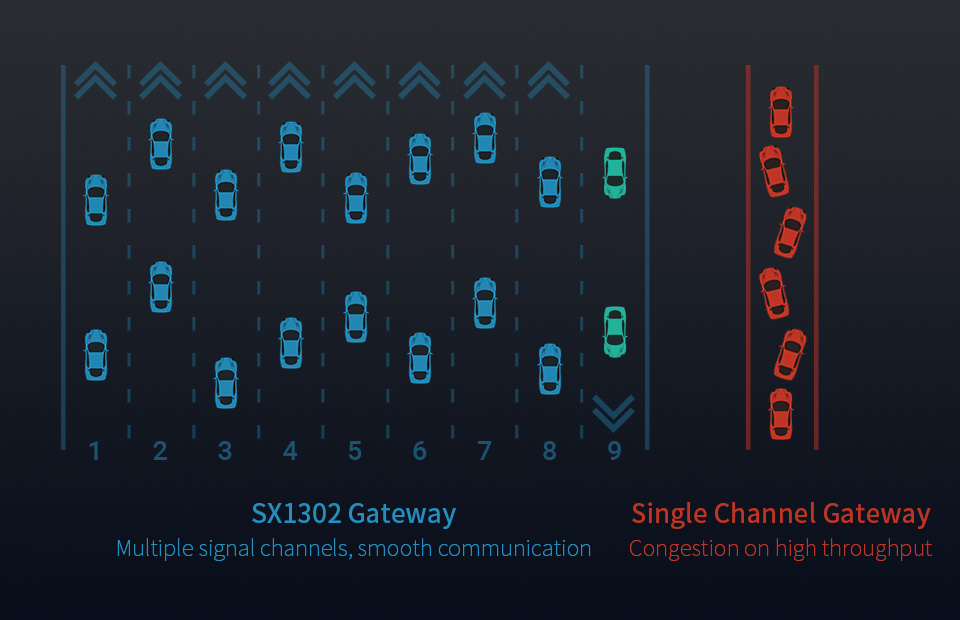

Multiple channels smooth communication

a better solution for concurrent high throughput situation

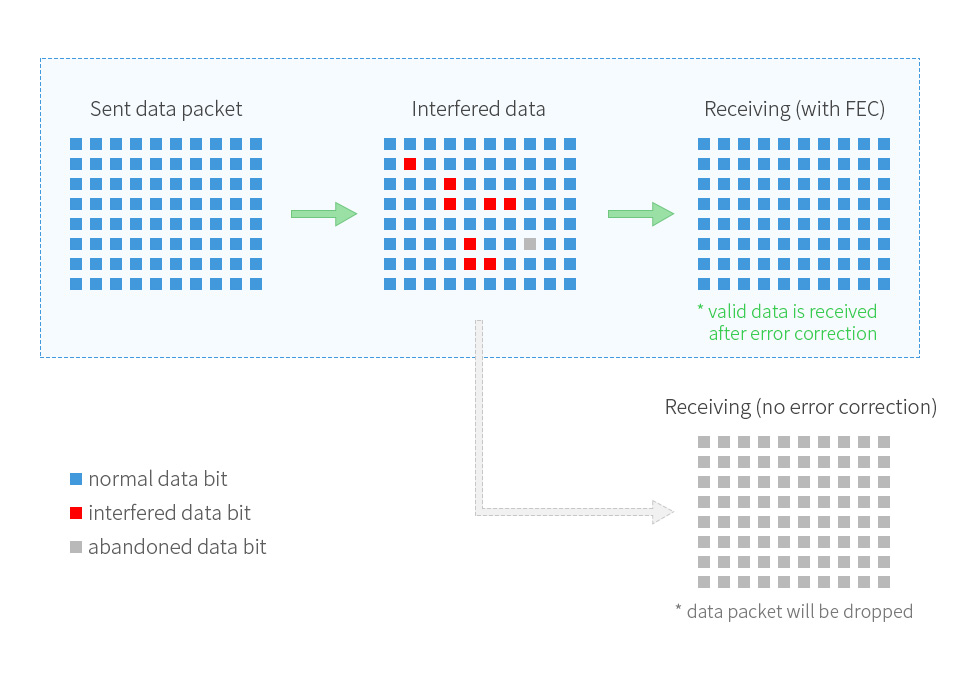

FEC Forward Error Correction algorithm

the new generation LoRa spread spectrum technology,higher anti-interference performance, longer communication distance

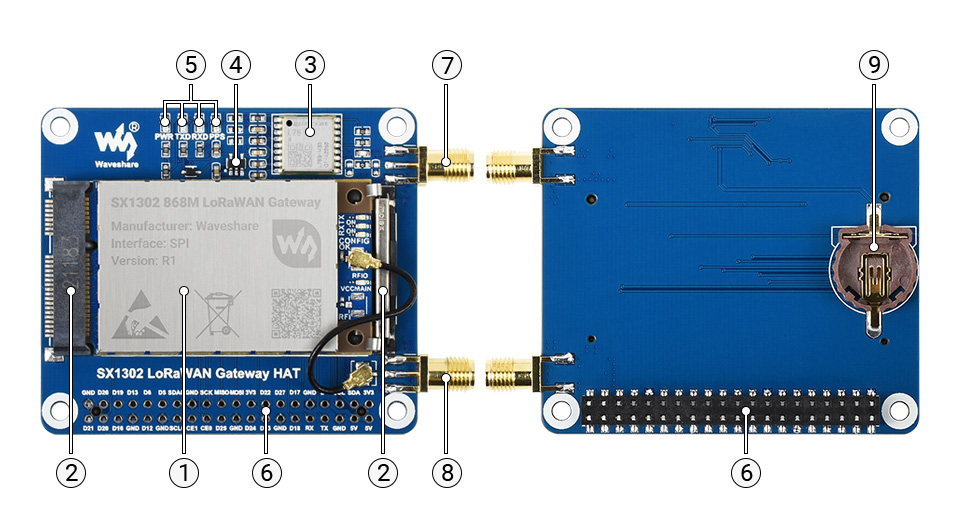

What's on board

  1. SX1302 868M LoRaWAN Gateway module
  2. Mini-PCIe socket and buckle
  3. L76B module
  4. RT9193-33 power chip
  5. Status indicator PWR: power indicator RXD/TXD: UART RX/TX indicator PPS: GPS status indicator
  1. Raspberry Pi GPIO header for connecting with Raspberry Pi series boards
  2. L76B antenna connector
  3. LoRa Gateway antenna connector
  4. Battery holder supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts

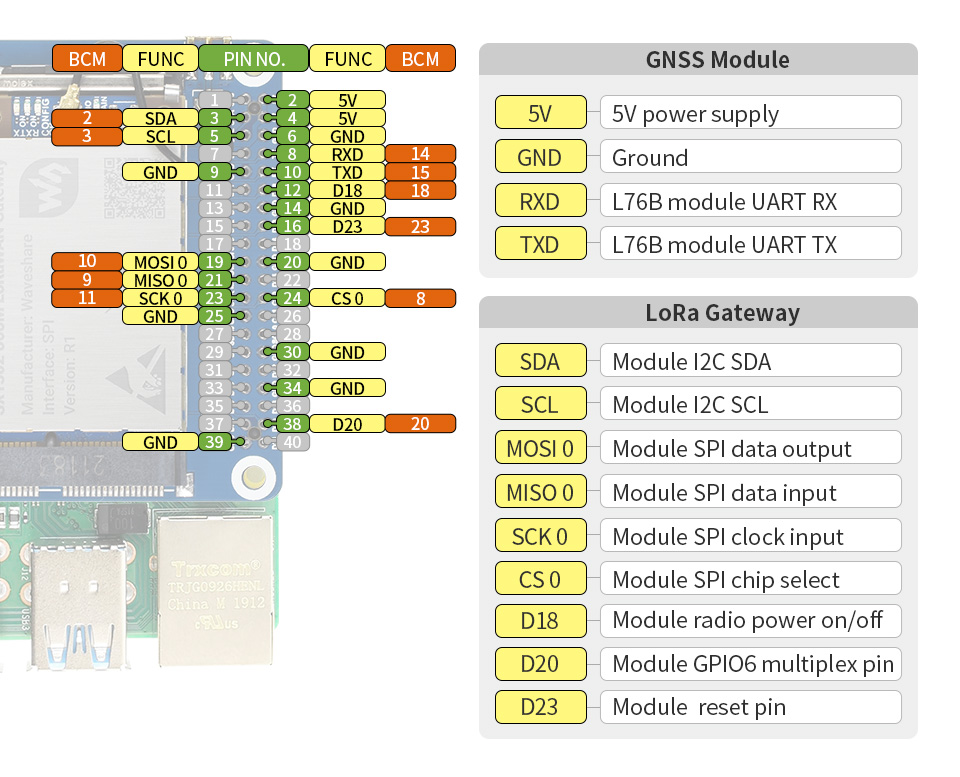

Pinout definition

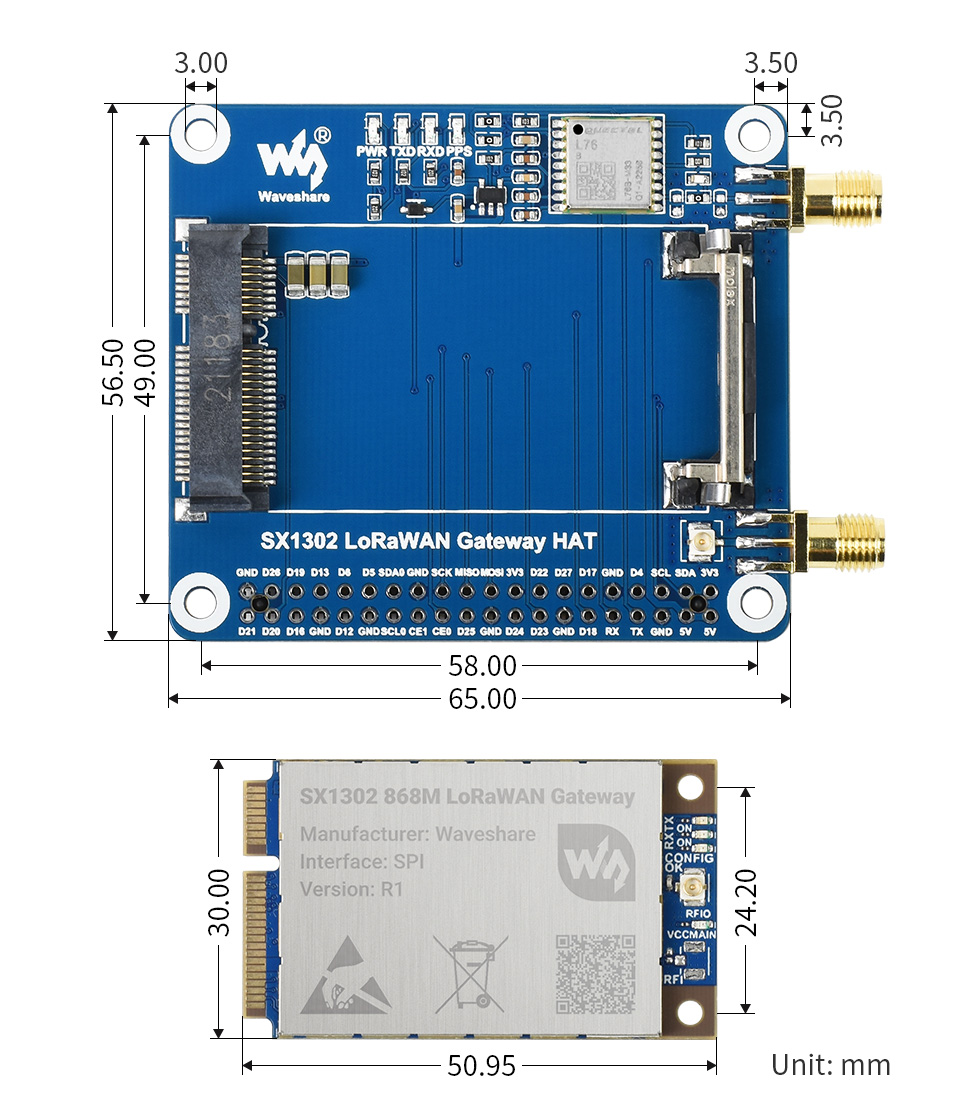

Outline Dimensions

Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

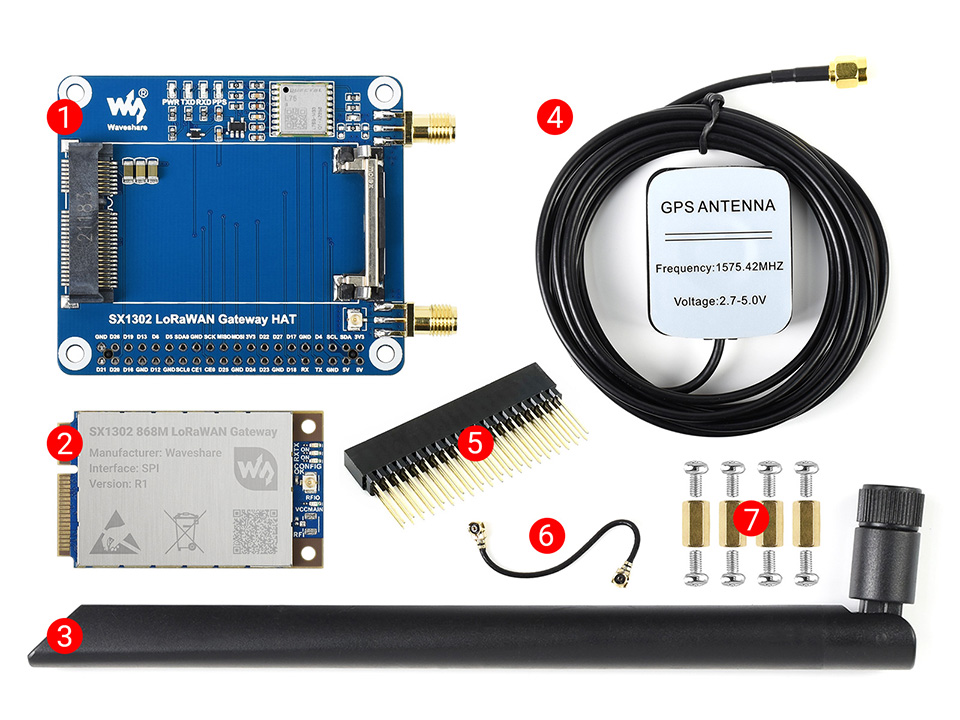

Package Contents

  1. SX1302 LoRaWAN Gateway HAT x1
  2. SX1302 868M LoRaWAN Gateway x1
  3. Antenna 868M 5dBi x1
  4. GPS antenna x1
  5. 2×20PIN female pinheader x1
  6. Dual IPEX1 wire x1
  7. Screws pack x1

Versandgewicht: 0,20 Kg
