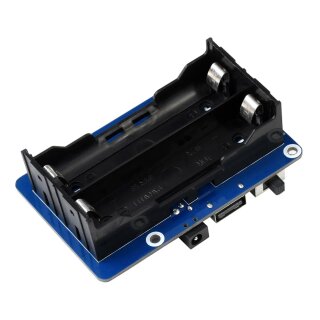

Uninterruptible Power Supply for Raspberry Pi
Power your Pi seamlessly from power connection OR the backup batteries
5A high current, pogo pins connector![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accBoard/UPS-HAT-B/UPS-HAT-B-details-1.jpg)
Features at a glance
- Designed for Raspberry Pi series, compatible with Raspberry Pi 3 / 3B+ / 4B, etc.
- I2C bus communication, monitoring the batteries voltage, current, power, and remaining capacity in real time
- Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable
- Onboard 5V regulator, up to 5A continuous output current, more sufficient power source for Raspberry Pi
- 5V USB output, convenient for powering other boards
- Batteries warning indicators, easy to check if the battery is connected correctly
- Comes with development resources and manual
Specifications
Output voltage | 5V | Charger | 8.4V 2A |
---|---|---|---|
Control bus | I2C | Dimensions | 56 × 85mm |
Battery support | 2x 18650 Li batteries (NOT included) | Mounting hole size | 3.0mm |
Uninterruptible Power
It is able to charge the batteries and provide power output at the same time from external power supplyAutomatically switch over to batteries output if external power supply is unavailable, keeps the system running without any trouble
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accBoard/UPS-HAT-B/UPS-HAT-B-details-3.png)
pogo pins connector
Powering the Raspberry Pi via pogo pins, without using any GPIO resource,compatible with Raspberry Pi 3 / 3B+ / 4B, etc.
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accBoard/UPS-HAT-B/UPS-HAT-B-details-3.jpg)
Real time monitoring
monitoring the batteries voltage, current, power, and remaining capacity via I2C
When the voltage dips too low, it is possible to save files properly and then shutdown the system by software, to avoid any data loss
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accBoard/UPS-HAT-B/UPS-HAT-B-details-5.jpg)
Safe and stable circuit design
Protection circuits for over charge/discharge, over current, short circuit, and reversealong with the equalizing charge feature, more safe and stable
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accBoard/UPS-HAT-B/UPS-HAT-B-details-7.jpg)
5V USB Output as well
convenient for powering other boards
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accBoard/UPS-HAT-B/UPS-HAT-B-details-9.jpg)
Battery warning indicators
easy to check if the battery is connected correctly
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accBoard/UPS-HAT-B/UPS-HAT-B-details-11.jpg)
Outline dimensions
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accBoard/UPS-HAT-B/UPS-HAT-B-details-size.jpg)
Resources & Services
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/LCD/common/res_banner.png)
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Package Contents
- The 18650 batteries are NOT included
- Please note that the battery length SHOULD be less than 67mm, some batteries with protection plate in the market are NOT supported, learn more
- UPS HAT (B) x1
- OPTIONS 8.4V battery charger x1
- Acrylic protection panel x1
- Screws pack x1
