Waveshare 20646 FT232 USB UART Board (Type C)

Artno.: WS1-020646

Waveshare 20646 FT232 USB UART Board (Type C)

FT232 USB To UART (TTL) Communication Module, USB-C Connector

9.90 € incl. 19% VAT

8.32 € excl. VAT

10+ On stock

Shipping time: 1 - 3 business days

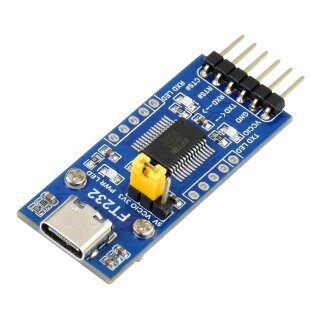

FT232 USB-C To UART Module

adopts FT232RL, compatible with 3.3V/5V logic level

Original FT232RL onboard
Supports Mac OS, Linux, Android, WinCE, Windows 7/8/8.1/10/11...
3x VCCIO power mode via jumper setting:
- VCCIO - 5V: 5V output
- VCCIO - 3.3V: 3.3V output
- open the jumper: powered from target board (3.3V-5V)
3x LED indicators: TXD, RXD, PWR

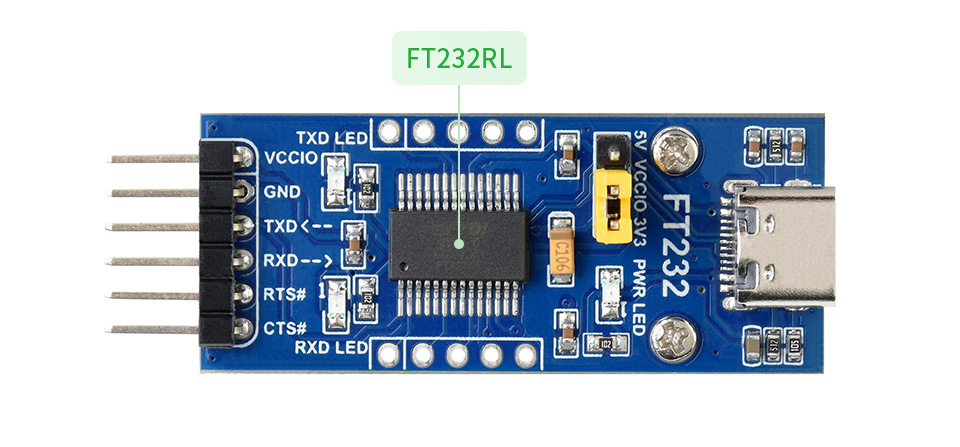

Pins accessible on pinheaders: TXD, RXD, RTS#, CTS#
Other pins are accessible on drilled holes, easily connected to user application system (the pin pitch is compatible with universal prototype board)

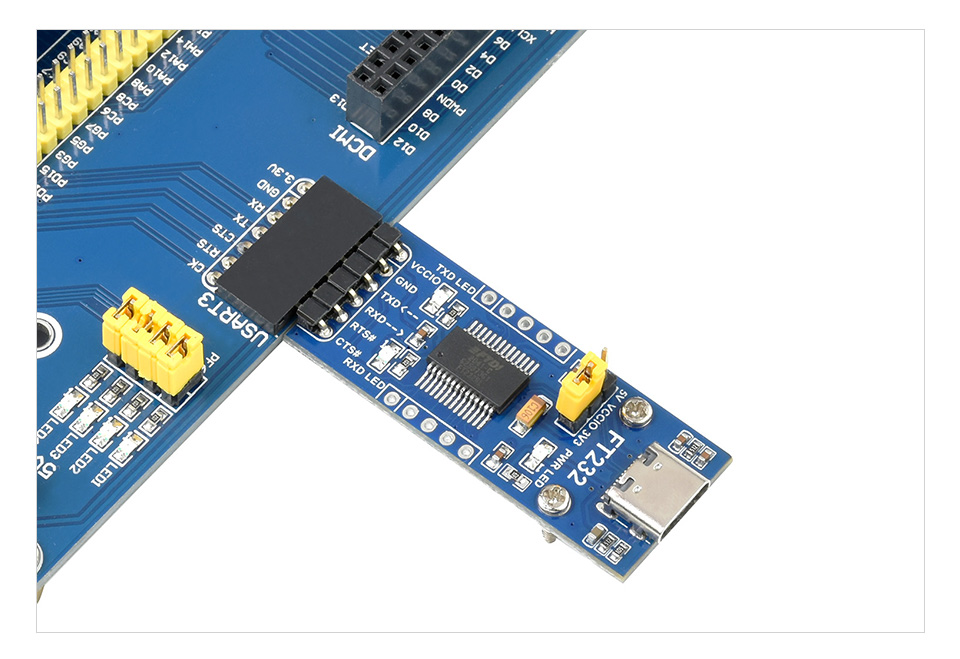

In the case of working with MCU

VCCIO ? 3.3V or 5V output (the module is powered from USB, and the onboard jumper should be shorted to 3.3V or 5V)
GND ? GND
TXD ? MCU.RX (signal direction: MCU.RX << FT232 << PC.TX)
RXD ? MCU.TX (signal direction: MCU.TX >> FT232 >> PC.RX)
RTS ? MCU.CTS (signal direction: MCU.CTS << FT232 << PC.RTS)
CTS ? MCU.RTS (signal direction: MCU.RTS >> FT232 >> PC.CTS)

CAUTION: the module is compatible with TTL level ONLY, to avoiding any damage, please DON'T direct connect it to RS232 circuit.
