Description

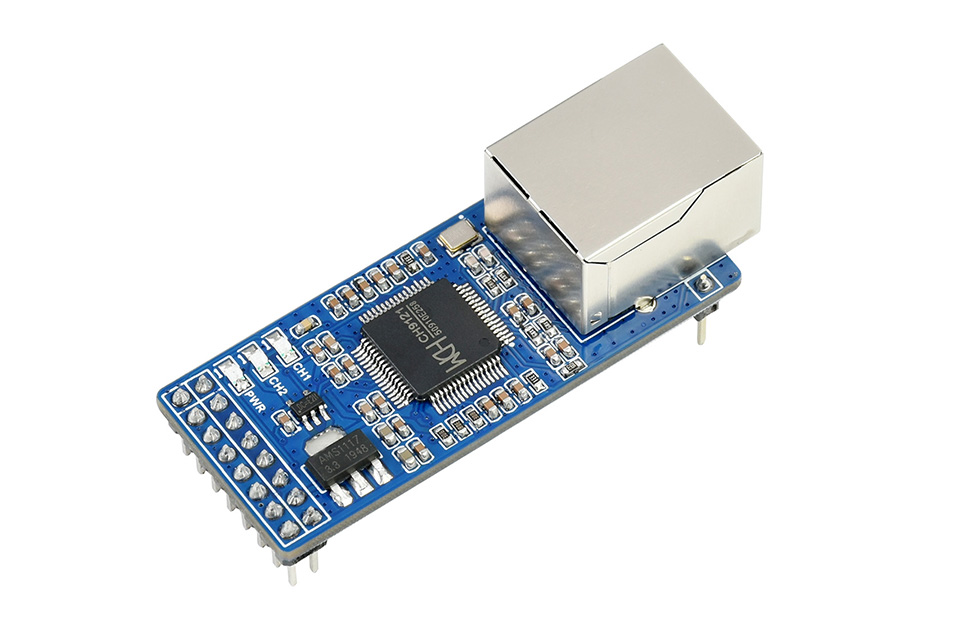

2-CH UART TO Ethernet Converter
Serial port transparent transmission
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accBoard/2-CH-UART-TO-ETH/2-CH-UART-TO-ETH-details-1.jpg)
Features at a glance
The 2-CH UART TO ETH provides an easy way to communicate between UART TTL and RJ45 Ethernet, allowing bi-directional transparent data transmission. It is easy to use, along with features like fast data rate, low power consumption, high stability, suits applications such as safety & security, IoT, and so on.
- Embedded Ethernet MAC and PHY layers
- Bi-direction transparent data transmission between UART and Ethernet
- 10/100M, full-duplex/half-duplex auto-negotiation Ethernet interface, 802.3-compliant
- Auto-MDI/MDIX, detect and switch cable type automatically
- Supports DHCP auto-obtained IP and DNS domain access
- Network parameter configuration like chip operating mode, port, IP, via host computer software or UART command
- Four operating modes: TCP CLIENT, TCP SERVER, UDP CLIENT, UDP SERVER
- 2-CH UART concurrent operation, standalone transparent transmission for each channel
- Full-duplex or half-duplex UART communication, supports RS485 RX/TX auto switch
- Supports virtual serial port software (provided)
- KEEPALIVE mechanism support
- Comes with development resources and manual (examples for Pico/Raspberry Pi/Arduino/STM32)
Specifications
Operating voltage | 3.3V/5V | Operating current | 140mA |
---|---|---|---|
Operating mode | TCP/UDP | UART baudrate | 300bps ~ 921.6Kbps |
UART TTL level | 3.3V / 5V compatible | Storage temperature | -55? ~ 125? |
Operating temperature | -40? ~ 85? | Dimensions | 53.00 × 22.00mm |
control interface
supports host boards including Raspberry Pi/Arduino/STM32...
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accBoard/2-CH-UART-TO-ETH/2-CH-UART-TO-ETH-details-3.jpg)
Application example

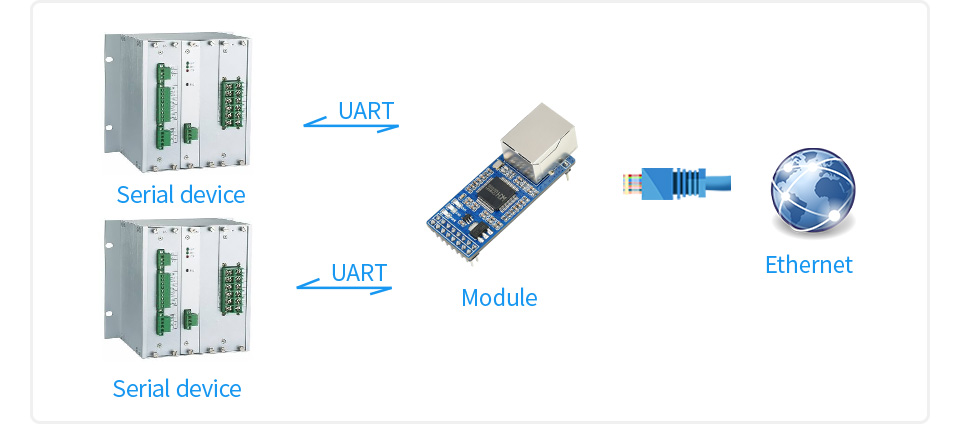

Bi-direction transparent transmission between UART TTL and wired Ethernet
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accBoard/2-CH-UART-TO-ETH/2-CH-UART-TO-ETH-details-5-1.jpg)

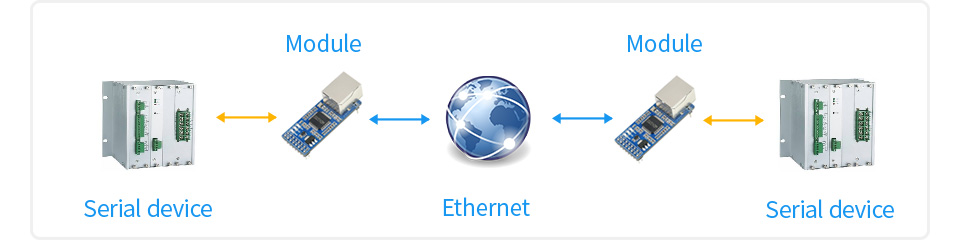

Extend the communication distance for serial devices
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accBoard/2-CH-UART-TO-ETH/2-CH-UART-TO-ETH-details-5-2.jpg)

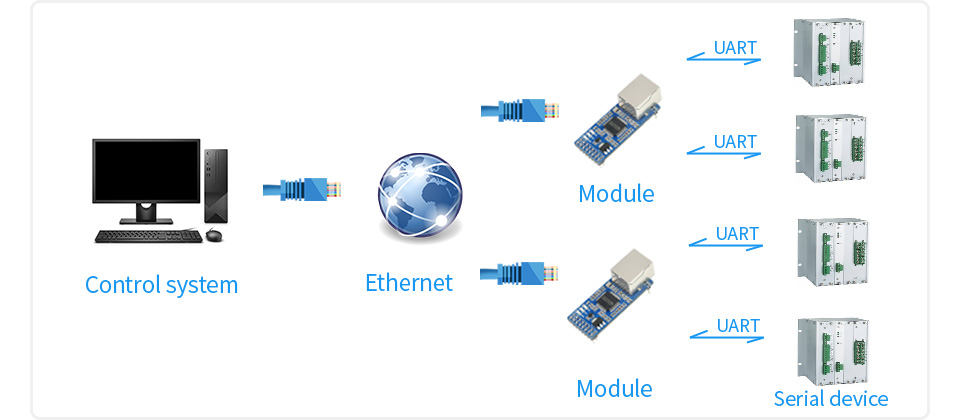

Manage multi serial client devices remotely via one web server
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accBoard/2-CH-UART-TO-ETH/2-CH-UART-TO-ETH-details-5-3.jpg)

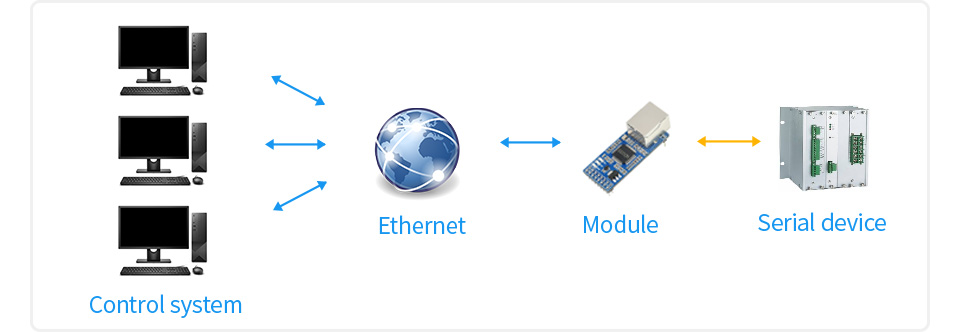

Manage serial server remotely via multi web clients
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accBoard/2-CH-UART-TO-ETH/2-CH-UART-TO-ETH-details-5-4.jpg)

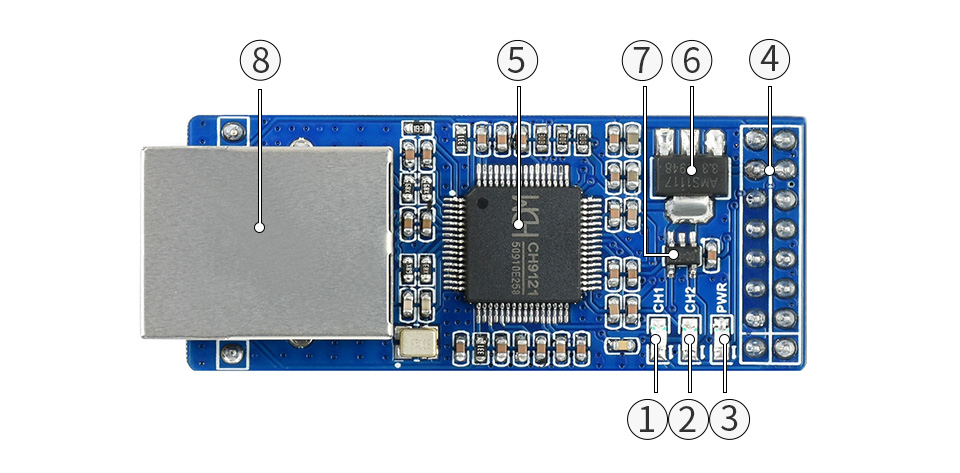

What's On Board
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accBoard/2-CH-UART-TO-ETH/2-CH-UART-TO-ETH-details-intro.jpg)
- UART 1 connection status indicator
- UART 2 connection status indicator
- Power indicator
- CH9121 control pins
- CH9121 driver
- AMS1117-3.3V power supply IC
- RT9193-18GB power supply IC
- Ethernet port

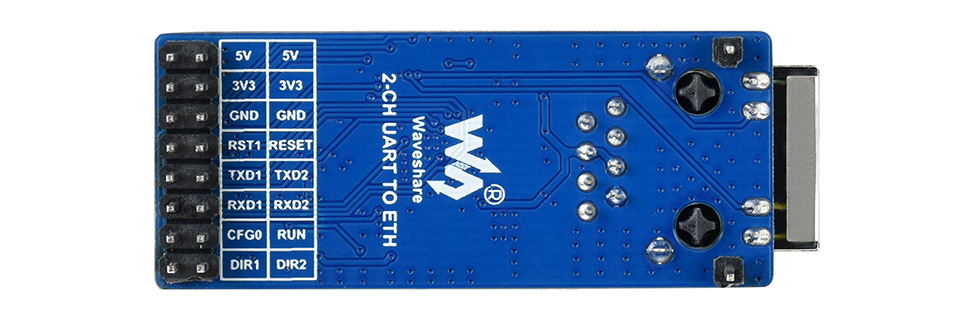

Pinout definition
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accBoard/2-CH-UART-TO-ETH/2-CH-UART-TO-ETH-details-7.jpg)
5V / 3V3 | power positive, use any pin of 5V/3.3V pins for power supply |
GND | ground |
RST1 | external reset input, low active |
RESET | restore to factory setting, detected when chip poweron, low active |
TXD1 | asynchronous UART 1 data output (enabled by default) |
TXD2 | asynchronous UART 2 data output (disabled by default) |
RXD1 | asynchronous UART 1 data input (enabled by default) |
RXD2 | asynchronous UART 2 data input (disabled by default) |
CFG0 | UART config mode, low level to enter configuration, high level to exit configuration |
RUN | Operating status indicating pin |
DIR1 | UART 1 RS485 RX/TX switch (connects to external RS485 controller) |
DIR2 | UART 2 RS485 RX/TX switch (connects to external RS485 controller) |

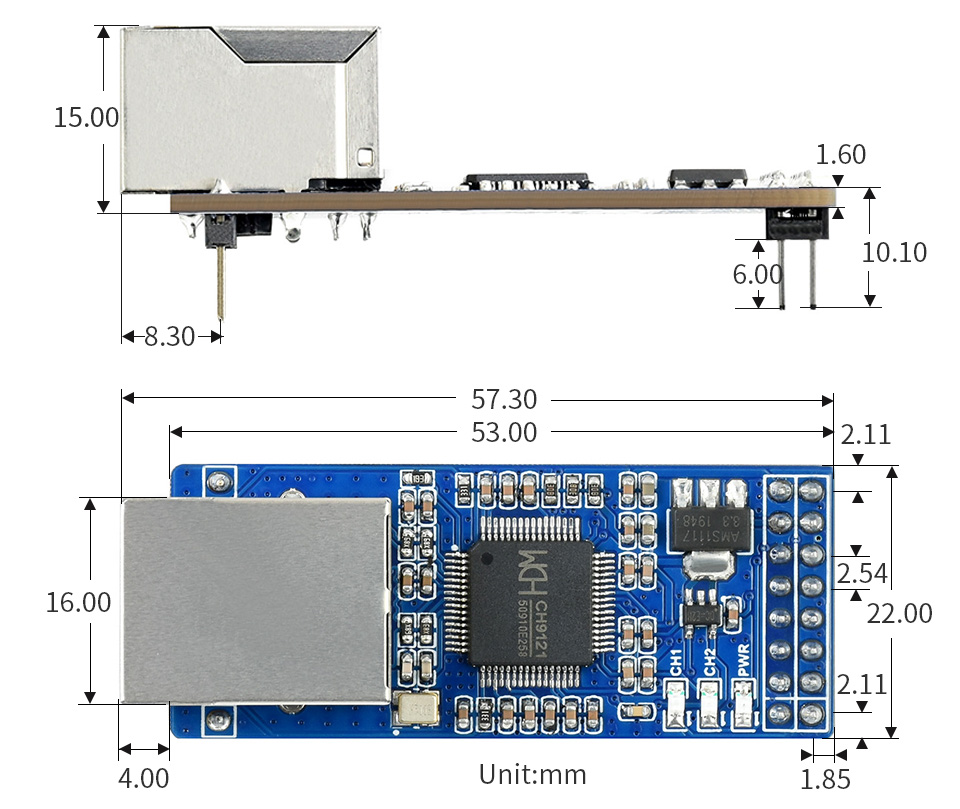

Outline Dimensions
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accBoard/2-CH-UART-TO-ETH/2-CH-UART-TO-ETH-details-size.jpg)
*measured manually, for reference only
Resources & Services
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/LCD/common/res_banner.png)
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Selection guide
UART TO ETH | RS485 TO ETH | RS232/485 TO ETH | 2-CH-UART-TO-ETH | |
---|---|---|---|---|
Processor | Cortex-M0 | Cortex-M0 | Cortex-M4 (up to 120MHz frequency) | CH9121 |
Ethernet | ||||
Type | RJ45 (10/100Mbps auto-negotiation) | |||
UART | ||||
Type | UART | RS485 | RS232+RS485 (allows concurrent operation) | UART |
Baudrate | 600bps~460.8Kbps | 600bps~230.4Kbps | 300bps~921.6Kbps | |
Hardware flow | NOT supported | supported | NOT supported | |
Data bit | 5, 6, 7, 8 | |||
Stop bit | 1, 2 | |||
Parity bit | None, Even, Odd, Space, Mark | |||
Interface protection | ||||
Power supply | reverse-proof, ESD protection, anti-surge | |||
Ethernet | 1.5KV electromagnetic isolation | |||
RS485 | - | 2KV ESD protection, 2.2KΩ pull up/down registers | - | |
Other | - | - | lightningproof, over-current protection | - |
Operating mode | ||||
Type | TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client | TCP Server, TCP Client, UDP Server, UDP Client | ||
TCP Server | customizable 1~16 Clients | supports 2-ch Socket, 8 Clients per ch | customizable 1~16 Clients | |
Misc | ||||
Features | customized heartbeat packets, customized registration packets, customized webpage, RFC2217-like protocol, KeepAlive, timeout auto reboot, short connection, firmware upgrade via network | KeepAlive, firmware upgrade via network | ||
- | Modbus gateway, Websocket (webpage to serial) | - | - | |
Configuration | Built-in webpage, Host computer config software, Serial commands | Host computer config software, Serial commands | ||
Power supply | 3.3V/5V | 5~7V | 5~36V | 3.3V/5V |
Operating current | 150mA@5V | 110mA@5V | 86.5mA@5V | 140mA@5V |
Operating temp. | -25~75? | -40~85? | ||
Storage temp. | -40~105? | -55?~125? |
Package Contents

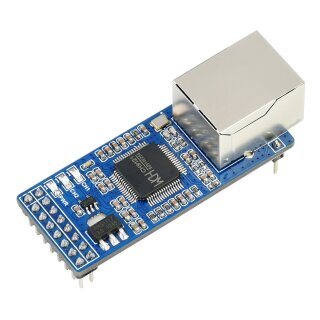

- 2-CH UART TO ETH x1
![](https://www.welectron.com/mediafiles/productimg/waveshare/devkit/accBoard/2-CH-UART-TO-ETH/2-CH-UART-TO-ETH-3_220.jpg)
Shipping weight: | 0.01 Kg |
