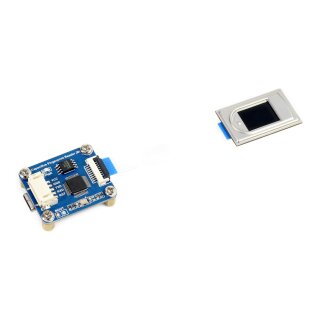

Waveshare 20679 Capacitive Fingerprint Reader (B)
Artno.: WS1-020679
High precision Capacitive Fingerprint Reader (B), UART/USB dual ports

66.90 € incl. 19% VAT
56.22 € excl. VAT
On stock

Shipping time: 1 - 3 business days

Description

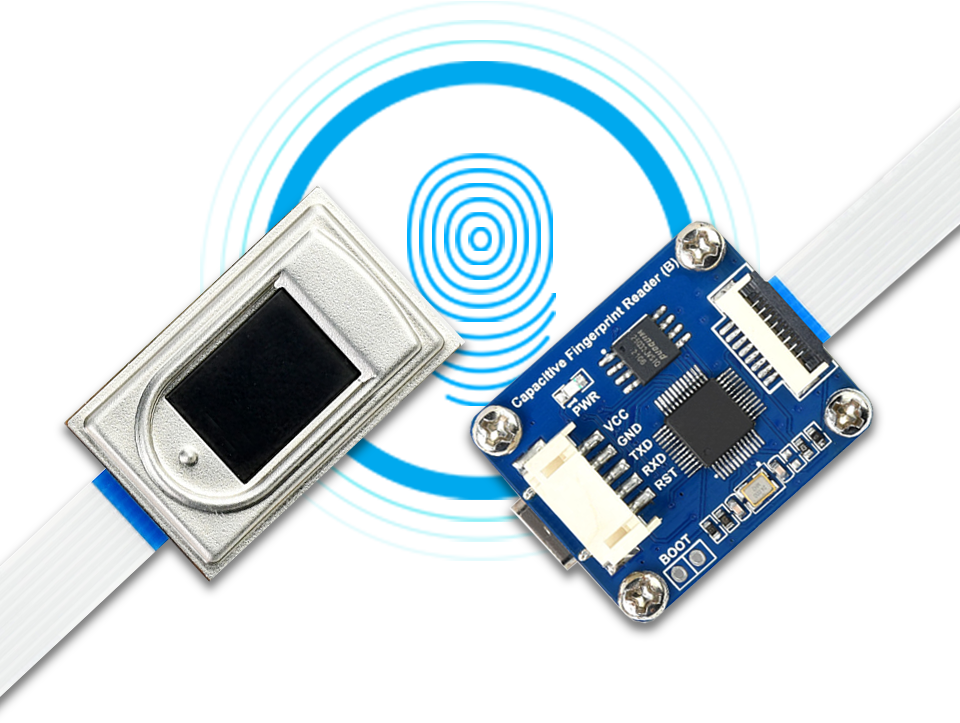

Capacitive Fingerprint Reader (B)

precise fingerprint identification | UART/USB dual ports

Product Features

The Capacitive Fingerprint Reader (B) is a fast and stable capacitive fingerprint module specialized for secondary development, suits integration applications. By incorporating high performance Cortex core processor, high security commercial fingerprint algorithm, and advanced semiconductor fingerprint sensor, this module is designed as a intelligent integration module with functions including fingerprint enrolling, image processing, template generating and storing, fingerprint matching and searching, etc.

  • Easy to use by some simple commands, you don't have to know any fingerprint technology, or the module inter structure/calculation
  • Commercial fingerprinting algorithm, stable performance, fast identification
  • Sensitive detection, just touch the collecting window lightly, without pressing
  • Allows to freely input/output fingerprint images, fingerprint feature file and other fingerprinting actions
  • Dual communication, UART or USB
  • Comes with rich development resources (related command documents, tools, and examples for Raspberry Pi/Arduino/STM32)

Specifications

parameter value
Sensor Semiconductor (capacitive)
Module dimension 34 × 28.5mm
Sensor dimension 33.4 × 20.4mm
Image DPI 508
Image resolution 208 × 288
Greyscale 256 (8-bit)
Sensing area 14.6 × 10.6mm
Fingerprint capacity 3000
Security level 1-5 configurable, 3 by default the higher value, the lower FAR (False Acceptance Rate), yet the higher FRR (False Rejection Rate)
Encryption key 64-bit encryption
Image collecting rate 20fps
Matching time 0.5s
Dynamic current <40mA
Operating voltage 3.3-5V
Communication port UART or USB
ESD SD IEC 61000-4-2 LEVEL 4 positive/negative 15KV air discharge
Baudrate configurable: 9600, 19200, 38400, 57600, 115200, 230400, 460800, 921600bps115200bps by default

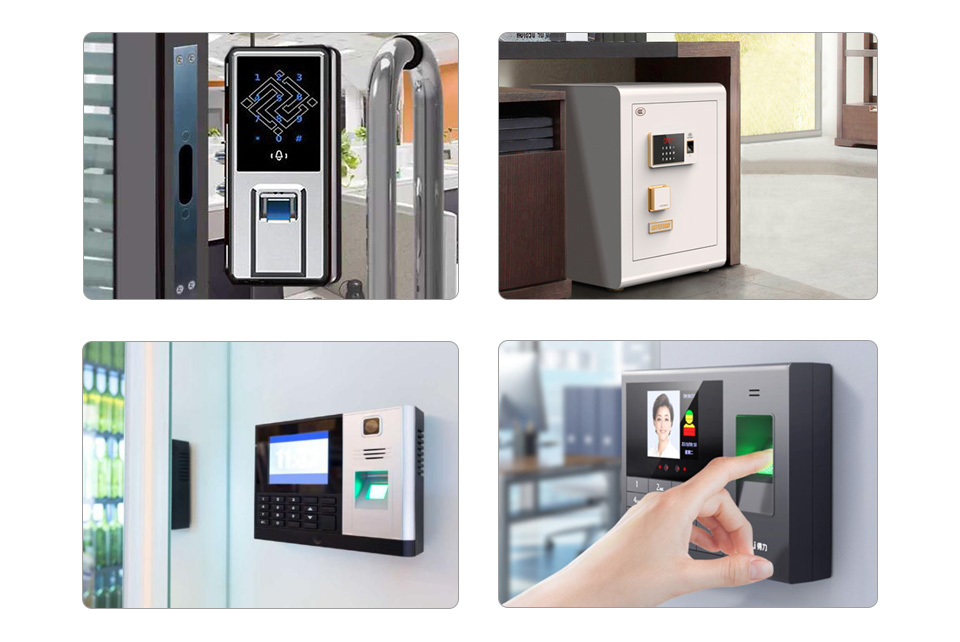

Application examples

Fingerprint lock, Fingerprint safe deposit box, Access control system, Clock in and out...

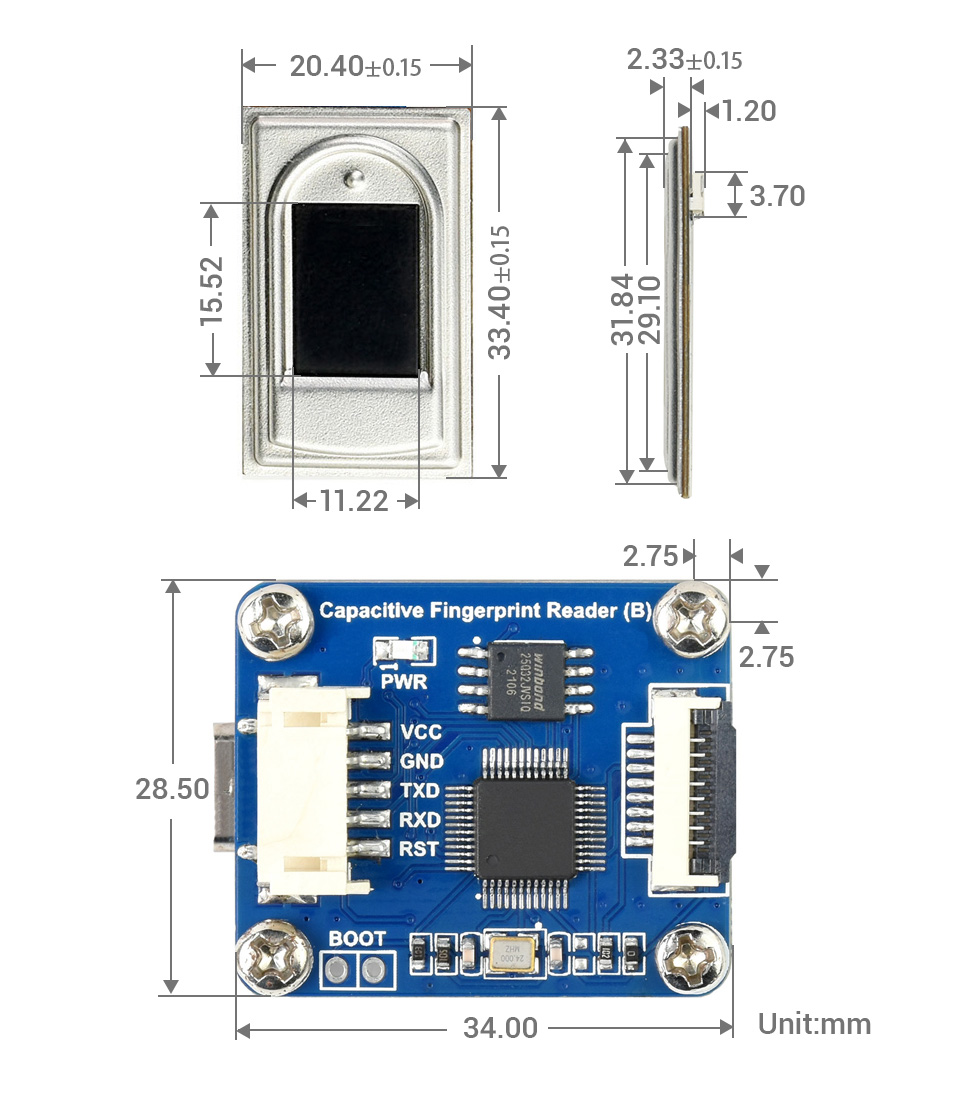

Outline dimensions

Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Package Contents

  1. Capacitive Fingerprint Reader (B) x1
  2. PH2.0 5PIN wire x1
1
2

Shipping weight: 0.02 Kg
