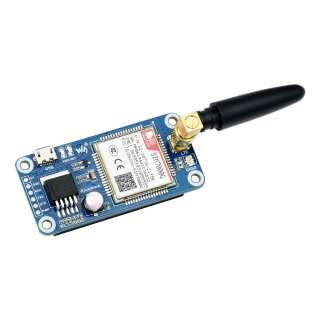

Waveshare 20681 SIM7000G NB-IoT HAT (EN)
Description
Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.
NB-IoT / Cat-M / GPRS / GNSS HAT
Low power narrow band cellular IoT communication module for Raspberry Pi
Based on SIM7000G

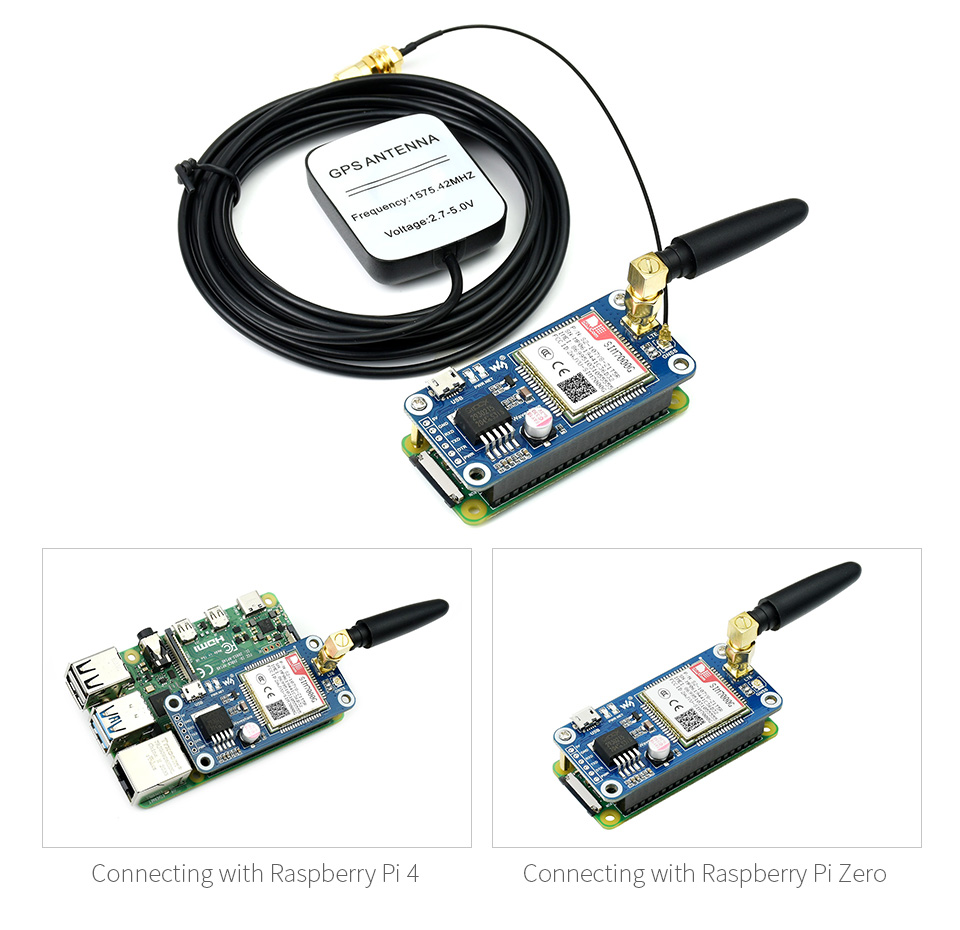

This is a telecommunication HAT for Raspberry Pi which supports global bands of NB-IoT, Cat-M, and GPRS , as well as GNSS positioning function. Due to its advantages like small size, low delay, and wide coverage, it is the ideal choice for IoT applications such as intelligent instruments, asset tracking, remote monitoring, e-health, and so on.
Features at a glance
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail, etc.
- Supports GNSS positioning (GPS, BeiDou, GLONASS)
- Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
- Breakout UART control pins, to connect with host boards like Arduino/STM32
- Onboard voltage translator, 3.3V by default, allows to be switched to 5V via 0O resistor
- SIM card slot, compatible with both normal SIM card and NB-IoT specific card
- 2x LED indicators, easy to monitor the working status
- Baudrate: 300bps~3686400bps (115200bps by default)
- Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
- Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 98, USAT
- Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications
| NB-IoT / Cat-M / 2G | |
|---|---|
| Frequency bands | NB-IoT: B1, B2, B3, B4, B5, B8, B12, B13, B17, B18, B19, B20, B25, B26, B28 |
| Cat-M: B1, B2, B3, B4, B5, B8, B12, B13, B17, B18, B19, B20, B25, B26, B28, B39 | |
| GPRS/EDGE: 850, 900, 1800, 1900MHz | |
| Data rate | NB-IoT: 34(DL)/66(UL) |
| Cat-M: 300(DL)/375(UL) | |
| EDGE: 236.8(DL)/236.8(UL) | |
| GPRS: 85.6(DL)/85.6(UL) | |
| SIM card support | NB-IoT: NB Specific (Not Included) |
| Cat-M/GPRS/EDGE: Normal SIM (Not Included) | |
| Applicable region | Global |
| GNSS | |
| Satellite systems | GPS, BeiDou, GLONASS |
| Receiver type | 16-channel |
| C/A Code | |
| Sensitivity | Tracking: -162 dBm (GPS) / -157 dBm (GLONASS) / TBD (BD) |
| Cold starts: -148 dBm | |
| Time-To-First-Fix | Cold starts: <35s |
| Hot starts: <1s | |
| Accuracy | Position: <2.5m CEP |
| Other | |
| Power supply | 5V |
| Operating voltage | 5V / 3.3V (3.3V by default) |
| Sleep Mode current | 1.2mA (@DRX=2.56s) |
| Power Save Mode current | 9uA |
| Operating temperature | -40°C ~ 85°C |
| Storage temperature | -45°C ~ 90°C |
| Dimensions | 30.2mm x 65mm |
Standard Raspberry Pi 40PIN GPIO
Compatible with Raspberry Pi series boards
Global band support of NB-IoT/Cat-M/2G

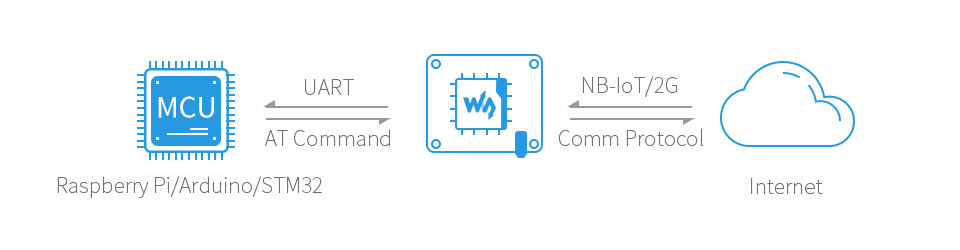

Cloud Communication
Supports communication protocols including TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail...
GNSS positioning
Supports GPS, BeiDou, GLONASS positioning

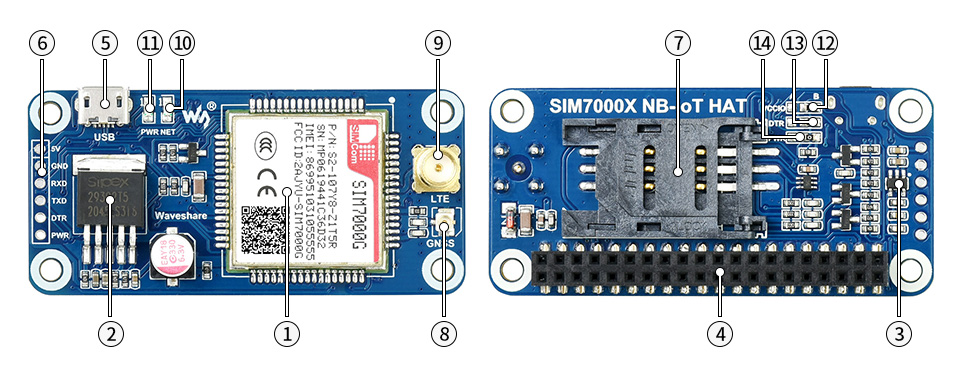

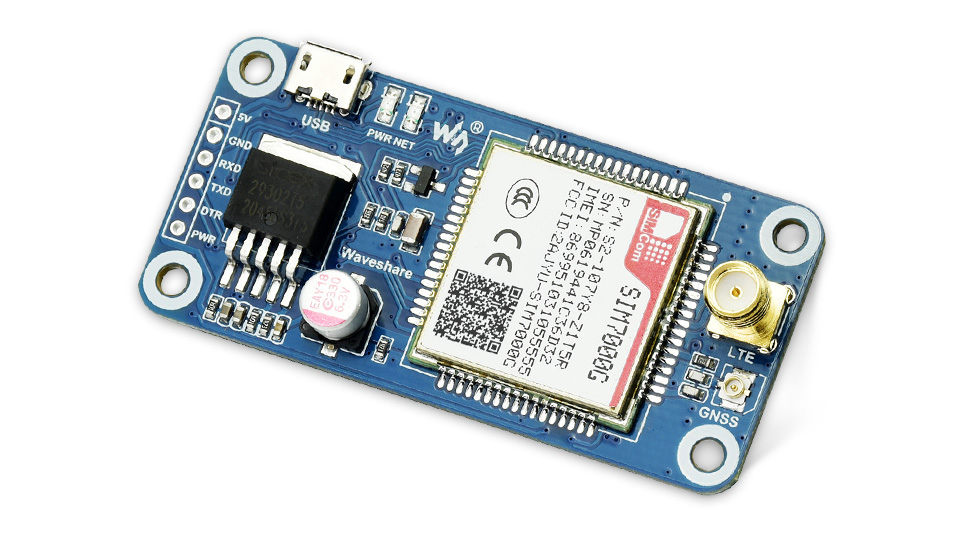

What's on board
- SIM7000G
- SPX29302 power chip
- RT9193-33 power chip
- Raspberry Pi GPIO header for connecting with Raspberry Pi
- USB interface for testing AT Commands, getting GPS positioning data, etc.
- SIM7000G control interface for connecting with host boards like Arduino/STM32
- SIM card slot supports 1.8V/3V SIM card
- GNSS antenna connector
- LTE antenna connector
- Network status indicator
- Power indicator
- Operating voltage selection jumper configured via 0O resistor jumper A: set operating voltage as 5V B: set operating voltage as 3.3V (default)
- DTR configuration jumper configured via 0O resistor jumper A: DTR is controlled by the Raspberry Pi P26 pin B: NC (default)
- PWR configuration jumper configured via 0O resistor jumper A: startup/shutdown by the Raspberry Pi P4 pin B: auto startup on power-up (default)

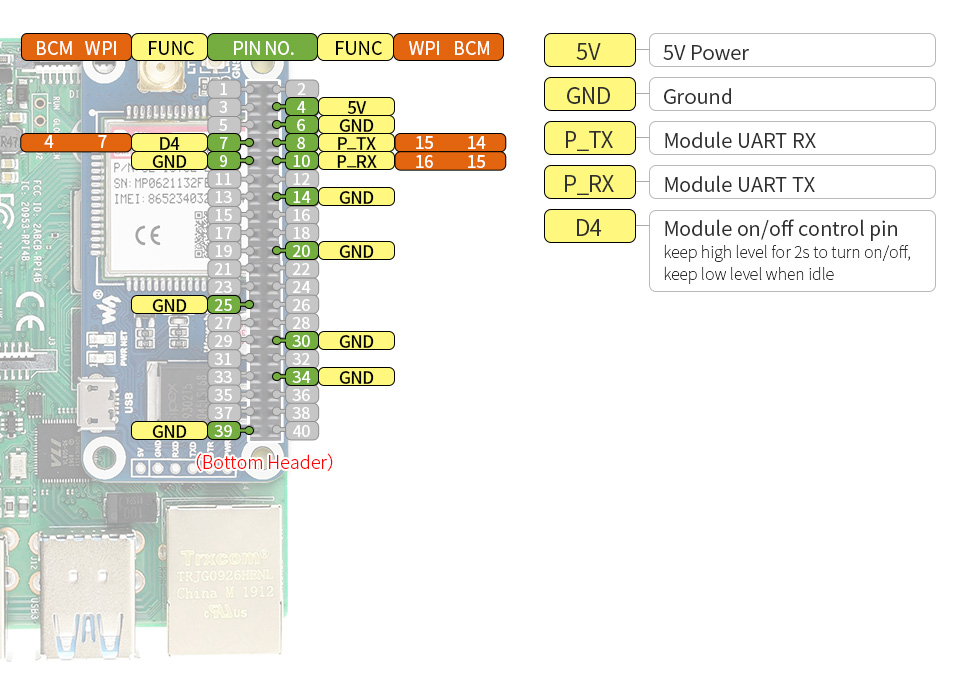

Pinout definition

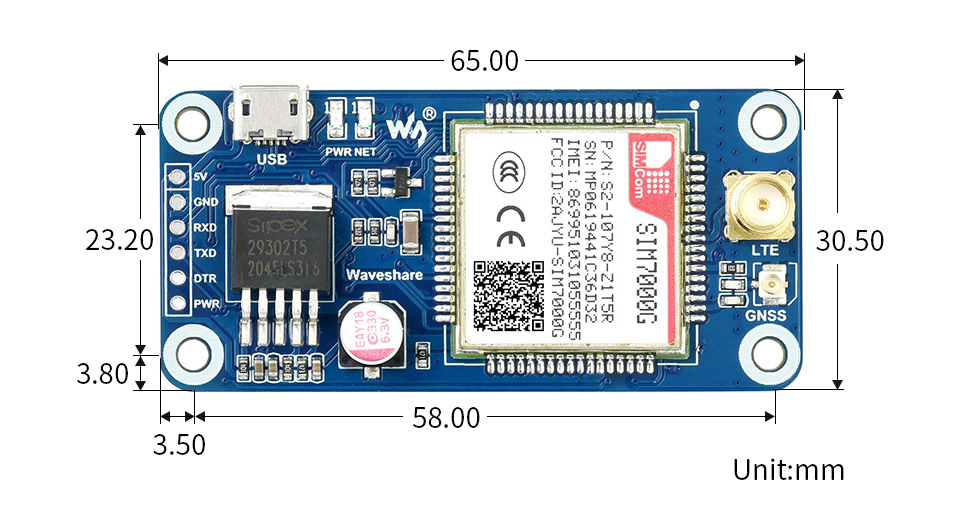

Outline Dimensions
Resources & Services
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Selection Guide
| Cat-M & NB-IoT & GSM | Cat-M & NB-IoT | NB-IoT | |||||
|---|---|---|---|---|---|---|---|
| SIM7000C | SIM7000E | SIM7000G | SIM7070G | SIM7080G | SIM7020C | SIM7020E | |
| Applicable regions | China | Europe / Africa / Australia / Southeast Asia | Global | China | Europe / Africa / Australia / Southeast Asia | ||
| Band | |||||||
| NB-IoT | LTE-FDD: B1, B3, B5, B8 | LTE-FDD: B3, B8, B20, B28 | B1, B2, B3, B4, B5, B8, B12, B13, B17, B18, B19, B20, B25, B26, B28 | B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66, B71, B85 | LTE-FDD: B1, B3, B5, B8 | LTE-FDD: B1, B3, B5, B8, B20, B28 | |
| Cat-M | B1, B2, B3, B4, B5, B8, B12, B13, B17, B18, B19, B20, B25, B26, B28, B39 | B1, B2, B3, B4, B5, B8, B12, B13, B14, B18, B19, B20, B25, B26, B27, B28, B66, B85 | N/A | ||||
| GSM | GPRS/EDGE 900/1800 MHz | GSM/GPRS/EDGE 850/900/1800/1900MHz | N/A | N/A | |||
| GNSS | GPS, GLONASS, BeiDou | GPS, GLONASS, BeiDou, Galileo | GPS, GLONASS, BeiDou | GPS, GLONASS, BeiDou, Galileo | N/A | ||
| Data Rate | |||||||
| NB-IoT(Kbps) | 34(DL)/66(UL) | 136(DL)/150(UL) | 136(DL)/150(UL) | 26.15(DL)/62.5(UL) | |||
| Cat-M(Kbps) | 300(DL)/375(UL) | 589(DL)/1119(UL) | 589(DL)/1119(UL) | ||||
| EDGE(Kbps) | 236.8(DL)/236.8(UL) | 236.8(DL)/236.8(UL) | |||||
| GPRS(Kbps) | 85.6(DL)/85.6(UL) | 85.6(DL)/85.6(UL) | |||||
| Software Features | |||||||
| Network protocol | TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT, etc. | ||||||
| Firmware upgrade | USB | UART | |||||
| Hardware Interfaces | |||||||
| SIM card slot | 1.8V/3V | 1.8V | 1.8V | 1.8V/3V | |||
| UART | Supports AT commands | Supports AT commands, firmware upgrading | |||||
| USB | Supports AT commands testing, GPS positioning, firmware upgrading, etc. | For external power supply ONLY | |||||
| Antenna connector | LTE antenna (SMA) + GNSS antenna (IPEX) | LTE antenna (IPEX) + GNSS antenna (IPEX) | LTE antenna (SMA) | ||||
| Applications | |||||||
| Examples | Meters, remote control, smart home, smart city, intelligent agriculture, and so on | ||||||
Package Contents
- SIM7000G NB-IoT HAT x1
- GSM Antenna x1
- GPS External Antenna (B) x1
- USB-A to Micro-B cable x1
- Standoffs pack x1
