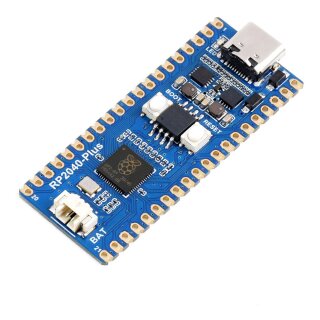

Waveshare 20808 RP2040-Plus-M

Artnr.: WS1-020808
Hersteller: Waveshare

RP2040-Plus, ein kostengünstiges, leistungsfähiges Pico-ähnliches MCU-Board auf Basis des Raspberry Pi Mikrocontrollers RP2040

11,90 €

inkl. 19% MwSt.

(10,00 € exkl. MwSt.)

zzgl.

ab Lager lieferbar

RP2040 MCU Board Plus

a Pico-like MCU board based on Raspberry Pi RP2040

Compatible with most of the Raspberry Pi Pico add-on modules

Board specifications

Need more Flash for Raspberry Pi Pico? Dislike the outdated Micro USB connector? All these problems are solved by our RP2040-Plus now.

As same as Raspberry Pi Pico, it incorporates the RP2040 microcontroller, with dual-core Arm Cortex M0+ processor running up to 133 MHz, and 26x multi-function GPIO pins.

What's different, it features onboard 4MB Flash, USB-C connector, recharge header, and higher current DC-DC chip.

Key features include:

RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
264KB of SRAM, and 4MB of on-board Flash memory
USB-C connector, keeps it up to date, easier to use
Lithium battery recharge/discharge header, suitable for mobile devices
Onboard DC-DC chip TPS63000, high efficiency DC-DC buck-boost chip, 1.8A current switch
Castellated module allows soldering direct to carrier boards
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
26 × multi-function GPIO pins
2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
Accelerated floating-point libraries on-chip
8 × Programmable I/O (PIO) state machines for custom peripheral support

Pinheader options

C/C++,MicroPython support

Comprehensive SDK, dev resources, tutorials to help you easily get started

Dual-core Arm processor

Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz

26 × multi-function GPIO pins

configurable pin function, allows flexible development and integration

What's On Board

LED user LED (not power indicator)
ETA6096 high efficiency Lithium battery recharge manager
TPS63000 high efficiency DC-DC buck-boost chip
USB Type-C connector
BOOT button press it when resetting to enter download mode
W25Q32JVSSIQ 4MB NOR-Flash
RESET button

RP2040 dual-core processor, up to 133MHz operating frequency
Battery header MX1.25 header, for 3.7V Lithium battery, allows recharging the battery and powering the board at the same time
Pinout compatible with Raspberry Pi Pico
USB test points connecting to USB interface
BOOT test point connecting to BOOT button
DEBUG points

outline dimensions

Resources & Services

Wiki: RP2040-Plus

Selection guide

Brand	Raspberry Pi	Waveshare
Product	Original	Mini ver.	LCD ver.	Plus ver.
Processor	Raspberry Pi official RP2040 microcontroller
Regulator	RT6150 (DC-DC, 800mA)	ME6217 (LDO, 800mA)	TPS63000 (DC-DC, 1800mA)
USB	Micro USB	Type-C
Flash	2MB			4MB
Battery header	N/A		Yes(concurrent recharging and powering)
Integrated LCD	N/A		0.96inch IPS LCD	N/A

Package Contents

RP2040-Plus

RP2040-Plus x1

RP2040-Plus-M

RP2040-Plus with pre-soldered header x1

Versandgewicht:	0,01 kg
