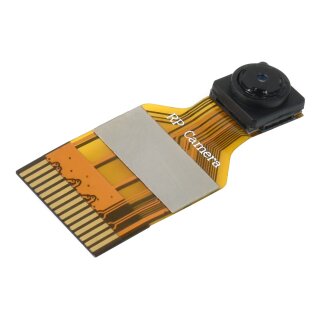

Waveshare 20869 RPi FPC Camera (B)
Beschreibung

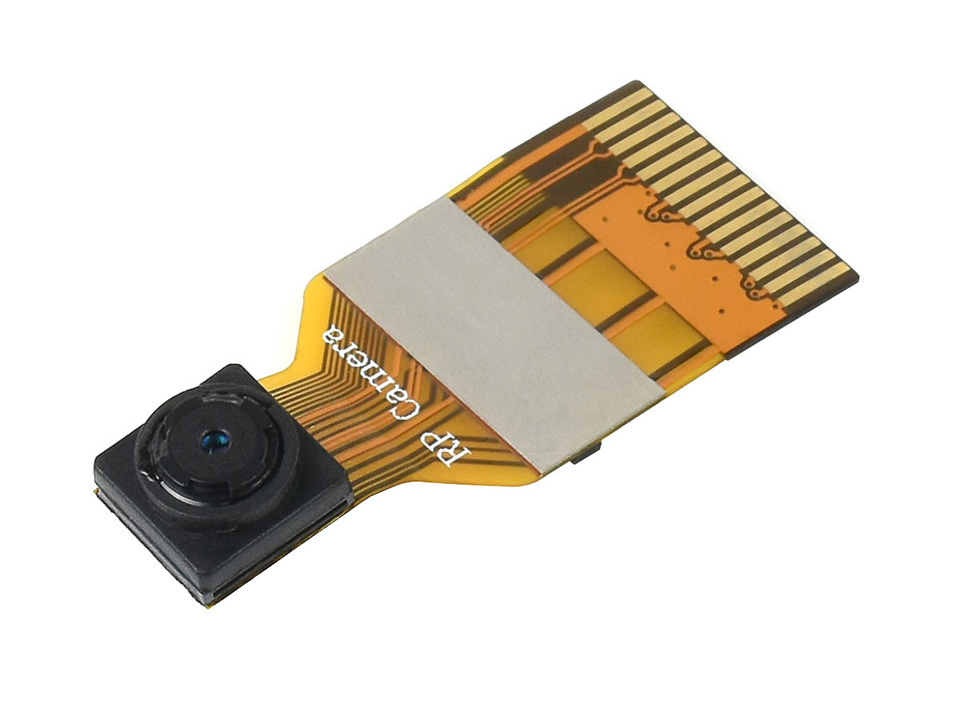

FPC Camera for Raspberry Pi
5MP mini size camera module
Compatible with Raspberry Pi series boards
Device Support
Raspberry Pi series
Supports Pi 4B / 3A+ / 3B+ / 3B / B+ / A+,and CM3/3+/4 (extra adapter board required)
Specifications
| Sensor | OV5647 | CMOS size | 1/4 inch |
|---|---|---|---|
| Pixels | 5MP | Aperture | F2.4 |
| Focal length | 3.89mm | Field of view | 72.9° |
| Distortion | < 1.5% | Depth of Field | 20cm ~ 8 |
| Image | 2592 × 1944 still picture resolution | ||
| Video | 1920 × 1080p @30, 1280 × 720p @60, 640 × 480p @60, 640 × 480p @90 | ||

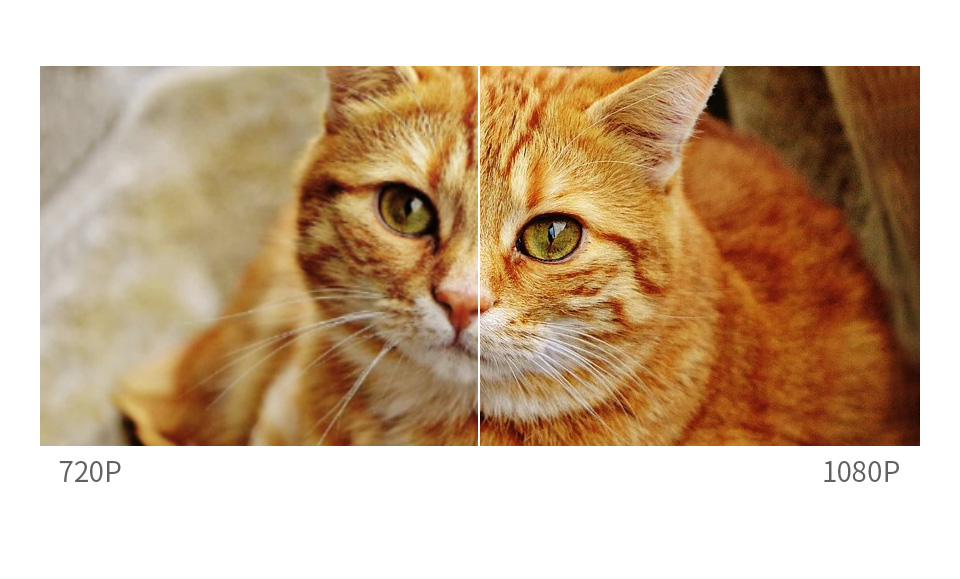

more clear 1080P HD video recording

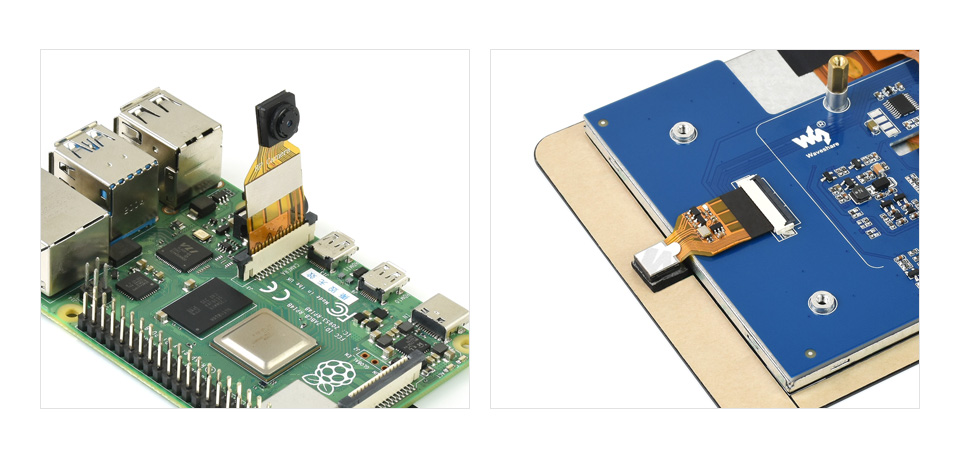

Application examples
mini size, direct integration into displays or Raspberry Pi-powered projects,suitable for sorts of compact applications
Raspberry Pi and display are NOT included.

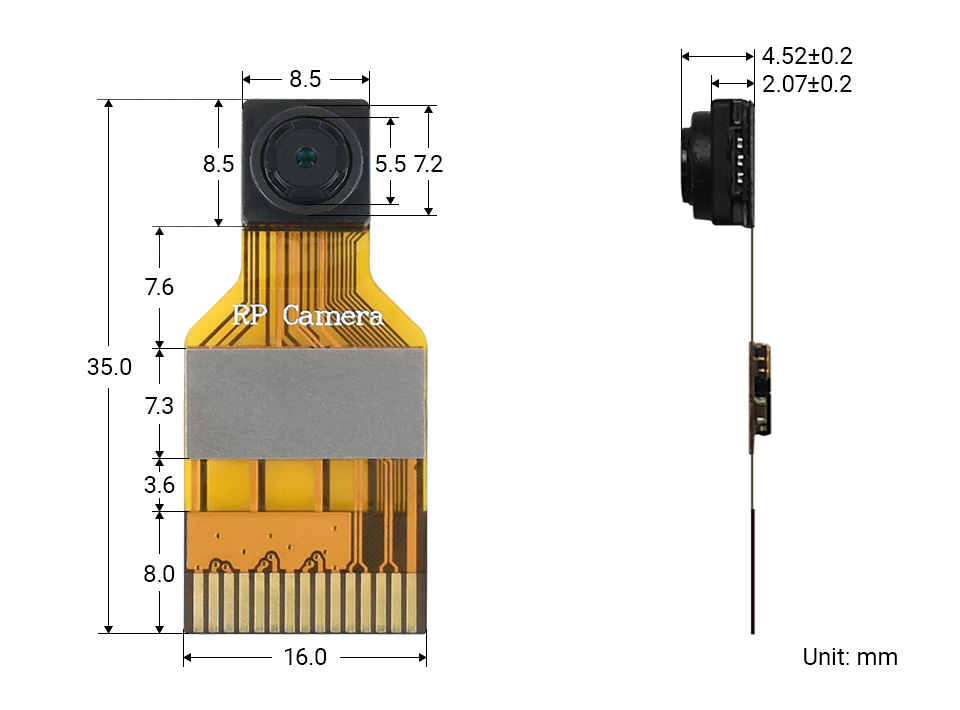

Outline dimensions
Selection Guide
| Partnumber | IR filter | Aperture | Focal Length (mm) | Adjustable Focus Distance | Angle of View (diagonal) | Dimensions (mm) |
|---|---|---|---|---|---|---|
| RPi Camera (B) | integrated | 2 | 6 | √ | 60.6° | 32×32 |
| RPi Camera (E) | N/A | 2.8 | 3.21 | - | 69.8° | 25×24 |
| RPi Camera (F) | N/A | 2 | 3.6 | √ | 50° | 25×24 |
| RPi Camera (G) | integrated | 2.35 | 3.15 | √ | 160° | 25×24 |
| RPi Camera (H) | N/A | 2.35 | 3.15 | √ | 160° | 25×24 |
| RPi Camera (I) | integrated | 2 | 1.85 | √ | 185° | 32×32 |
| RPi Camera (M) | integrated | 2 | 0.87 | √ | 200° | 25×24 |
| RPi IR-CUT Camera | N/A | 2 | 3.6 | √ | 50° | 31×32 |
| RPi IR-CUT Camera (B) | N/A | 1.4 | 8 | √ | 40° | 31×32 |
| RPi Zero V1.3 Camera | integrated | 2.8 | 3.21 | - | 69.8° | 60×11.5 |
| RPi FPC Camera | integrated | 2.8 | 3.21 | - | 69.8° | 300×16 |
| RPi FPC Camera (B) | N/A | 2.4 | 3.89 | - | 72.9° | 35×16×5 |
- Unless otherwise specified, cameras on the table are compatible with Raspberry Pi, CM3/3+/4, please refer to the detail product page for more information.
- Normal IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, and that is the reason why they can capture image in the night by using IR fill light. If you're looking for cameras that can capture image in correct color in both day and night, please choose RPi IR-CUT Camera and RPi IR-CUT Camera (B).
Package Contents
- RPi FPC Camera (B) x1

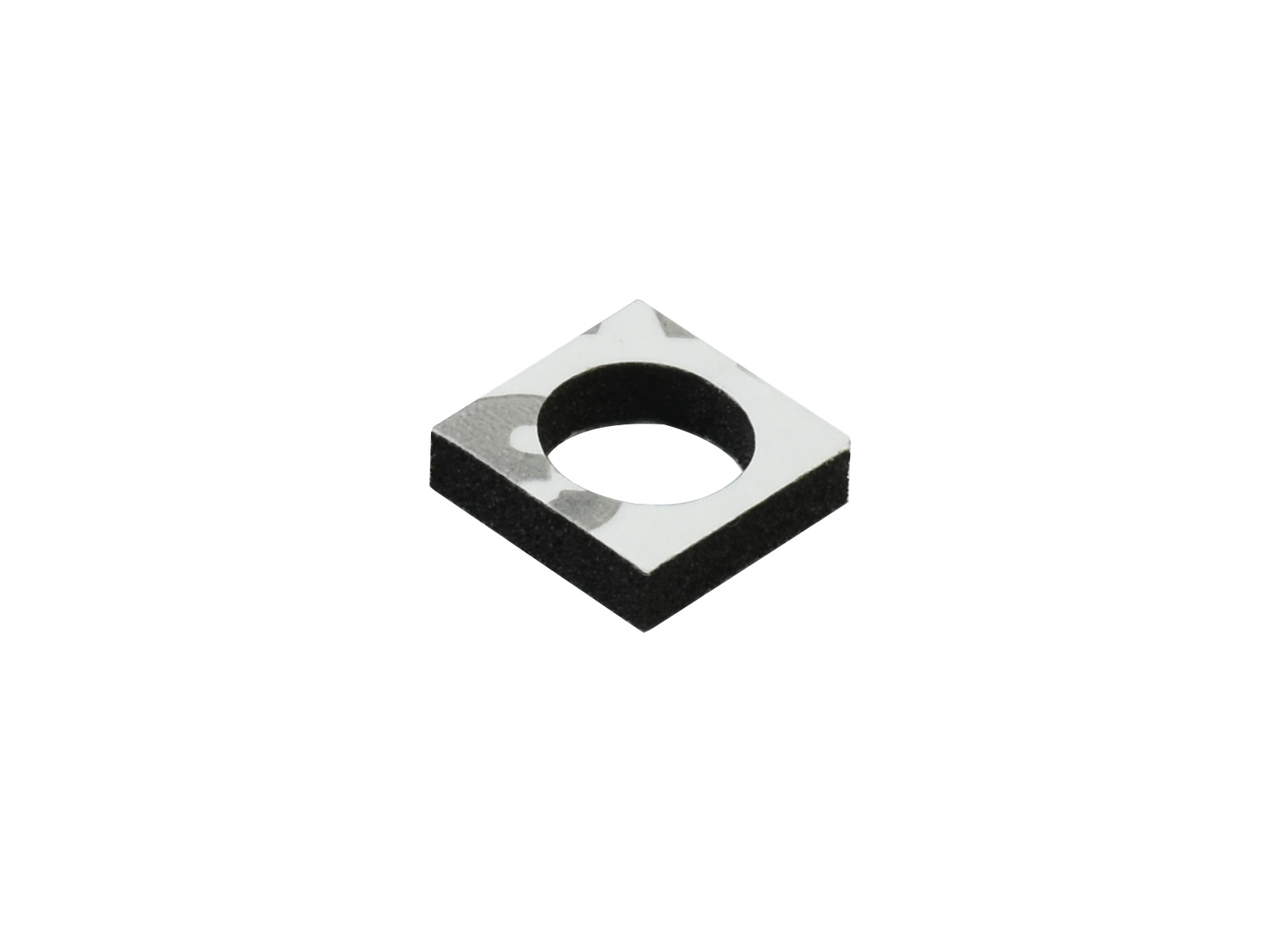

- Foam gasket x1
1
2
