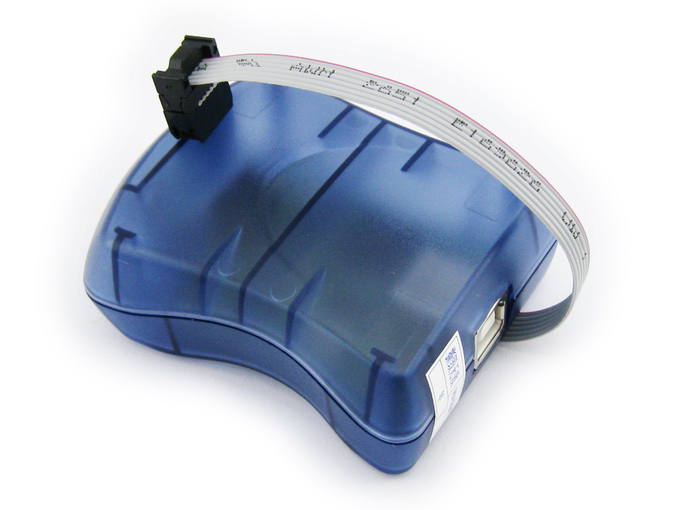

Waveshare 302 USB AVRISP XPII

Artnr.: WS1-000302

Waveshare 302 USB AVRISP XPII

AVR ISP Programmer, kompatibel mit AT AVRISP mkII von ATMEL

34,90 € inkl. 19% MwSt.

29,33 € exkl. MwSt.

zzgl. Versand

ab Lager lieferbar

Lieferzeit: 1 - 3 Arbeitstage

Beschreibung

Supports all AVR devices with ISP or PDI interface, and certain 51 Devices
Programs both Flash and EEPROM
Supports Fuses and Lock Bit Programming
Based on AT AVRISP mkII firmware
Upgradable to Support Future Devices
Adjustable ISP programming speed up to 8M frequency
USB 2.0 compliant (full speed, 12Mbps)
3 optional cables to target board

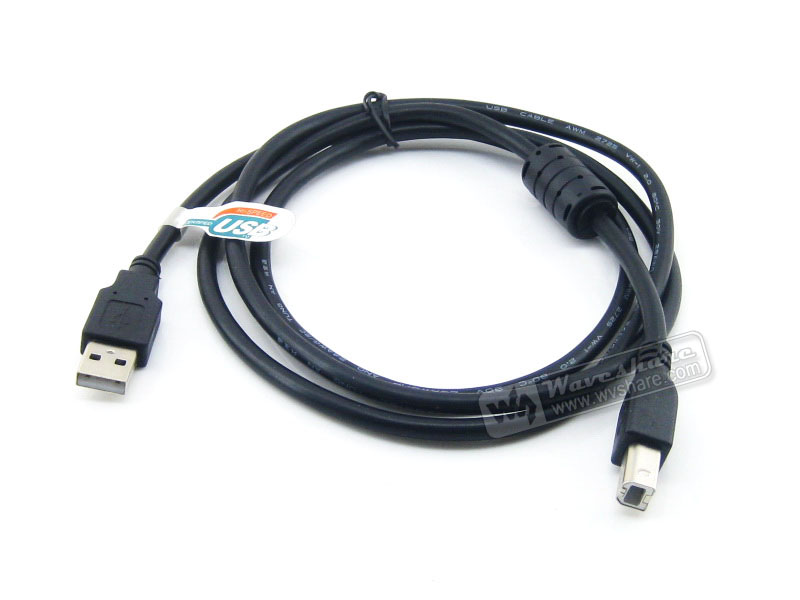

Powered from USB bus, does not require external power supply

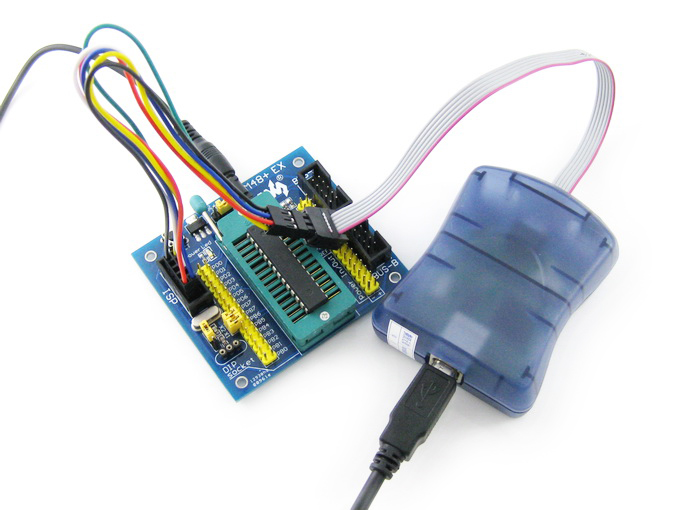

Connecting USB AVRISP XPII to the target board (Click on the image to enlarge)

AT AVRISP mkII compliant - Compatible with AT AVR ISP, easy to use, stable and reliable

Based on AT AVRISP mkII firmware - Identified as AVRISP mkII in AVRStudio, high speed programming

Upgradable firmware- Firmware is upgradable to Support Future Devices- Automatic Upgrade

Supported software - AVR Studio 4/5/6 or WINAVR(GCC) is used as front-end software - Supports the program files generated by IAR, ICCAVR, CVAVR

Device Support - USB AVRISP XPII supports all AVR devices with ISP and PDI Interface. Support for new devices will be added with new versions of AVR Studio. - Supports AT86RF401/AT89S51/AT89S52

Refer to AVR Studio 6, the following devices are supported:

AVR Mega
AT90CAN128 AT90CAN32 AT90CAN64 AT90PWM1 AT90PWM161 AT90PWM216 AT90PWM2B AT90PWM316 AT90PWM3B AT90PWM81 AT90USB1286 AT90USB1287 AT90USB162 AT90USB646 AT90USB647 AT90USB82 ATA5702M322 ATA5782 ATA5790 ATA5790N ATA5795 ATA5831 ATA5832 ATA5833 ATA6285 ATA6286 ATA6612C ATA6613C ATA6614Q ATA6616C ATA6617C ATA664251 ATmega128 ATmega1280 ATmega1281 ATmega1284 ATmega1284P ATmega1284RFR2 ATmega128A ATmega128RFA1 ATmega128RFR2 ATmega16 ATmega162 ATmega164A ATmega164P ATmega164PA ATmega165A ATmega165P ATmega165PA ATmega168 ATmega168A ATmega168P ATmega168PA ATmega168PB ATmega169A ATmega169P ATmega169PA ATmega16A ATmega16HVA ATmega16HVB ATmega16HVBrevB ATmega16M1 ATmega16U2 ATmega16U4 ATmega2560 ATmega2561 ATmega2564RFR2 ATmega256RFR2 ATmega32 ATmega324A ATmega324P ATmega324PA ATmega325 ATmega3250 ATmega3250A ATmega3250P ATmega3250PA ATmega325A ATmega325P ATmega325PA ATmega328 ATmega328P ATmega329 ATmega3290 ATmega3290A ATmega3290P ATmega3290PA ATmega329A ATmega329P ATmega329PA ATmega32A ATmega32C1 ATmega32HVB ATmega32HVBrevB ATmega32M1 ATmega32U2 ATmega32U4 ATmega48 ATmega48A ATmega48P ATmega48PA ATmega48PB ATmega64 ATmega640 ATmega644 ATmega644A ATmega644P ATmega644PA ATmega644RFR2 ATmega645 ATmega6450 ATmega6450A ATmega6450P ATmega645A ATmega645P ATmega649 ATmega6490 ATmega6490A ATmega6490P ATmega649A ATmega649P ATmega64A ATmega64C1 ATmega64HVE2 ATmega64M1 ATmega64RFR2 ATmega8 ATmega8515 ATmega8535 ATmega88 ATmega88A ATmega88P ATmega88PA ATmega88PB ATmega8A ATmega8HVA ATmega8U2
AVR Tiny
ATtiny10 ATtiny13 ATtiny13A ATtiny1634 ATtiny167 ATtiny20 ATtiny2313 ATtiny2313A ATtiny24 ATtiny24A ATtiny25 ATtiny26 ATtiny261 ATtiny261A ATtiny4 ATtiny40 ATtiny4313 ATtiny43U ATtiny44 ATtiny441 ATtiny44A ATtiny45 ATtiny461 ATtiny461A ATtiny48 ATtiny5 ATtiny828 ATtiny84 ATtiny841 ATtiny84A ATtiny85 ATtiny861 ATtiny861A ATtiny87 ATtiny88 ATtiny9
AVR Xmega
ATxmega128A1 ATxmega128A1U ATxmega128A3 ATxmega128A3U ATxmega128A4U ATxmega128B1 ATxmega128B3 ATxmega128C3 ATxmega128D3 ATxmega128D4 ATxmega16A4 ATxmega16A4U ATxmega16C4 ATxmega16D4 ATxmega16E5 ATxmega192A3 ATxmega192A3U ATxmega192C3 ATxmega192D3 ATxmega256A3 ATxmega256A3B ATxmega256A3BU ATxmega256A3U ATxmega256C3 ATxmega256D3 ATxmega32A4 ATxmega32A4U ATxmega32C3 ATxmega32C4 ATxmega32D3 ATxmega32D4 ATxmega32E5 ATxmega384C3 ATxmega384D3 ATxmega64A1 ATxmega64A1U ATxmega64A3 ATxmega64A3U ATxmega64A4U ATxmega64B1 ATxmega64B3 ATxmega64C3 ATxmega64D3 ATxmega64D4 ATxmega8E5

Supports all the different voltages and speed grade versions of the devices listed in the table above. Check more supported devices : UC3,Mega,SAM,Tiny,Xmega

Performance - High speed programs FLASH , EEPROM, Fuses, and Lock Bit - It takes only 2.5S to program a 12K program file with verification (programming speed was set to 1M while the Max speed could be up to 8M)

Connects to PC - Uses a USB interface for communication with the front-end software (Probably AVR Studio) - Using PDIUSBD12, USB 1.1 (USB 2.0 Full Speed) 12Mbits/second - Each USB AVRISP XPII has a unique ID, a PC could connects to several Devices at the same time

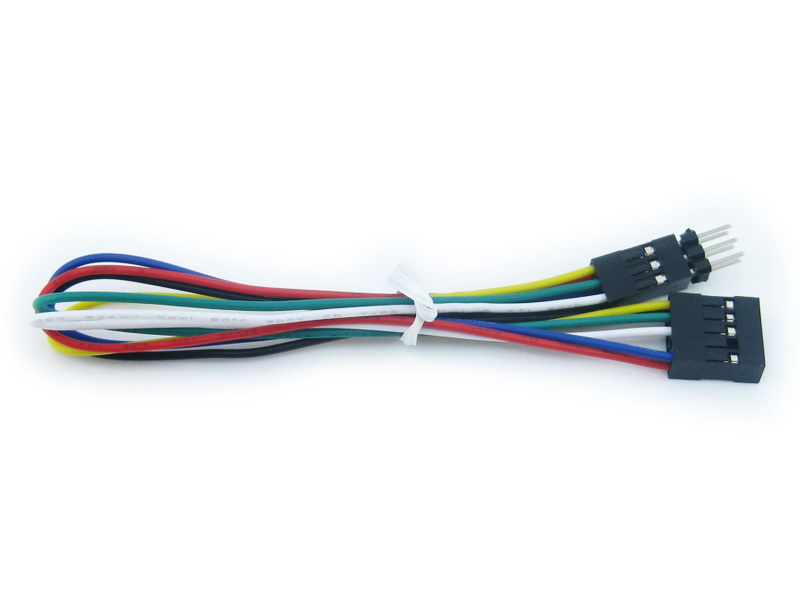

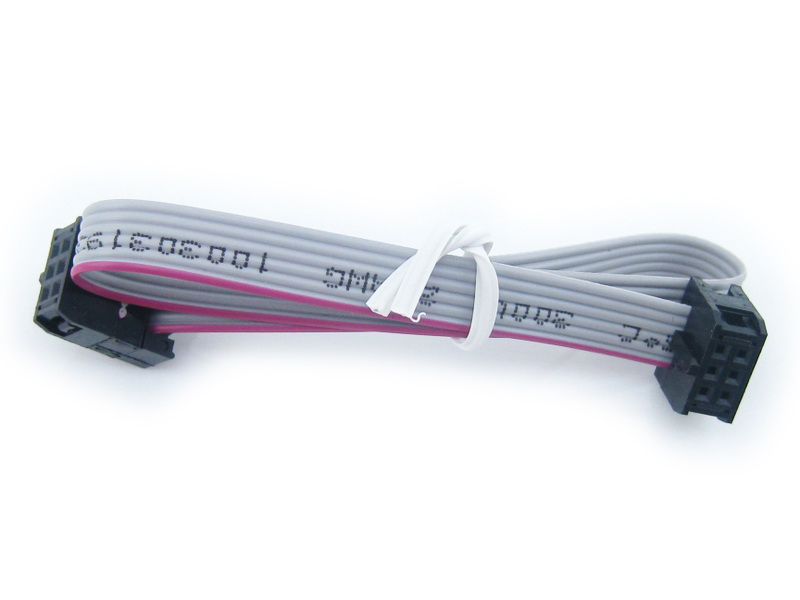

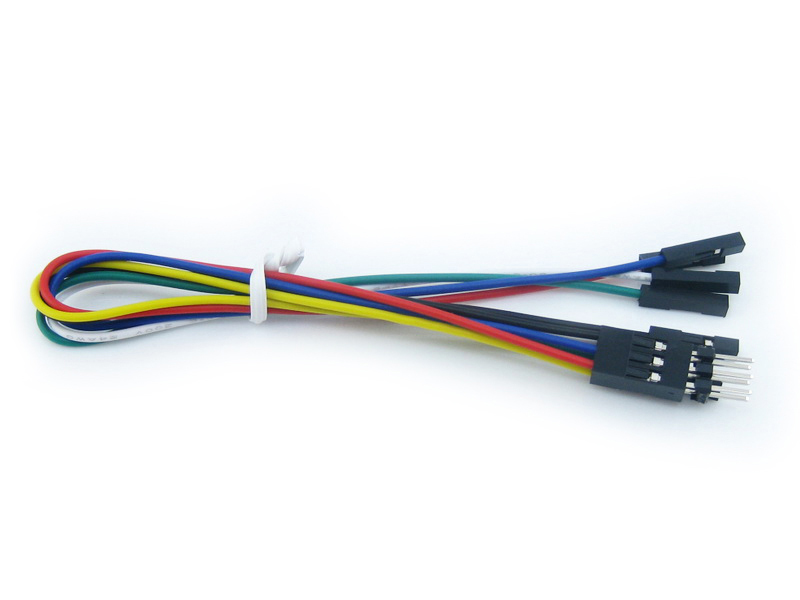

Connects to target boardThe USB AVRISP XPII connects to the target board through 3 optional cables. Depending on the existed connector on the target board, the cable has to be changed accordingly.- Standard 6-pin ISP Connector, Using 6-pin ISP cable- Standard 10-pin ISP Connector, Using 6-pin to 10-pin ISP cable- Custom ISP Connector, Using 6-wire multicolour custom connector cableThe figure 1 and 2 shows the pinouts for the 10-pin and 6-pin ISP connectors.

Figure 1. 10-pin ISP Connector pinouts for 10-pin ISP Connector

Figure 2. 6-pin ISP Connector pinouts for 6-pin ISP Connector

Powered from USB bus- Draws power from the USB bus, No need for Additional Power Supply- The target board should be powered from Another Power Supply

Downloads

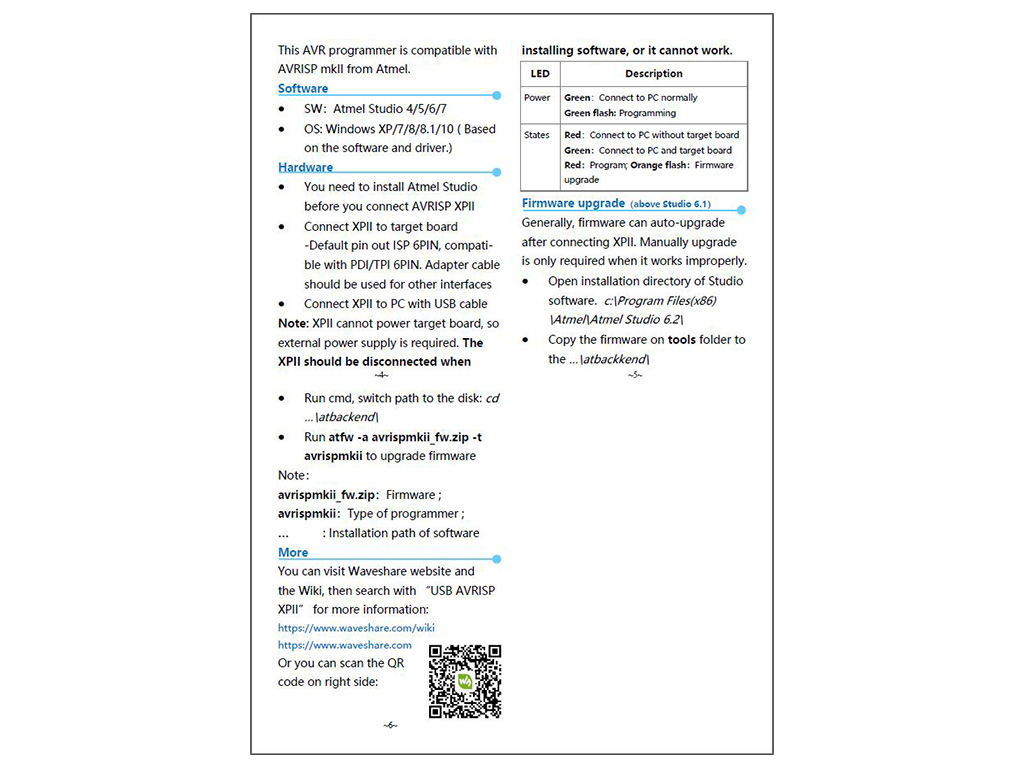

Development resources: user guide, software, etc. Wiki: www.waveshare.com/wiki/USB_AVRISP_XPII

Selection Guide

Programmer	ISP-6PIN	ISP-10PIN	ISP Custom	Connect to PC	Speed	Supported AVR Studio
USB AVRISP CH	directly support	via adapter cable	via adapter cable	USB TO COM (CH340G)	★★★☆	4/5/6/7
USB AVRISP PL	via adapter cable	directly support	via adapter cable	USB TO COM (PL2303TA)	★★★	4 or lower version
AT AVRISP	-	directly support	-	Serial port	★★★	4 or lower version
USB AVRISP XPII	directly support	via adapter cable	via adapter cable	USB(PDIUSBD12)	★★★★★	4/5/6/7
AT AVRISP MKII	directly support	via adapter cable	-	USB(PDIUSBD12)	★★★★★	4/5/6/7
