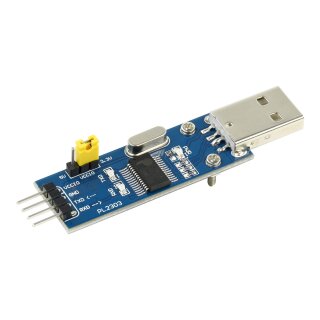

Waveshare 4037 PL2303 USB UART Board (type A)
Beschreibung
Features
- PL2303TA onboard (the latest device, compatible with PL2303HXA)
- Supports windows XP/7/8/8.1/10/...
- 3 power mode : 5V output, 3.3V output, or powered by target board (3.3V-5V)
- 3 LEDs: TXD LED, RXD LED, POWER LED
How to Use
In the case of working with a MCU:
- VCCIO ? 3.3V or 5V output (the module is powered from USB, onboard jumper should be shorted to 3.3V or 5V)
- GND ? GND
- TXD ? MCU.RX (signal direction: MCU.RX << PL2303 << PC.TX)
- RXD ? MCU.TX (signal direction: MCU.TX >> PL2303 >> PC.RX)

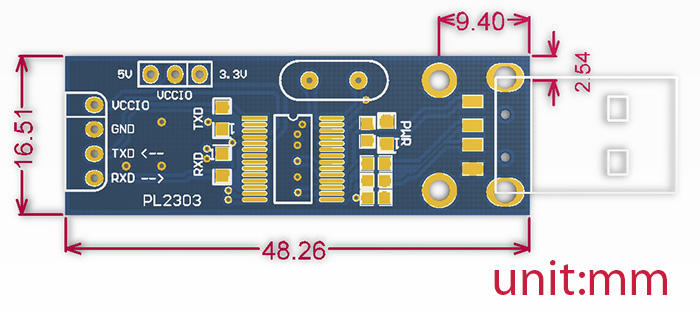

Dimension
Development Resources
Wiki : www.waveshare.com/wiki/PL2303_USB_UART_Board_(type_A)
Package Contents
- PL2303 USB UART Board (type A) x1
- 4-pin custom connector jumper wire x1
1
2
| Versandgewicht: | 0,02 Kg |
