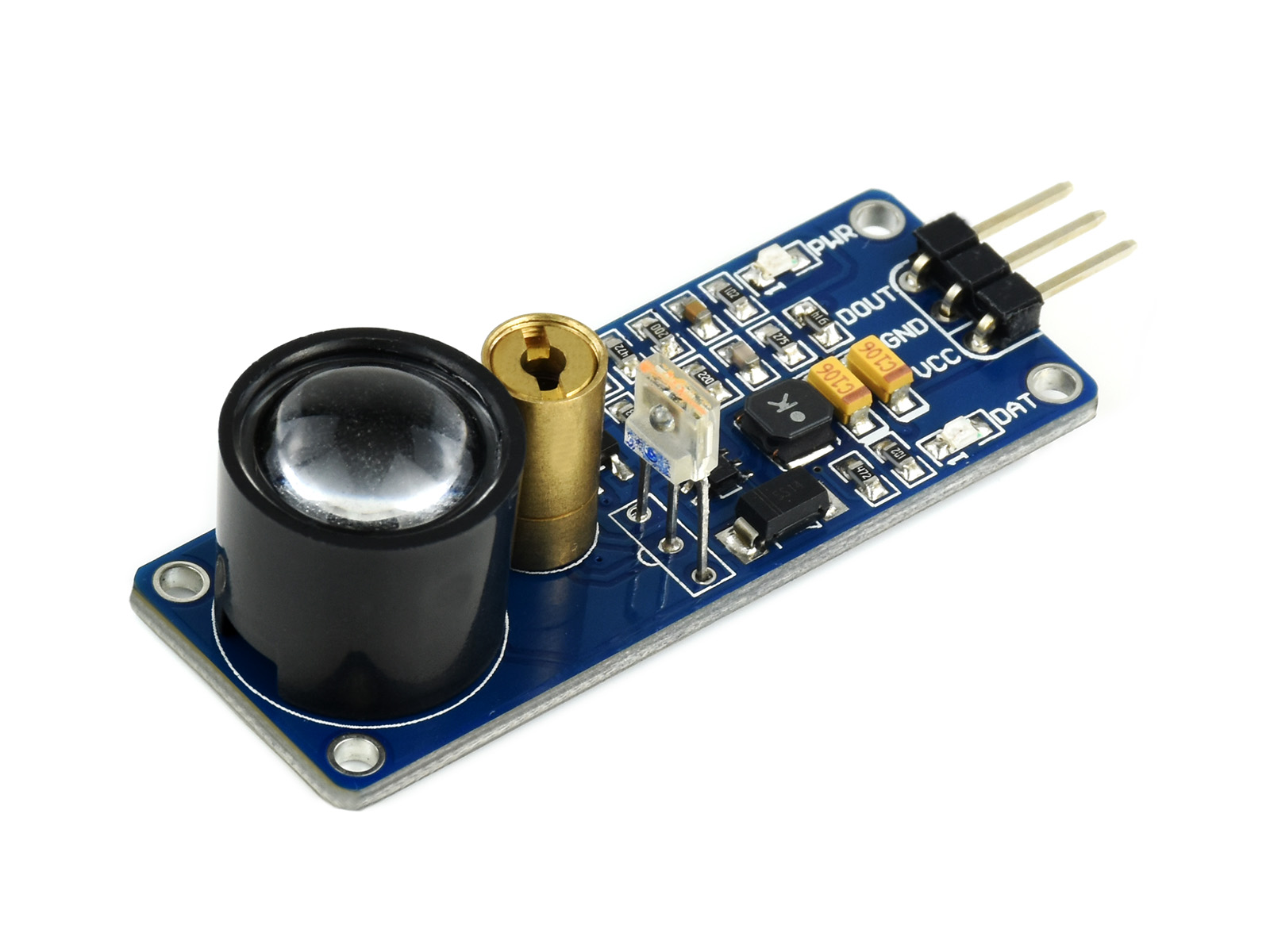

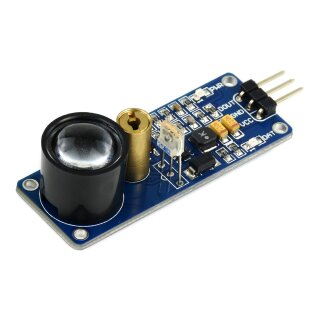

Waveshare 9524 Laser Sensor
Beschreibung
- Features boost circuit
- Signal output indicator
Specifications
- Effective distance: 0.8m(typ), 1.5m(max)
- Power: 2.5V ~ 5.0V
- Dimension: 47.7mm * 17.9mm
- Mounting holes size: 2.0mm
Applications
- Obstacle detection
- Pipeline counter
- Smart robot
- Obstacle-avoiding car
How to Use
In the case of working with a MCU:
- VCC ↔ 2.5V ~ 5.0V
- GND ↔ power supply ground
- DOUT ↔ MCU.IO (digital output)
Downloads
Development resources: demo codes, schematic, datasheets, etc. Wiki: www.waveshare.com/wiki/Laser_Sensor
Package Contents
- Laser Sensor x1

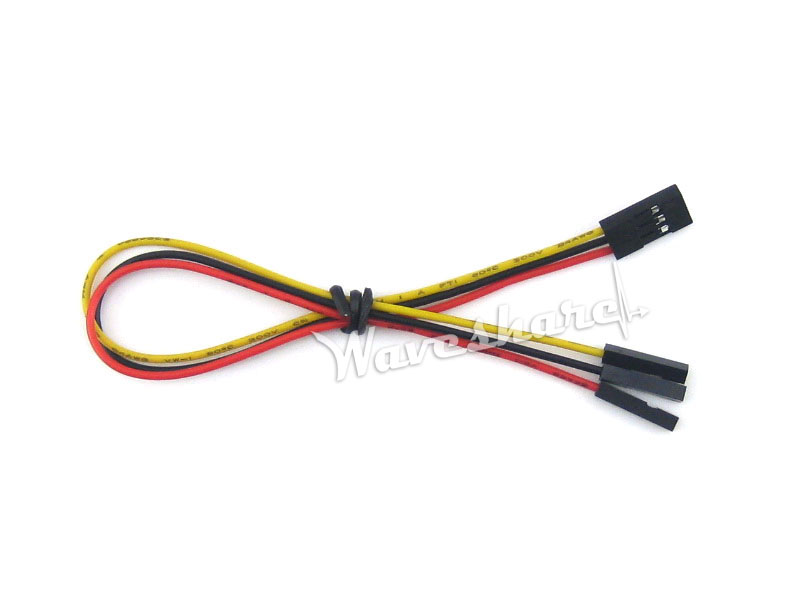

- 3-pin custom connector jumper wire x1
