| 5G wireless specification |
|---|

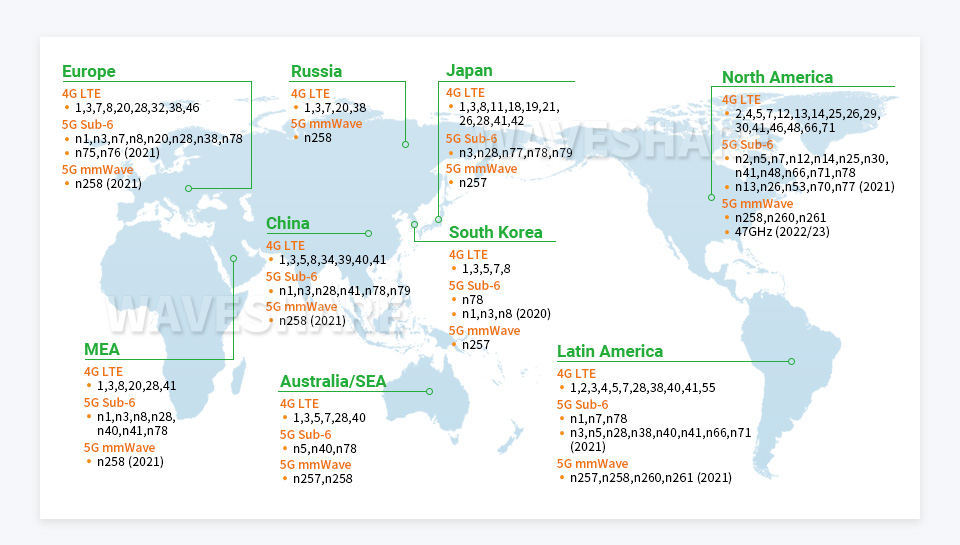

| Frequency band |
5G Sub-6G: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n40, n41, n66, n71, n77, n78, n79 |
| LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B66, B71 |
| LTE-TDD: B34, B38, B39, B40, B41, B42, B48 |
| WCDMA: B1, B2, B3, B4, B5, B8 |
| GNSS: GPS, GLONASS, BeiDou, Galileo, and QZSS |
| Data rate |
5G Sub-6G: 4 Gbps (DL) / 500 Mbps (UL) |
| LTE: 2 Gbps (DL) / 200 Mbps (UL) |
| HSPA+: 42 Mbps (DL) / 5.76 Mbps (UL) |
| WiFi wireless specification |
|---|
| WiFi standard |
IEEE802.11b/g/n compliant, 2.4GHz, supports AP mode |
| Data rate |
2.4GHz: up to 300Mbps |
| Authentication |
supports encryption methods including WEP, WPA, WPA2, etc. |

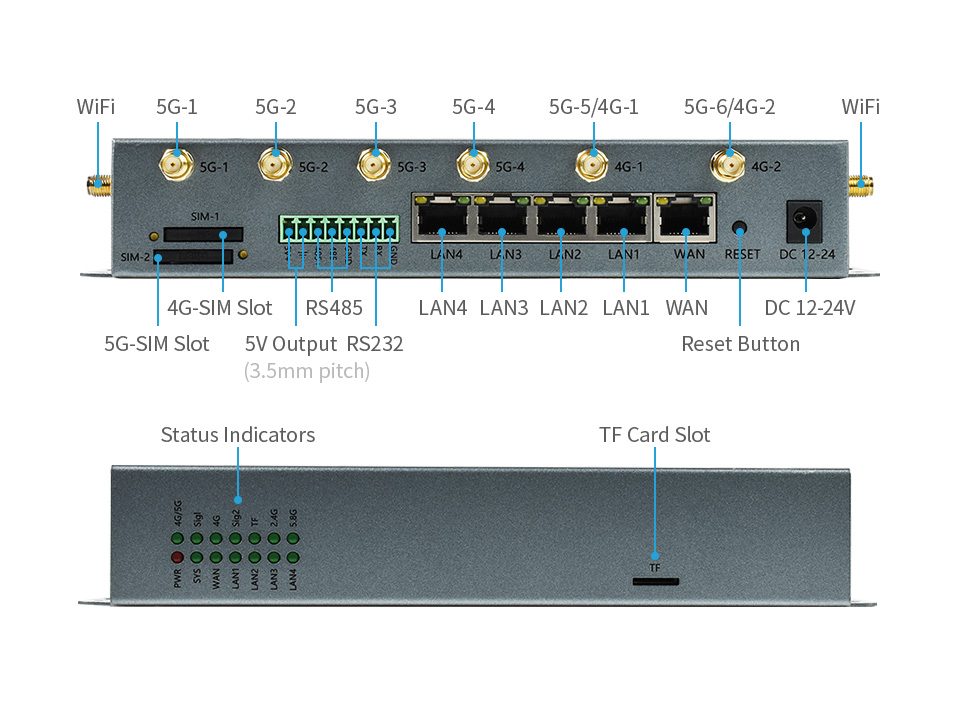

| Interfaces |
|---|
| M.2 |

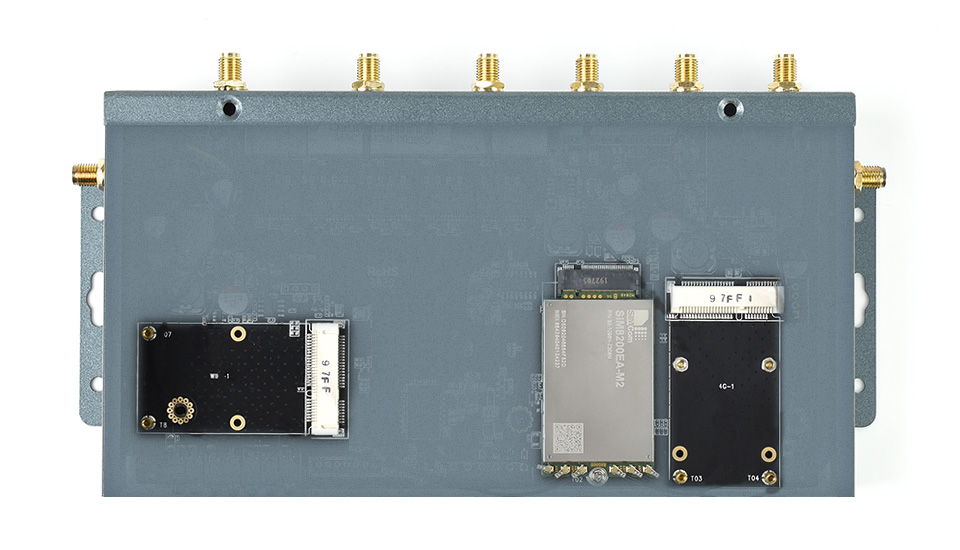

1x connector, comes with 1x SIM8200EA-M2 module by default, supports other 5G modules |
| mini PCIE |
3x connectors, comes with 1x 2.4GHz WiFi module, allows connecting one more 4G module and one more 5.8GHz WiFi module |
| WAN |
1x 10 / 100 / 1000M Ethernet, auto-negotiation MDI/MDIX, embedded 1.5KV electromagnetic isolation protection(the WAN RJ45 can be used as LAN RJ45 port, so there could be totally 5x LAN RJ45 port) |
| LAN |
4x 10 / 100 / 1000M Ethernet, auto-negotiation MDI/MDIX, embedded 1.5KV electromagnetic isolation protection |

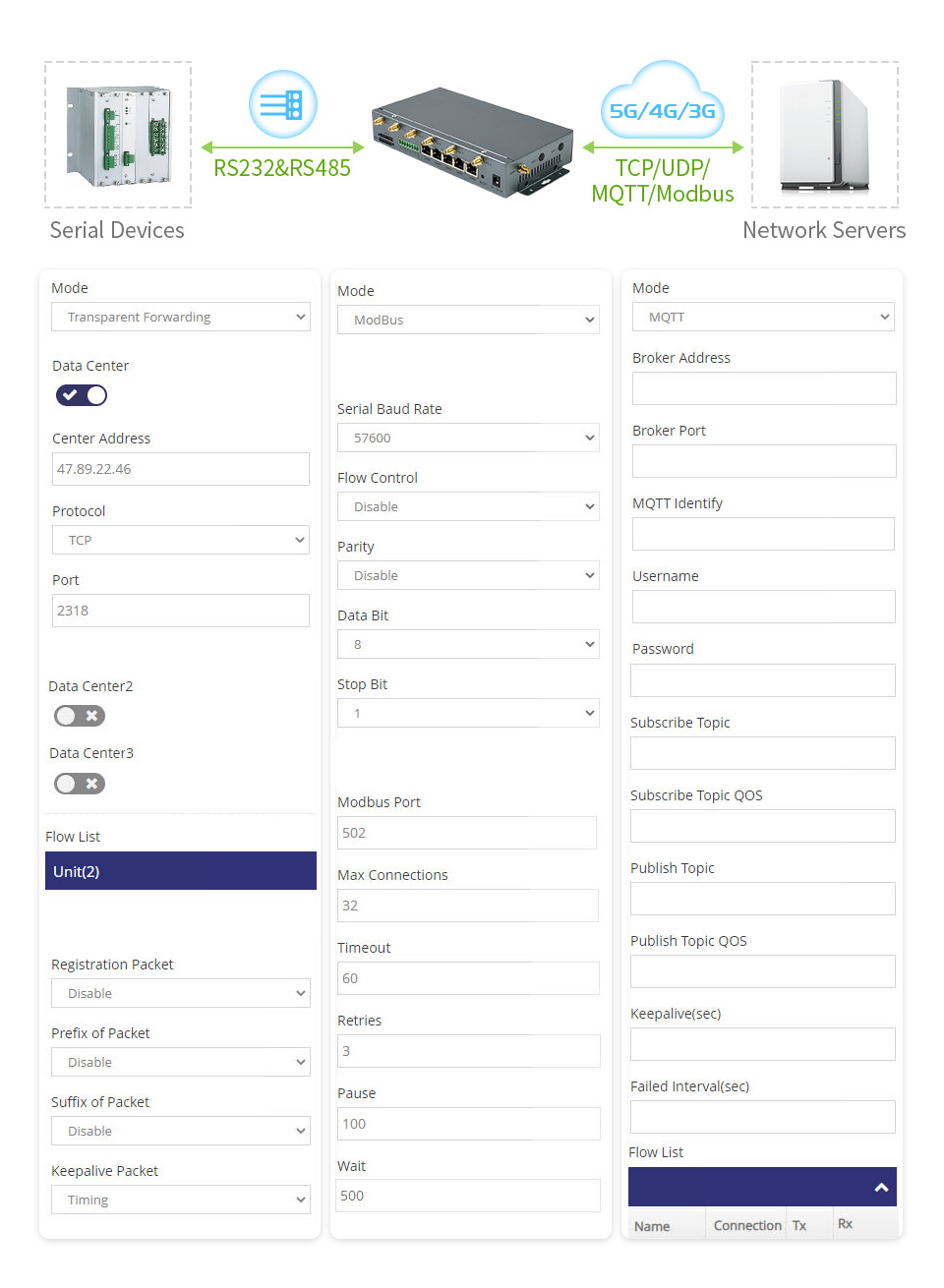

| Serial port |
1x RS232 + 1x RS485, embedded ESD protection |
| SIM/UIM card slot |
drawer SIM card slot, prevents the SIM card from dropping out, embedded 15KV ESD protection |

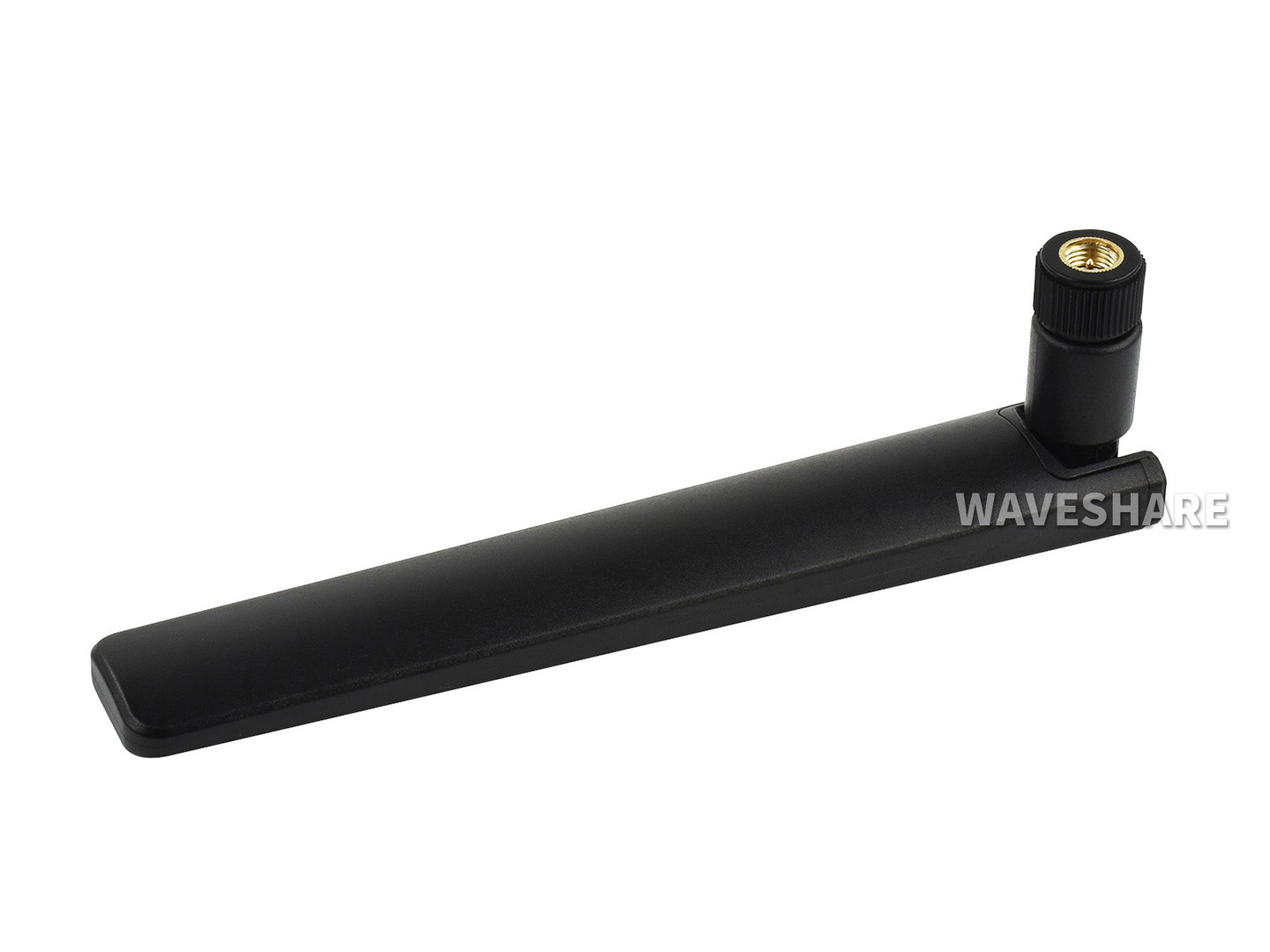

| Antenna connector |

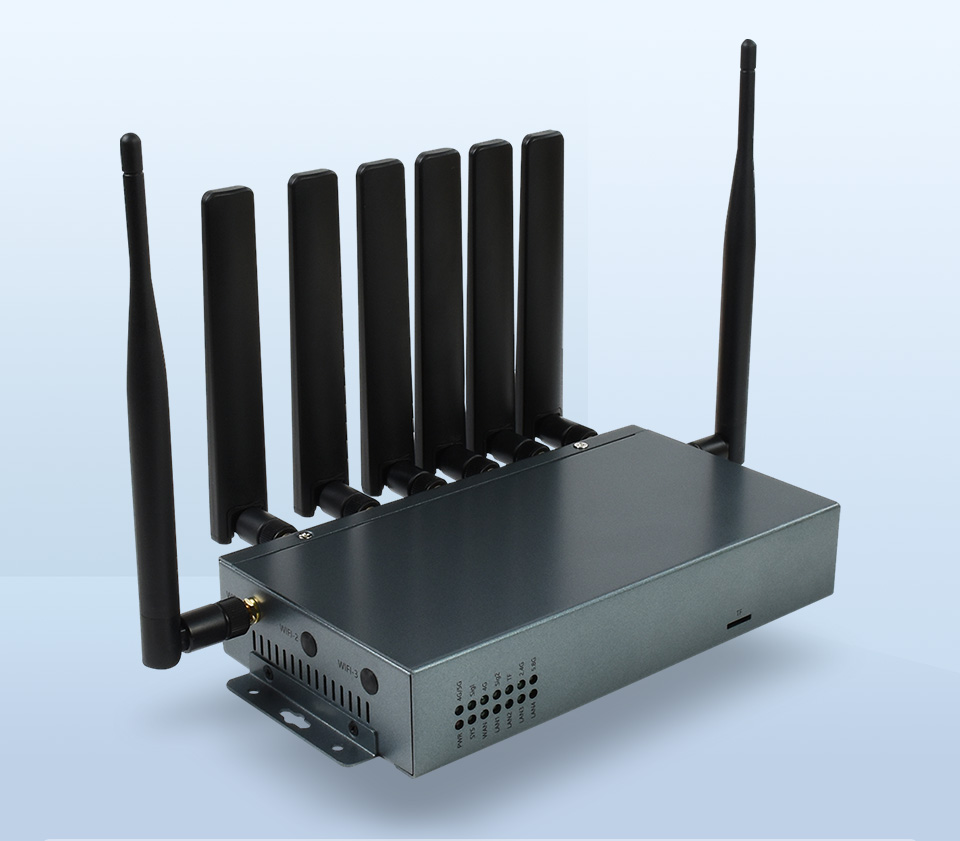

SMA standard antenna connector, comes with 6x 5G antennas, 2x WiFi antennas by default |
| TF card slot |
for external storage |
| Power supply |
standard power supply interface, supply 12~24V input, embedded power supply phase-reversal protection and over-voltage protection |
| RESET button |
press and hold for 5~10s then release, restores the router to factory setting |
| Indicators |
PWR, SYS, 5G, 4G, WAN, LAN, TF, 2.4G, 5.8G status indicators |
| Power supply |
|---|
| Power adapter |
DC 12V/2A |
| Power input range |
12 ~ 24V |
| Power consumption |
data mode: <1A@12V, idle mode: <500mA@l2V |
| Mechanical |
|---|
| Case |
Metal case, IP30 protection level |

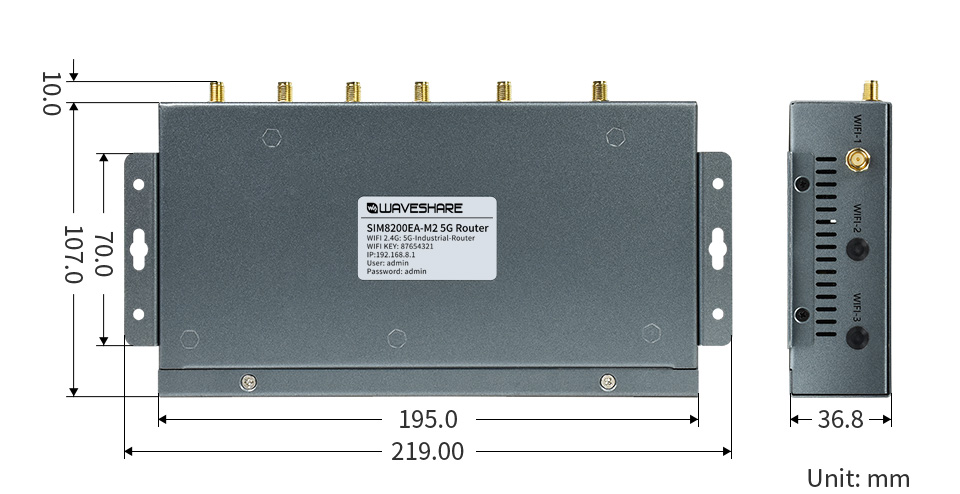

| Dimensions |
195 × 107 × 37mm |
| Operating temperature |
-35 ~ +75ºC |
| Storage temperature |
-40 ~ +85ºC |
| Relative humidity |
95% (non-condensing) |
